Introduction to Forces Between Charges

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we will explore how forces interact when we have multiple electric charges. Can anyone tell me what happens between two like charges?

Student 1
Student 1

They repel each other!

Teacher
Teacher

Exactly! And what about two unlike charges?

Student 2
Student 2

They attract each other.

Teacher
Teacher

Correct! These fundamental interactions lead us to understand how forces from various charges can combine. This is where the principle of superposition comes in. Let's delve into how we calculate the total force acting on a charge when there are multiple others around it.

Calculating Forces Using Coulomb's Law

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Using Coulomb’s law, we can calculate the force between two charges. Who can recall the formula?

Student 3
Student 3

It's F = k * q1 * q2 / r^2.

Teacher
Teacher

Great! Now, if we have a charge q1 and two other charges q2 and q3, how would we approach finding the net force on q1?

Student 4
Student 4

We would calculate the force from q2 on q1 and then the force from q3 on q1, and then sum those forces.

Teacher
Teacher

Precisely! We calculate each force independently and then use vector addition to find the net force. Remember, force is a vector, so we need to consider direction.

Principle of Superposition

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now that we know how to calculate individual forces, let's discuss the principle of superposition. What do you think it means in the context of forces?

Student 1
Student 1

It means we can add up the forces from different charges.

Teacher
Teacher

Exactly! This means that each charge's influence is independent of the others. Can anyone give me an example of a situation where we have multiple charges affecting one charge?

Student 2
Student 2

If we had three charges at the corners of a triangle, we could find the net force on one of them by calculating the forces from the other two.

Teacher
Teacher

Perfect example! The approach will be the same regardless of the number of charges.

Example Problems

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let's solve a problem. If charge q1 is 2μC, and charges q2 and q3 are both 3μC, 10cm away from q1, what would the force on q1 be?

Student 3
Student 3

We could find the force from q2 using Coulomb’s law, and then do the same for q3.

Teacher
Teacher

And don’t forget to consider vector directions! After performing the calculations, you would sum the forces vectorially based on their directions.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section explores the interactions between multiple electric charges and the resultant forces acting upon them.

Standard

Understanding how forces act between multiple charges is crucial in electrostatics. This section introduces the concept of superposition of forces, allowing the calculation of resultant forces on a charge caused by multiple other charges. By examining systems of varying configurations, the principle of superposition illustrates how forces from individual charges combine into a net force.

Detailed

Detailed Summary of Forces Between Multiple Charges

In electrostatics, the forces between multiple charges can be understood through Coulomb's law, which states that the force between two point charges decreases with the square of the distance between them and increases with the magnitude of the charges. When considering more than two charges, calculating the force on a specific charge (let's say q1) becomes more complex because it is influenced by the presence of all other charges in the system (q2, q3, …, qn). In such cases, the principle of superposition comes into play.

According to the principle of superposition, the net force on a charge due to multiple other charges is the vector sum of the individual forces exerted on it by each of the other charges. This means:

  • Each charge exerts a force on the charge of interest independently.
  • These forces can be calculated using Coulomb's law, represented as:

$$ F = k \frac{q_1 q_2}{r^2} $$

where k is Coulomb's constant, and r is the distance between the charges.

To find the total force acting on q1, we calculate the individual forces resulting from all other charges and sum them vectorially:

$$ F_{net} = F_{12} + F_{13} + ... + F_{1n} $$

This section not only highlights the mathematical foundations required to compute forces in multi-charge systems but also outlines important examples to clarify how forces act in various configurations. The insight gained here is foundational for understanding interactions in fields ranging from atomic physics to electrostatics in engineering applications.

Youtube Videos

Forces Between Multiple Charges - Electric Charges and Fields | Class 12 Physics Chapter 1 | CBSE
Forces Between Multiple Charges - Electric Charges and Fields | Class 12 Physics Chapter 1 | CBSE
8. Force between Multiple Charges | Class 12th | Physics handwritten notes #cbse
8. Force between Multiple Charges | Class 12th | Physics handwritten notes #cbse

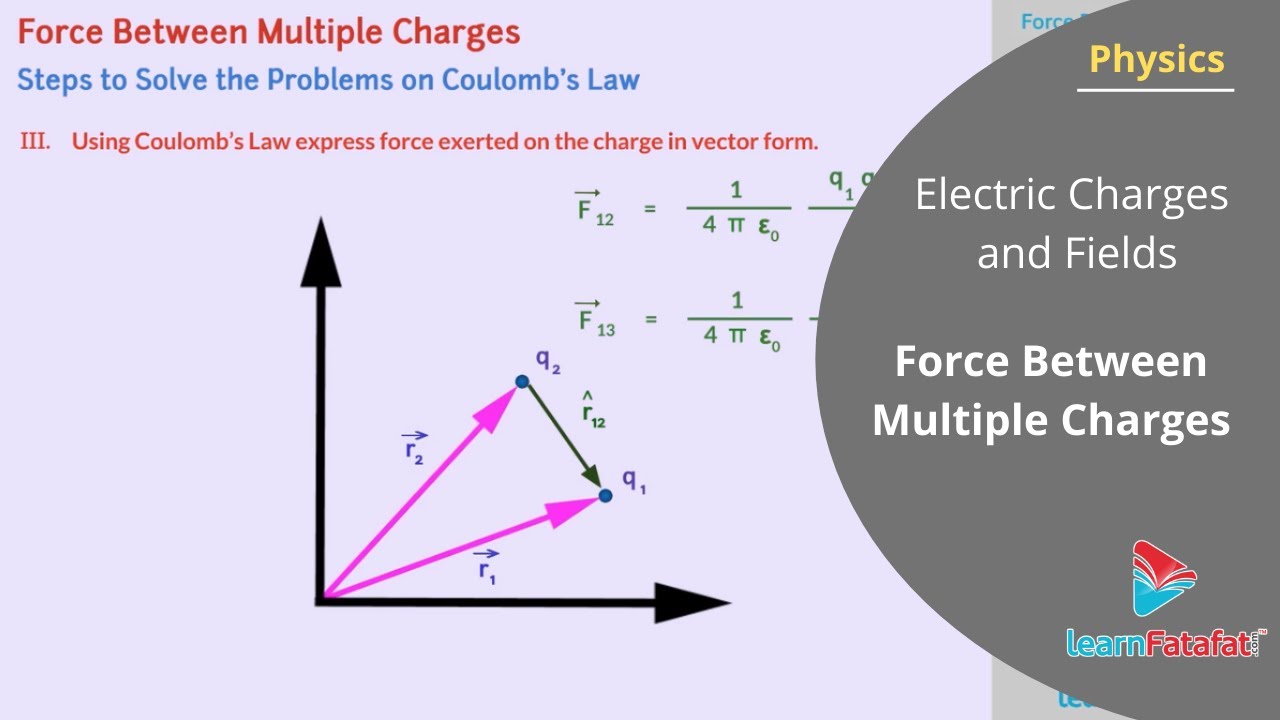

Electric Charges and Fields Class 12 Physics - Force Between Multiple Charges
Electric Charges and Fields Class 12 Physics - Force Between Multiple Charges

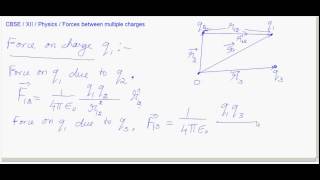

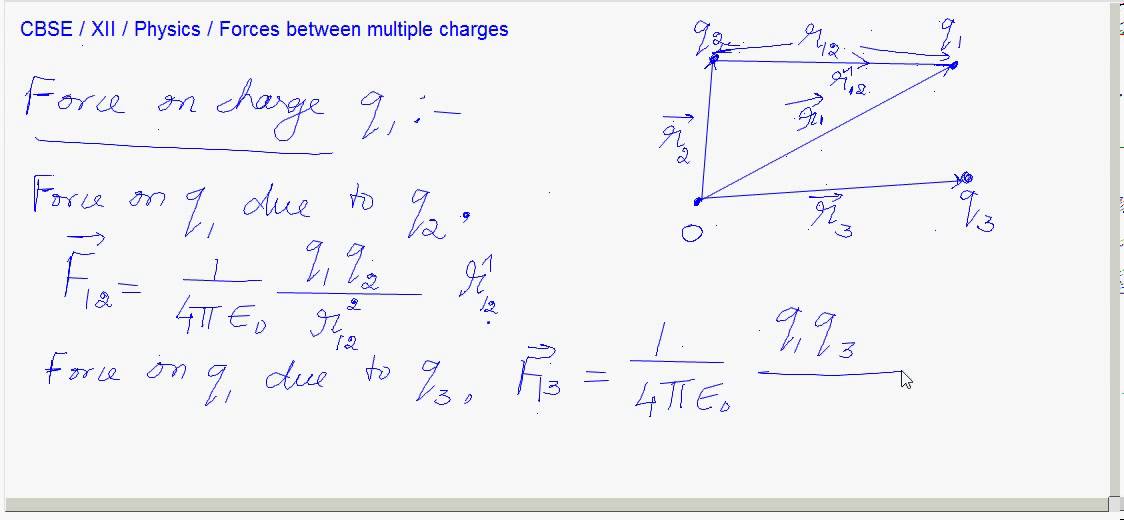

eTuitions CBSE Class XII Physics - Electric charges and fields - Forces between multiple...
eTuitions CBSE Class XII Physics - Electric charges and fields - Forces between multiple...

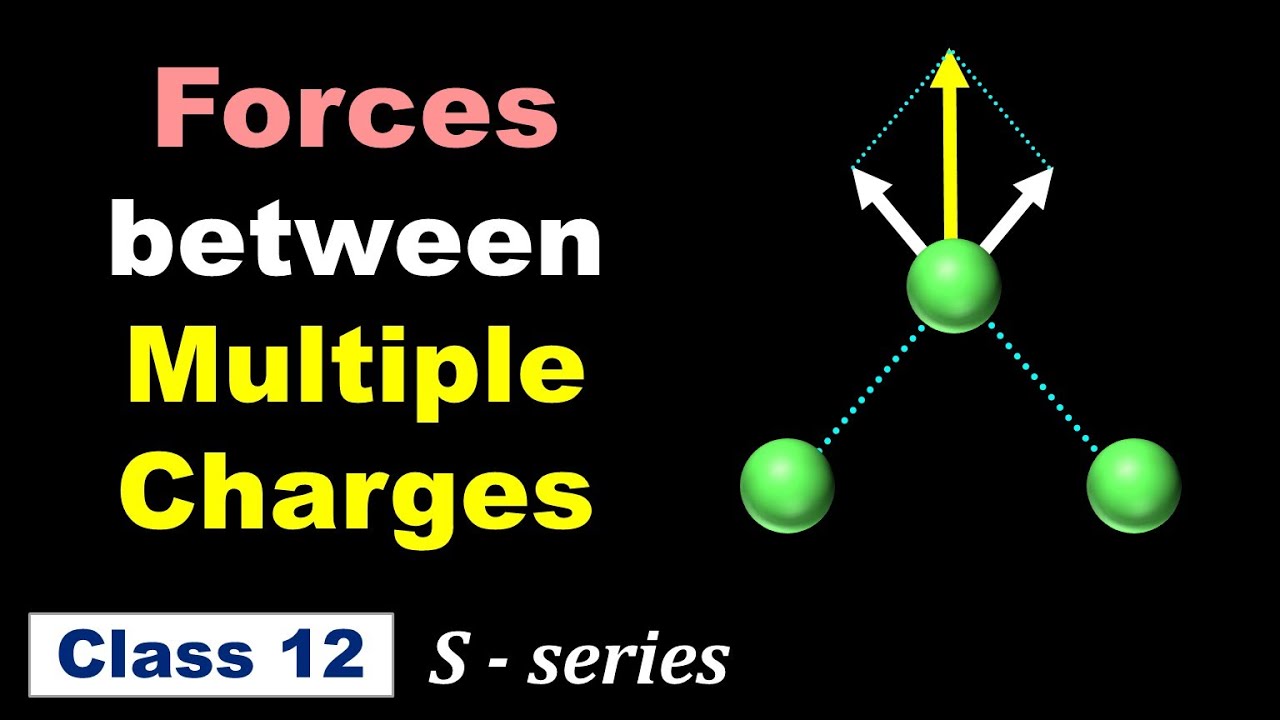

Forces between Multiple Charges  || in Hindi for Class 12
Forces between Multiple Charges || in Hindi for Class 12

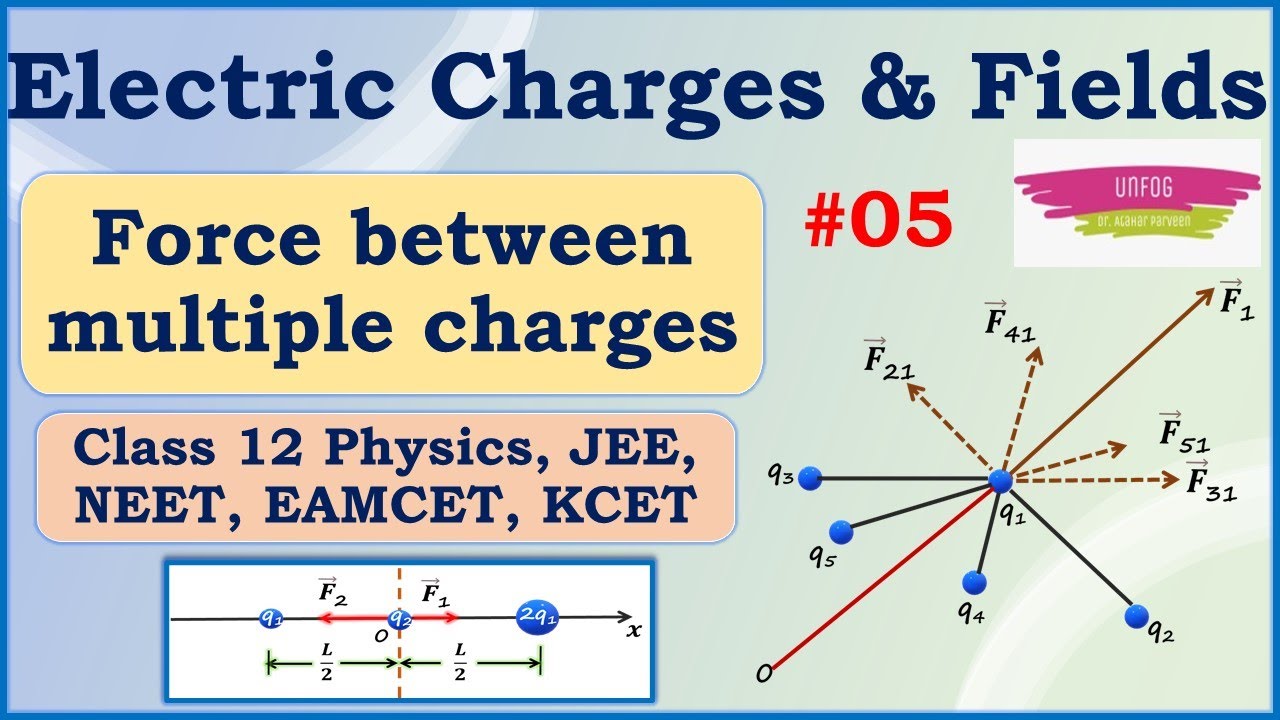

🙂 Superposition Principle for Force Between Multiple Charges |Class 12 Ch 1|Electric Charge &Field 5
🙂 Superposition Principle for Force Between Multiple Charges |Class 12 Ch 1|Electric Charge &Field 5
12P01 - Electric Charges and Fields - Force due to Multiple Charges
12P01 - Electric Charges and Fields - Force due to Multiple Charges
Forces|Between|Multiple|Charges|NCERT|CBSE|Physics 12|Tamil|Muruga MP
Forces|Between|Multiple|Charges|NCERT|CBSE|Physics 12|Tamil|Muruga MP
Forces between Multiple Charges: Class 12 Physics - Chapter 01- Electric Charges and Fields
Forces between Multiple Charges: Class 12 Physics - Chapter 01- Electric Charges and Fields

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Understanding Forces Between Charges

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The mutual electric force between two charges is given by Coulomb’s law. How to calculate the force on a charge where there are not one but several charges around? Consider a system of n stationary charges q1, q2, q3, ..., qn in vacuum. What is the force on q1 due to q2, q3, ..., qn? Coulomb’s law is not enough to answer this question. Recall that forces of mechanical origin add according to the parallelogram law of addition. Is the same true for forces of electrostatic origin?

Detailed Explanation

When multiple electric charges are present, the total electric force on any one charge (for example, q1) is not solely determined by one other charge. Instead, you need to consider the effect of all other charges. This is similar to how you could calculate the force on an object when multiple people are pushing or pulling on it from different directions. Each person’s push adds up, but the direction and magnitude of each push must be taken into account, thus the total force is the vector sum of all individual forces acting on the object.

Examples & Analogies

Imagine you are standing in a tug-of-war game, with multiple people pulling on the rope from different angles. If one person pulls strongly to your left, while another pulls lightly to your right, you must consider both the strength and direction of each pull to determine where the rope will go. Just like that, each charge influences the total force felt by a single charge.

Principle of Superposition

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Experimentally, it is verified that force on any charge due to a number of other charges is the vector sum of all the forces on that charge due to the other charges, taken one at a time. The individual forces are unaffected due to the presence of other charges. This is termed as the principle of superposition.

Detailed Explanation

The principle of superposition states that when calculating the total electric force on a charge, you can simply add up all the individual forces exerted by other charges without worrying that these forces will influence one another. This means you can first find the force on charge q1 by charge q2, and then find the force on q1 by charge q3, and so forth, then sum all those forces together using vector addition. Each force will keep its original magnitude and direction, giving you the complete picture of the net force on q1.

Examples & Analogies

Think about a crowded dance floor where people push and pull each other. When you feel someone pushing you from the left, you can feel that force clearly, and if someone else pushes you slightly from the right, you just add that push to the one from your left. You don't change how the left person pushes just because someone else is near you. Instead, you calculate your new position from the combination of both pushes.

Calculating Total Force

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Thus, the total force F on the charge q1 due to the two charges q2 and q3 is given as F1 = F12 + F13 = (1/(4πε)) * (q1 * q2 / r^2_12) * r̂12 + (1/(4πε)) * (q1 * q3 / r^2_13) * r̂13.

Detailed Explanation

To calculate the total force acting on charge q1 due to two other charges (q2 and q3), you first compute the force exerted by q2 on q1 using Coulomb's law, and then compute the force exerted by q3 on q1. In mathematical terms, this is done by taking into account the magnitude of the charges and the distance between them, and using a vector approach to combine their effects. The resulting forces from q2 and q3 can thus be represented as vectors, which you can sum to get the total force acting on q1.

Examples & Analogies

No real-life example available.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Coulomb's Law: The fundamental principle governing the interaction between electric charges.

  • Electric Force: Attributed to the interaction of charges based on their distance and magnitudes.

  • Superposition Principle: Allows calculation of net forces in a system of multiple charges.

  • Vector Sum: Essential for combining forces from different directions.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • Example 1: If two point charges, each of +1μC, are 0.5 m apart, the force of repulsion can be calculated using Coulomb's law.

  • Example 2: A system of three charges positioned at the corners of a triangle can be analyzed for net forces on each charge using superposition.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • Two like charges repel, that's a fact we know well!

📖 Fascinating Stories

  • Imagine three friends holding hands; when one pulls they all feel it - like how charges feel each other's force.

🧠 Other Memory Gems

  • F = k * (q1*q2 / r^2), remember 'KQR' for 'Kinetic Charge Rate'.

🎯 Super Acronyms

FIRE

  • Forces Interact
  • Respectively Exert. Use this to remember the superposition principle.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Coulomb's Law

    Definition:

    The law stating that the force between two point charges is proportional to the product of the charges and inversely proportional to the square of the distance between them.

  • Term: Superposition Principle

    Definition:

    The principle stating that the total force acting on a charge is the vector sum of the individual forces exerted by all other charges around it.

  • Term: Electric Force

    Definition:

    The attractive or repulsive force between charged objects.

  • Term: Point Charge

    Definition:

    A charge that is located at a single point and considered to have no physical size.

  • Term: Vector Sum

    Definition:

    The combination of two or more vectors to produce a single vector that has both magnitude and direction.
