Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Electric Fields
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we will discuss the concept of electric fields, particularly focusing on the electric field produced by an infinite charged plane sheet. Can anyone tell me what an electric field is?
Isn't it something that indicates how a charge will experience a force?
Exactly! The electric field gives us an understanding of how a test charge would feel when placed in a region influenced by another charge. Now, what happens when we have an infinite plane sheet with charge? Any guesses?
I think the electric field would be uniform across the entire sheet?
Great hypothesis! In fact, the field does remain constant due to the symmetrical distribution of charge across the plane. Let's remember that the formula we'll derive shows the electric field E due to the sheet.
Gauss's Law Application
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now let's apply Gauss's law. If I have a Gaussian surface around this infinite charged sheet, what can you tell me about how we calculate the flux through it?
The total flux is the electric field times the area of the surface.
Correct! Remember, however, that because the field is uniform, we can express the flux as 2EA, since there are two faces that contribute to the flux. We must also account for the charge enclosed.
So, what if the charge density is Ο? How does that change the equation?
Excellent question! If we talk about charge density, we can use ΟA, leading us to the equation: 2EA = ΟA/Ξ΅_0. Dividing both sides by A lets us simplify the equation to find E.
Conclusion and Implications
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
In conclusion, we have derived that the electric field produced by our infinite plane sheet is E = Ο/(2Ξ΅_0). Why is this result particularly important?
Because it shows the field is independent of distance, unlike point charges?
Exactly! This key point simplifies calculations in electrostatics and illustrates the significance of charge distribution. Any further thoughts?
So, if I had a negatively charged sheet, the field would just point inward, right?
Spot on! The field direction depends on the charge's nature. Well done, everyone!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section explores the characteristics of the electric field created by an infinite plane sheet with uniform charge density. By employing Gauss's law, it demonstrates that the magnitude of the electric field is constant and directed away from the sheet when the surface charge density is positive.
Detailed
Field due to a uniformly charged infinite plane sheet
In this section, we analyze the behavior of the electric field generated by an infinite plane sheet that carries a uniform surface charge density, denoted by . The symmetry of the configuration implies that the electric field will have important properties.
Properties of the Electric Field
- Symmetry: The electric field does not depend on the coordinates parallel to the sheet (y and z), and is directed perpendicular (along the x-axis) to the plane.
- Gaussian Surface: We can use a Gaussian surface, typically a rectangular parallelepiped or cube, to calculate the electric field. The two opposite faces of the surface through which the field lines pass contribute to the total flux, while the others do not, due to the field being parallel to these faces.
- By Gauss's law, the total electric flux through the Gaussian surface is proportional to the charge enclosed within it. The enclosed charge is equal to the surface charge density multiplied by the area of the Gaussian surfaces.
Gauss's Law Calculation
Using Gauss's law = q/Ξ΅_0, we establish the following relationship:
- The flux through the surfaces is given as 2EA, where E is the electric field and A the area.
- The total charge within the surface is given by = ΟA, where Ο is the charge density.
Thus, we derive that:
- Electric Field Equation: E = Ο / (2Ξ΅_0)
Direction: The electric field points away from the sheet if the surface charge density is positive and towards the sheet if negative. Importantly, the electric field remains constant and does not vary with distance from the sheet, which is unique compared to point charges.
This section's conclusion emphasizes the electric field's independence from distance and its constant nature near uniformly charged infinite surfaces, which is pivotal in electrostatics.

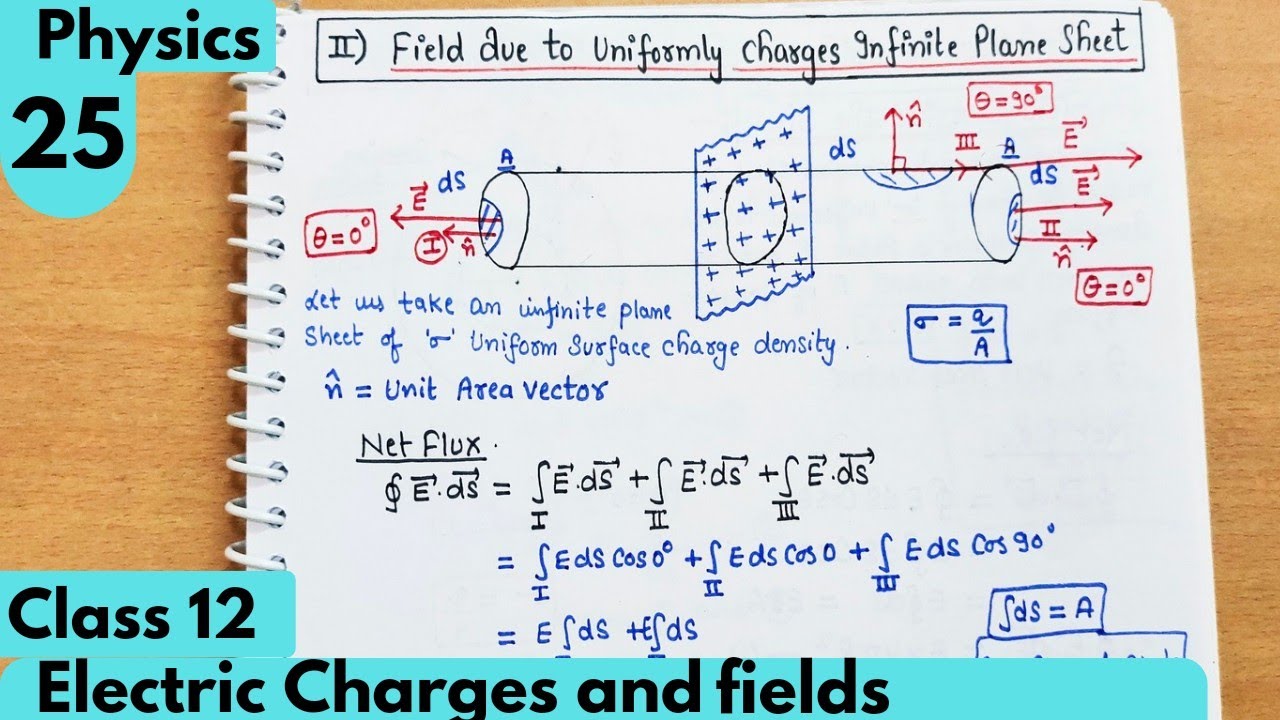

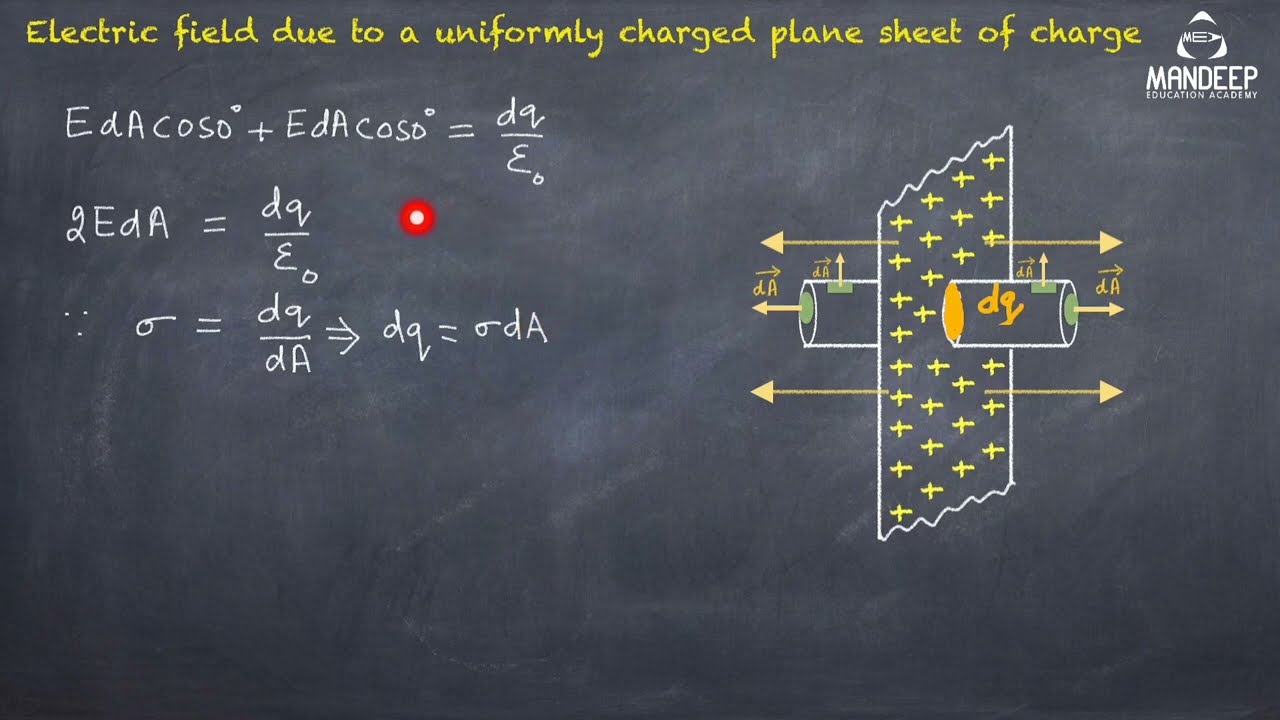

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Electric Field Characteristics
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Let \( s \) be the uniform surface charge density of an infinite plane sheet. We take the x-axis normal to the given plane. By symmetry, the electric field will not depend on y and z coordinates and its direction at every point must be parallel to the x-direction.
Detailed Explanation
The electric field created by an infinite plane sheet with uniform charge density is examined. The symmetry of this system allows us to conclude that the electric field only varies with respect to the perpendicular distance from the sheet. Importantly, this means that the field is uniform and points either towards or away from the sheet, depending on the sign of the charge density.
Examples & Analogies
Imagine a large, flat surface like a trampoline that is uniformly pressed down at every spot. No matter where you are above the trampoline, the 'pressure' felt (akin to the electric field) is uniform as long as you are at the same height above this surface.
Gaussian Surface and Electric Flux
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
We can take the Gaussian surface to be a rectangular parallelepiped of cross-sectional area \( A \). As seen from the figure, only the two faces 1 and 2 will contribute to the flux; electric field lines are parallel to the other faces and they, therefore, do not contribute to the total flux.
Detailed Explanation
In this chunk, we define a Gaussian surface to calculate the electric field. We use a closed surface that intersects the charged plane. The electric flux through the surface is calculated based on the fact that only the faces of the Gaussian surface that are perpendicular to the electric field contribute to the flux. The other faces, which are parallel to the electric field, contribute nothing to the total flux.
Examples & Analogies
Think of holding a net in a flowing river. If you place the net flat against the water, it will collect lots of water (representing the flux), but if you turn it on its side so that it runs parallel to the flow, it will collect very little as it isn't facing the water directly. This example helps visualize how flux works through different surfaces.
Applying Gauss's Law
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The charge enclosed by the closed surface is \( sA \). Therefore by Gaussβs law,
\[ 2EA = \frac{sA}{\epsilon_0} \]
or, \[ E = \frac{s}{2\epsilon_0} \]
Detailed Explanation
In this part, we apply Gauss's law to relate the net electric flux through our Gaussian surface to the charge enclosed. By rearranging the law, we can solve for the electric field \( E \). The result shows that the electric field around an infinite plane sheet of charge is constant and does not depend on the distance from the sheet.
Examples & Analogies
Consider a flat fan that blows air uniformly in all directions. No matter how close or far you stand from the fan's surface, the wind feels the same force pushing against you as long as it is in front of you, illustrating how the electric field is uniform around the charged plane.
Electric Field Direction
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Vectorically,
\[ E = \frac{s}{2\epsilon_0} \hat{n} \]
where \( \hat{n} \) is a unit vector normal to the plane and going away from it. E is directed away from the plate if s is positive and toward the plate if s is negative.
Detailed Explanation
The direction of the electric field is defined based on the sign of the surface charge density. If the sheet has positive charge density, the electric field exists in a direction moving away from the sheet. Conversely, if it has negative charge density, the electric field moves towards the sheet. This directional dependency is crucial for understanding how charges interact.
Examples & Analogies
Imagine how a magnet behaves when you bring another magnet close. If the magnets are of opposite charge (like a positive and a negative surface), they attract. This is similar to how an electric field directs towards a negatively charged sheet, showcasing attraction.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Electric Field: A property of space around charged particles that represents the force exerted by the charges.
-
Gauss's Law: A method to relate the electric field over a closed surface to the charge enclosed by that surface.
-
Uniform Surface Charge Density: A consistent charge distribution across a surface.
-
Independent of Distance: The electric field due to an infinite plane sheet does not change with distance from the sheet.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
The electric field due to a uniformly charged infinite plane sheet calculated using Gauss's law.
-
An example demonstrating the direction of the electric field based on the charge's sign.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
π΅ Rhymes Time
-
If you see a charge thatβs wide, the field runs straight and won't hide.
π Fascinating Stories
-
Imagine a flat, infinite pizza covered with cheese (charge), the taste of the pizza represents the electric field, always the same no matter where you are on its surface.
π― Super Acronyms
E = Ο/(2Ξ΅_0) helps visualize how to calculate field strengths easily.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Electric Field
Definition:
A vector field around a charged particle that exerts force on other charged particles.
-
Term: Gauss's Law
Definition:
A law relating the electric flux through a closed surface to the charge enclosed by that surface.
-
Term: Surface Charge Density (Ο)
Definition:
The amount of charge per unit area on a surface.
-
Term: Electric Flux
Definition:
The product of the electric field and the area through which it passes.
-
Term: Gaussian Surface
Definition:
An imaginary closed surface used in Gauss's law to calculate electric fields.
