Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Response Spectrum Analysis
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today we're discussing the response spectrum analysis for 2-DOF systems. This technique is vital in earthquake engineering as it allows us to estimate the maximum responses of structures under seismic loads.
Why do we treat each mode independently?
Great question! Each mode of vibration behaves differently, and analyzing them separately makes it easier to understand how each contributes to the overall response of the structure.
What is the design spectrum?
The design spectrum is a graphical representation that shows how different structural systems respond to varying levels of ground motion. It is crucial for determining the peak responses.
How do we combine the responses?
We use methods like SRSS and CQC to combine modal responses. SRSS is used when modes are not too close together, while CQC is useful when they are closely spaced.
Can we look at the formula for the maximum displacement?
"Certainly! The equation is:
Understanding Spectral Acceleration
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Next, let's discuss spectral acceleration. This plays a crucial role in the response spectrum analysis.
What exactly is spectral acceleration?
Spectral acceleration quantifies the maximum expected acceleration of a structure for a particular mode, under specific seismic conditions.
How is it determined?
It is derived from the response spectrum and varies with the natural period of the structure and the level of seismic activity.
Why do we need to calculate it for each mode?
Each mode exhibits different dynamic characteristics, so it's crucial to evaluate how each responds to acceleration during seismic events.
Can you tie this back to our earlier discussion on combining responses?
Absolutely! The spectral acceleration for each mode directly feeds into our maximum displacement equation. It is integral to predicting overall structural behavior.
Summarizing, we've covered how spectral acceleration is essential for understanding the seismic response of structures across different modes.
Applying the Response Spectrum Method
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let’s apply the response spectrum method in a practical scenario. How would we start?
We need to identify our modes and calculate their characteristics.
Exactly! After determining the mode shapes and natural frequencies, our next step involves calculating modal participation factors.
What are modal participation factors?
They indicate the contribution of each mode to the overall dynamic response. This is crucial for accurate analysis.
Once we have that, what's next?
Once we calculate the modal responses, we can sum them up to find the total displacement. Each contribution helps us gauge the effects of seismic forces more accurately.
What happens if we use the wrong combination method?
Using the wrong method can lead to underestimating or overestimating seismic demands. Choosing between SRSS and CQC based on the frequency spacing is key.
In summary, applying the response spectrum method involves understanding modal characteristics, calculating participation factors, and interpreting results with proper combination techniques.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section discusses the response spectrum analysis method for 2-DOF systems. Each mode of the system is analyzed independently, with peak modal responses derived from the design spectrum. The combination of these modes is performed using methods like Square Root of the Sum of Squares (SRSS) and Complete Quadratic Combination (CQC).
Detailed
Response Spectrum Analysis for 2-DOF Systems
The response spectrum method is critical in earthquake engineering, providing a systematic approach to estimate the maximum response of structures subjected to seismic activity. It is particularly useful for dynamic analysis of 2-DOF systems where the behavior of each mode can be assessed separately.
Key Components:
- Independent Mode Treatment: In this method, each mode of the 2-DOF system is treated independently to compute its peak responses.
- Design Spectrum: The responses are calculated using a design spectrum, an essential tool in the structural design process to illustrate how structures behave under various seismic loads.
- Combination Techniques: Combining the responses from different modes is executed using techniques such as:
- SRSS (Square Root of the Sum of Squares): Useful for modestly spaced modes.
- CQC (Complete Quadratic Combination): More advantageous when dealing with closely spaced frequencies.
The fundamental equation for calculating the maximum displacement response is given by:
$$ x_{max} = \sum_{i=1}^{2} \Gamma_i \phi_i S_{a,i} $$
Where:
- $\Gamma_i$ is the modal participation factor for mode $i$.
- $\phi_i$ represents the mode shape.
- $S_{a,i}$ is the spectral acceleration for mode $i$.
Understanding this method aids engineers in predicting how structures will respond to vibrational forces during seismic events, ultimately contributing to a more resilient design in engineering practice.

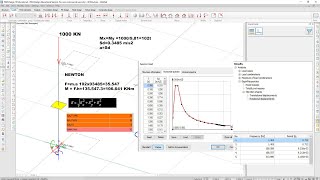

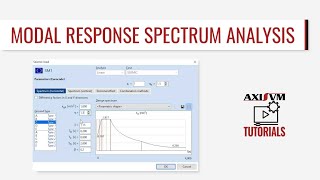

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Overview of Response Spectrum Method
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The response spectrum method is a widely used tool in earthquake engineering for estimating the maximum response of structures subjected to ground motion.
Detailed Explanation
The response spectrum method is a technique employed in earthquake engineering to predict how a structure will respond when subjected to seismic activity. This method provides a graphical representation (the response spectrum) that summarizes how the maximum displacement, velocity, and acceleration of a structure varies with different frequencies of ground motion, specifically during earthquakes. It simplifies the analysis by allowing engineers to focus on critical aspects of the structure's response without needing to model every detail.
Examples & Analogies
Imagine you're trying to understand how different musical instruments will sound when played together in a symphony. You can focus on the frequencies (notes) that each instrument produces instead of analyzing the entire piece of music note by note. The response spectrum serves a similar purpose, allowing engineers to focus on specific frequencies of ground motion that are most impactful on a structure.
Independent Treatment of Modes
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
For 2-DOF systems: Each mode is treated independently.
Detailed Explanation
In a 2-DOF system, each mode of vibration (the different ways in which the system can respond) is analyzed independently. This means that the structural response is evaluated for each mode without considering the interactions between the modes at this stage. This independence simplifies the calculations and enables engineers to effectively evaluate how each mode contributes to the overall response of the structure under seismic loads.
Examples & Analogies
Think of this like a two-part guitar duet where each musician plays their own melody. Analyzing each melody separately allows you to understand the individual contributions before you combine them into a harmony.
Peak Modal Responses using Design Spectrum
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Peak modal responses are computed using the design spectrum.
Detailed Explanation
Once each mode is calculated independently, the maximum responses are estimated using a design spectrum, which is a predetermined relationship based on the code requirements and statistical data related to the seismic activity of a location. The design spectrum indicates how much response to expect from the structure for specific frequencies, which helps predict the structural behavior under realistic earthquake loading.
Examples & Analogies
Imagine planning a party. You check the weather forecast to see if it might rain. Based on that information, you make decisions on whether to set up tents or move the party indoors. The design spectrum acts like that weather forecast, helping engineers prepare for how seismic activity might affect a structure.
Combining Modal Responses
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Modes are combined using techniques like: – SRSS (Square Root of the Sum of Squares) – CQC (Complete Quadratic Combination) – when modes are closely spaced.
Detailed Explanation
After calculating the peak responses for each mode, engineers must combine these results to estimate the total maximum response of the structure. The two common methods for combining modal responses include the Square Root of the Sum of Squares (SRSS) method, which is used when the modes are uncorrelated, and the Complete Quadratic Combination (CQC) method, which is applicable when the modes are closely spaced and may influence each other more significantly. These methods ensure that the overall structural response is accurately captured, providing a comprehensive understanding of how the structure will behave under ground motion.
Examples & Analogies
Think of combining two songs into a single playlist. If the songs are different in style (like classical and rock), you might just take their separate ratings and average them. But if they are very similar (like two ballads), you’d pay more attention to how they blend together, ensuring the overall feel fits the theme of your playlist. Similarly, SRSS is like averaging, while CQC is more about blending closely related songs.
Response Spectrum Formula
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Equation: 𝑥_max = Σ (Γ_i * ϕ_i * S_a,i)
Detailed Explanation
The equation provided captures the total maximum response (denoted as x_max) of the structure as a function of the individual modal responses. Each modal response is weighted by the modal participation factor (Γ_i) and the shape of the mode (ϕ_i), resulting in the total response that takes into account the contribution of each mode. The spectral acceleration (S_a,i) indicates how much acceleration is expected for each mode from seismic input. This formulation connects the structural dynamics to earthquake response predictions in a systematic way.
Examples & Analogies
Think of baking a cake where each ingredient contributes to the final taste. The amount of each ingredient (like flour, sugar, and eggs) represents the modal participation factors and mode shapes, while the desired flavor is the spectral acceleration. Just as you need the right ratios of ingredients to make the perfect cake, appropriately weighting each mode response helps predict how the structure will
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Response Spectrum: A crucial tool for estimating maximum structural responses to ground motion.
-
Spectral Acceleration: Indicates how a structure responds to seismic activity based on its period.
-
Combination Methods: Techniques like SRSS and CQC are essential for accurately estimating total response.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In a multi-story building, response spectrum analysis allows engineers to estimate how different stories of the building will sway during an earthquake.
-
A bridge's design can incorporate response spectrum analysis to evaluate how the deck and piers react to ground motions.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
When the ground shakes, and the building quakes, it’s the response spectrum that gives us what it takes.
📖 Fascinating Stories
-
Imagine a bridge swaying gently in the wind, but in an earthquake, all of its modes come to play a game, and the response spectrum helps predict which mode wins.
🧠 Other Memory Gems
-
Think of 'S-C' for 'Spectral' and 'Combination' to remember that SRSS and CQC are key methods in responding to earthquakes.
🎯 Super Acronyms
Remember 'R-S-C' for 'Response Spectrum and Combination' to recall the two main ideas of this method.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Response Spectrum
Definition:
A graphical representation that shows how a structure or system will respond to vibrations based on different frequencies of seismic activity.
-
Term: Spectral Acceleration
Definition:
The maximum expected acceleration of a structure for a specific mode, derived from the response spectrum.
-
Term: Modal Participation Factor
Definition:
A coefficient that quantifies the contribution of each mode to the overall response of the system.
-
Term: Square Root of Sum of Squares (SRSS)
Definition:
A method for combining modal responses that is appropriate when modes are not closely spaced.
-
Term: Complete Quadratic Combination (CQC)
Definition:
A method for combining modal responses that is suitable for closely spaced modes.
