17.4 - Applications of Drag and Lift
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Drag and Lift
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's start by defining drag and lift. Can anyone tell me what drag is?
Isn't drag the force that resists the motion of an object through a fluid?
Exactly! Drag opposes the direction of motion. Now, what about lift?
Lift is the force that acts perpendicular to the flow direction, like when an airplane takes off!
Great! To help remember these, think of 'drag down' and 'lift up'. Both forces are crucial in fluid dynamics.
Could you give some examples where drag and lift are important?
Certainly! Cyclists lean to reduce drag and airplanes utilize lift to take off. Any other examples?
I guess wind turbines must also rely on these forces to function efficiently.
Correct! Wind turbines harness lift to turn blades while minimizing drag.
In summary, drag resists motion while lift aids it. These forces play a vital role in transportation and energy generation.
Calculating Drag
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let's derive the formula for calculating drag force. Can anyone recall the elements of the equation?
It involves density, velocity, the drag coefficient, and area, right?
Right again! The formula is given as: $$F_d = \frac{1}{2} \rho v^2 C_d A$$. Can anyone explain what each term represents?
$\rho$ is the density of the fluid, $v$ is the fluid's velocity, $C_d$ is the drag coefficient, and $A$ is the frontal area of the object.
Well explained! Let's see how different factors like area and velocity affect drag. If we double the velocity, what happens to drag?
The drag will increase by a factor of four since it’s squared!
Exactly! So, a higher speed results in much greater drag.
To sum up, we can calculate drag using the formula while considering factors that increase it, like velocity.
Applications in Real Life
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s discuss the applications of drag and lift further. Why do you think cyclists pay attention to drag?
They want to go faster! Reducing drag lets them use less energy to maintain speed.
Exactly! They change their body position, which affects their frontal area. This is one way to minimize drag.
I also heard aerodynamic bike shapes help with this too!
Yes, indeed. And what about wind turbines? How do they use these principles?
They need to maximize lift to turn the blades while minimizing drag to be efficient.
Correct! The design of the blades is crucial for this efficiency.
In conclusion, understanding drag and lift helps optimize designs in transportation and energy systems.
Coefficient of Drag
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
The coefficient of drag, $C_d$, varies with shape and flow conditions. Why do you think that is?
Because different shapes disturb the airflow in various ways, right?
Exactly! More streamlined shapes will typically have lower drag coefficients. How can we determine $C_d$?
By conducting experiments like wind tunnel tests?
Right! Wind tunnels help determine how different shapes affect drag.
So can we link this back to practical applications, like cars and airplanes?
Absolutely! Engineers use these values to design more efficient vehicles.
To summarize, the coefficient of drag informs design and efficiency in many applications.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
In this section, we explore the principles of drag and lift, illustrating their significance in various real-world applications such as bike racing, wind turbine design, and fluid mechanics. Key concepts like drag coefficients, boundary layers, and how to minimize drag for enhanced performance are emphasized.
Detailed
Applications of Drag and Lift
The concepts of drag and lift are pivotal in fluid mechanics, impacting a range of practical applications. Drags are forces that resist motion through a fluid, while lifts are forces acting perpendicular to the direction of flow. This chapter specifically covers:
- Definition of Drag and Lift: Drag appears in the direction of the flow, while lift is perpendicular. An example is given of cyclists who lean to reduce drag.
- Calculation of Drag: The drag force can be computed mathmatically as:
$$F_d = \frac{1}{2} \rho v^2 C_d A$$
where $\rho$ is fluid density, $v$ is fluid velocity, $C_d$ is the coefficient of drag, and $A$ is the frontal area.
3. Applications in Real Life: Practical applications are illustrated through examples such as competitive cycling, where drag is minimized through body positioning and bike design, and in bicycles designed for low-velocity or racing situations.
4. Wind Turbines: Understanding drag and lift is crucial for designing efficient wind turbines. The relationship is established between drag forces and turbine design to maximize energy harnessing.
5. Coefficient of Drag: The section delves deeper into factors affecting the coefficient of drag ($C_d$), explaining its dependency on the shape, surface roughness, and Reynolds number.

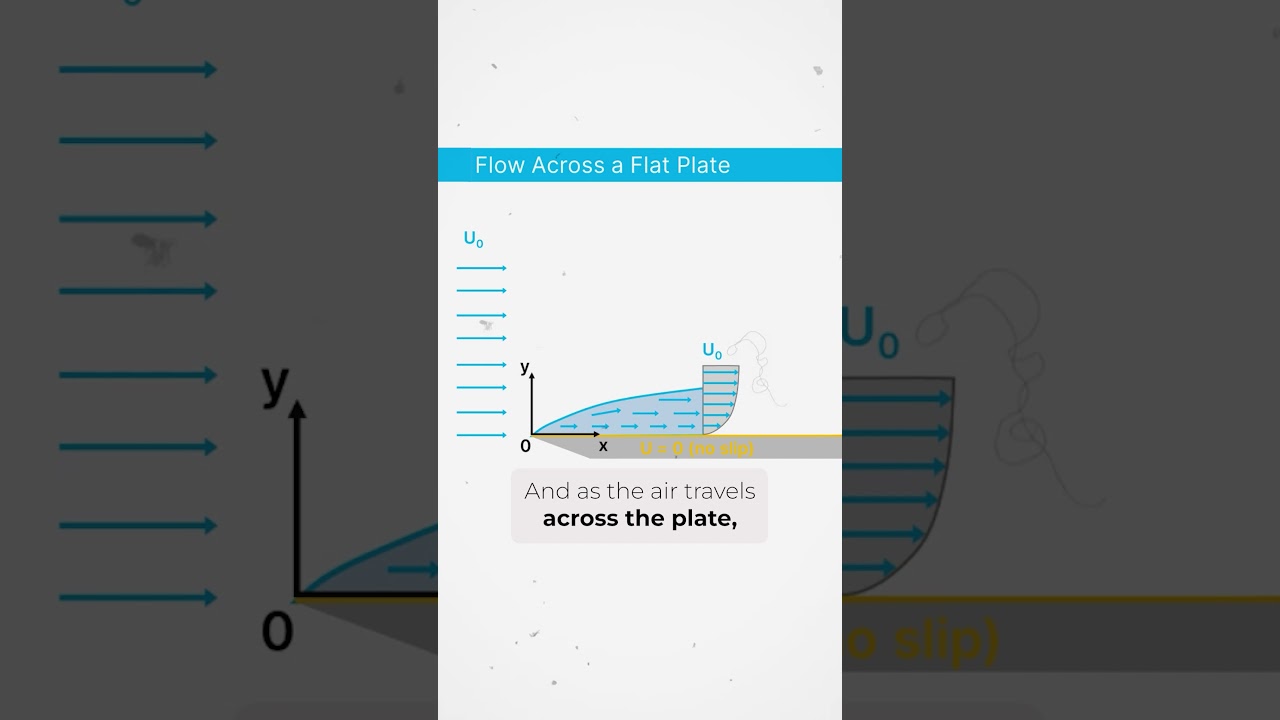

6. Boundary Layer Concepts: The discussion extends to how airflow around bodies can affect performance through boundary layer interactions, which is critical when considering high-speed designs such as in aircraft and buildings.
7. Examples and Problem Solving: Exercise problems are utilized to consolidate learning, enabling students to apply drag and lift concepts in practical engineering scenarios to enhance comprehension.
Youtube Videos

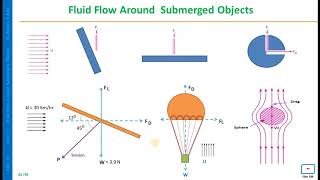

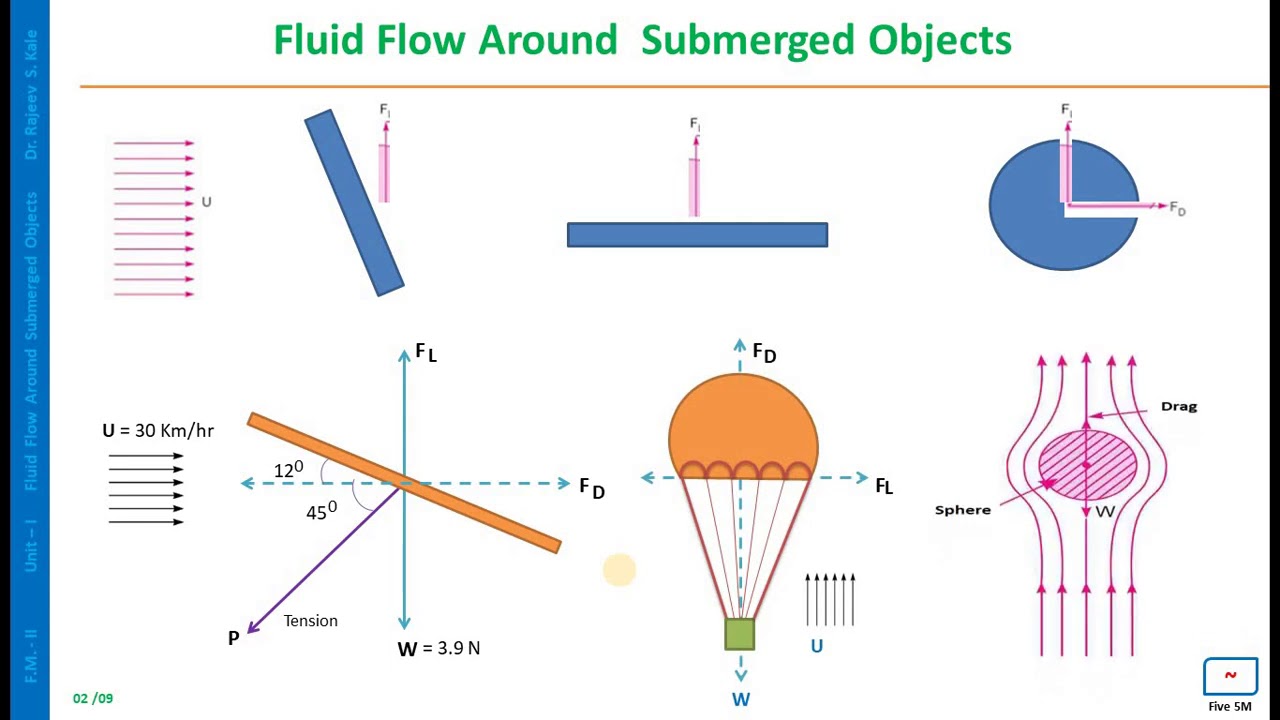

![Unit 1 - A ] Drag and Lift Fundamentals](https://img.youtube.com/vi/8UUKDAJMB4A/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Drag and Lift
Chapter 1 of 8
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Good morning, let us have a today class on drag and lift which is the last class of this course okay.
Detailed Explanation
The lecture begins with a greeting and sets the context for discussing drag and lift. These terms are fundamental in fluid mechanics as they describe the forces acting on bodies moving through fluids, such as air or water.
Examples & Analogies
Imagine a cyclist racing against the wind. The forces of drag act against the cyclist’s motion, making it harder to speed up. Understanding drag helps cyclists design their gear and position for better performance.
Importance of Drag and Lift
Chapter 2 of 8
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
To really design a fuel efficient car or you talk about design wind turbine all he needs a information knowledge on this drag and the lift...
Detailed Explanation
This section emphasizes the significance of understanding drag and lift in designing various vehicles and structures. Engineers use this knowledge to create efficient designs that minimize drag and enhance lift, such as fuel-efficient cars and effective wind turbines.
Examples & Analogies
Think of how car manufacturers design vehicles to reduce wind resistance. By smoothing out shapes and reducing drag, they can create cars that save fuel and go faster.
Real-World Examples of Drag Reduction
Chapter 3 of 8
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
When you have a cyclist okay driving a bicycles okay if you can look at recent Olympics and all if you see these persons lean seat okay as to reduce the drag forces...
Detailed Explanation
The example of cyclists in the Olympics showcases how athletes adjust their positions to decrease drag. By leaning forward, cyclists minimize their frontal area, thus reducing the drag acting against them.
Examples & Analogies
Picture a swimmer trying to glide through the water. By streamlining their body, they reduce water resistance, allowing them to swim faster with less effort.
Calculating Drag Force
Chapter 4 of 8
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
So most often we define the drag force is a functions of half rho v square is a dynamic pressures as we discussed earlier multiplied with a Cd...
Detailed Explanation
Drag force can be calculated using the formula: F_d = (1/2) * ρ * v^2 * C_d * A, where ρ is the fluid density, v is the velocity, C_d is the drag coefficient and A is the frontal area. This formula helps engineers predict how much force a body will face as it moves through a fluid.
Examples & Analogies
Picture a parachute. When the parachute opens, it increases the frontal area (A). This results in a larger drag force that helps slow down the descent, illustrating how changes to the area impact drag.
Coefficient of Drag
Chapter 5 of 8
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The coefficients of drag will more details will come which will be the is nothing else force of drag divided by dynamic pressures...
Detailed Explanation
The drag coefficient (C_d) is a dimensionless number that characterizes how aerodynamic or hydrodynamic a shape is. It’s defined as the ratio of the drag force to the dynamic pressure acting on the object. A lower C_d value means that the body has less drag.
Examples & Analogies
Think of an arrow flying through the air. Its sleek shape gives it a low drag coefficient, allowing it to travel further than a flat piece of paper with a high drag coefficient.
Drag in Everyday Life
Chapter 6 of 8
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
If you look at the wind turbines you can talk about the cyclist, we talk about swimmers or you talk about any gymnastics...
Detailed Explanation
Drag and lift are present in numerous everyday activities and technologies. For instance, wind turbines harness lift to generate power, while athletes optimize their movements to reduce drag for better performance, highlighting the importance of these forces in various fields.
Examples & Analogies
Consider how aerodynamics affects a football. The shape of the ball, combined with spinning, influences its flight path. Players learn to throw with a spiral to reduce drag and make the ball travel farther.
Applications in Engineering
Chapter 7 of 8
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
As I said it that the drag coefficient FD it has is two component okay. FD will have a two component one will be FD as a frictions and FD for the pressure or the firm drag...
Detailed Explanation
In engineering applications, drag is often broken down into two components: friction drag (due to contact with the fluid) and pressure drag (due to shape). Understanding both helps engineers design more effective structures and vehicles.
Examples & Analogies
Imagine designing a bridge. Engineers must consider wind forces acting on it. By understanding drag forces, they can design to withstand high winds, ensuring safety and stability.
Summary of Drag and Lift Principles
Chapter 8 of 8
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Now let us talk about drag and lift friction and pressure drags okay which is definitions wise how the drag coefficients are common geometry...
Detailed Explanation
The conclusion summarizes the principles of drag and lift, stating that understanding these forces is crucial for designing everything from vehicles to structures, emphasizing the relationship between shape and drag coefficients.
Examples & Analogies
Think of a basketball player’s jump shot. The lift generated by the ball going upward is essential for making the shot; understanding lift here helps improve shooting techniques.
