17.2.1. Definitions of Drag and Lift

Drag is defined as the force exerted by a flowing fluid on a body in the direction of the flow. Conversely, lift is the force acting perpendicular to the flow direction.

In fluid mechanics, drag and lift are two fundamental forces that affect moving bodies in a fluid. Drag opposes the motion and acts in the same direction as the flow of the fluid, while lift acts perpendicular to the flow direction. Understanding these forces helps engineers design various structures and vehicles, from airplanes to cars, ensuring they can move efficiently through fluids.

Think of a car driving on a highway. The air pushing against the car as it moves creates drag, making it harder to speed up. At the same time, if you imagine wings on this car like an airplane, when it gains speed, those wings can create lift, allowing the car to potentially rise slightly off the ground, showing how these forces work together.

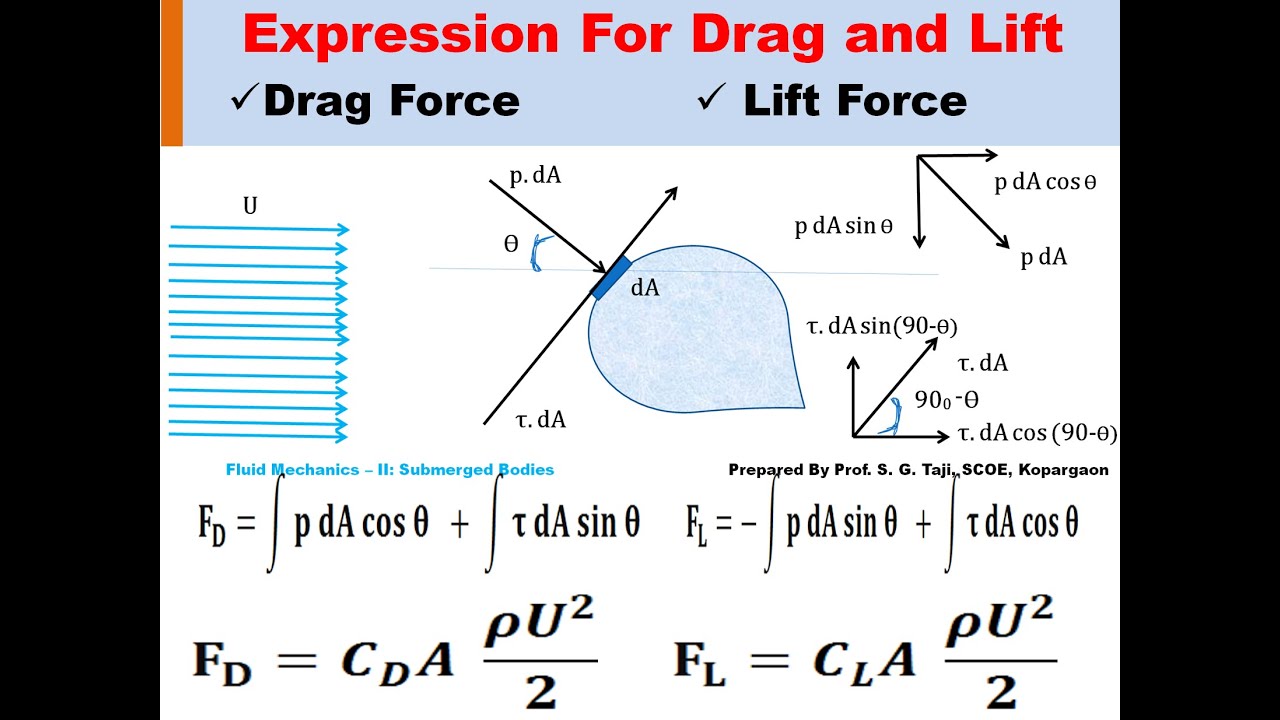

The drag force can be quantified using the formula: $F_d = \frac{1}{2} \rho v^2 C_d A$, where $F_d$ is the drag force, $\rho$ is the fluid density, $v$ is the flow velocity, $C_d$ is the drag coefficient, and $A$ is the frontal area of the body.

The formula for calculating drag force combines several important factors: the density of the fluid affects how much force it can exert on the object, the velocity shows how fast the object is moving through that fluid, the drag coefficient encapsulates the object's shape and how it interacts with the fluid, and the frontal area represents how much of the object encounters the fluid. By changing any of these factors, the drag force experienced can increase or decrease significantly.

Imagine riding a bicycle. If you ride quickly (high velocity), you feel more wind against you (drag force). If you hunch down and make your body smaller (reducing frontal area), you'll feel less wind against you, making it easier to ride faster. This illustrates how shape and posture can affect drag.

The drag coefficient ($C_d$) is a dimensionless number that describes an object's resistance to drag in a fluid environment. It varies based on shape, surface roughness, and flow conditions.

The drag coefficient is critical in engineering as it quantifies how streamlined an object is. Low $C_d$ values (close to 0) indicate that an object has less resistance and can cut through the fluid more easily, while high values indicate more turbulence and higher resistance. This coefficient is determined through experiments or computational simulations, and it's crucial for optimizing the design of various structures like airplanes and vehicles.

Consider two types of cars: a sports car and a brick-like SUV. The sports car, designed for speed, has a lower drag coefficient because of its sleek shape, allowing it to move faster and use less fuel compared to the SUV, which has a higher drag coefficient due to its bulky, flat surfaces.

Lift force arises when there is a pressure difference between the upper and lower surfaces of a body moving through a fluid, typically caused by the object's shape and angle of attack.

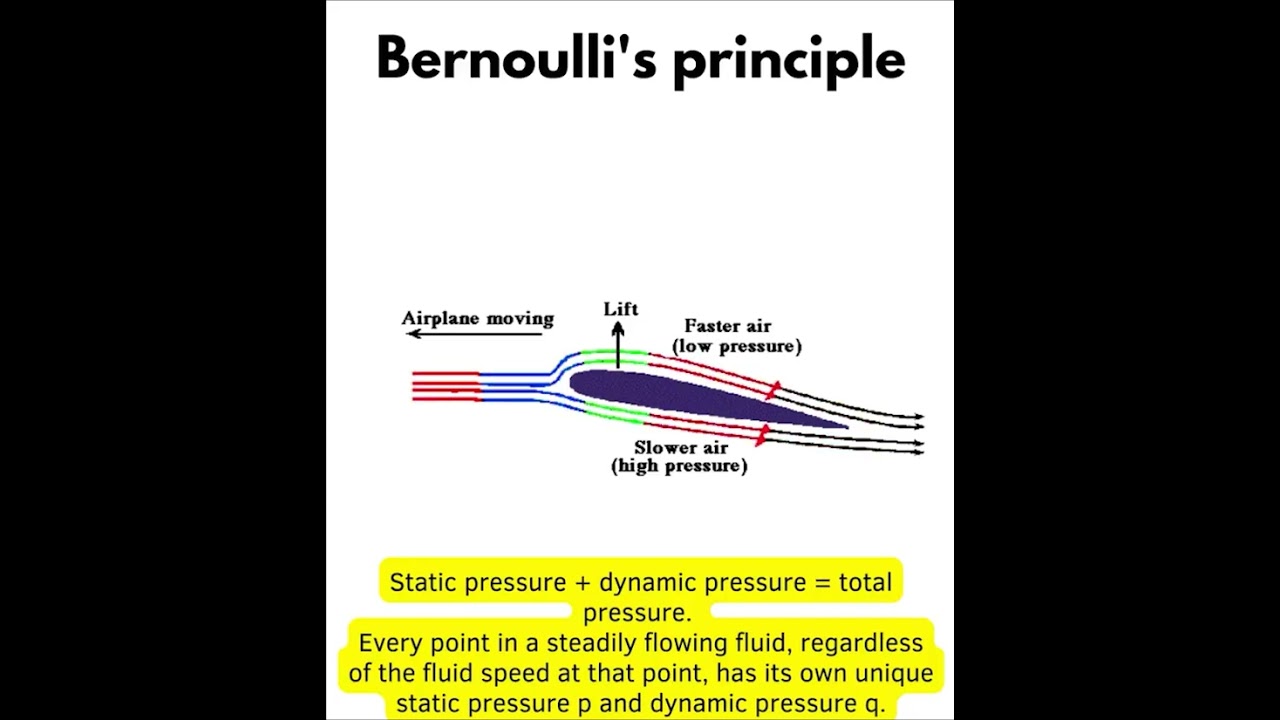

The concept of lift is essential in aviation and fluid dynamics. When an object, such as an airplane wing, moves through the air, its shape causes the air to flow faster over the top surface than the bottom surface, creating a pressure difference. This pressure difference generates lift, allowing the airplane to ascend. The angle at which the wing meets the airflow also significantly influences the amount of lift produced.

Think about a bird flapping its wings. When it angles its wings down and forward, it changes how the air flows around it, generating lift. The same principle applies to airplanes and can even be observed in how some athletes, like divers, position their bodies to create lift when entering the water.

Understanding drag and lift is crucial for designing fuel-efficient vehicles, optimizing sports equipment, and improving infrastructure like bridges and tall buildings to withstand winds.

The principles of drag and lift apply not only to vehicles and aircraft but also to a variety of engineering fields. For athletes, equipment is often designed to minimize drag, allowing them to perform better. Buildings and bridges must account for lift and drag forces in their designs to ensure safety and stability during high winds or storms.

Consider a professional swimmer who wears tightly fitted swimwear designed to reduce drag, allowing them to move swiftly through the water. Similarly, an architect designing a tall building will analyze wind patterns and drag forces to ensure the structure is safe and efficient against strong winds.

--
