Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Drag and the Role of Cd
Unlock Audio Lesson
Good morning class! Today, we're discussing the coefficient of drag or Cd. Can anyone tell me what drag force is?
Isn't drag the resistance an object experiences when moving through a fluid?
Exactly! Now, the coefficient of drag is a dimensionless number that quantifies this resistance. It tells us how much drag a body experiences in relation to dynamic pressure. For instance, if we have a cyclist, do you think they try to minimize their Cd value?
Yes, by changing their position on the bike to reduce wind resistance!
Correct! And what factors might influence the Cd of an object?
I think it depends on the shape of the object and the velocity of the fluid!
Great points! Remember, the Cd also varies with surface roughness and includes shapes like spheres or flat plates as we design structures to optimize for lower drag.
So, let’s summarize: Cd is essential for understanding drag in engineering applications. Keep that in mind as we move on!
Calculating Cd
Unlock Audio Lesson
Now that we understand the importance of Cd, let’s break down how we can calculate it. Who remembers the formula for calculating drag force?
It's $$F_d = \frac{1}{2} \rho v^2 C_d A$$, right?
Exactly! In this formula, we have drag force ($F_d$), fluid density ($\rho$), velocity ($v$), and frontal area ($A$). If we know the drag force and the other variables, we can solve for Cd. Can someone calculate it if given values for the other parameters?
If the drag force is 100 N, density is 1.225 kg/m³, speed is 10 m/s, and area is 2 m², I can rearrange to find Cd!
Correct! You'd rearrange the formula to find Cd. Can you show us how?
Sure! First, plug in: $$C_d = \frac{2F_d}{\rho v^2 A} = \frac{2(100)}{1.225(10^2)(2)}$$ and that gives approximately a value for Cd!
Excellent work! This method helps engineers derive important information for aerodynamics and fluid mechanics!
Real Life Applications of Cd
Unlock Audio Lesson
Next, let’s discuss how understanding Cd is essential for athletes. Can anyone give an example of a sport where drag is a critical factor?
Cycling in races, where cyclists lean forward to reduce Cd!
Exactly! The aerodynamic position helps minimize resistance. The same can be said for sports like swimming. Why do swimmers wear sleek suits?
To reduce drag so they can swim faster!
Right! Drag is crucial in these activities, and understanding it allows for improved performance. What about designs in engineering, like in building construction?
Buildings need to be designed to withstand wind, so understanding their Cd is essential to prevent collapse!
Exactly! A well-designed building minimizes Cd, ensuring structural integrity. Let’s wrap up this session by highlighting that Cd is key in improving performance!
Factors Affecting Cd
Unlock Audio Lesson
Let’s dive deeper into the factors that affect the coefficient of drag. What can you think of that would influence Cd?
The shape of the object, right? Like a flat plate versus a sphere!
Exactly! The shape significantly affects the flow patterns around the object, changing how much drag is experienced. Any other factors?
The speed of the fluid also matters!
Absolutely! As speed increases, Cd can change due to the flow transitioning from laminar to turbulent. What about surface roughness?
Smoother surfaces generally have lower drag, while rough surfaces increase it!
Correct! These factors are critical when designing for efficiency. To sum this up, Cd is influenced by shape, speed, and surface characteristics!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The coefficient of drag (Cd) is a dimensionless number that quantifies the drag or resistance of an object in a fluid environment, serving as an essential parameter in fluid mechanics. This section explains how Cd is determined, its dependency on factors like shape and velocity, and illustrates its impact through real-world examples including cycling and aerodynamic objects like wind turbines and buildings.
Detailed
Coefficient of Drag (Cd)
The coefficient of drag (Cd) is a crucial aspect of fluid mechanics, particularly in understanding drag and lift forces that act upon bodies moving through fluids. Defined as a dimensionless ratio, Cd allows for the assessment of drag force magnitude relative to the dynamic pressure of the fluid. This section highlights several key points:
- Definition: Cd is calculated through experimental methods such as wind tunnel testing or computational fluid dynamics. It is calculated using the formula:
$$ F_d = \frac{1}{2} \rho v^2 C_d A $$
where:
- $F_d$ is the drag force,
- $
ho$ is the fluid density,
- $v$ is the velocity of the fluid,
- $A$ is the frontal area of the object.
- Factors Affecting Cd: Cd is influenced by several factors, including:
- Shape and size of the object
- Frontal area exposed to the flow
- Velocity of the fluid
- Reynolds number, which characterizes the flow regime
- Surface roughness of the object
- Practical Examples:
- In competitive cycling, athletes adopt aerodynamic positions to minimize drag, significantly affecting their speed.
- In engineering applications, such as designing wind turbines or high-rise buildings, understanding Cd helps optimize efficiency by shaping structures to reduce drag.
- Real-world Application: Examples illustrate how sporting equipment's design, like tennis balls or bicycles, prioritizes reducing Cd for improved performance during operation, tying back to lift and drag forces.
Overall, an in-depth comprehension of the coefficient of drag aids engineers and scientists in optimizing designs for efficiency in various fields like aerodynamics, automotive, and civil engineering.
Youtube Videos

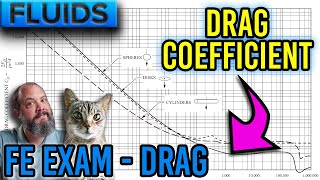

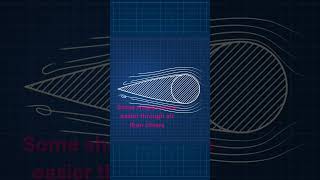

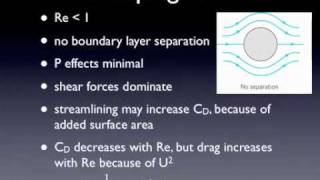

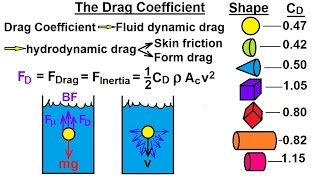

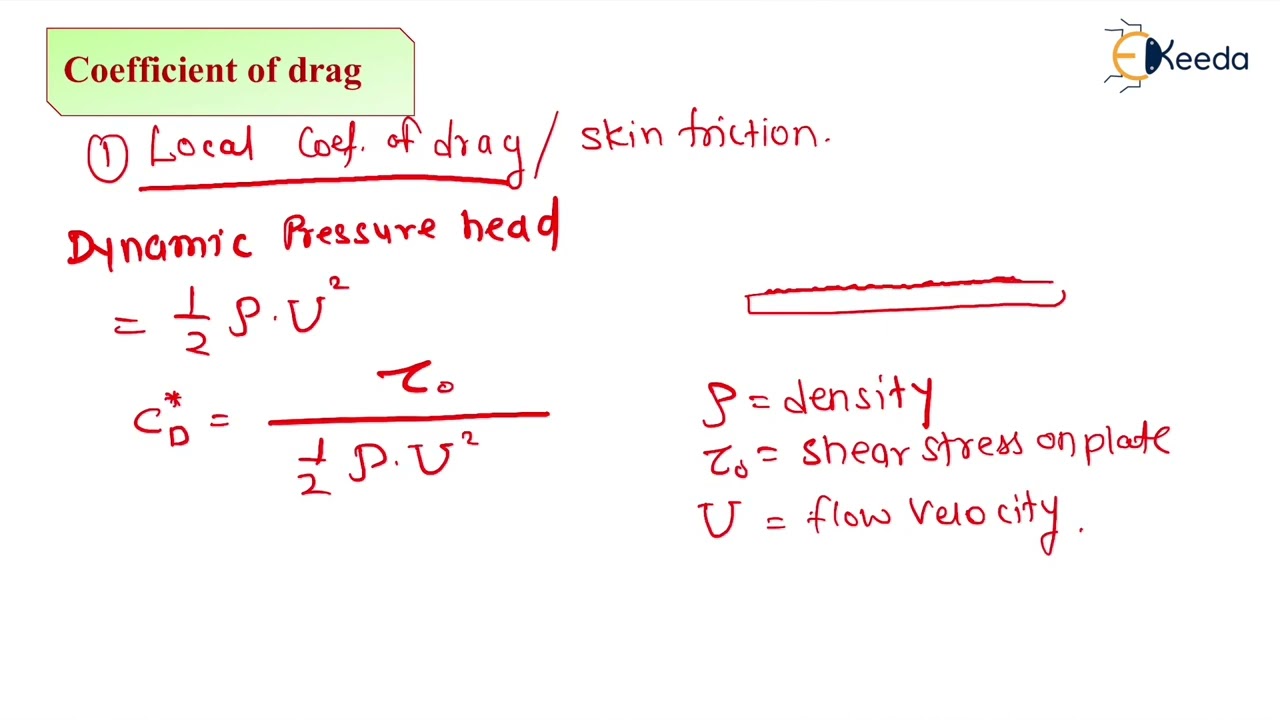

Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Drag Force
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The drag force is defined as a function of dynamic pressure, which is half times the density of the fluid (rho) multiplied by the square of the velocity (v^2), and is directly proportional to the coefficient of drag (Cd) and the frontal area (A).
Detailed Explanation
The drag force experienced by an object moving through a fluid can be calculated using the formula: \(F_d = \frac{1}{2} \rho v^2 C_d A\), where:
- \(F_d\) is the drag force,
- \(\rho\) is the fluid density,
- \(v\) is the velocity of the object relative to the fluid,
- \(C_d\) is the coefficient of drag, and
- \(A\) is the frontal area of the object. This means that as fluid density or velocity increases, so does the drag force. The coefficient of drag (Cd) is a dimensionless number that varies based on the shape of the object and the flow conditions.
Examples & Analogies
Think of driving a car. The faster you go, the more air resistance (drag) you face. If you have a more aerodynamic shape like a sports car, the drag is lower than with a boxy SUV. This is why race cars are designed to be streamlined, reducing the Cd and allowing them to travel faster with less energy.
Coefficient of Drag (Cd)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The coefficient of drag (Cd) can be determined experimentally through wind tunnel tests or computational fluid dynamics (CFD) simulations. It is influenced by factors such as fluid velocity, fluid density, frontal area, shape, size, and orientation of the object.
Detailed Explanation
The coefficient of drag (Cd) indicates how aerodynamically efficient an object is. It can be calculated through experiments in wind tunnels where an object is subjected to air flow. Alternatively, numerical simulations like CFD can predict the Cd based on virtual fluid flow around the object. Various factors, including the orientation of the object in the fluid stream and its shape—a sphere and a cube will have different Cd values—affect the Cd. Higher values generally indicate more drag.
Examples & Analogies
Consider a cyclist in a race. When the cyclist bends down to minimize their surface area against the wind, this action effectively reduces their Cd value, resulting in less drag and permitting them to go faster with the same amount of pedaling effort. Cyclists wear tight-fitting clothes for the same reason—to reduce drag and improve their speed.
Examples of Cd Variation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The coefficient of drag can vary significantly with changes in position; for example, an upright cyclist has a Cd around 1.1, but when leaning forward, this value can drop by 20%, greatly minimizing drag.
Detailed Explanation
A cyclist's body position drastically alters the drag force. When standing or sitting upright, the Cd might be higher (around 1.1). However, if the cyclist leans forward, reducing the frontal area exposed to the wind, the Cd can improve by about 20%, thus reducing the drag force experienced at high speeds. Such adjustments can lead to lower energy expenditure and higher speeds during races.
Examples & Analogies
This principle can be observed in various sports, from cycling to swimming. Swimmers also minimize resistance by changing their body positions and streamlining their strokes. Just like cyclists, every small change in their position can lead to significant improvements in performance.
Summary of Drag Coefficients
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In summary, the coefficient of drag is crucial in determining the drag force acting on objects, which is influenced by various physical characteristics and conditions.
Detailed Explanation
The coefficient of drag provides vital insights into an object's resistance in a fluid. Measurements and values of Cd guide engineers and athletes in optimizing performance across various fields, from automotive design to sports. Recognizing the relationship between Cd, velocity, fluid properties, and shape enables more efficient designs and strategies.
Examples & Analogies
Whether you're designing an airplane wing or trying to improve your speed while cycling, understanding and applying the concept of the drag coefficient can lead to significant performance improvements. Just like how aerodynamics play a vital role in making cars faster, it also affects airplane designs and sports gear.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Coefficient of Drag (Cd): A measure of drag relative to dynamic pressure.
-
Drag Force: The force due to the motion of an object through a fluid, acting in the direction of the fluid flow.
-
Dynamic Pressure: Represents the kinetic energy of the fluid affecting the object, related to velocity and density.
-
Reynolds Number: A crucial dimensionless number that helps categorize flow regimes.
-
Frontal Area: The projected area of an object facing the direction of the fluid flow.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A cyclist minimizes their drag by leaning forward to reduce their frontal area.
-
A golf ball has a different Cd compared to a smooth sphere due to dimples that alter airflow and reduce drag.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Drag is a force, that we can't ignore, Cd helps us measure, how much and more.
📖 Fascinating Stories
-
Once upon a time, a cyclist named Jack leaned forward on his bike to cut through the wind, lowering his Cd and racing ahead of his competitors.
🧠 Other Memory Gems
-
Cd = Cumulatively determined by Conditions on Drag (shape, speed, roughness).
🎯 Super Acronyms
C3R
- Coefficient
- Conditions affecting drag
- Effects on performance.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Coefficient of Drag (Cd)
Definition:
A dimensionless number that quantifies the drag or resistance of an object in a fluid environment.
-
Term: Drag Force
Definition:
The force exerted by a fluid on a body in the direction of the flow.
-
Term: Dynamic Pressure
Definition:
The kinetic energy per unit volume of a fluid, often represented as $$\frac{1}{2} \rho v^2$$.
-
Term: Reynolds Number
Definition:
A dimensionless number that indicates the flow regime, calculated based on fluid velocity, characteristic length, and viscosity.
-
Term: Frontal Area
Definition:
The area of an object projected in the direction of the fluid flow.
