Introduction to Hydraulic Radius
Unlock Audio Lesson
Good morning everyone! Today we will discuss the hydraulic radius, an important concept in open channel flow. The hydraulic radius is defined as the cross-sectional area of the flow divided by the wetted perimeter.
Can you explain what you mean by wetted perimeter?
Absolutely! The wetted perimeter is the length of the boundary of the flow that is in contact with the liquid. For example, in a rectangular channel, it includes the bottom and the two vertical sides but not the top surface.
So if the channel is wide, how does that affect the hydraulic radius?
Great question! As the width increases relative to the depth, the hydraulic radius R approaches the depth of the flow, making it a crucial factor in fluid dynamics analysis.
Relationship between Area and Wetted Perimeter
Unlock Audio Lesson
Let's explore how different geometries affect R. For a rectangular channel, if the depth is 'y' and width is 'b', the area A equals b times y, while the wetted perimeter P equals b plus 2y.
I see! So the hydraulic radius is A divided by P in this case?
Exactly! So hydraulic radius becomes \( R = \frac{by}{b + 2y} \).
If the depth is much smaller than the width, what happens?
In that case, R approximates 'y', showing that for very wide channels, the hydraulic radius effectively mirrors the flow depth.
Importance of Hydraulic Radius in Flow Analysis
Unlock Audio Lesson
Understanding hydraulic radius is essential for analyzing flow resistance and energy losses in open channels.
How does this relate to what we’ve learned about energy gradients in fluid mechanics?
Good connection! Just like in pipe flow, where we examine energy loss, hydraulic radius helps in calculating how flow behaves under different conditions.
Could we apply this to stormwater drainage systems as well?
Yes, exactly! Civil engineers often utilize hydraulic radius in designing drainage systems to ensure efficient water flow.
Hydraulic Radius Calculations
Unlock Audio Lesson
Let's practice calculating the hydraulic radius for various channel shapes. For a rectangular channel with a depth of 4 m and a width of 10 m, what is R?
The area A would be 40 m², and the wetted perimeter P would be 18 m. So R equals 2.22 m?
Correct! Remember, practicing with different shapes will cement your understanding of this concept.
What about a circular channel?
For a circular channel, we'd use the relevant formulas based on depth and radius. Dynamics will vary slightly, so keep practicing!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section introduces the hydraulic radius, a pivotal term in open channel flow analysis. It explains how hydraulic radius is affected by channel geometry and how it relates to other flow parameters, facilitating calculations in fluid dynamics.
Detailed
Detailed Summary of Hydraulic Radius
The hydraulic radius (R) is a critical measurement in the analysis of open channel flow in fluid mechanics. It is defined as:
$$ R = \frac{A}{P} $$
where:
- A is the cross-sectional area of flow (in m²) and
- P is the wetted perimeter (in m), which excludes the top surface of the channel where water contacts.
Hydraulic radius serves as a measure of how efficiently a channel conveys water. The section delves into how R varies with different channel geometries, such as rectangular, trapezoidal, triangular, and circular shapes. It explains that as the channel width increases relative to its depth, the hydraulic radius approaches the depth of the flow. Understanding this concept is crucial when applying principles of fluid mechanics, particularly in respect to energy losses and flow resistance. Moreover, it emphasizes that this concept synchronizes open channel flow analysis with pipe flow dynamics, allowing for a unified approach in hydraulic engineering.

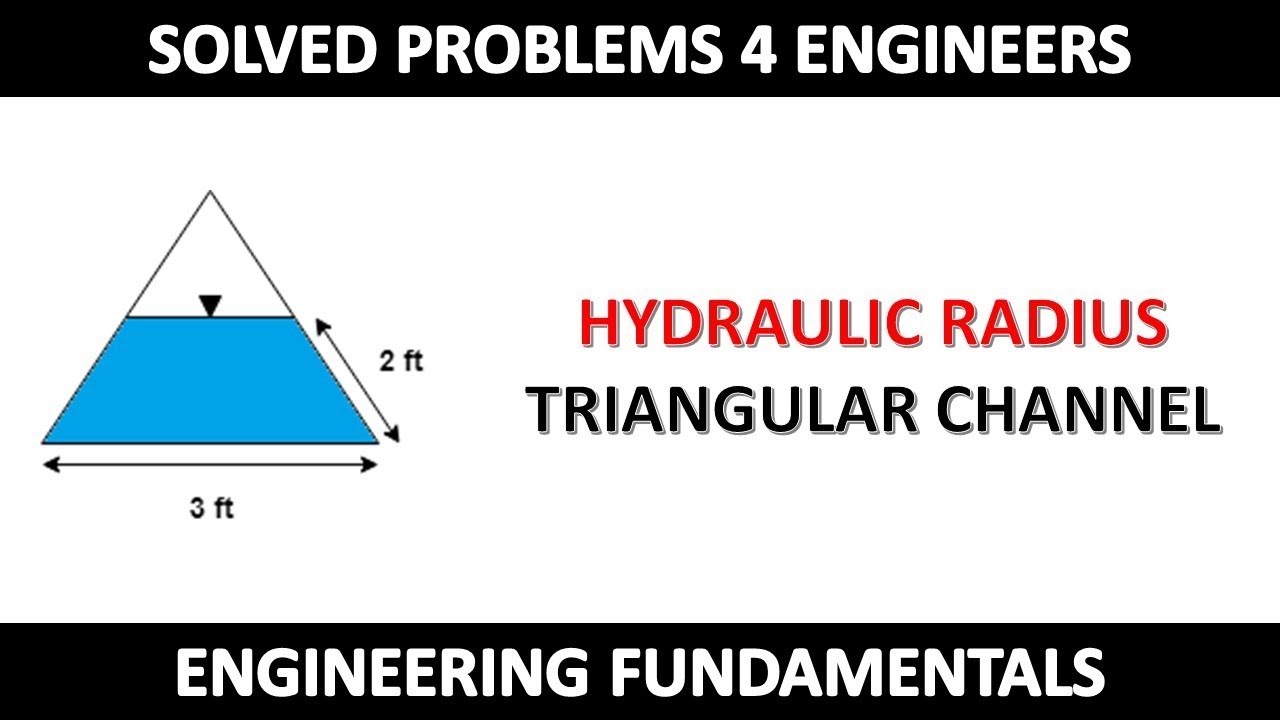

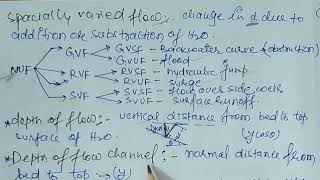

Youtube Videos
![Open Channel Flow - 6 [Flow Area A, Wetted Perimeter P Hydraulic Radius R, and Hydraulic Depth D]](https://img.youtube.com/vi/lyecuNbxlAs/mqdefault.jpg)
![[HYDRAULIC #1] Concept of Hydraulic Mean Depth and Hydraulic Radius and their Differences](https://img.youtube.com/vi/SON_Hh9Eibk/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Hydraulic Radius
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The concept of hydraulic radius refers to the ratio of the cross-sectional area of flow to the wetted perimeter of the channel, excluding the free surface. It is defined mathematically as \( R = \frac{A}{P} \), where A is the cross-sectional area and P is the wetted perimeter.
Detailed Explanation
Hydraulic radius is an essential concept used in fluid mechanics, especially for analyzing open channel flow. The hydraulic radius is calculated by dividing the area of flow (A) by the wetted perimeter (P). The wetted perimeter excludes the top surface (free surface) when calculating the perimeter of the channel. By using this ratio, we can better understand how different shapes of channels affect the flow of water through them.
Examples & Analogies
Imagine a garden hose with varying diameters. If the hose is wide and flat, the water will flow differently than if it’s narrow and round. The hydraulic radius helps us quantify these differences, just like measuring the amount of space available for the water to flow through. It’s crucial for engineers to know how much water can flow through different types of channels, like rivers or drains.
Calculating Hydraulic Radius
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
For rectangular channels, where the depth is \( y \) and the width is \( b \), the area \( A \) is \( A = b \times y \) and the wetted perimeter \( P \) is \( P = b + 2y \). Therefore, the hydraulic radius \( R \) can be expressed as \( R = \frac{b \times y}{b + 2y} \). As the channel becomes wider, the hydraulic radius approaches the flow depth.
Detailed Explanation
To calculate the hydraulic radius for a rectangular channel, you first determine the area by multiplying the width (b) by the depth of the water (y). The wetted perimeter is the sum of the width and twice the depth (two sides). So, the hydraulic radius R can be computed easily using the formula. Importantly, when the width increases significantly compared to the depth, the hydraulic radius will become approximately equal to the depth (y). This means that for very wide channels, the hydraulic radius simplifies to just the depth of water.
Examples & Analogies
Think of a bathtub. When it’s shallow, the width of the bathtub has a large effect on how much water it can hold. But as you fill it more and the depth increases, the width becomes less significant compared to how deep the water is. This concept helps engineers figure out how channels will behave when water is flowing through them.
Relation to Flow Characteristics
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The hydraulic radius is crucial when comparing open channel flow to pipe flow. In pipe flow, the critical Reynolds number, which determines the flow regime, is higher, while for open channels, the critical number is much lower due to the use of hydraulic radius, which accounts for the flow characteristics.
Detailed Explanation
Hydraulic radius is used to compare open channel flow with pipe flow. In pipe flow, the diameter is a key measure for determining the flow type (laminar or turbulent). In open channels, however, we use hydraulic radius because it helps relate the shapes of natural and man-made channels to the behavior of flowing water. This relation is particularly important when calculating Reynolds numbers, which help determine whether the flow is laminar or turbulent. In open channels, the critical Reynolds number is lower than in pipe flows, indicating differences in flow regimes as a consequence of geometry.
Examples & Analogies
Consider how a stream and a pipe carrying water behave. The stream (an open channel) has varying widths and depths, making it complex, while the pipe has a consistent round shape. By understanding hydraulic radius, we can predict how fast the water flows in the stream compared to the pipe, which is vital when designing irrigation systems or drainage solutions.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Hydraulic Radius: A concept used to analyze flow in channels, calculated by dividing the area by the wetted perimeter.
-
Wetted Perimeter: The length of the channel boundary that contacts the liquid, excluding open surface.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In a rectangular channel with a width of 10m and a depth of 4m, the hydraulic radius is 40/18 = 2.22m.
-
For a trapezoidal channel with depth 2m and side slopes of 1:2, the area and wetted perimeter can be calculated to find the hydraulic radius.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
For flow in channels, remember this phase, Hydraulic radius rules the stream's ways.
📖 Fascinating Stories
-
Imagine a river where the width grew vast; though deep it flowed, the current held fast. The wider it is, the depth stands proud, Hydraulic radius sings it loud!
🧠 Other Memory Gems
-
For A and P, remember: 'Area Above Perimeter'.
🎯 Super Acronyms
RAP - R stands for Radius, A for Area, and P for Perimeter.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Hydraulic Radius
Definition:
The ratio of the cross-sectional area of flow to the wetted perimeter, used to analyze flow in open channels.
-
Term: Wetted Perimeter
Definition:
The length of the boundary in contact with the flow, excluding the surface.
-
Term: Crosssectional Area
Definition:
The area of the flow at any given cross-section of the channel, affecting flow dynamics.
