Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Flow Types
Unlock Audio Lesson
Today, we'll start understanding subcritical, critical, and supercritical flow. These classifications are vital in applications like river engineering and drainage systems.
Can you define what subcritical flow means?
Certainly! Subcritical flow occurs when the Froude number is less than 1. It features deeper water and slower velocity, allowing waves to travel upstream.
What about critical flow, and how is it different?
Good question! Critical flow occurs when the Froude number equals 1, where flow velocity matches wave speed, marking a transition state.
And supercritical flow?
Supercritical flow, on the other hand, is defined by a Froude number greater than 1, characterized by fast and shallow flow, where downstream effects can significantly alter upstream conditions.
In summary, understanding these classifications helps us manage and design hydraulic structures. Remember, as a mnemonic: 'Slow Waters Carry' for Subcritical, 'Speed Limits Warn' for Critical, and 'Quick Streams Escape' for Supercritical!
Froude Number and Flow Characteristics
Unlock Audio Lesson
Let's talk about the Froude number more in-depth. It's vital for understanding the flow regime.
How is it calculated, and what does it tell us about the flow?
The Froude number is calculated as the ratio of flow velocity to wave speed. It indicates the ratio of inertial forces to gravitational forces in the flow.
How does the hydraulic radius fit into this?
Great connection! Hydraulic radius equals the area of flow divided by the wetted perimeter, crucial for estimating resistance and flow characteristics in any channel.
To recap, the Froude number helps us classify flow types while hydraulic radius aids in our calculations. Remember: 'A Unique Recipe: Area Perimeter' for hydraulic radius!
Applications of Flow Understanding
Unlock Audio Lesson
Now that we understand flow types, let's examine their application in real-world projects, like designing culverts.
How does knowing the flow type influence design?
It guides engineers. For instance, in supercritical flow conditions, structures must withstand higher velocities and potentially more erosion.
Is this knowledge relevant for stormwater management, too?
Absolutely! Understanding flow regimes is essential for effectively managing stormwater systems, ensuring they prevent flooding and convey water properly.
In summary, the classification of flow plays a critical role in hydraulic engineering. Don't forget, 'Design Drives Decisions!' to recall the importance of these concepts.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section delves into the classifications of flow in open channels into subcritical, critical, and supercritical categories, using the dimensionless Froude number to describe different flow behaviors. It covers the implications of these flow types on channel dynamics and introduces essential concepts like hydraulic radius and flow resistance.
Detailed
Understanding Subcritical, Critical, and Supercritical Flow
In this section, we explore the three fundamental types of flow in open channels: subcritical, critical, and supercritical flow. Understanding these categories is crucial in fluid mechanics, specifically in applications involving open channel flow, such as rivers, drainage systems, and canals.
Flow Classifications:
- Subcritical Flow: This type of flow occurs when the Froude number (d) is less than 1. It is characterized by deeper water and slower velocities, allowing information (like waves) to travel upstream. It often represents a tranquil state where gravity forces dominate. The flow is influenced significantly by channel shape and resistance.
- Critical Flow: Occurring at a Froude number of exactly 1, critical flow represents a transition between subcritical and supercritical states. Here, the flow velocity equals the wave speed, and it is a critical point that helps define the design and operational criteria for hydraulic structures.
- Supercritical Flow: This type is defined by a Froude number greater than 1, where the flow is fast and shallow. It presents conditions where downstream variables excessively affect upstream flow, leading to potentially turbulent conditions.
Key Concepts:
- Froude Number: The ratio of the flow velocity to the wave speed, used to classify the flow type. The significance of the Froude number lies in its ability to indicate the relative importance of inertial to gravitational forces in the water flow.
- Hydraulic Radius: The ratio of the cross-sectional area of flow to the wetted perimeter of the channel, crucial for estimating flow characteristics in different channel shapes.
The implications of understanding these flow types extend to how engineers design channels and manage water resources, ensuring efficient operation and stability of hydraulic structures.

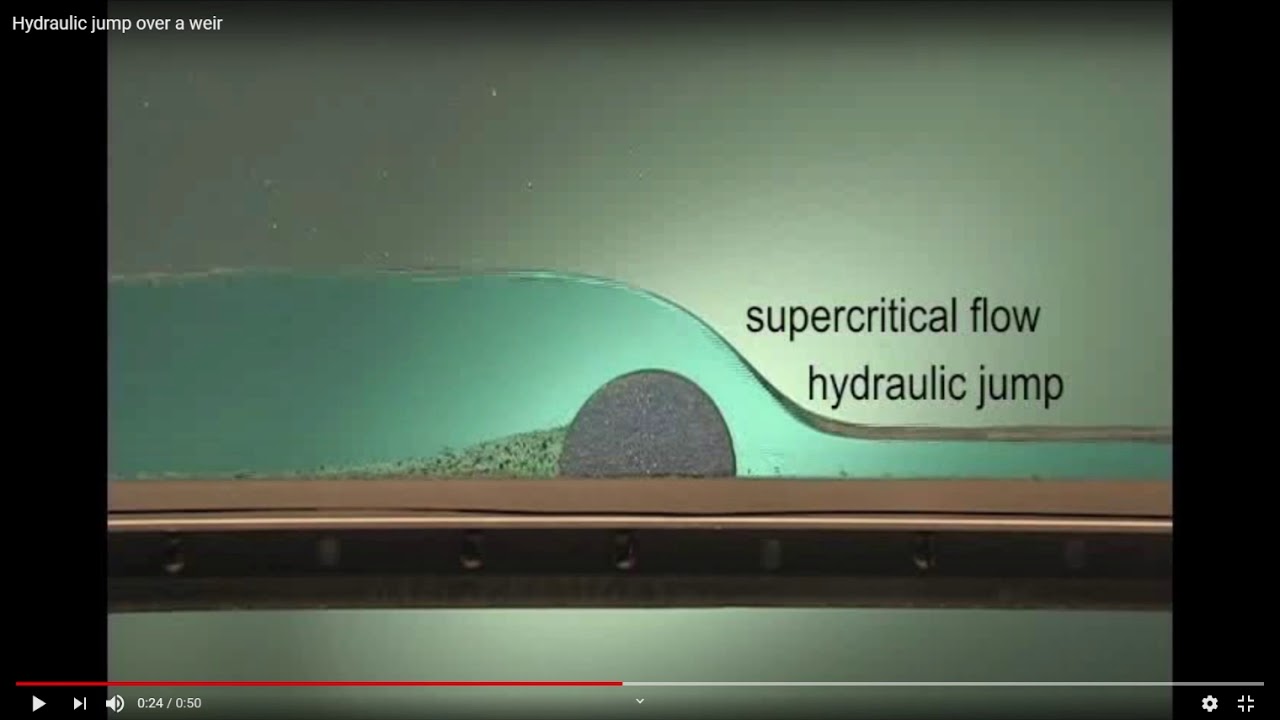

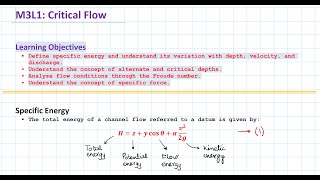

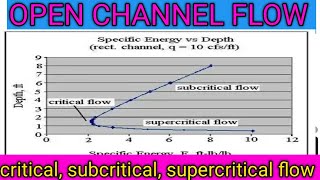

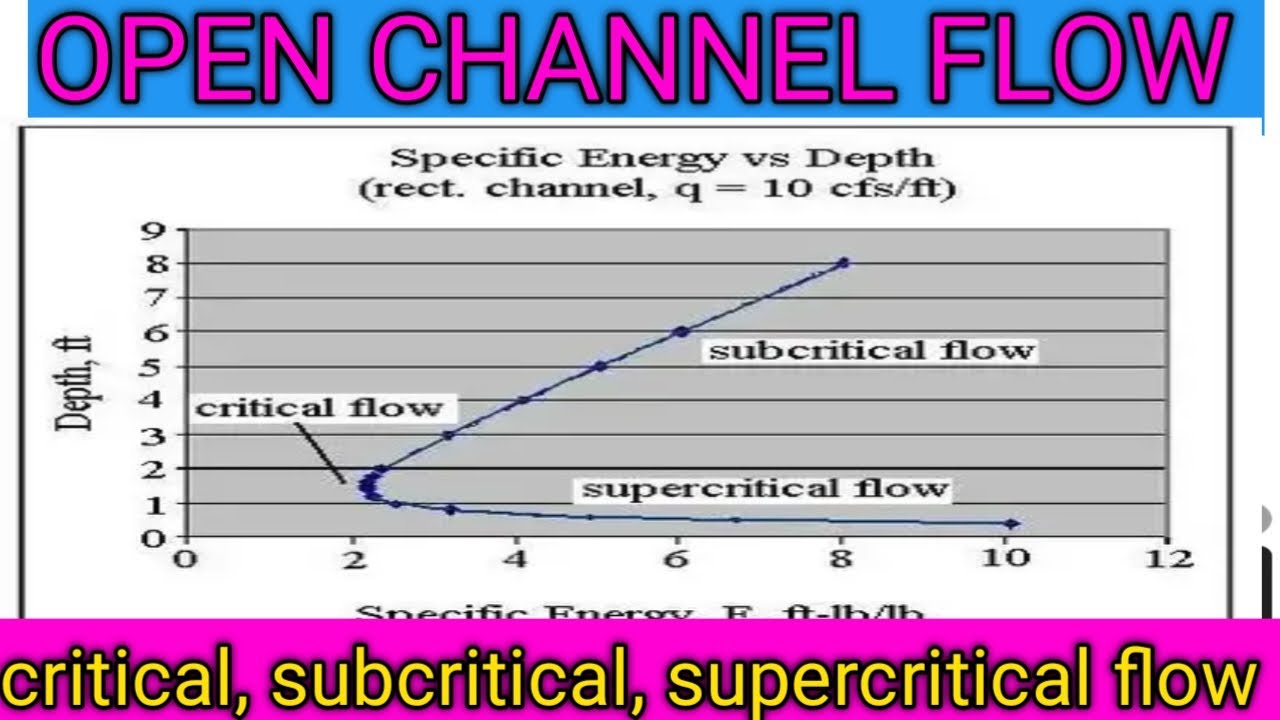

Youtube Videos
