Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Open Channel Flow
Unlock Audio Lesson
Good morning, everyone! Today, we will discuss open channel flow. Can anyone tell me what open channel flow is?
Isn’t it the flow of water in rivers and streams that has a free surface?
Exactly! Open channel flow refers to surface flow under atmospheric pressure. What do you think distinguishes it from pipe flow?
In pipe flow, there's pressure exerted from all sides, right? But in open channels, the pressure at the free surface is atmospheric?
Correct! Remember: 'Pressure is free at the surface, and gravitational is key!' This leads us to analyze the forces involved in open channel flow.
So, what forces act on the flow in an open channel?
Great question! The primary forces at play are gravitational and frictional forces. Can anyone elaborate on how these forces affect flow?
I think gravity pulls the water down the channel, while friction resists the flow against the channels' surface.
Excellent! This friction changes based on surface roughness. To summarize, open channel flow is defined by a free surface, with pressure at this surface equal to atmospheric pressure, and is governed by gravitational and frictional forces.
Flow Classifications
Unlock Audio Lesson
Let’s move on to the classifications of open channel flow. What categories can flow be classified into based on its characteristics?
I remember subcritical, critical, and supercritical flow?
Exactly! The Froude number helps us define these terms. Can someone explain what the Froude number indicates?
Isn't it a comparison of inertial forces to gravitational forces in the flow?
Correct! If the Froude number is less than 1, flow is subcritical; equal to 1, it's critical; and greater than 1, it's supercritical. That's crucial for predicting flow behavior. Can anyone provide examples of where each type may occur in nature?
Perhaps rivers in flood stages would be supercritical, while slow-moving streams are probably subcritical?
Perfect reasoning! It's essential to recognize these classifications as they influence hydraulic design and analysis. To recap, we characterized flows using the Froude number, identifying subcritical, critical, and supercritical conditions.
Understanding Hydraulic Radius
Unlock Audio Lesson
Next, we’re going to discuss 'hydraulic radius.' Who can explain its importance in open channel flow?
I think hydraulic radius measures how efficiently the channel conveys flow?
Exactly! The hydraulic radius is the cross-sectional area of flow divided by the wetted perimeter. Why do we exclude the free surface from the wetted perimeter?
Because the surface is at atmospheric pressure, right?
Correct! This gives us better insights into flow resistance. Can we connect this to Reynolds numbers?
Yeah! The hydraulic radius is used in calculations to determine whether flow is laminar or turbulent.
Well done! In essence, hydraulic radius is key for calculating flow characteristics, including resistance. Always remember: 'R is A over P, excluding the free surface of thee!'
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section discusses key concepts related to open channel flow, such as the significance of free surfaces, the forces acting within the flow, and the classifications of flow types. It emphasizes the application of fundamental fluid mechanics equations to understand and analyze open channel systems.
Detailed
Characteristics of Open Channel Flow
This section focuses on the characteristics of open channel flow, emphasizing the importance of understanding this specific fluid dynamic environment. Open channel flow is distinguished by the presence of a free surface, where the pressure at that surface is equal to atmospheric pressure. The discussion begins with an overview of foundational fluid mechanics concepts—namely mass conservation equations, linear momentum equations, and energy conservation equations—and their applications in analyzing open channel flow.
Key Points:
- Open Channel Definition: Open channel flow refers to the flow of fluid (usually water) with a free surface exposed to the atmosphere, allowing atmospheric pressure to act on the liquid.
- Formation: Rivers often follow a curvilinear path, representing natural open channels, whereas artificial channels (like canals) can exhibit either rectangular or trapezoidal cross-sections.
- Forces: Two primary forces govern open channel flow: gravitational force and frictional force from the channel boundaries, as there is no pressure force acting on the free surface.
- Velocity Distributions: In open channel flow, velocity distributions are affected by factors such as roughness and depth, with maximum velocities typically occurring about 20% below the free surface.
- Classification of Flow:
- Subcritical, Critical, and Supercritical Flow: The flow conditions depend on the Froude number, which compares inertial forces to gravitational forces.

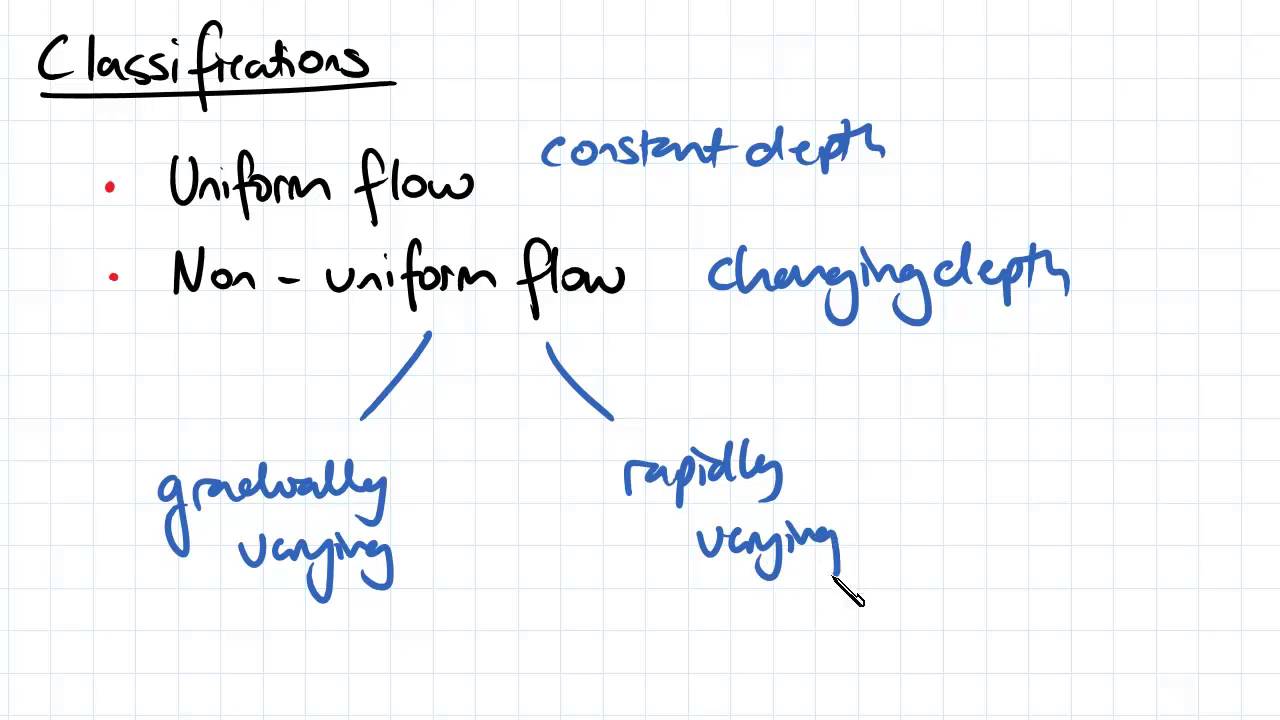

- Types of Open Channel Flow: Includes uniform flow, gradually varied flow, and rapidly varied flow, each characterized by distinct behaviors based on changes in flow properties over distance.
- Hydraulic Radius: A crucial parameter that relates the cross-sectional area of flow to its wetted perimeter, vital for calculations related to flow resistance and velocity in channel systems.
Throughout the section, the significance of hydraulic radius is emphasized for computing Reynolds numbers, drawing parallels between open channel and pipe flows. Overall, mastering these principles aids in the design and analysis of effective water transport systems.
Youtube Videos
![Open Channel Flow - 6 [Flow Area A, Wetted Perimeter P Hydraulic Radius R, and Hydraulic Depth D]](https://img.youtube.com/vi/lyecuNbxlAs/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
1. Introduction to Open Channel Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Open channel flow refers to flow situations where the fluid (usually water) moves in a channel that is not completely closed, meaning that some parts of the fluid surface are exposed to the air. This allows for a free surface, which is a significant characteristic of open channel flow.
Detailed Explanation
Open channel flow is a type of fluid flow that occurs in channels where the fluid surface is open to the atmosphere. This is in contrast to flows in pipes, where the flow is completely enclosed. In open channel flow, the free surface is crucial as it influences how the flow behaves. For example, rivers and canals primarily demonstrate open channel flow because the top surface is free and not held under pressure. Understanding open channel flow is essential for applications like river management, drainage systems, and hydraulic engineering.
Examples & Analogies
Think of the water flowing in a river or a stream. Picture how it flows around rocks and bends. The air above the water is the free surface, and the water is influenced by gravity and friction with the riverbed. Just like the river, canals used for irrigation operate under similar principles of open channel flow.
2. Forces in Open Channel Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In open channel flow, the primary forces acting on the fluid include gravity and friction. The pressure at the free surface is equal to atmospheric pressure, which simplifies the analysis since there are no significant pressure forces acting on the flow.
Detailed Explanation
In open channel flow, the fluid is mainly influenced by gravity, which pulls the fluid downwards, and friction, which resists the flow. This situation is different when compared to closed pipe flows, where pressure is a significant factor. Because open channels have a free surface exposed to the atmosphere, the pressure exerted at the surface equals atmospheric pressure, ensuring no additional pressure forces need to be considered. This simplification helps in better understanding and estimating fluid motion and forces within the channel.
Examples & Analogies
Imagine trying to slide down a water slide. Gravity pulls you downwards, while the material of the slide creates resistance or friction. The same principle applies to water flowing down a river: gravity propels the water forward while it interacts with the riverbed, which provides friction. This combination of forces helps determine how fast the water flows.
3. Free Surface and Atmospheric Pressure
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Since open channels have a free surface, the pressure at that surface is always equal to atmospheric pressure. This means that the pressure in the liquid just below the free surface must balance with the atmospheric pressure.
Detailed Explanation
In an open channel, the free surface of the water is not confined, which results in the pressure at that point being equivalent to the atmospheric pressure acting on the surface. Below this surface, however, the pressure increases due to the weight of the water above it. In practical terms, this means that the pressure forces on the water below the surface must balance out the atmospheric pressure, allowing the flow to maintain its characteristics.
Examples & Analogies
Think of a glass of water filled to the brim. The water stands still because the pressure at the surface matches the pressure exerted by the air above it. If you were to pour more water into the glass, it would overflow, demonstrating how the atmospheric pressure is maintained at the top. The same principle applies to rivers, where the surface water interacts with the atmosphere without being confined.
4. Types of Flow in Open Channels
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Open channel flow can be categorized into three primary types: subcritical flow, critical flow, and supercritical flow. Each type exhibits different characteristics regarding the relationship between flow velocity, depth, and energy.
Detailed Explanation
Flow in open channels can be classified based on the relative speed of the water flow compared to the wave speed of the surface. Subcritical flow occurs when the flow speed is less than the wave speed, characterized by deep flow and tranquil surface. Critical flow happens when the flow speed equals the wave speed, representing a transition state. Supercritical flow is when the flow speed exceeds the wave speed, which typically occurs in shallow and rapid conditions. Understanding these types of flow is vital for engineers to design and manage effective drainage and irrigation systems.
Examples & Analogies
Imagine a water slide again, but this time think of different speeds at which you can slide down. If you go slowly, you represent subcritical flow — calm and deep water. If you race straight down without slowing down, that represents supercritical flow, where water is fast-moving and shallow. The critical flow can be likened to the moment you hit the edge of the slide and hover for a moment before falling at the maximum speed.
5. Velocity Distribution in Open Channels
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Velocity distribution in open channels varies with relation to the boundary. The maximum velocity does not occur right at the surface but rather closer to the bottom of the channel due to friction.
Detailed Explanation
Understanding how velocity distributes in an open channel is important to predict how water flows effectively. The velocity of water is highest not at the surface but typically about 20% from the top due to the influence of friction with the channel's bottom and sides. This distribution is often observed under experimental conditions and helps in calculating flow characteristics for designs and applications in hydraulic engineering.
Examples & Analogies
Think about how a person swims in a pool. When they swim, they can move faster when they’re closer to the bottom because of less resistance from the water compared to swimming near the surface where they encounter more drag. Similarly, in an open channel, the water flows quickest near the bottom due to minimal interaction with the channel's perimeter compared to the surface.
6. Hydraulic Radius Concept
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The hydraulic radius is defined as the area of the flow cross-section divided by the wetted perimeter. It serves as a useful characteristic for understanding how water flows in different channel shapes.
Detailed Explanation
The hydraulic radius provides a measure of the efficiency of flow in open channels. By taking the area of the flow and dividing it by the wetted perimeter (the part of the channel in contact with water), engineers can estimate how well the channel will perform under various conditions. This is especially useful for determining whether the flow is turbulent or laminar and helps in system design.
Examples & Analogies
Imagine measuring a garden hose's diameter and length: a wider hose with a larger diameter will allow water to flow more freely than a narrower one. Similarly, the hydraulic radius helps engineers assess how 'wide' a water channel is for the flow of water and assists in making decisions about which channel dimensions will promote the best flow conditions.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Open Channel Flow: Defined by free surface and atmospheric pressure.
-
Hydraulic Radius: Measures efficiency of flow and relates area to perimeter.
-
Froude Number: Classifies flow regimes based on inertial and gravitational forces.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
An example of an open channel is a river where the water flows freely under atmospheric pressure, with varying cross-sections.
-
A canal designed for irrigation purposes where water flows at consistent depth and velocity can represent uniform flow.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In rivers wide, with waters free, the pressure's air, flowing with glee!
📖 Fascinating Stories
-
Imagine a river flowing joyfully with no lid, the air on top and depths beneath, where gravity sings, aiding the water's wreathed journey.
🧠 Other Memory Gems
-
R = Area over Perimeter (RAP) — This helps remember how to find hydraulic radius!
🎯 Super Acronyms
FCS (Free, Channel, Surface) — Remember how surface condition defines open channel types!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Open Channel Flow
Definition:
Flow of fluid with a free surface exposed to the atmosphere.
-
Term: Froude Number
Definition:
A dimensionless number to determine flow regime based on inertial and gravitational forces.
-
Term: Hydraulic Radius
Definition:
A measure of flow efficiency, calculated as the cross-sectional area divided by the wetted perimeter.
-
Term: Uniform Flow
Definition:
Flow where velocity, depth, and cross-sectional area remain constant.
-
Term: Gradually Varied Flow
Definition:
Flow where changes in depth and velocity occur slowly over distance.
-
Term: Rapidly Varied Flow
Definition:
Flow that exhibits abrupt changes in depth and velocity over a short distance.
