Introduction to Open Channel Flow
Unlock Audio Lesson
Good morning class! Today, let's start with what open channel flow is. Can anyone tell me what they understand by open channel flow?
Is it the flow of water in natural rivers or constructed channels?
Exactly! Open channel flow refers to fluids flowing in channels that have a free surface exposed to the atmosphere. Remember, it can be natural like rivers or man-made like canals.
What's unique about the pressure in open channel flow?
Good question! In open channel flow, the pressure at the free surface is equal to atmospheric pressure. This is a key aspect that differentiates it from closed systems like pipes.
So how does gravity play a role in this type of flow?
Great point! Gravity is one of the main forces driving the flow, along with friction from the channel bed. Let's remember that frictional forces change based on channel geometry.
Can we summarize that the flow can vary based on channel shape and external forces?
Absolutely! The shape of the channel and the balance of forces can lead to different flow classifications. Let's explore these classifications in detail next.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The discussion centers on open channel flow classifications, covering key concepts such as subcritical, critical, and supercritical flows, along with definitions and implications. Various examples are provided to illustrate natural and engineered flow systems.
Detailed
Flow Classifications
This section delves into the classifications that categorize open channel flow, critical for understanding fluid mechanics in both natural and engineered systems. The classifications hinge on the dynamical behavior of the flow under gravitational influences and frictional forces, essential for applications in civil engineering and environmental studies.
Key classifications include:
- Subcritical Flow: This category occurs when the flow's Froude number is less than one. It is characterized by depths being greater relative to the wave speed, leading to tranquil flow conditions. Generally, this implies that the gravitational influence is dominant over inertial forces.
- Critical Flow: This type occurs at the threshold where the Froude number equals one, indicating a balance between gravitational and inertial forces. At this point, waves can travel upstream, making critical flow crucial for predicting behaviors in open channel systems.
- Supercritical Flow: Defined by a Froude number greater than one, this flow type is fast and shallow, where inertial forces overpower gravitational forces. This could lead to turbulent conditions that are significant in designs for channels and drainage.
- Uniform and Non-uniform Flow: Uniform flow occurs when the depth and velocity remain constant along a channel, while non-uniform flow is characterized by variations in velocity and depth, manifested as rapidly or gradually varied flow based on the rate of change in flow parameters.
These flow classifications assist in modeling and managing water flow in various engineering scenarios, particularly for river management, canal construction, and urban drainage systems. Understanding these distinctions is vital for future studies in fluid dynamics and environmental planning.

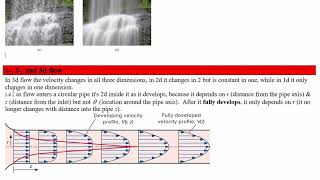

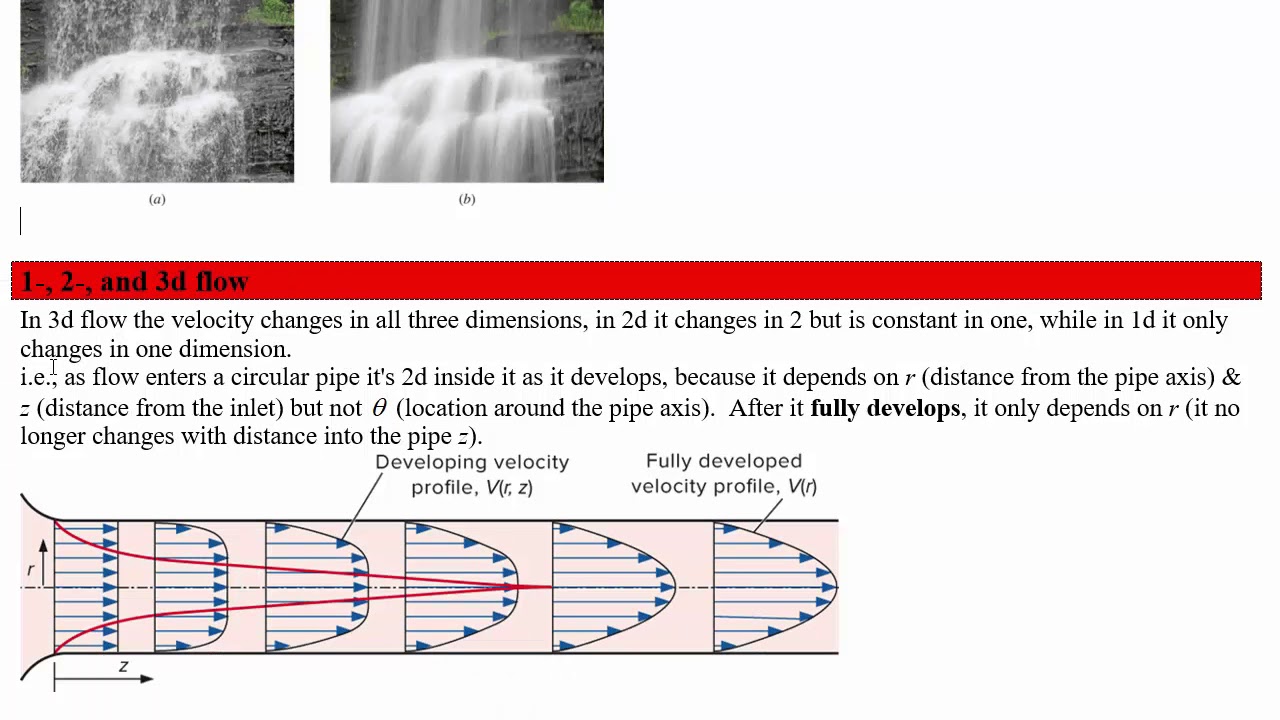

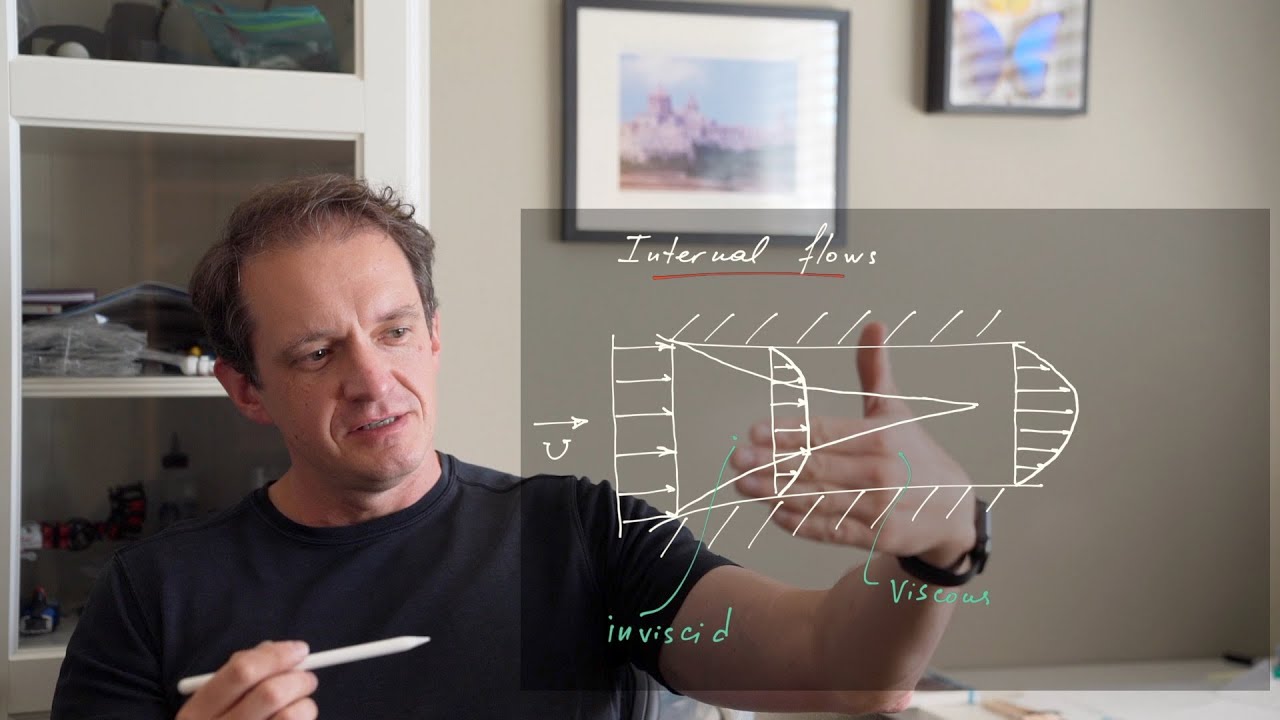

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Flow Classifications
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In open channel flow, we classify flow into three primary categories: subcritical, critical, and supercritical flow. These classifications help us understand the flow characteristics and behavior of fluids within open channels. The classifications are determined using the Froude number, which indicates the relationship between the flow inertia and gravitational forces acting on the fluid.
Detailed Explanation
Open channel flow can be categorized based on the Froude number (Fr), which is calculated using the flow velocity, gravitational acceleration, and characteristic length (usually the flow depth). The classifications are:
1. Subcritical Flow (Fr < 1): This flow regime is dominated by gravitational forces, where the flow has a depth greater than the critical depth. In this case, waves can travel upstream, and the flow is relatively calm.
- Critical Flow (Fr = 1): In this situation, the flow velocity is equal to the wave speed of the fluid. It's a transitional state between subcritical and supercritical flow. The flow is very sensitive to changes in depth and slope.
- Supercritical Flow (Fr > 1): Here, inertial forces dominate the flow. The flow is shallow, and waves cannot travel upstream. This condition often leads to rapid changes in flow characteristics.
Examples & Analogies
Imagine a water slide at a theme park. When the slide is steep (like in supercritical flow), the water rushes down quickly, and you can't paddle upstream against the current (similar to how waves cannot travel upstream). However, if the slide is more gradual (like subcritical flow), you can lightly paddle upstream and enjoy a calmer ride.
Flow Behavior in Channels
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The behavior of flow in channels can also be understood through two specific conditions: uniform and non-uniform flow. Uniform flow occurs when the flow parameters such as depth, velocity, and cross-sectional area remain constant along a channel. Non-uniform flow, on the other hand, involves variations in these parameters.
Detailed Explanation
- Uniform Flow: In ideal conditions, when there is a consistent channel shape and slope, the flow can become uniform. This means that the flow depth (y) and velocity (v) do not change over a long distance in the channel. It's like driving on a straight, flat road where your speed remains constant.
- Non-Uniform Flow: This refers to scenarios where the flow parameters fluctuate. Non-uniform flow can further be broken down into gradually varied flow and rapidly varied flow.
- Gradually Varied Flow: Here, changes in flow parameters occur slowly over a considerable distance, much like driving on a highway with gradual changes in elevation.
- Rapidly Varied Flow: In contrast, this type involves sudden changes in flow characteristics over a short distance, such as when water flows over a waterfall.
Examples & Analogies
Think of a river. At certain stretches, the river flows steadily and slowly, perhaps near a large lake (this is uniform flow). But as it nears a steep drop or a rapid, the flow changes dramatically, with foamy, fast-moving water (rapidly varied flow). As you navigate through the river, you face both calm stretches and turbulent rapids.
Importance of Understanding Flow Classifications
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Understanding flow classifications is crucial for engineers and planners when designing hydraulic structures. This knowledge helps in predicting how water will behave in different conditions and ensures effective management of water resources.
Detailed Explanation
The classifications of flow affect the design of various hydraulic structures, like dams, spillways, and channels. Different flow conditions can cause variations in forces exerted by flowing water, which can impact structural safety and efficiency. For example, in designing bridges, knowing whether the flow is subcritical or supercritical helps engineers calculate the expected water forces and plan appropriately.
Designers also consider flow classifications when planning irrigation systems, flood control measures, and wastewater management as they ensure that systems can handle expected water levels and flow rates effectively.
Examples & Analogies
Picture a highway overpass designed to allow a river to flow beneath it. Engineers must calculate whether the river typically flows subcritically or supercritically during floods. If they misjudge this classification, the bridge could be vulnerable during heavy rains, leading to potential flooding and danger. Such predictions are essential for safe and efficient civil engineering.
