Introduction to Hydraulic Radius
Unlock Audio Lesson
Today, we'll discuss hydraulic radius. Can anyone tell me what they think it is?
Is it related to the flow area of a channel?
Good point! Hydraulic radius is the cross-sectional area of flow divided by the wetted perimeter. Mathematically, R = A/P. Can anyone explain why this is important?
I think it helps with calculating flow velocity and energy losses.
Exactly! Understanding hydraulic radius aids in analyzing fluid flow, especially in open channel hydraulics.
Let's remember: 'Area over Perimeter' can help recall the formula for hydraulic radius.
Rectangular Channel Calculations
Unlock Audio Lesson
Now, let’s consider a rectangular channel. Who can help me with the area and perimeter formulas?
For a rectangular channel, area A is `b * y` and perimeter P is `b + 2y`.
Exactly! Using those, we can find the hydraulic radius. What happens if the width is much larger than the depth?
Then the hydraulic radius approaches the depth, right?
That's correct! It's important for predictions related to flow behavior.
Remember the acronym 'B-D' for *Bigger than Depth,* which implies R approaches y in such cases.
Understanding Circular Channel Geometry
Unlock Audio Lesson
Let’s move on to circular channels. Understandably, the shapes change our calculations. Can anyone summarize the typical parameters?
The shape depends on the angle and revolves around circular segment geometry.
Correct! The parameters can complicate things. What about the hydraulic radius?
It would require different calculations compared to rectangular channels.
Good observation. Keep in mind the complexity using circular channel shapes. Remember the phrase 'Circle of Parameters' for calculations!
Trapezoidal Channel Characteristics
Unlock Audio Lesson
Lastly, let’s look at trapezoidal channels. Who can outline the aspect of calculating area and perimeter?
It involves both the bases' width and the side slopes.
Absolutely! Why does the hydraulic radius matter here?
It determines the efficiency and minimizes energy losses in flow.
Spot on! Remember to visualize with the term 'Trapezium to Radius!'
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
Hydraulic radius is a crucial concept in open channel flow, defined as the ratio of the channel's cross-sectional area to its wetted perimeter. The section elaborates on how hydraulic radius varies with channel shape, including rectangular and trapezoidal channels, enabling effective analysis of fluid flow and energy losses.
Detailed
Hydraulic Radius for Different Channel Shapes
In this section, we explore the concept of hydraulic radius, a key parameter in fluid mechanics relevant to open channel flow. The hydraulic radius (R) is defined as the cross-sectional area of the flow (A) divided by the wetted perimeter (P), excluding the top surface of the flow. Mathematically, it can be expressed as:
$$ R = \frac{A}{P} $$
This parameter is essential in characterizing the flow behavior in various channel shapes, impacting calculations of flow velocity, energy losses, and frictional resistance.
Key Channel Forms

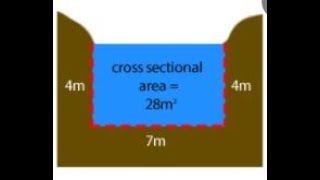

- Rectangular Channels:
For a rectangular channel whereyis the depth andbis the width, the equations become: - Area, A = b * y
-
Wetted Perimeter, P = b + 2y
Hence, the hydraulic radius is:
$$ R = \frac{b \cdot y}{b + 2y} $$
In conditions where the width (b) greatly exceeds the depth (y), R approaches the depth of water (y). -
Circular Channels:
In circular channels, the area and perimeter depend on the angle of flow and can be expressed in terms of the circular segment's geometry. The hydraulic radius formula must adapt accordingly, factoring in the angle of the segment. -

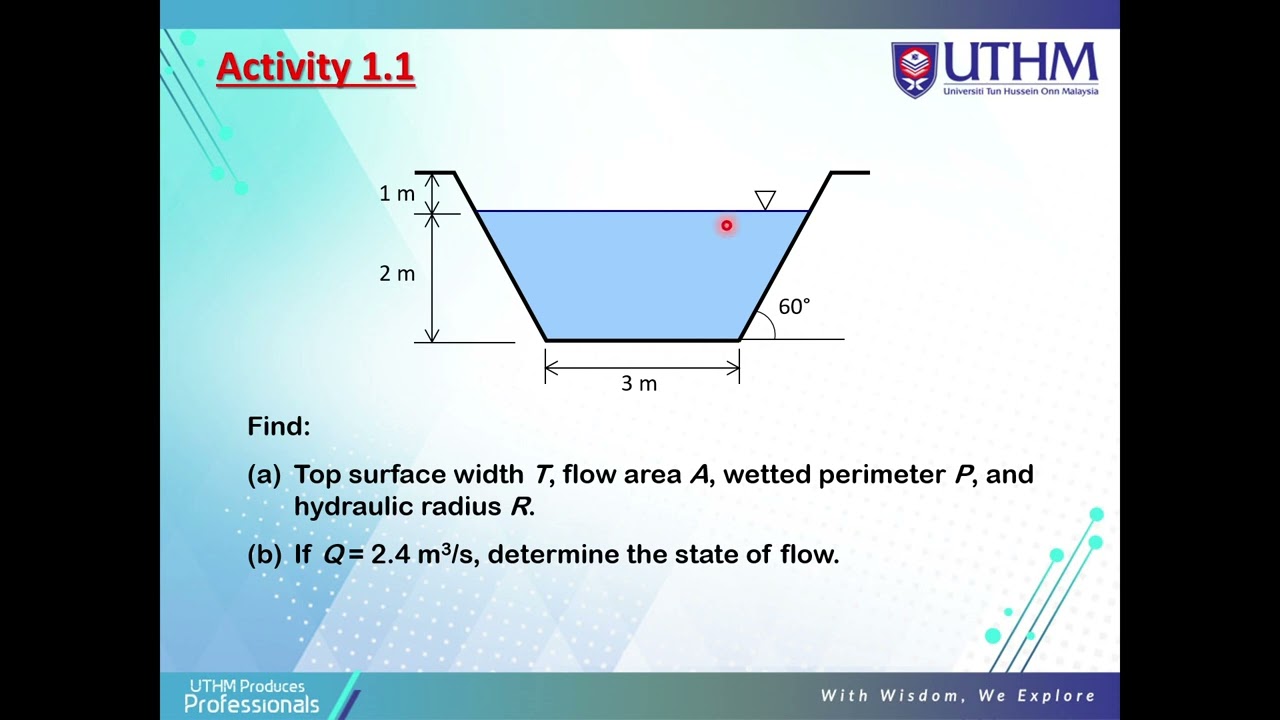

Trapezoidal Channels:
These channels require consideration of both bases' width and the side slopes to accurately determine area and perimeter, impacting the hydraulic radius.
Importance of Hydraulic Radius
The hydraulic radius enables the analysis of flow mechanics effectively, particularly in calculating Reynolds numbers to evaluate flow regimes (laminar vs. turbulent). Understanding how hydraulic radius changes with channel shape helps engineers design channels for efficient fluid transport reducing energy losses. Additionally, a well-defined hydraulic radius allows for more accurate predictions of flow behavior even in varied conditions such as natural rivers versus man-made canals.
Summary
This section emphasizes understanding hydraulic radius's role in open channel hydraulics. By mastering channel geometry and its effects on hydraulic radius, fluid mechanics professionals can optimize design and operational efficiency in fluid flow systems.
Youtube Videos
![[HYDRAULIC #1] Concept of Hydraulic Mean Depth and Hydraulic Radius and their Differences](https://img.youtube.com/vi/SON_Hh9Eibk/mqdefault.jpg)
![Open Channel Flow - 6 [Flow Area A, Wetted Perimeter P Hydraulic Radius R, and Hydraulic Depth D]](https://img.youtube.com/vi/lyecuNbxlAs/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Hydraulic Radius
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now let me highlight it that hundred years back there was no computers. So methodologies were more a conceptual form work. Now they have introduced a new concept to look at that one is called hydraulic radius because as I sketching these different cross sections okay because in pipe flow you may have the circular or this square pipe flow but in natural rivers in case of different canal structures or drainage structures. So we need to have a hydraulic radius concept okay.
Detailed Explanation
The hydraulic radius is a key concept in fluid mechanics that helps to describe the efficiency of various channel shapes in carrying water. This concept was developed as a way to analyze open channel flows, which differ from enclosed pipe flows. In open channels, the shape of the channel (e.g., rectangular, trapezoidal) significantly affects how efficiently water can flow. Understanding the hydraulic radius allows engineers to estimate flow conditions in natural rivers or man-made channels.
Examples & Analogies
Imagine a garden hose (representing a pipe) versus a shallow stream (representing an open channel). The hose has a specific diameter, while the stream varies in shape and depth. Engineers use the hydraulic radius to understand how quickly water can flow in the stream, just like checking the pressure in the hose. This helps them design effective drainage systems or irrigation channels.
Understanding Hydraulic Radius Formula
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So if you look at that a simple concept of hydraulic radius okay that means is A by P P is the weighted parameters excluding the top surface which are the the surface which is the free surface if you excluding the length of that.
Detailed Explanation
The hydraulic radius (R) is defined as the cross-sectional area of flow (A) divided by the wetted perimeter (P). The formula is expressed as R = A / P. The area is the section of the channel that is filled with water, while the wetted perimeter is the length of the channel that is in contact with the water. Importantly, this definition helps to show how the shape of a channel influences the flow characteristics.
Examples & Analogies
Consider a bathtub filled with water. The surface area of the water represents A, and the edges of the bathtub submerged in water represent P. If you fill the bathtub to a shallow level, the hydraulic radius is smaller, meaning the water does not flow as efficiently. However, if you fill it to the brim, both the area and the wetted perimeter get larger, enhancing the flow efficiency.
Application to Different Channel Shapes
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So hydraulic radius will be the a by p which means the b by y b plus 2y okay so b by y by b plus 2y.
Detailed Explanation
Different channel shapes, such as rectangular or trapezoidal, have specific relationships between their dimensions and the hydraulic radius. For rectangular channels, where width (b) and depth (y) dictate flow behavior, the hydraulic radius can be computed easily. For example, if the flow depth is much smaller than the width, the hydraulic radius closely approximates the depth of the water (R ≈ y). This insight allows engineers to design channels that optimize water flow based on their shapes.
Examples & Analogies
Think of a rowing boat. If you row it in a narrow canal (narrow width), even a little increase in depth allows it to float higher and move better through the water. Conversely, in a wide lagoon, the same depth may not help much in terms of speed because the width absorbs that depth's effect. This analogy helps to visualize how the design of a channel affects the water flow, just like how the boat's movement changes in different water bodies.
Critical Depth and Hydraulic Radius
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
That means if I extend the b, making more and wider and widers, my radius will be the only depth that means you can draw a arc okay of r y that is what is equivalent the radius is given to us.
Detailed Explanation
As the width of an open channel increases while maintaining water depth, the hydraulic radius approaches the depth. This indicates that as water flows in wider channels, the influence of the channel's width on flow velocity becomes less significant. Understanding this relationship is crucial for predicting how different channel designs will perform under varying water levels.
Examples & Analogies
Imagine a river that gets wider as it flows downstream. In narrow sections, the water has to flow quickly through a tight space (making the depth more critical). However, in wider sections, the depth remains important, but it becomes easier for the water to flow freely, similar to how a person would swim faster in a wider pool than in a narrow channel.
Hydraulic Radius and Reynolds Number
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So this is a simple for a different geometry you have a diameter at the client strength levels you know it for different geometry for different depth you can always estimate it what is a hydraulic radius.
Detailed Explanation
The hydraulic radius is also used to determine the Reynolds number, which helps identify whether the flow is laminar or turbulent. In practice, a Reynolds number below 500 indicates laminar flow, while above this threshold signifies turbulent flow conditions. The use of the hydraulic radius in this formula allows for a greater understanding of the flow behavior in real-world scenarios, ensuring accuracy in civil engineering projects.
Examples & Analogies
Consider the way a river ripples. When moving slowly through a narrow channel, the flow is smooth and calm, akin to laminar flow. However, when it rains and the river swells, water rushes rapidly with splashes and eddies, resembling turbulent flow. Engineers assess this behavior using hydraulic radius and Reynolds number to ensure bridges or dams are built to withstand these changes.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Hydraulic Radius: A fundamental parameter measuring the relationship between area and wetted perimeter.
-
Wetted Perimeter: Important in calculating the hydraulic radius and understanding flow behavior.
-
Channel Geometry: Varies considerably among different shapes, impacting hydraulic radius and flow analysis.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example of a rectangular channel where b = 10 m and y = 2 m: A = 20 m², P = 14 m, R = 20/14 = 1.43 m.
-
In a circular channel with a segment flow of 30 degrees, hydraulic radius calculations involve the geometric relationships intrinsic to the circle.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Area's the space and perimeter's the edge, divide them right and you'll have your hedge.
📖 Fascinating Stories
-
Imagine a gardener measuring water flow for his plants, he learns that by calculating area and perimeter, he optimizes water use. This gardener is also keeping track of how wide his garden path should be based on water needed – hence making use of hydraulic radius!
🧠 Other Memory Gems
-
A-P Rule: Area over Perimeter makes your hydraulic radius clearer.
🎯 Super Acronyms
C-H-E-R
- **C**hannel
- **H**ydraulic
- **E**nergy
- **R**adius — key terms to remember in open channel flow.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Hydraulic Radius
Definition:
The ratio of the cross-sectional area of flow to the wetted perimeter.
-
Term: Wetted Perimeter
Definition:
The length of the boundary of the cross-section of a flow in contact with the fluid.
-
Term: Crosssectional Area
Definition:
The area of the flow perpendicular to the direction of flow.
