Introduction to Pressure Conditions
Unlock Audio Lesson
Today, we're discussing pressure conditions in open channel flow. Can anyone tell me what happens at the fluid's free surface?
Isn't it exposed to atmospheric pressure?
Exactly! The pressure at the free surface equals atmospheric pressure. This is crucial, as pressure forces in open channel flow are absent. What are the two forces we mainly consider in open channels?
Gravity and friction?
Correct! Gravity pulls the fluid downwards, while friction resists flow against the channel bed and sides. Remember the acronym G-F for Gravity and Friction. Can someone explain how these forces interact?
I think gravity drives the flow, and friction opposes it.
Great insight! Gravity drives the motion, while friction affects flow characteristics. Let's move on to no-slip boundary conditions. When we say the velocity at the boundary is zero, what does that imply?
It means the fluid sticks to the boundary.
Exactly! Due to adhesion, we see zero velocity at the boundaries. To summarize, open channel flow primarily experiences atmospheric pressure, with gravity driving flow and friction opposing it. Remember G-F and zero velocity at boundaries.
Flow Classifications
Unlock Audio Lesson
Now, let's talk about classifying open channel flows. Who can explain the distinction between uniform and non-uniform flow?
Uniform flow has constant depth, slope, and velocity, while non-uniform flow changes these parameters.
Exactly! In uniform flow, all parameters remain constant, while in non-uniform flow, factors like depth and slope vary. Can anyone provide a practical example of uniform flow?
Maybe water flowing in a long, straight canal?
That's a perfect example! Next, let's clarify gradually varied flow versus rapidly varied flow. Who can summarize that?
Gradually varied flow changes slowly, while rapidly varied flow changes quickly.
Right! Gradually varied flow reflects gentle changes, like in a river, whereas rapidly varied flow shows abrupt changes, like when a dam opens. A great way to remember is G for Gradual and R for Rapid. Can anyone think of real-life applications for these concepts?
For gradually varied flow, I think of rivers with gentle slopes, and for rapidly varied, maybe flood control systems.
Excellent observations! Understanding these classifications helps in effectively managing water systems. Remember the important terms: uniform, non-uniform, gradually varied, and rapidly varied flows.
Hydraulic Radius and Its Importance
Unlock Audio Lesson
Lastly, we need to discuss hydraulic radius. Can someone define what it is?
Is it the ratio of the area of flow to the wetted perimeter?
Correct! The hydraulic radius (R) is calculated as Area (A) divided by Wetted Perimeter (P). Why do we use it?
It helps us analyze flow characteristics in different channel shapes.
Exactly! Now consider a rectangular channel. What would be the hydraulic radius if the width is b and depth is y?
It would be R = (b * y) / (b + 2y).
But if y is much smaller than b, R approaches y!
Fantastic! Remember, as channels widen, hydraulic radius approximates depth. Let's summarize: Hydraulic radius helps in analyzing flow, and R = A / P is essential for different geometries.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, we delve into pressure conditions within open channel flow, discussing how atmospheric pressure dominates at the free surface, the absence of pressure forces in such flows, and the role of gravity and friction forces. Further, we classify types of flow and introduce key concepts such as hydraulic radius and flow classifications.
Detailed
Detailed Summary of Pressure Conditions in Open Channel Flow
In fluid mechanics, understanding pressure conditions is vital for analyzing open channel flow. Unlike closed pipe systems, open channels expose the fluid's surface to atmospheric pressure. As a result, the pressure at the water's surface equals atmospheric pressure, meaning it does not contribute to the system's forces. This section highlights two primary forces in open channel flow: gravity and friction. Gravity acts downward, while friction emanates from the channel bed and sides.
This section also emphasizes the concept of no-slip boundary conditions, indicating that the fluid velocity is zero at the boundaries due to adhesion to the channel surfaces. Subsequently, the importance of drawing velocity distribution contours is discussed, illustrating how velocity varies with depth.
Open channel flows can be classified into uniform and non-uniform flows, as well as steadily varied or rapidly varied flows, based on the changes in velocity, depth, and slope. The hydraulic radius is introduced as a critical concept, serving as a metric for flow characteristics in various channel geometries. Understanding these parameters aids engineers and practitioners in designing and managing water flow systems effectively.

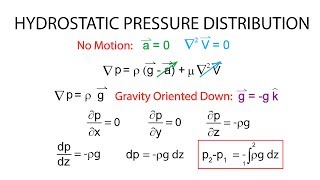

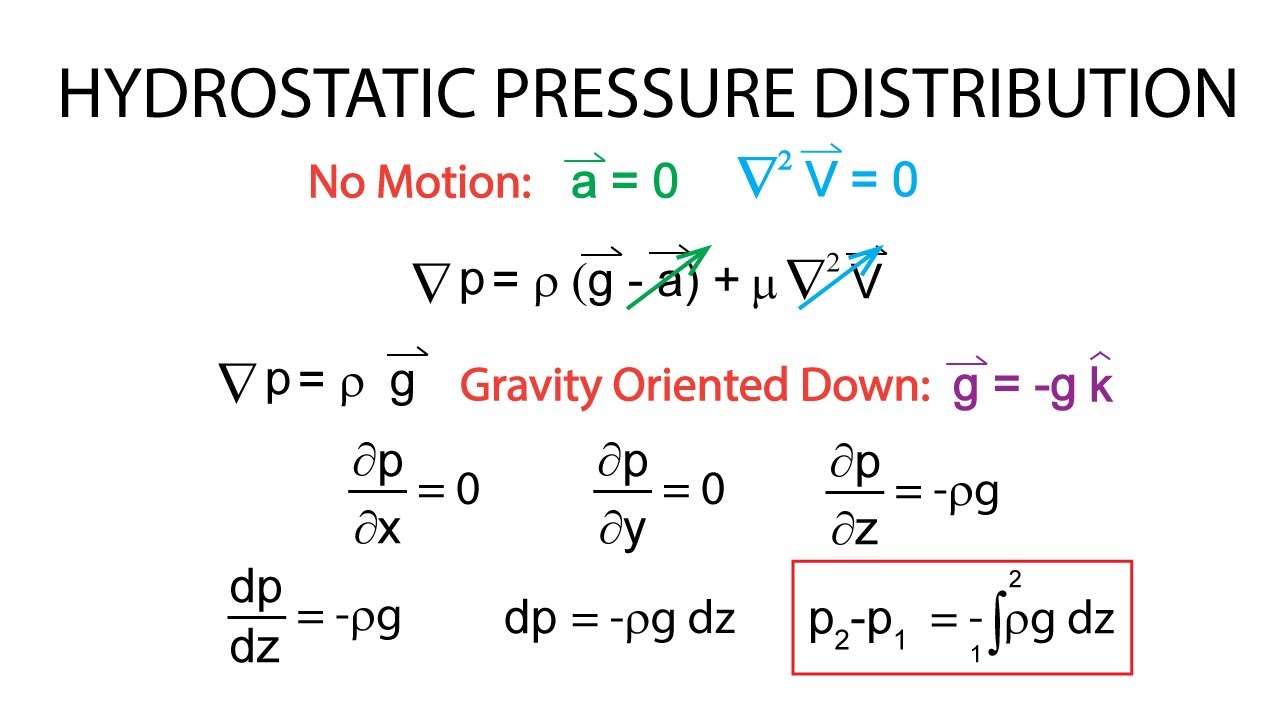

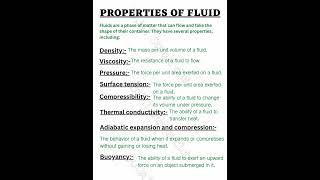

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Open Channel Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In open channel flow, the pressure at the free surface is equal to atmospheric pressure. This is because the flow is open to the atmosphere.
Detailed Explanation
Open channel flow refers to any flow where the liquid is within a channel that is not completely enclosed. In such cases, the pressure at the top of the fluid is the same as the atmospheric pressure. This means that if you were to measure the fluid pressure just below the surface, it would be equal to the atmospheric pressure at that location. Thus, the only forces affecting the flow are gravity and friction against the channel's boundaries.
Examples & Analogies
Imagine standing by a river. The water flows freely, and if you looked at the surface, it is open to the air. The pressure you would feel at the water's surface is equal to the air pressure around you. This is different from a water pipe, where pressure can build up due to being enclosed.
Force Components in Open Channel Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In open channel flow, since the pressure is atmospheric, we mainly consider two forces: gravity force and friction force. Pressure force is negligible.
Detailed Explanation
In open channel flow, because the pressure at the free surface equates to atmospheric pressure, there is no additional pressure pushing down on the fluid. Therefore, the forces acting on the water in the channel primarily consist of the downward force due to gravity and the opposing force due to friction along the channel bed and sides. This significant distinction contrasts with pressure flow in pipes, where internal pressure can contribute to the flow dynamics.
Examples & Analogies
Think of a slide at a playground. As you slide down, gravity pulls you downwards, but the roughness of the slide's surface can slow you down (the friction). In river flow, gravity pulls the water downstream, while the riverbed's roughness affects how quickly the water flows.
Effects of Bed Roughness on Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The friction force in open channel flow depends on the roughness of the channel's bed and sides, similar to how pipe flow is influenced by wall roughness.
Detailed Explanation
Just as in pipes where the inner surface texture affects how water moves, the roughness of the channel's bottom and sides affects water flow in open channels. This 'roughness' introduces resistance, which slows down the flow of water. The greater the roughness, the more friction force you encounter, resulting in slower and less uniform flow.
Examples & Analogies
Consider walking through a thick carpet versus a smooth floor. On the carpet (acting like a rough channel), you find it harder to walk quickly due to increasing friction, while on the smooth floor, you can glide easily. Similarly, water flows faster in smooth channels compared to those that are rough.
Flow Profiles and Velocity Distributions
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The velocity distribution in open channel flow is influenced by the no-slip condition, where the velocity at the boundary of the channel is zero.
Detailed Explanation
The no-slip condition states that the velocity of the fluid at the point where it contacts the channel surfaces is zero, meaning there is no movement at that point. As you move away from the channel boundary into the center, the velocity increases due to the influence of gravity pulling the fluid downward. The result is a gradient in fluid speed, with slower speeds near the edges and faster speeds toward the center of the channel.
Examples & Analogies
Imagine a crowd of people moving down a hallway. If some people are standing still along the walls (mimicking the no-slip condition), those in the middle of the hallway can move much faster. This leads to a higher speed in the center while the edges move slower.
Types of Flow: Critical, Sub-Critical, and Super-Critical
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Open channel flows can be categorized into three types: sub-critical, critical, and super-critical flow, based on the flow's velocity and the influence of gravity on the water's motion.
Detailed Explanation
These classifications define how fluid behaves under certain conditions. Sub-critical flow occurs when the flow velocity is less than the wave speed, leading to slow and tranquil water movement. Critical flow happens at a specific velocity that creates minimal energy loss. Super-critical flow occurs when the flow velocity exceeds wave speed, resulting in rapid and sometimes chaotic water movement.
Examples & Analogies
Think of flowing water going down a hill. If it meanders slowly (sub-critical), you can see the gentle flow and motion. At just the right slope (critical), the water moves beautifully — not too fast, not too slow. If the slope becomes steep (super-critical), the water rushes down, making splashes and creating turbulence!
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Atmospheric Pressure: Pressure at the free surface of fluid, essential in open channel flow.
-
Gravity Force: The force driving the flow down a slope in an open channel.
-
Friction Force: The resistance to flow caused by interactions with the channel surface.
-
No-Slip Boundary Condition: Fluid velocity is zero at contact points with channel boundaries.
-
Hydraulic Radius: Key metric used to analyze flow characteristics in various channel shapes.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example of uniform flow can be a long canal where water flows steadily without changing its depth or width.
-
Example of rapidly varied flow is the water discharge from a dam, where flow conditions change quickly.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In a channel wide and free, pressure's just P-atmosphere you see.
📖 Fascinating Stories
-
Imagine a flowing river, smooth and clear, where the top meets the air without a fear, gravity pulls it down, while sides provide a slight friction, the open flow narrates a hydro's conviction.
🧠 Other Memory Gems
-
G-F for Gravity and Friction—two forces in action, what a nice depiction.
🎯 Super Acronyms
R.A.P. for Radius, Area, and Perimeter helps you remember hydraulic metrics.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Open Channel Flow
Definition:
Flow of water in a channel with a free surface, such as rivers and canals.
-
Term: Atmospheric Pressure
Definition:
The pressure exerted by the weight of the atmosphere, equal to the fluid's open surface pressure.
-
Term: Hydraulic Radius
Definition:
The ratio of the cross-sectional area of flow to the wetted perimeter.
-
Term: NoSlip Boundary Condition
Definition:
A condition where the fluid velocity at the boundary of a solid surface is zero.
-
Term: Uniform Flow
Definition:
Flow in which the velocity, channel depth, and cross-sectional shape do not change along the length of the channel.
