Introduction to Open Channel Flow
Unlock Audio Lesson
Good morning, everyone! Today we’re going to discuss open channel flow, which we can define as the movement of water through a channel with a free surface. Can anyone tell me how open channel flow differs from pipe flow?
In pipe flow, the pressure varies, while in open channel flow, the pressure at the surface is atmospheric.
Exactly! In open channel flow, the pressure at the free surface equals the atmospheric pressure. This means that our main forces at play will be gravity and friction. Remember, we can use the acronym 'GF' for Gravity and Friction forces in open channels.
So does that mean we don’t consider pressure forces at all in open channel flow?
That's right! Since the pressure is constant at atmospheric levels, we mainly look into how gravity causes flow and how friction opposes it.
What are the common applications of open channel flow?
Great question! Common applications include rivers, canals, and stormwater drainage. Let’s summarize: Open channel flow features a free surface where atmospheric pressure exists, and relies primarily on the forces of gravity and friction.
Classification of Open Channel Flow
Unlock Audio Lesson
Now, let’s delve into the classifications of open channel flow. We primarily consider subcritical, supercritical, and critical flows. Who knows the characteristics of these flows?
Subcritical flow has low velocities, and the flow is influenced more by gravity?
Exactly! In subcritical flow, gravity dominates. Supercritical flow, on the other hand, has high velocities where inertial forces come into play.
What about critical flow? How does that fit in?
Critical flow occurs at a specific velocity where gravitational and inertial forces are balanced. Remember, you can think of it as the tipping point between subcritical and supercritical flow. Let's depict that relationship as a triangle: 'S' for Subcritical, 'C' for Critical, and 'SC' for Supercritical.
Can we also apply hydraulic radius to understand these flows?
Yes! Hydraulic radius is critical as it helps us quantify the resistance and conveyance in open channels. To summarize, we classify open channel flows into subcritical, supercritical, and critical based on flow velocities and governing forces.
Understanding Hydraulic Radius
Unlock Audio Lesson
Let’s talk about hydraulic radius, which is crucial for our flow calculations in open channels. Who can remind me how we define hydraulic radius?
It's the ratio of the cross-sectional area of flow to the wetted perimeter, right?
That’s correct! The formula is R = A/P, where 'R' is the hydraulic radius, 'A' is the area of flow, and 'P' is the wetted perimeter. Can anyone provide an example of calculating hydraulic radius for a rectangular channel?
If the channel is 5 meters wide and has a depth of 2 meters, the area A would be 5 times 2, which is 10 square meters. The wetted perimeter P would be the width plus twice the depth, so 5 + 2*2 equals 9 meters.
Perfect! Now what would the hydraulic radius be?
R = 10/9. That's approximately 1.11 meters.
Excellent! Hydraulic radius is fundamental for analyzing flow, especially comparing with diameter in pipes. Remember that hydraulic radius plays a key role in Reynolds number calculations. In summary, the hydraulic radius is determined by A/P and is essential for understanding flow behavior in channels.
Flow Types and Energy Losses
Unlock Audio Lesson
Now, let's explore uniform and non-uniform flows. What do we mean by uniform flow in an open channel?
Uniform flow occurs when flow parameters like depth and velocity stay constant along the channel.
Exactly! Uniform flow is rare in natural conditions because achieving a net force of zero is challenging. Now, what is non-uniform flow?
Non-uniform flow is when flow parameters change along the channel?
Right! Non-uniform flow may be gradually varied or rapidly varied. In gradually varied flow, changes happen over longer distances. Can anyone give an example of rapidly varied flow?
Like a dam break where there is an instant change?
Exactly! Rapid changes can produce hydraulic jumps. In summary, uniform flow maintains a constant flow condition, while non-uniform flow reflects varying parameters along the channel, which is more common in real life.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section delves into the nature of open channel flow, emphasizing the application of fluid mechanics principles such as mass and momentum conservation. It explains the differences between open channel flow and pipe flow, highlights the importance of free surfaces, and describes the characteristics and classifications of flow types in open channels.
Detailed
Experimental Observations in Open Channel Flow
This section elaborates on the principles and observations related to open channel flow which serves as a practical application of previously learned concepts in fluid mechanics. Open channel flow refers to flows occurring in channels where the free surface is exposed to the atmosphere. The principles derived from mass conservation, linear momentum, and energy conservation are vital when analyzing this type of flow.
Key Characteristics of Open Channel Flow
- Free Surface: In contrast to closed pipe flow, open channels have a free surface where the pressure at this surface equals atmospheric pressure. This indicates that the forces acting in open channel flow are primarily gravity and friction, with negligible pressure forces.
- Flow Types: The section categorizes flows into different types:
- Subcritical Flow: Flow characterized by low velocities relative to gravitational effects, where gravitational forces dominate.
- Supercritical Flow: Flow with high velocities where inertia takes precedence, akin to supersonic flow in fluid dynamics.
- Critical Flow: The flow condition occurs at a specific velocity where gravitational and inertial forces balance.
- Hydraulic Radius: The section defines hydraulic radius as an essential parameter in open channel flow computations, explained through its relationship with flow area and wetted perimeter.
- Flow Classifications: The section discusses classifications such as uniform flow, where flow parameters are steady, and non-uniform flow, which indicates variations in flow depth, velocity, or slope.
Importance in Civil Engineering
Knowledge of open channel flow is crucial for the design of various hydraulic systems, including drainage systems, canals, and river engineering. Students are encouraged to apply theoretical concepts in practical scenarios so that they can design structures that efficiently manage water flow.

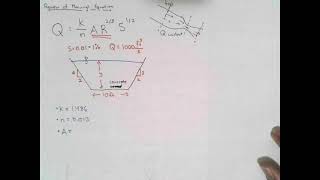

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Open Channel Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Open channel flow, if I talk about, I think almost all are familiar. Because if you look at most of the rivers, they have the curved nature. Most of the rivers we have the curved nature. which is we called Mandarin rivers...
Detailed Explanation
Open channel flow refers to the flow of fluids in channels that have a free surface open to the atmosphere, such as rivers and canals. Unlike enclosed pipes, in open channel flow, the flow is influenced by gravity, and you can observe the flow patterns along the channel. A defining characteristic of many rivers is their curved or meandering nature. Understanding this flow involves recognizing how these curves affect water speed, volume, and channel shape.
Examples & Analogies
Think of a river winding through a landscape like a snake going through grass. The way it twists and turns is not just for beauty; it is nature's way of managing the flow of water so that it can effectively transport sediment and navigate the terrain.
Free Surface and Boundary Conditions
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So if you look at that the flow can come this side can go this side this like this okay. So if you look at that the main systems like canal the drainage system storm water drainage systems navigational channels...
Detailed Explanation
In open channel flow, the fluid moves between two boundaries: the bottom (or bed) and the free surface above. The free surface is affected by atmospheric pressure, meaning that at the surface, the pressure equals atmospheric pressure. This unique characteristic dictates that the forces acting on the water are primarily gravitational and frictional, as opposed to pressure forces in a closed system.
Examples & Analogies
Imagine filling a shallow dish with water. The water level at the surface is determined by gravity pulling down and the sides of the dish pushing against the water's weight. In this scenario, just like the free surface of a river, the pressure at the water's surface always balances out with the atmosphere.
Forces in Open Channel Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So that means we have a two forces one is gravity force, second is friction force that is two. There is no surface pressure force components...
Detailed Explanation
The primary forces acting in open channel flow are gravitational force and frictional resistance. Since there's no significant internal pressure in open channels (unlike pipes), we mainly consider how gravity draws water down and how friction from the channel's sides and bottom resists this flow. Understanding these forces is crucial for predicting flow rates and designing efficient channels.
Examples & Analogies
Picture sliding down a playground slide. Gravity pulls you down, while friction between your clothes and the slide slows you down. In rivers, gravity pulls water downstream while the riverbed’s roughness slows it, similar to how friction affects your speed on the slide.
Turbulent vs. Laminar Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Except very few cases like for example for open channel flow when you have very thin sheet flow maybe during the rainfall beyond that all the flow most of the flow turbulent flow...
Detailed Explanation
In open channel flow, the movement of water is mostly turbulent, especially in natural settings like rivers where irregularities in the channel create swirling eddies. Only under specific, controlled conditions is the flow laminar, which is characterized by smooth and orderly movement. The distinction between these two types of flow is vital, as turbulent flow can significantly increase energy losses due to friction.
Examples & Analogies
Think about pouring syrup versus pouring water. Syrup flows smoothly and slowly (laminar), while water quickly flows in a chaotic manner (turbulent). Most rivers behave like water, with turbulent flow enhancing mixing and sediment transport.

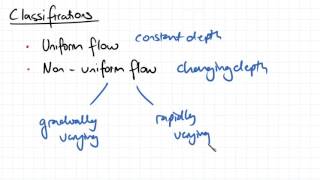

Classification of Open Channel Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
...classifications of open channel flow, hydraulic radius for some common sections and talk about the wave speed and flow power numbers...
Detailed Explanation
Open channel flow is classified based on its characteristics such as flow type (subcritical, critical, supercritical) and flow behavior (steady vs. unsteady). For example, subcritical flow is slow and deep, while supercritical flow is fast and shallow. Additionally, the hydraulic radius is an important parameter that helps in analyzing the flow's resistance and efficiency in transporting water.
Examples & Analogies
Think of a water slide. When the slide is sloped gently (subcritical), you float slowly and can go deeper in the water. But if it’s steep (supercritical), you zip down quickly and barely touch the water’s surface. Understanding these conditions helps engineers design better waterways.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Open Channel Flow: Movement of water in a channel with a free surface.
-
Hydraulic Radius (R): Key parameter calculated as the area of flow (A) divided by the wetted perimeter (P).
-
Subcritical Flow: Low velocity flow governed mainly by gravity.
-
Supercritical Flow: High velocity flow where inertia dominates.
-
Critical Flow: Flow condition that balances gravitational and inertial forces.
-
Uniform Flow: Flow parameters are constant along the channel.
-
Non-Uniform Flow: Flow parameters such as depth and velocity change along the channel.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example of Open Channel Flow: River water flowing downstream is a classic example of open channel flow.
-
Example of Hydraulic Radius Calculation: In a rectangular channel 5 meters wide and 2 meters deep, the hydraulic radius would be 10/9 or approximately 1.11 meters.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In a channel wide and deep, water flows without a leap. Gravity pulls, friction's fight, keep the flow in proper sight.
📖 Fascinating Stories
-
Imagine a river running smoothly, like a lazy dog lounging in the sun (subcritical), compared to a racing car zooming fast down a highway (supercritical). Each has its way, but understanding them helps us manage our waterways wisely.
🧠 Other Memory Gems
-
To remember flow types: 'Silly Cats Sing' - means Subcritical, Critical, and Supercritical.
🎯 Super Acronyms
Use 'HRS' for Hydraulic Radius, which stands for Hydraulic area over Surface Perimeter.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Open Channel Flow
Definition:
Flow of liquid in a channel that is open to the atmosphere.
-
Term: Hydraulic Radius
Definition:
The ratio of the area of flow to the wetted perimeter, crucial in determining flow characteristics.
-
Term: Subcritical Flow
Definition:
Flow characterized by low velocities, dominated by gravity.
-
Term: Supercritical Flow
Definition:
High velocity flow where inertia dominates over gravity.
-
Term: Critical Flow
Definition:
The condition at which gravitational and inertial forces balance in the flow.
-
Term: Uniform Flow
Definition:
Flow parameters such as velocity and depth that remain constant along the channel.
-
Term: NonUniform Flow
Definition:
Flow where parameters change along the channel, either gradually or rapidly.
