Challenges and Limitations of GNSS in Civil Applications
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Signal Obstruction
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, let’s talk about signal obstruction in GNSS. Can anyone tell me what this means?
Does it mean when buildings or trees block the signals?
Exactly! Urban canyons and dense foliage can obstruct satellite signals. This might lead us to inaccurate location data. Can you think of any examples where this might be problematic?
Like when you're trying to get directions in a city with tall buildings?
Right! That’s correct. Also, the multipath effect occurs when the signal reflects off surfaces, confusing the receiver. Remember that as 'Reflections Ruin Reception'.
So we should avoid areas where there's a lot of reflection?
Yes, and also consider alternative positioning methods when working in such environments. Great discussion!
Atmospheric Disturbances
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Next, let’s explore atmospheric disturbances. How do you think they affect GNSS signals?
I think weather conditions like rain might cause issues?
Good thinking! But it’s mainly ionospheric scintillation and tropospheric delays that create problems. Can anyone explain what these are?
I think scintillation is like interference that can mess up signals?
Exactly! And tropospheric delays happen because of changes in atmospheric pressure, which also affect signal speed.
So how do we mitigate these effects?
Great question! Utilizing correction methods, such as Differential GPS, can help. Let’s move on to satellite visibility.
Dependency on Satellite Visibility
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s discuss satellite visibility next. How many satellites do we need for reliable positioning?
Four satellites, right?
Correct! If fewer satellites are visible, the dilution of precision can become low, leading to inaccurate readings. What might a low DOP indicate?
It means the position could be inaccurate?
Exactly! It's essential during planning to ensure enough visible satellites. Think of it as 'More Satellites Mean More Accuracy'.
So, keeping track of satellite positions is important, right?
Yes! Now let’s go to the hardware costs involved.
Hardware Costs
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Lastly, let’s discuss hardware costs. Why might this be a barrier in GNSS applications for civil engineers?
Because high-precision receivers and RTK base stations can be really expensive?
Exactly! Plus, there's a need for training and maintenance, which adds to the cost. What strategies can be used to address this?
Maybe investing in shared equipment or training programs?
Yes, pooling resources can be very beneficial. Remember the acronym 'COST' – 'Cooperate On Shared Technology' – it's a good strategy!
That’s a useful way to remember it!
Great work today! Let's summarize: we discussed signal obstruction, atmospheric disturbances, satellite visibility dependency, and hardware costs. Keep these challenges in mind when applying GNSS technology.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The challenges and limitations of GNSS in civil engineering are significant and include issues such as signal obstruction in urban environments, atmospheric disturbances that affect signal speed, high hardware costs, and the necessity of maintaining visibility of multiple satellites for accurate positioning. These obstacles can hinder the effectiveness of GNSS technology in practical applications.
Detailed
In the realm of civil engineering, GNSS technology has revolutionized many aspects of surveying and geolocation. However, it is not without its challenges.
- Signal Obstruction: Urban canyons, dense vegetation, and tunnels can obstruct satellite signals, leading to unreliable data. Additionally, the multipath effect, where signals reflect off structures before reaching the receiver, can further compromise accuracy.
- Atmospheric Disturbances: The ionosphere and troposphere can cause delays in signals, impacting the timing and accuracy of positioning calculations. Ionospheric scintillation and tropospheric delays are key concerns in GNSS applications.
- Dependency on Satellite Visibility: A minimum of four satellites is required for accurate positioning. However, if there are fewer visible satellites, it leads to low dilution of precision (DOP), decreasing accuracy.
- Hardware Costs: The cost associated with high-precision GNSS receivers and Real-Time Kinematic (RTK) base stations can be significant, requiring investments in both equipment and training.
Understanding these challenges is crucial for civil engineers and professionals in the field to develop strategies to mitigate these limitations and ensure the effective use of GNSS technology.

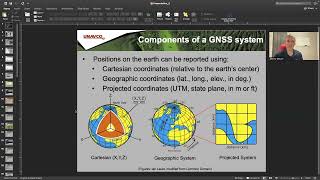

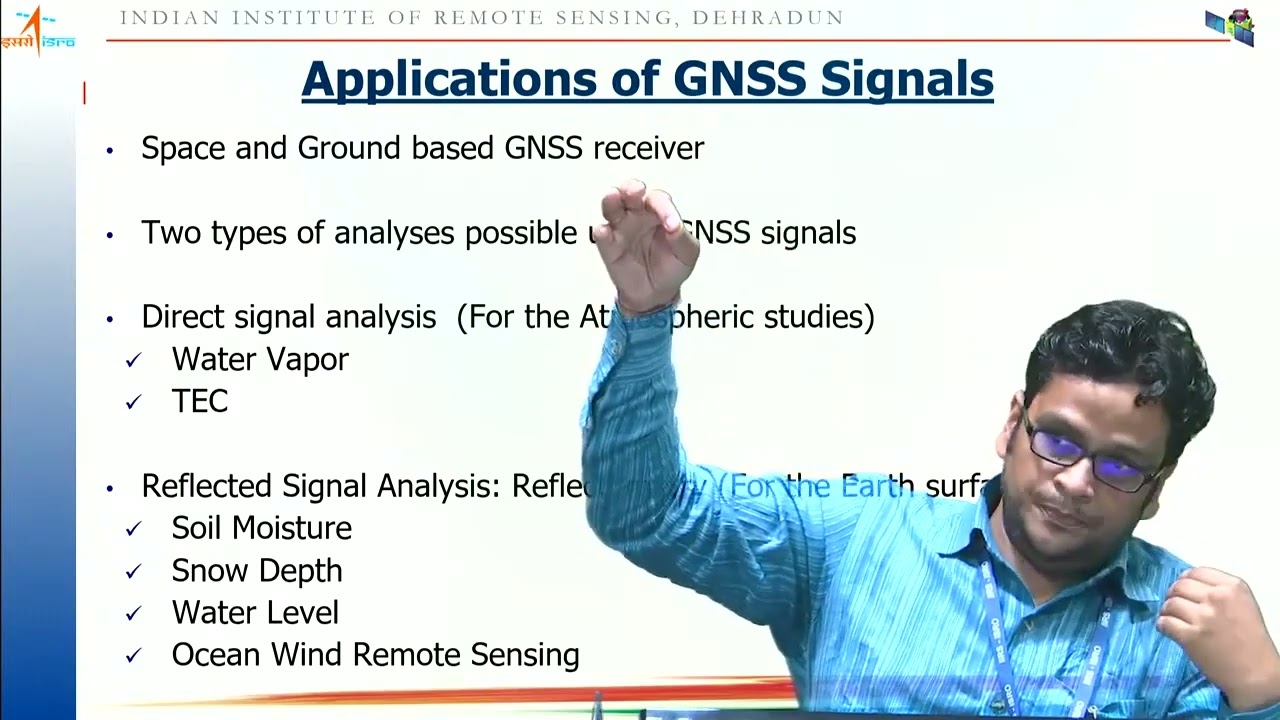

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Signal Obstruction
Chapter 1 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Urban canyons, dense vegetation, and tunnels block signals
• Multipath errors from building reflections reduce accuracy
Detailed Explanation
Signal obstruction occurs when the GNSS signals cannot reach the receiver due to physical barriers. Urban canyons formed by tall buildings can reflect signals, leading to inaccuracies. Dense vegetation, like forests, or tunnels can completely block signals, making it difficult for the receiver to calculate its position. Multipath errors occur when signals bounce off surfaces like buildings before they reach the GPS receiver, causing confusion for the device as it tries to determine its location.
Examples & Analogies
Imagine trying to communicate with a friend using a walkie-talkie while standing in a narrow valley surrounded by tall mountains. If the mountains block your signals or cause echoes, you might not hear your friend clearly. Similarly, in a city with many tall buildings, the GNSS devices struggle to get accurate signals because some signals get blocked or reflected, leading to potential mistakes in location data.
Atmospheric Disturbances
Chapter 2 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Ionospheric scintillation and tropospheric delays affect signal speed
Detailed Explanation
Atmospheric disturbances refer to changes in the Earth's atmosphere that can alter the speed of GNSS signals as they travel from satellites to receivers. The ionosphere, a layer of the atmosphere filled with charged particles, can cause signals to be delayed or scattered, a phenomenon known as ionospheric scintillation. Additionally, the troposphere, which is the lower portion of the atmosphere, can also delay signals due to variations in temperature and pressure, leading to inaccuracies in positioning.
Examples & Analogies
Think of trying to listen to a favorite radio station, but sometimes the music fades in and out due to interference from weather conditions or mountains. The music gets distorted and isn't clear. Similarly, when GNSS signals travel through various atmospheric layers, they can experience delays or distortions that hinder precise location determination.
Dependency on Satellite Visibility
Chapter 3 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• At least 4 satellites must be visible for position computation
• Low satellite count leads to weak DOP (Dilution of Precision)
Detailed Explanation
GNSS receivers rely on signals from multiple satellites to determine their position. For calculating a precise location in three dimensions, a minimum of four satellites is required. If there are fewer satellites visible (for example, due to obstructions like tall buildings), the calculation becomes less accurate, resulting in a high DOP value. DOP indicates the quality of the satellite geometry; the higher the DOP, the lower the accuracy of the position.
Examples & Analogies
Imagine trying to pinpoint your location in a huge mall. If you can see all the store signs (representing satellites), you can easily find your way. But if a few signs are blocked from your view, it becomes harder to figure out where you are, leading to confusion. In GNSS navigation, if fewer satellites are visible, the position calculated can be less reliable.
Hardware Costs
Chapter 4 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• High-precision receivers and RTK base stations can be expensive
• Requires investment in training and maintenance
Detailed Explanation
The use of GNSS for civil applications often necessitates specialized equipment, such as high-precision receivers and RTK base stations, which can be quite costly. In addition to purchasing the hardware, there is also a need for training personnel to operate the systems effectively and for ongoing maintenance to ensure optimal performance, further adding to the overall costs.
Examples & Analogies
Consider building a high-end home theater system. While you can enjoy movies on a basic TV, to get the best sound and picture quality, you need to invest in expensive equipment and speakers, and you may need to learn how to set it all up properly. Likewise, using GNSS technology effectively in civil engineering demands significant investment in both advanced tools and the know-how to use them.
Key Concepts
-
Signal Obstruction: The blockage of GNSS signals by obstacles like buildings and trees.
-
Atmospheric Disturbances: Issues from atmospheric layers affecting signal speed and reliability.
-
Satellite Visibility: Required visibility of a minimum number of satellites for accurate positioning.
-
Dilution of Precision (DOP): Indicator of the accuracy of satellite positions influencing calculations.
-
Hardware Costs: Financial-related challenges stemming from the need for sophisticated GNSS technology.
Examples & Applications
In urban canyons, the presence of tall buildings may force GNSS devices to switch between signals, reducing accuracy.
Outdoor surveying in rural areas may experience fewer obstructions but can still face atmospheric disturbances like heavy rain or fog.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
In urban streets, signals may fade, / When buildings rise, errors invade.
Stories
Once upon a time, a surveyor found himself lost in a city of tall buildings. His GPS struggled to find a signal, reminding him how important it is to have clear satellite visibility.
Memory Tools
To remember signal obstruction, think 'BLOK' - Buildings, Landscape, Obstruction, Kinks in signal paths.
Acronyms
Remember 'SAD' for challenges
Signal Obstruction
Atmospheric Disturbances.
Flash Cards
Glossary
- Signal Obstruction
Interference caused when physical barriers, such as buildings or trees, block GNSS satellite signals.
- Atmospheric Disturbances
Variations in the atmosphere, such as ionospheric scintillation and tropospheric delays, that can affect the speed and accuracy of GNSS signals.
- Satellite Visibility
The necessity that a minimum number of satellites (at least four) must be visible to calculate an accurate position.
- Dilution of Precision (DOP)
A measure of the quality of the satellite geometry, specifically how satellite positions affect the accuracy of the resulting position calculation.
- Hardware Costs
The expense incurred from purchasing high-precision GNSS receivers, RTK base stations, and related equipment.
