11.5.4. Unstable Equilibrium

Let me discuss about this three equilibrium concepts. Natural equilibrium, stable equilibrium, and unstable equilibrium. So you can understand it if somebody wants to design a ship he has to find out the ship should have stable equilibrium conditions.

Equilibrium refers to a state where a body remains at rest or in uniform motion, depending on the balance of forces acting upon it. In this context, there are three types of equilibrium: natural, stable, and unstable.

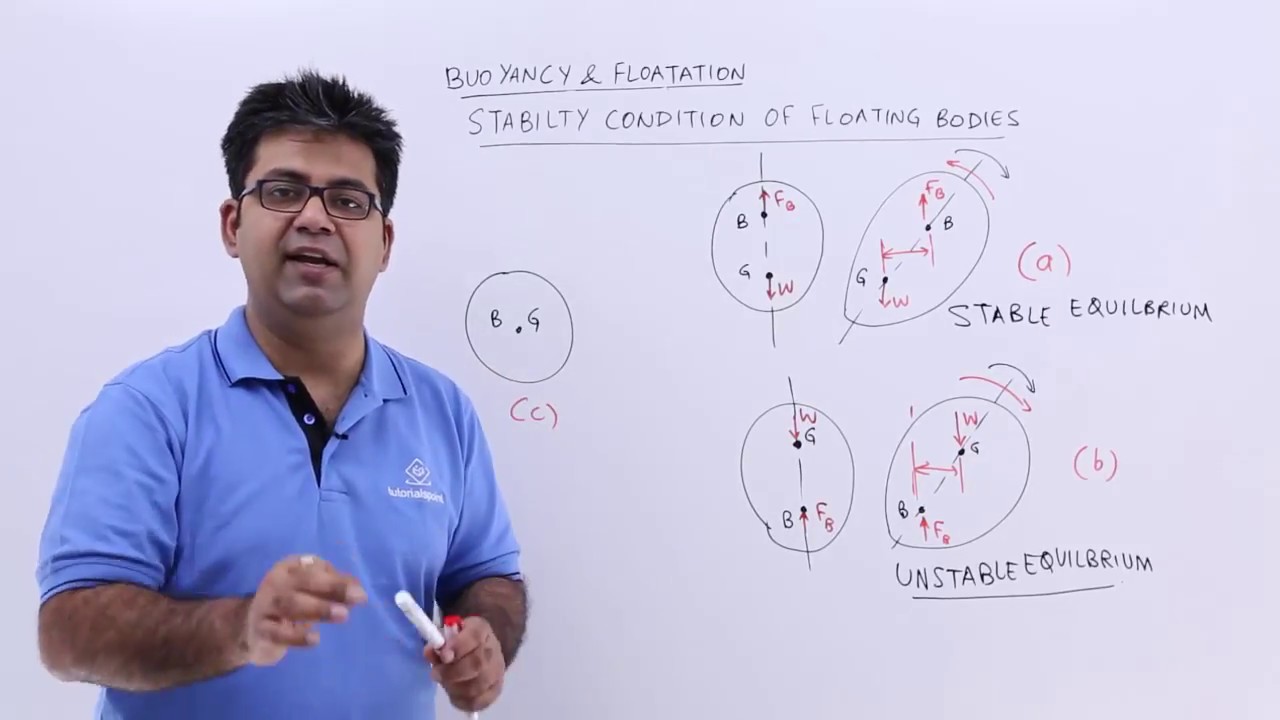

1. Natural Equilibrium: This condition occurs when the center of buoyancy and the center of gravity of a floating object are aligned. In this case, any tilt or disturbance does not change the balance of the forces acting on the object.
2. Stable Equilibrium: This occurs when the center of buoyancy is above the center of gravity. If the object is tilted, the buoyant force works to return it to its original position. Minor disruptions are corrected naturally for such floating bodies.
3. Unstable Equilibrium: In this state, the center of gravity is above the center of buoyancy. Any small disturbance can lead to a large torque, significantly deviating the object from its original position and potentially capsizing it.

Consider a pencil standing on its tip. This is an example of unstable equilibrium—any slight movement will make it fall over. In contrast, a bowling ball (resting on a flat surface) perfectly represents stable equilibrium because even if it's slightly nudged, it will roll back to a stable position. In ship design, maintaining stable equilibrium is critical; otherwise, even small waves can lead to capsizing.

Before doing that, let me introduce one point, which is we call the metacenters. Okay, that is what is called the metacenter. What is that metacenters, okay? If I tilt it, a floating object to a angle of delta theta, then there will be a new waterlines will come it.

The metacenter is a crucial concept in understanding the stability of floating objects. When an object like a ship is tilted by an angle (delta theta), the center of buoyancy, which is the point where the buoyancy force acts, shifts. This center of buoyancy remains dependent on the volume of fluid displaced by the object and the way the object interacts with the water. The metacenter is defined as the point where the line of action of the buoyant force intersects the vertical axis when the object is tilted:

1. If the metacenter (M) is above the center of gravity (G), the object will return to its upright position upon tilting—indicating stable equilibrium.
2. Conversely, if the metacenter is below the center of gravity, the object will capsize, indicating unstable equilibrium.

Think of a seesaw in a playground. If the pivot point is too low, a child on one side can easily flip the seesaw over—that's like a ship with a low metacenter. Conversely, if the pivot is high enough and well-designed, a small imbalance won't cause it to crash down on one side; it will stabilize back again, just like a well-designed boat.

Now how to compute this the metacentric height? Let you have a floating object like this, okay? And you consider the unit width of this ones which is a perpendicular to this surface that is what unit width is there.

To compute the metacentric height (GM), one must understand how the center of buoyancy shifts with tilting. The formula to find metacentric height is based on the volumes of the submerged parts of the object and the position of the center of buoyancy and gravity.

1. Record Initial Positions: Identify the initial waterline and the center of buoyancy when the vessel is upright.
2. Measure Changes Upon Tilting: As the vessel tilts, calculate the new center of buoyancy and the new metacenter.
3. The metacentric height is derived as the distance between the center of gravity (G) and the metacenter (M). A positive metacentric height indicates stable equilibrium, while a negative or zero value suggests unstable or neutral equilibrium.

Imagine a small boat facing a gentle wave. If it leans slightly and the water level rises, the center of buoyancy shifts upward while the center of gravity stays constant. If this shift keeps the boat from tipping too far, then our calculations of metacentric height have shown that the boat remains stable. If you were to tip the boat too far and this height is compromised, the boat could quickly capsize, just as a poorly designed treehouse could collapse if not anchored properly.

--
