Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Analytical Solutions
Unlock Audio Lesson
Today, we'll explore how analytical solutions play a vital role in understanding the velocity and pressure distribution in fluid flows. Can anyone suggest why these solutions are important?
I think they help us understand how fluids behave in different situations.
Exactly! Analytical solutions provide us with precise relationships that adhere to conservation equations. For example, can anyone recall what the conservation equations are?
Mass and momentum conservation equations?
Correct! Now, can you think of a situation where we might need these solutions?
Maybe when analyzing the airflow over objects like buildings or towers?
Great example, the wind flow over structures is a classic case. It shows how important these solutions are for practical applications.
Velocity Fields and Their Components
Unlock Audio Lesson
Let's dive into velocity fields. Velocity is often represented as a vector in coordinate systems. Who can tell me the components of a velocity vector in 3D?
u, v, and w for the x, y, and z directions respectively?
Exactly! The velocity field can be expressed as V(x, y, z, t) = u(x, y, z, t) i + v(x, y, z, t) j + w(x, y, z, t) k. Why do you think it's useful to break down the velocity this way?
It helps in analyzing how the velocity changes in different directions and at different points.
Perfect! Understanding these components is crucial for solving fluid dynamics problems.
Pressure and Flow Direction Relationships
Unlock Audio Lesson
Now, let's discuss pressure. Why is pressure gradient important in fluid flow?
Because it drives the flow from high to low-pressure areas?
Absolutely! Pressure gradients can indicate flow direction. Can anyone explain how cavitation relates to pressure?
If the pressure drops too low, it can cause liquids to vaporize, leading to cavitation.
Exactly! Managing pressure is essential in many engineering applications to prevent cavitation.
Flow Visualization Techniques
Unlock Audio Lesson
Finally, let's review how we visualize flows. Can anyone summarize the difference between streamlines, pathlines, and streaklines?
Streamlines show the direction of the velocity vectors at a specific time.
Pathlines are the actual paths that fluid particles take over time.
And streaklines are the loci of particles that have passed through a specific point.
Excellent! These visualization techniques are essential for analyzing and predicting fluid behavior visually.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section delves into analytical solutions for fluid flow, illustrating how to derive velocity and pressure distributions that comply with conservation laws. It discusses the importance of understanding flow fields through examples such as wind flow around radar setups and jets impacting surfaces, while also introducing velocity components and their representation in Cartesian coordinates.
Detailed
Analytical Solutions
This section discusses analytical solutions in fluid mechanics, highlighting their significance in understanding velocity and pressure distributions in various fluid flow scenarios. Analytical solutions provide precise functional relationships of velocity components (u, v, w) and pressure in fluid systems, complying with mass and momentum conservation equations. This is particularly valuable in simplified scenarios such as two-dimensional incompressible steady flows.
Key Points Covered in the Section:
- Overview of Analytical Solutions: Analytical solutions offer insights into velocity distributions and pressure fields in fluid problems, satisfying fundamental conservation equations.
- Simplifications for Two-Dimensional Flow: Strategies for simplifying complex flow problems into manageable two-dimensional analyses are discussed, which result in a steady-state examination without temporal components.
- Velocity Field Definition: The section elaborates on defining the velocity field as a vector with scalar components in Cartesian coordinates (u, v, w), highlighting how it varies spatially and temporally.
- Pressure Dynamics: The critical role of pressure gradients in driving flow direction is explained, touching on cavitation phenomena when pressure falls below certain thresholds.
- Steady vs. Unsteady Flow Considerations: The section also distinguishes between steady and unsteady flow conditions, emphasizing how pressure and velocity fields vary in each case.
- Flow Visualization Techniques: Introduction to visualization methods such as streamlines, pathlines, and streaklines to better comprehend complex fluid motion scenarios.
Overall, the section equips the reader with foundational concepts required to analyze fluid flows using analytical methods, setting the stage for more complex computational approaches.

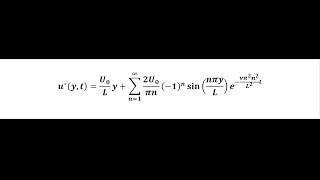

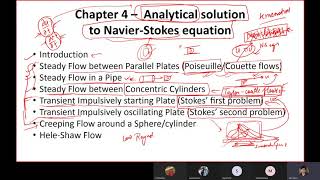

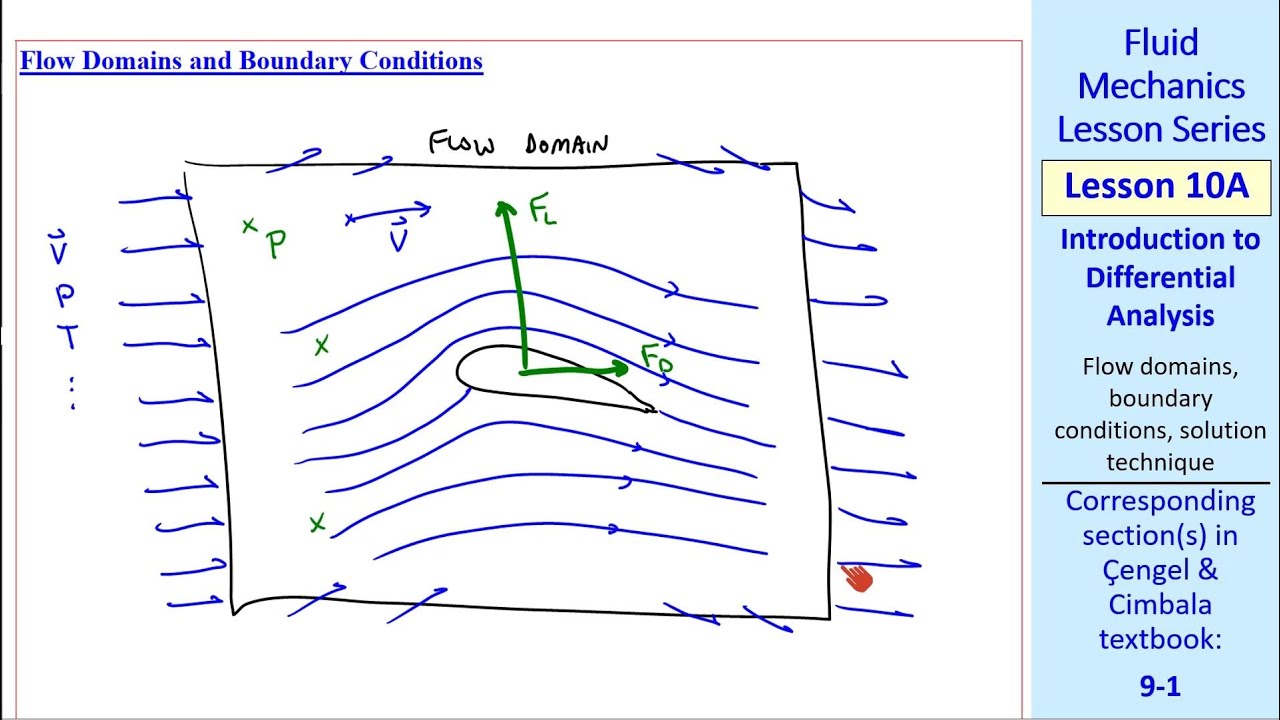

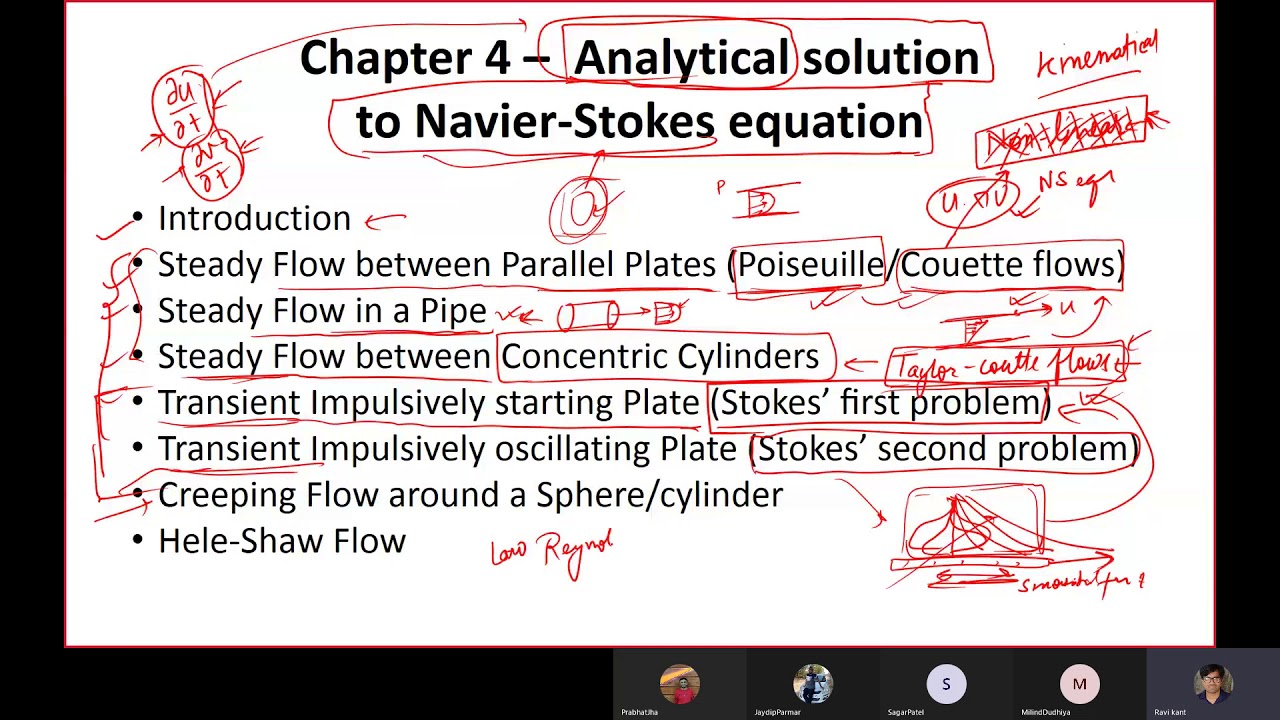

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Analytical Solutions
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So for a very simple case, we can get analytical solutions like u and v and w and the pressure. These analytical solutions can help us to know the velocity and the pressure distribution of these problems and satisfy conservation equations, such as mass conservation equations and linear momentum equations.
Detailed Explanation
Analytical solutions in fluid mechanics allow us to derive equations that describe how fluid properties like velocity and pressure change in a given system. For simple cases, these can be represented by variables such as u, v, and w, which correspond to the fluid velocity in different directions. Furthermore, these solutions adhere to fundamental conservation principles, meaning they accurately reflect how mass and momentum are conserved as fluids flow.
Examples & Analogies
Think of an analytical solution like a recipe. Just as a recipe gives you precise instructions on how to mix ingredients to get the desired dish, analytical solutions provide specific equations that predict how fluid behaves under certain conditions.
Application of Mass Conservation and Momentum Equations
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
These assumptions hold true for two-dimensional incompressible steady flows. Then you apply the mass conservation and linear momentum equations to obtain solutions.
Detailed Explanation
When dealing with fluid flow problems, especially in simplified conditions like two-dimensional, incompressible, and steady flows, we can apply mass conservation and momentum equations. Mass conservation ensures that the mass flowing into a system equals the mass flowing out, while momentum equations account for the forces acting on the fluid. Together, they help us derive solutions to predict fluid behaviors in various scenarios.
Examples & Analogies
Imagine water flowing through a narrow hose. The mass of water entering the hose must equal the amount flowing out. If we apply the idea of conservation here, we can predict how fast the water will come out (momentum) and how its speed might change based on the hose width (mass conservation).
Velocity Field Definition
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The velocity field represents a vector quantity that varies in space within the Cartesian coordinate system of x, y, z. The velocity vector can be decomposed into its scalar components in Cartesian coordinates: u, v, and w.
Detailed Explanation
A velocity field in fluid mechanics describes how the velocity of a fluid changes across space. It is typically represented as a vector in a three-dimensional space (x, y, z) and can be broken down into three components: u, which accounts for motion in the x-direction, v in the y-direction, and w in the z-direction. Understanding this distribution helps us visualize and predict fluid motion.
Examples & Analogies
Consider the ocean: the velocity field would allow us to understand how fast and in what direction the water is moving at different points underwater. Just like mapping ocean currents can provide insights for sailors, analyzing velocity fields gives engineers valuable data for designing structures interacting with fluid.
Pressure Field Dynamics
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The pressure distribution plays a major role because the flow moves from high energy to low energy. The pressure gradients indicate the direction of the fluid flow.
Detailed Explanation
Pressure in a fluid affects how it moves. Essentially, fluids tend to flow from areas of high pressure to areas of low pressure, driven by gradients in pressure. Understanding these gradients is crucial as they dictate the flow direction and behavior of the fluid under various conditions, such as velocity changes or changes in physical geometry.
Examples & Analogies
Imagine you have a balloon filled with air. When you pinch one side, the air on that side compresses, creating higher pressure there. If you release the pinch, the air rushes out towards areas of lower pressure. This illustrates how in fluids, flow is inherently linked to pressure differences.
Density and Its Impact on Fluid Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Density, which is the mass per unit volume, plays a major role. For compressible flows, density may change with space and time, while for incompressible flows (like liquids), the density remains essentially constant.
Detailed Explanation
Density is a crucial property that influences fluid mechanics. For gases, density can vary significantly with changes in temperature and pressure, making them compressible. In contrast, liquids generally maintain a constant density under normal conditions. Recognizing whether a fluid is compressible or incompressible informs the methods used to analyze flow problems, impacting the equations and models applied.
Examples & Analogies
Consider a fizzy drink: when you open the can, the gas is released, causing bubbles to form. This is due to the reduced pressure around the gas, which decreases its density compared to the liquid state. Understanding how density changes helps engineers predict how fluids like beverages will behave in different scenarios.
Importance of Visualization in Fluid Flow Problems
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Fluid flow visualization is crucial in understanding and solving complex fluid dynamics problems. Techniques like streamlines, pathlines, and streaklines provide insights into flow patterns.
Detailed Explanation
Visualizing fluid flow is essential in fluid mechanics as it helps in interpreting complex flow patterns. Streamlines show the direction of flow at any given moment, pathlines trace the route of individual particles over time, and streaklines represent patterns of particles that have passed through a fixed point. Understanding these visual patterns allows engineers and scientists to predict and control fluid behavior in applications ranging from aircraft design to river management.
Examples & Analogies
Think of visualizing fluid flow like watching traffic on a street. Streamlines represent the lanes that cars are expected to follow, pathlines represent the actual path taken by each car during a certain time, and streaklines would show where cars were at any given point. By observing these patterns, city planners can make informed decisions for directing traffic flows.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Analytical Solutions: Precision solutions describing fluid motion in accordance with conservation laws.
-
Velocity Field: Defined by vector components representing fluid velocity at given points.
-
Pressure Gradient: The driving force in fluid flow indicating direction from high to low pressure.
-
Flow Visualization: Techniques using streamlines, pathlines, and streaklines to represent fluid motion.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Analyzing the wind flow over a radar system demonstrates how analytical solutions can predict the impact of airflow on structures.
-
A jet impacting the floor illustrates the significance of understanding pressure fields and velocity distributions.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Velocity flows, pressure shows, driving fluid where it goes!
📖 Fascinating Stories
-
Imagine a bird flying past a tower, the streamlined flow reduces drag, showing us how air behaves in nature.
🧠 Other Memory Gems
-
V.P.S - Velocity, Pressure, Streamlines: Key components to remember in fluid dynamics.
🎯 Super Acronyms
FLUID - Flow, Limits, Unsteady, Incompressible, Dynamics.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Analytical Solution
Definition:
Mathematical solutions derived using formulas and equations to describe fluid behavior.
-
Term: Velocity Field
Definition:
A vector field that represents the velocity of a fluid at various points in space.
-
Term: Pressure Gradient
Definition:
A change in pressure over a distance that influences fluid flow direction.
-
Term: Streamline
Definition:
A line that indicates the direction of fluid flow at a particular moment.
-
Term: Pathline
Definition:
The actual trajectory followed by fluid particles over time.
-
Term: Streakline
Definition:
The locus of fluid particles that have passed through a specific point in time.
-
Term: Cavitation
Definition:
The formation of vapor cavities in a liquid that occur when pressure drops below vapor pressure.
