Introduction to Fluid Flow Problems
Unlock Audio Lesson
Today, we will explore fluid flow problems, starting with what these problems involve. Can anyone tell me why we need to analyze fluid flow?
To understand how fluids behave in different conditions?
Exactly! By analyzing fluid flow, we can predict behaviors such as pressure distribution and velocity. This is essential in various real-life applications, like engineering and meteorology. We often use analytical methods to derive solutions based on conservation equations.
What do you mean by conservation equations?
Good question! Conservation equations include mass conservation, which states that mass cannot be created or destroyed in the flow. We'll dig deeper into this as we discuss velocity fields.
What specifically is a velocity field?
A velocity field is a representation of how the velocity of a fluid changes in space. It’s described using three components: u, v, and w, corresponding to x, y, and z coordinates. This helps us analyze flow direction and speed.
So, does that mean understanding these components is crucial for solving fluid flow problems?
Absolutely! Understanding velocity components allows us to visualize and analyze how fluids interact with their environments. To summarize, we need to grasp conservation laws, understand velocity fields, and visualize flow patterns.
Velocity and Pressure Fields
Unlock Audio Lesson
Now that we've covered the basics, let's dive deeper into velocity and pressure fields. Why do you think pressure is important in fluid flow?
It determines how fluids move from high areas to low areas?
Exactly! Pressure gradients drive the flow. The flow will generally move from regions of higher pressure to lower pressure. Explaining this with a real-world example, consider a jet impact on a floor—pressure plays a critical role in how the water spreads.
Does this mean we can use pressure gradients to predict flow direction?
Yes! Understanding the pressure distribution guides us in predicting flow patterns. Recall that under steady flow conditions, we only need to consider spatial variations, not temporal ones.
What happens when there's a temperature gradient in the flow?
Great question! When significant temperature changes occur, we must apply the first law of thermodynamics in conjunction with fluid flow equations. Remember, temperature can greatly affect the density and behavior of fluids.
To summarize, we rely on both velocity and pressure fields to solve fluid flow problems, particularly understanding where pressure gradients lie.
Visualization Techniques in Fluid Flow
Unlock Audio Lesson
Now let's explore visualization techniques. Has anyone heard of streamlines, pathlines, or streaklines?
Yes! I think streamlines show the direction of velocity at a point.
Correct! Streamlines are tangent to the velocity vector at a particular instant. They tell us what the flow direction is. Can anyone explain what pathlines are?
Pathlines are the actual paths fluid particles take, right?
Exactly! And streaklines show the positions of particles that pass through a specific point in space. Understanding these concepts helps us visualize fluid behavior more effectively.
So, if we want to solve complex problems, should we visualize the flow patterns?
Absolutely! Visualization simplifies our problems. If we can create a clear picture of how the fluid behaves, we can apply experimental, analytical, or computational approaches to analyze it.
To summarize, streamlines show us the direction, pathlines show where particles have gone, and streaklines indicate where particles passed a point.
Correct! Remember these three concepts as we move forward, as they are fundamental in understanding fluid dynamics.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
Fluid flow problems can be analyzed through analytical solutions, considering mass and momentum conservation. The section explains the definitions and importance of velocity and pressure fields, emphasizing their dependence on spatial and temporal variations. Key visual concepts like streamlines, pathlines, and streaklines are also introduced to understand flow dynamics.
Detailed
Detailed Summary
This section delves into the fundamental aspects of fluid flow problems, highlighting the critical analytical solutions that allow for the determination of velocity and pressure distributions within a fluid.
The text underscores the importance of satisfying conservation laws, such as mass conservation and the linear momentum equations, to derive functional relationships for the velocity components (u, v, w) and pressure in a Cartesian coordinate system. Simplifications under the conditions of two-dimensional, incompressible, and steady flow are discussed, setting the stage for practical applications.
Examples provided include the analysis of wind flow over a weather radar setup and jet impacts on a surface, demonstrating real-world implications of the discussed concepts.
Additionally, the notion of a velocity field as a vector quantity that is spatially variable is introduced, along with the scalar components of velocity.
Crucial to the understanding of fluid dynamics is the pressure field, which indicates directions of flow through pressure gradients, and it is essential in evaluating problems such as cavitation. The influence of temperature gradients on fluid flow is mentioned, alongside the considerations of density in both gases and liquids, especially in relation to incompressible flow assumptions.
Visualizing fluid flow through concepts such as streamlines, pathlines, and streaklines is emphasized as vital for solving complex flow problems. Despite the challenges posed by intricate geometries in real-world scenarios, simplifying assumptions and visualization techniques facilitate the understanding of fluid mechanics.

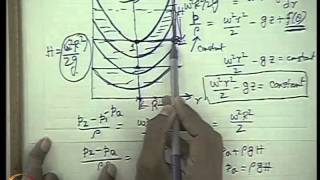

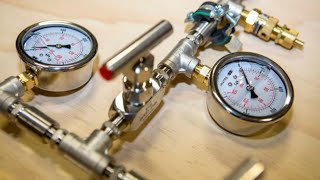

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Analytical Solutions in Fluid Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So for a very simple case, we can get an analytical solution like u and v and w and the pressure, and that analytical solution can help us to know the velocity, the pressure distribution of these problems and it satisfy conservation equations, mass conservation equations, linear momentum equations.
Detailed Explanation
In fluid mechanics, analytical solutions refer to exact mathematical expressions that describe how fluid properties such as velocity (u, v, w) and pressure vary in a given flow situation. These solutions are essential because they are derived from fundamental principles like mass conservation and momentum conservation, which govern fluid behavior. By finding these solutions, we can understand how fluids will move and interact under various conditions, which is crucial for accurate predictions in engineering applications.
Examples & Analogies
Think of analytical solutions like a recipe for baking a cake. If you follow the recipe precisely, you can predict exactly how the cake will turn out. Similarly, in fluid mechanics, if you apply the right equations, you can predict how a fluid will flow or how pressure will change in a specific situation.
Key Simplifications in Fluid Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Also it satisfies the boundary conditions at the floor of the flow and what is coming in. We can simplify it and we can say it is a two-dimensional incompressible steady flow.
Detailed Explanation
To analyze fluid flow more effectively, certain simplifications are often made. One such simplification is to consider two-dimensional flows that do not change with time (steady flow) and where the fluid density remains constant (incompressible flow). This allows us to focus on the primary characteristics of the flow without getting bogged down by less significant details, making the analysis more manageable and allowing for practical applications.
Examples & Analogies
Imagine trying to study the flow of water in a swimming pool. If you only look at the water's surface and ignore the depth, you simplify your analysis. As long as the water is calm and the temperature is stable, you can still get a good understanding of how water moves across the surface without considering all aspects of its three-dimensional flow.
Understanding Velocity Fields
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
When we are talking about velocity, we are talking about this velocity as a vector quantity, which varies in a space in case of the Cartesian coordinate system of x, y, z.
Detailed Explanation
Velocity fields represent the speed and direction of fluid particles at various points in space. In a three-dimensional Cartesian coordinate system, velocity can be broken down into its components along the x, y, and z axes. Each component of velocity (u, v, w) shows how fluid moves in its respective direction and is essential for visualizing how the fluid flows throughout a given region.
Examples & Analogies
Consider a wind map of a city indicating wind speeds in different directions. The map shows arrows pointing in the direction of the wind's flow, with their lengths representing the wind speed. Similarly, a velocity field maps out how fluid flows in different directions and speeds at various points in space, helping us understand the overall motion.
Pressure Distribution in Fluid Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Pressure distribution plays a major role because the flow comes from high energy to low energy. The computing of pressure and the pressure gradient is a major component in fluid flow problems.
Detailed Explanation
In fluid dynamics, the pressure distribution indicates how pressure changes within the fluid, and this pressure is critical in determining how the fluid moves. The flow of fluids is fundamentally driven by differences in energy levels, often represented as pressure gradients. Understanding these gradients helps us predict how a fluid will flow, as fluids naturally move from areas of higher pressure to lower pressure due to the forces acting on them.
Examples & Analogies
Think about how air moves in a room. If you open a window on the windy side of a house, air flows from outside (high pressure) into the room (lower pressure). The pressure difference creates a flow, demonstrating how pressure distributions are fundamental to understanding fluid movement.
The Role of Density in Fluid Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Density plays a major role for us. When you have flow is compressible, density varies with positions and time.
Detailed Explanation
Density, defined as mass per unit volume, is an important property in fluid mechanics. In incompressible flows (like most liquids), density is constant, simplifying calculations. However, in compressible flows (like gases, especially at high speeds), density can change with position and time, making analyses more complex. Understanding these density variations is crucial for accurately predicting fluid behavior under different conditions.
Examples & Analogies
Consider a balloon filled with air. If you squeeze it, the air inside compresses, changing its density. This illustrates how gases behave under varying pressure conditions, just like fluids behave differently when their densities change due to variations in flow speed or temperature.
Visualizing Fluid Flow Patterns
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In fluid mechanics problems, a specialist who can visualize the flow better can simplify the flow problems and solve them. The flow visualization is a major issue.
Detailed Explanation
Visualizing fluid flow involves understanding the patterns created by moving fluids. Experts in fluid mechanics use various methods, including analytical, experimental, and computational techniques, to visualize these flow patterns, which can be complex due to the nature of fluid behavior. By being able to visualize the flow, engineers can develop better solutions to problems, such as designing streamlined vehicles or predicting how smoke disperses in the environment.
Examples & Analogies
Think of how a chef might visualize how sauce flows over a plate. By observing the paths the sauce takes as it spreads, the chef can decide how to adjust the consistency or angle of the plate to achieve the desired effect. Similarly, fluid mechanics specialists use visualization to strategize and improve fluid flows in engineering applications.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Velocity Field: Representation of velocity changes in fluids, crucial for determining flow behavior.
-
Pressure Field: Variation of pressure which drives flow direction and is vital for problem-solving in fluid dynamics.
-
Streamlines: Useful for visualizing direction and behavior of flow in fluids.
-
Pathlines: Help track the movement of individual fluid particles, providing insight into flow patterns.
-
Streaklines: Indicate the history of fluid particle motion through a designated point, useful for analysis.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example of wind flow over a weather radar setup to understand pressure and velocity fields.
-
Example of a jet impacting on a floor to illustrate pressure distribution and fluid behavior.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Flowing liquids can be tricky, with velocity fields quite sticky; pressure gradients guide them on, from high to low, 'til they are gone.
📖 Fascinating Stories
-
Imagine a river flowing through a valley. The steep hills represent high pressure, and the water flows down, where it’s lower. The journey of the water tells us about pressure and velocity.
🧠 Other Memory Gems
-
VPS: Velocity, Pressure, Streamlines—all essential for fluid flow concepts.
🎯 Super Acronyms
FVP
- Flow Visualization Patterns guide us through fluid dynamical analysis!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Velocity Field
Definition:
A representation of how the velocity of a fluid changes in space, described by vector components u, v, and w.
-
Term: Pressure Field
Definition:
A spatial representation of pressure within the fluid, indicating how pressure varies at different points and affecting flow direction.
-
Term: Streamline
Definition:
A line drawn in a flow field where every point on the line is tangent to the velocity vector at that point.
-
Term: Pathline
Definition:
The actual path traced by a specific fluid particle over time.
-
Term: Streakline
Definition:
The locus of fluid particles that have passed through a specific point in space over time.
