Introduction to Streamlines
Unlock Audio Lesson
Today we're going to dive into streamlines, a crucial concept in fluid dynamics. Can anyone tell me what a streamline represents in a flow field?
I think it shows the direction of the fluid's velocity at different points.
Exactly! A streamline is a line that is tangent to the velocity vector at any given point. It provides a snapshot of the flow direction at a particular instant.
So, do streamlines change if the flow is steady?
Great question, Student_2! In a steady flow, the streamlines remain constant over time. They show how the fluid moves without changing shape.
Remember, streamlines don’t allow any flow to cross through them! This is a key point to understand.
How can we visualize streamlines in a real scenario?
One common method is using smoke in air or dye in water to visually track the flow.
To summarize, streamlines show the velocity direction at a specific moment in time, and they do not allow flow across themselves.
Understanding Pathlines
Unlock Audio Lesson
Let's now discuss pathlines. Unlike streamlines, pathlines represent the actual path taken by fluid particles over time. Does anyone know how we could track these paths?
We could follow a particle from its starting point to see where it goes!
Exactly! By observing specific fluid particles at different times, we can trace their paths through the flow field.
How does that relate to steady and unsteady flows?
Great observation! In steady flows, pathlines will coincide with streamlines, but in unsteady flows, pathlines can vary significantly.
Remember, while streamlines give us instantaneous flow directions, pathlines illustrate the journey of fluid particles over time.
Exploring Streaklines
Unlock Audio Lesson
Now, let’s dive into streaklines. Can anyone tell me what a streakline is?
Isn’t it the path of particles that have passed through a specific point?
Correct! Streaklines represent the locus of fluid particles that have previously passed through a fixed point. They can be visualized using dyes or colored particles.
Could you give an example of how we might see this in a real-world scenario?
Certainly! If we introduce colored dye into a flowing stream, the movement of that colored water will create a visual representation of a streakline.
In summary, streaklines differ from both streamlines and pathlines by focusing on particles that have passed a defined point, illustrating fluid behavior over time.
Comparing Streamlines, Pathlines, and Streaklines
Unlock Audio Lesson
Let’s compare streamlines, pathlines, and streaklines. What are the key differences?
Streamlines show the direction of velocity at a single point, while pathlines show the trajectory of fluid particles.
And streaklines show all the particles that have passed through a specific point, right?
Exactly! Each serves a different purpose and provides unique insights into fluid flow.
In steady flow, are they all the same?
You got it! In steady flow, streamlines, pathlines, and streaklines will coincide, all representing the same flow characteristics.
In summary, each type of line helps us analyze fluid motion, and they're particularly useful in both experimental and analytical studies.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section provides an in-depth discussion about key flow visualization concepts in fluid dynamics, focusing on streamlines, pathlines, and streaklines. It explains how these lines help illustrate the behavior of fluid particles under various flow conditions, and outlines their definitions and applications in analyzing fluid behavior.
Detailed
Detailed Summary
In fluid dynamics, understanding how fluid particles move is crucial for analyzing and solving flow problems. This section introduces three fundamental concepts: streamline, pathline, and streakline.
- Streamlines: Defined as lines that are tangent to the velocity vector of a flow at a specific instant. They provide immediate visual insight into the fluid's direction and can be considered ideal for steady flow situations, where the flow parameters do not change over time. They illustrate that there is no flow crossing the stream tube formed by these lines, allowing us to analyze inflow and outflow effectively.
- Pathlines: These represent the actual trajectory taken by a particle of fluid over time. Tracking the positions of a fluid particle at different instants allows us to visualize its complete path, providing clarity on how particles navigate through the flow field.
- Streaklines: These capture the locus of particles that have passed through a given point over time. Using dye or colored particles can help visualize this concept, making it easier to comprehend how different fluid elements flow relative to that fixed point.
The interplay between these three concepts is vital for fluid mechanics, as they offer different perspectives of the same flow scenario under various conditions. Additionally, the section underscores the importance of computational and experimental methodologies in generating and visualizing these flow patterns.
Youtube Videos

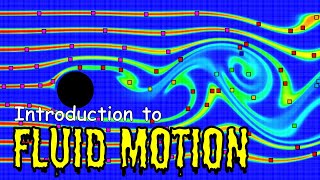

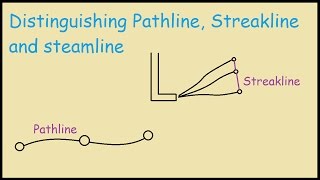

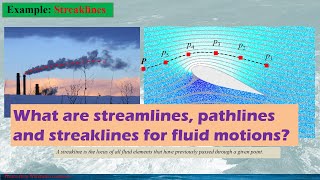

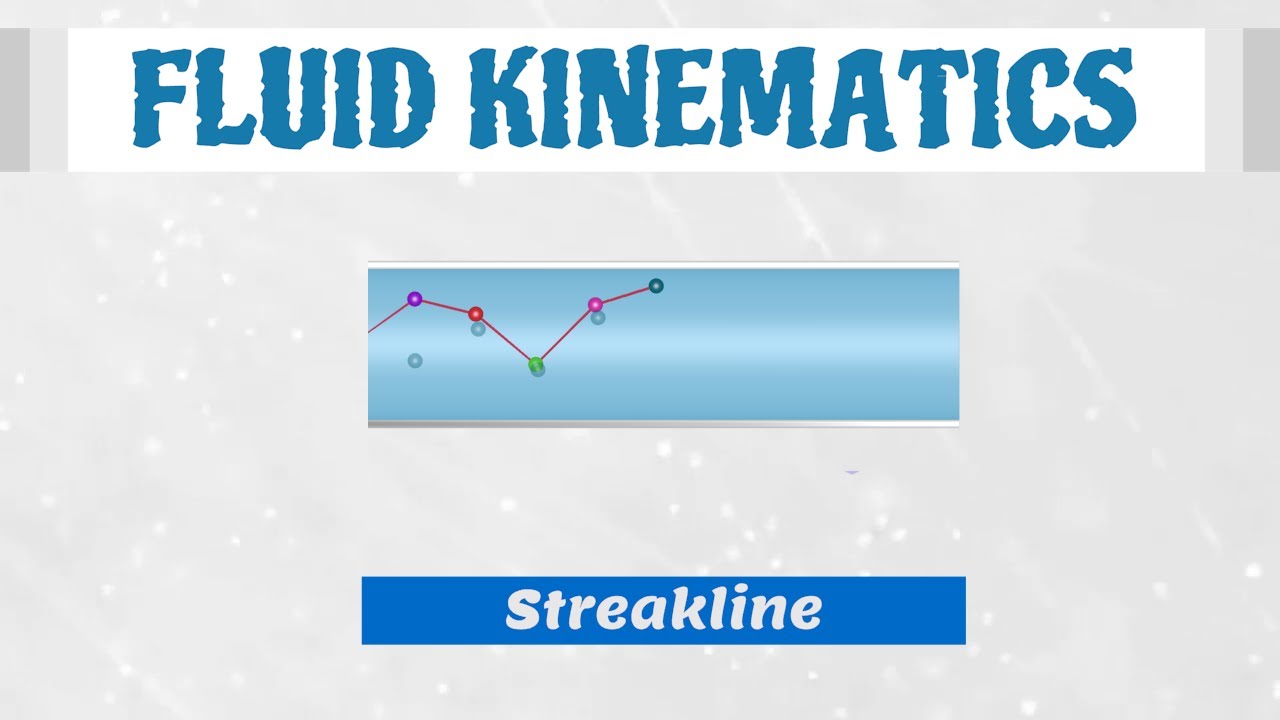

![Streakline Animation [Fluid Mechanics]](https://img.youtube.com/vi/ztrEyhFsvp0/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Streamlines Defined
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
A streamline is defined as a line that is tangent to the velocity vector of the fluid at any given instant. It represents the direction of the flow at that moment.
Detailed Explanation
Streamlines help visualize the flow pattern of a fluid at a specific moment. If you take a snapshot of the fluid movement, each line drawn at a point tells you which direction the fluid is moving. No fluid can cross a streamline, making it a boundary of flow paths.
Examples & Analogies
Imagine cars on a road; streamlines are akin to lines drawn at various points on the road to indicate the cars' paths. If you see a straight line in the traffic, no car can switch lanes (crossing streamlines) at that instant.
Understanding Pathlines
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Pathlines are the actual paths taken by a fluid particle over time. To determine a pathline, you can track the movement of a fluid particle at consecutive time intervals.
Detailed Explanation
Imagine a specific particle of fluid. By tracking its movement at different times, you draw a line representing where it goes. Pathlines show us the history of a fluid particle and its trajectory through the flow.
Examples & Analogies
Think of a bird flying: the path it takes through the sky over a few minutes is a pathline. You can visualize this by remembering where the bird started and where it ended up, drawing a line to connect its positions over time.
The Concept of Streaklines
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
A streakline represents the locus of particles that have passed through a specific point at earlier times. To visualize a streakline, one can introduce a dye at a point in the flow.
Detailed Explanation
Streaklines show where particles that have passed a certain point would be at a given moment. If you introduce some dye into the flow at a point, the pattern it creates as the dye disperses over time represents the streakline.
Examples & Analogies
Imagine dropping food coloring into a glass of water. The pattern the dye makes as it spreads through the water shows the streakline, marking where all the water that passed through the dye point is going.
Relation Between Streamlines, Pathlines, and Streaklines
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
For steady flow conditions, streamlines, pathlines, and streaklines can be the same. However, in unsteady flow, these lines can differ.
Detailed Explanation
In consistent or steady flow (where conditions do not change over time), all three types of lines will align perfectly, showing the same behavior. In contrast, in dynamic or unsteady conditions where the flow is variable, each type of line tells a different story about the fluid motion.
Examples & Analogies
Consider a river at low tide (steady flow); every leaf follows the same path – streamlines, pathlines, and streaklines coincide. However, during a storm (unsteady), every leaf may go different routes as the water changes rapidly.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Streamlines: Lines that are tangent to velocity vectors, showing flow direction at a specific instant.
-
Pathlines: Actual trajectories of fluid particles tracked over time.
-
Streaklines: Locus of particles that have passed through a particular point, visualized often through dye markers.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Using smoke in wind tunnels to visualize streamlines.
-
Using dye in water to demonstrate streaklines.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Streamlines are tangent at each side, in steady flow they coincide!
📖 Fascinating Stories
-
Imagine a river where little color-dyed fish swim. Streamlines show where they’re swimming right now, while pathlines dash through their glorious journey behind them, and streaklines show where all the colorful fish traveled through a point on the riverbank.
🧠 Other Memory Gems
-
To remember: 'Simple Streamlines, Particles on Pathlines, Streaklines through Spots' - S, P, S.
🎯 Super Acronyms
SPS
- Streamlines
- Pathlines
- Streaklines - visualize how fluid flows!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Streamline
Definition:
A line that is tangent to the velocity vector of a flow at a given instant, showing the direction of flow.
-
Term: Pathline
Definition:
The actual trajectory taken by a fluid particle over time as it moves through the flow field.
-
Term: Streakline
Definition:
The locus of all particles that have passed through a specific point in the flow, often visualized using dyes.
