Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Velocity Fields
Unlock Audio Lesson
Let's start with the velocity field, which is a crucial concept in fluid mechanics. The velocity field represents how the velocity vector varies with respect to the coordinates in space and time. Can anyone tell me what components make up the velocity vector in a Cartesian coordinate system?
Is it u, v, and w?
Exactly, u represents the velocity in the x-direction, v in the y-direction, and w in the z-direction. When we talk about the velocity field, we express it as V(x, y, z, t) = u(x, y, z, t) i + v(x, y, z, t) j + w(x, y, z, t) k. Remember this formula—using the acronym UVW can help!
What does it mean when we refer to the velocity field as a vector?
Great question! The velocity field is a vector because at each point in the fluid, it has both magnitude and direction. This means the velocity can vary from one point to another throughout the flow.
Can we compute anything with the velocity field?
Absolutely! With the velocity field, we can also determine the acceleration field by analyzing the rate of change of velocity concerning space and time. To summarize, the velocity field gives a comprehensive picture of how fluid moves in our environment.
Pressure Distribution and Its Importance
Unlock Audio Lesson
Continuing from our previous session, let’s discuss the pressure distribution in fluid flow. Why do you think understanding pressure is crucial in analyzing flow?
I think it affects the direction and speed of the fluid, right?
Exactly! Pressure gradients often drive the flow from areas of high energy to low energy. It’s essential to consider these gradients in fluid mechanics. Can anyone think of a real-world application where pressure plays a key role?
How about in weather patterns? Pressure systems determine how winds move.
Great example! Just as weather patterns depend on pressure changes, so do many fluid systems. Remember, understanding how pressure varies with respect to time and position helps predict flow behavior.
Does this also relate to cavitation?
Yes! Cavitation occurs when the local pressure drops below the vapor pressure, leading to the formation of bubbles. This is an important phenomenon that showcases the importance of pressure in fluid flow.
So to predict flow accurately, we need to understand both the velocity and pressure fields?
Correct! These two fields are foundational for analyzing fluid mechanics problems.
Flow Visualization Concepts
Unlock Audio Lesson
Now, let's move to how we visualize flow patterns. Can anyone define a streamline?
Isn't it a line that is tangent to the velocity vector at a certain point in time?
Exactly! Streamlines are critical as they show the direction of the fluid flow at any instant. If we have a steady flow, the streamlines, pathlines, and streaklines align. Does anyone remember what differentiates pathlines from streamlines?
Pathlines show the actual path a fluid particle takes, while streamlines are instantaneous, right?
Spot on! And what about streaklines?
Streaklines show particles that have passed through a specific point over time.
Great! For visualizing flow patterns, streamlines are often the most effective. They help us analyze flow without the actual need for fluid particles to trace the path consistently.
Summarizing Flow Patterns
Unlock Audio Lesson
Let's recap what we've learned today. We discussed the velocity field, pressure distribution, and visualization techniques. How are these concepts interconnected?
They all help in understanding how fluids move and behave in different situations.
And they assist us in solving complex fluid mechanics problems.
Correct! By mastering these elements, we can tackle various applications in fluid dynamics. As a takeaway, remember that fluid flow results from intricate interactions of velocity and pressure, depicted through streamlines, pathlines, and streaklines.
Thanks, Teacher! We have a better understanding of these concepts now.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section explores the analytical solutions for fluid flow, discussing how velocity and pressure distributions are derived from fundamental conservation equations. It defines critical flow concepts like velocity fields and the distinctions between streamlines, pathlines, and streaklines, as crucial tools for visualizing and analyzing fluid motion.
Detailed
Detailed Summary
In fluid mechanics, understanding flow patterns is essential for analyzing how fluids behave in various environments. This section focuses on the analytical solutions to fluid flow problems, explaining how velocity and pressure distributions can be obtained from the conservation of mass and momentum. By simplifying complex problems into manageable two-dimensional incompressible steady flow scenarios, we establish functional relationships between velocity components (u, v, w) and spatial coordinates (x, y, z).
We define the velocity field as a vector quantity that varies with space and time, represented in Cartesian coordinates. Understanding the velocity field allows us to compute the acceleration field, emphasizing the relationship between pressure distributions and fluid dynamics. The significance of pressure gradients is highlighted, explaining their role in determining flow direction.
To visualize the flow, three fundamental concepts are introduced:
1. Streamlines - Lines tangent to the velocity vector at a given instant, marking the flow path under steady conditions.
2. Pathlines - The actual trajectory traced by a particular fluid particle over time.
3. Streaklines - The locus of all particles that have passed through a specific point over time.
These definitions facilitate our understanding of flow behavior in various applications, such as understanding cavitation and the effect of pressure variations on fluid movement. Ultimately, a deep comprehension of these flow patterns is foundational to solving complex fluid flow problems.

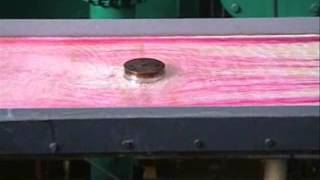

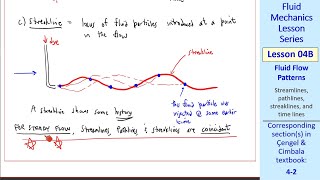

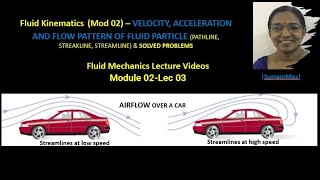

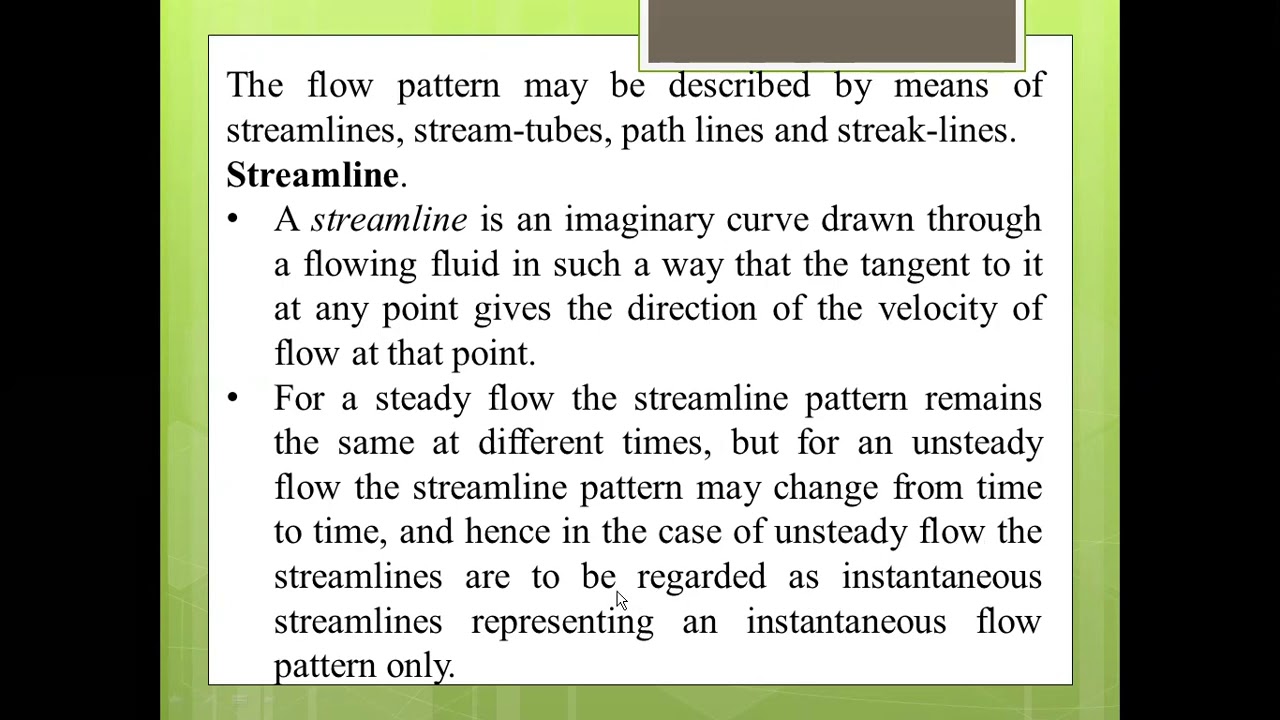

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Analytical Solutions in Fluid Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So for a very simple case, we can get analytical solutions like u and v and w and the pressure, and that analytical solutions can help us to know the velocity, the pressure distribution of these problems and it satisfy conservation equations, mass conservation equations, linear momentum equations. Also it satisfies the boundary conditions at the floor also flow inject what is coming it.
Detailed Explanation
In fluid dynamics, analytical solutions help us solve simple models to find the relationships between fluid velocity (u, v, w) and pressure. These solutions meet conservation laws, meaning they obey mass and momentum conservation principles. Hence, they provide insight into how fluids behave in a given situation, considering effects like gravity and other forces.
Examples & Analogies
Imagine you are trying to predict how water flows out of a faucet. The simple equations used to describe this flow—like how fast the water is coming out (velocity) and how much pressure is behind it—are the analytical solutions referenced. Just like these equations help you understand the faucet's flow, analytical solutions in fluid mechanics let engineers predict water movement in various scenarios.
Velocity Field and its Components
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So now I am just defining them the velocity field, when we are talking about we are talking this velocity as a vector quantity, which vary in a space in case of the Cartesian coordinate system of x, y, z and the time. But most often for easy point of view, we resolve this velocity vector component into its scalar component in Cartesian coordinate systems like the i and j and k.
Detailed Explanation
The velocity field represents how fluid velocity changes across space and time. In three-dimensional Cartesian coordinates, we can break this vector into its components (u, v, w), corresponding to movement in the x, y, and z directions. This allows for easier calculations and analyses of fluid flow behavior at different points in space.
Examples & Analogies
Think of the velocity field like a weather map showing wind speeds in different areas. Each point on the map has a specific wind speed and direction. Similarly, in fluid mechanics, we can visualize how the liquid moves in different spaces using its velocity components.
Pressure Field and its Significance
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now as already I discussed that we talk about the pressures which is very dynamic variables, the pressure distribution plays the major roles because as you know it the flow is come from high energy to the low energy.
Detailed Explanation
Pressure in fluid flow is a key dynamic variable that influences how and where a fluid moves. Flow typically originates from areas of high pressure (energy) and moves toward areas of lower pressure. Understanding this pressure distribution is essential for predicting fluid motion and behavior under various conditions.
Examples & Analogies
Consider a balloon. When you squeeze one part of it, you increase the pressure in that area. The air will move from the high-pressure zone (the squeezed part) to the low-pressure zone (the released part). This natural tendency to flow towards low pressure is similar to how fluids behave in other scenarios.
Density and Fluid Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
And second point what I am to discuss is the density of the flow. You know it this mass per unit volume or it indicates the mass of the fluid and that what per unit volume we quantified it.
Detailed Explanation
Density is defined as mass per unit volume, which tells us how concentrated a fluid's mass is within a given space. In fluid mechanics, density affects fluid properties and behavior, particularly in terms of how a fluid moves and interacts with other forces. It's particularly relevant when considering compressible flows, such as gases, where density can significantly vary.
Examples & Analogies
Think of different types of fluids like oil and water. Oil is less dense than water, which is why it floats. Understanding the density of these fluids helps predict how they will behave when mixed or under different pressures.
Streamlines, Pathlines, and Streaklines
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The flow visualization is a major issue and how to visualize the flow...So define these flow patterns we define technically three lines: One is the streamline, pathline, and the streakline.
Detailed Explanation
Streamlines, pathlines, and streaklines are three methods of visualizing fluid flow. Streamlines illustrate the velocity vector direction at a particular moment. Pathlines trace the actual path taken by a fluid particle over time. Streaklines show the history of particles that have passed through a particular point. Each of these helps to understand flow behavior from different perspectives.
Examples & Analogies
If you think about how a leaf floats down a river, the line it traces as it moves is like a pathline. If you paint a line in the water where the leaf enters, that line shows future leaves (streakline). However, if you take a picture of the water’s current from above, the lines you see at that moment represent streamlines.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Velocity Field: A representation of velocity as a vector that varies with space and time.
-
Streamline: A line that shows the instantaneous direction of the flow of a fluid.
-
Pathline: The actual path traced by a fluid particle from one point to another.
-
Streakline: Curve formed by all particles that have passed through a specific point at any time.
-
Pressure Gradient: A change in pressure that influences fluid movement.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In weather systems, high-pressure areas lead to the outflow of air toward low-pressure zones, causing winds to flow.
-
In a jet flow hitting a surface, analyzing pressure distributions helps predict the resulting force on that surface.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In a fluid’s dance, speeds they twirl, Streamlines show the path, watch them whirl.
📖 Fascinating Stories
-
Imagine a river where some leaves float downstream. The path each leaf takes is a pathline, while the direction at any moment is a streamline. The swirling eddy where all the leaves gather is like a streakline.
🧠 Other Memory Gems
-
Remember PSV: Pressure, Streamlines, Velocity - key elements to visualize fluid flow!
🎯 Super Acronyms
For velocity vectors, think UVW - u is x, v is y, and w for z!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Velocity Field
Definition:
A vector field that defines the velocity of a fluid at every point in space and time.
-
Term: Streamline
Definition:
A line that is tangent to the velocity vector of the fluid at any given instant.
-
Term: Pathline
Definition:
The actual trajectory traced by a fluid particle over time.
-
Term: Streakline
Definition:
The locus of all particles that have previously passed through a fixed point in the fluid flow.
-
Term: Pressure Gradient
Definition:
A spatial change in pressure that influences the direction of fluid flow.
-
Term: Cavitation
Definition:
The formation of vapor bubbles in a fluid due to pressure dropping below vapor pressure.
