Understanding Incompressible Flow
Unlock Audio Lesson
Today, we will dive into incompressible flow, particularly focusing on what it means when the Mach number is less than 0.3. Who knows what the Mach number indicates?
Isn't it a measure of the speed of an object in relation to the speed of sound?
Correct! When the Mach number is low, it implies that the flow can often be treated as incompressible. This means that density variations are negligible. Can anyone give me an example of a system where we might see this?
A pipe flow with water?
Exactly! In a pipe filled with water, the flow remains incompressible as the Mach number is quite low. Let's summarize: In an incompressible flow, the density is assumed constant, simplifying our equations.
Mass Conservation Equations
Unlock Audio Lesson
Now that we understand incompressible flow, let’s move on to mass conservation equations. Who can explain what mass conservation entails in fluid systems?
It states that mass cannot be created or destroyed within a closed system.
Exactly! In this section, we apply conservation of mass by transitioning from mass flow to volumetric flow. Remember the equation Q = A × V. What does each term represent?
Q is the discharge, A is the cross-sectional area, and V is the fluid's velocity!
Perfect! This is a key aspect of flow systems, as we often need to calculate volumetric flow rates in practical applications.
So, we can just pull density out of the equations if it’s constant?
Right, this simplification streamlines our equations significantly!
Applications of Incompressible Flow
Unlock Audio Lesson
Let’s apply our understanding to real-world examples, such as fluids in a tank. Imagine a tank being filled with two different inlets. How would you find out the change in water level?
We could set up an equation using the inflow—like the volumetric discharge—and equate it to the change in storage over time?
Exactly! Remember to classify the flow and apply the mass conservation principles accurately. What kind of problems do you think we face in practice when applying these ideas?
Velocity profiles can be complicated in real pipes, so finding the average could be tricky!
That’s a key takeaway! Understanding velocity distribution will allow us to solve many complex issues in fluid mechanics.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The core of the section revolves around the concept of incompressible flow, particularly under conditions when the Mach number is less than 0.3. It elaborates on how to apply mass conservation equations, the transition from mass flux to volumetric flux, and introduces illustrative examples to enhance understanding.
Detailed
Detailed Summary
This section elaborates on the theoretical underpinnings of incompressible flow within fluid mechanics, particularly when the Mach number (Ma) is below 0.3. Under this condition, it is asserted that the density variations of fluids can be regarded as negligible, allowing for the simplification that the flow can be treated as incompressible.
Key Points:
- Incompressible Flow: The criteria for defining incompressible flow is established—namely, that the Mach number is less than 0.3. In this state, density is assumed constant because variations are minor when compared to other flow dynamics.
- Mass Conservation: The section transitions from dealing explicitly with mass conservation equations to a simpler volumetric form. The conceptual leap from mass to volumetric flux (Q = AV) is highlighted, clarifying how velocity and area interact.
- Flow Characteristics: Various scenarios are demonstrated, including uniform velocity distributions and the influence of boundary conditions in practical applications, such as pipe flow.
- Application Examples: Practical examples are presented, showcasing real-world systems, like a tank filling with water and flow dynamics in confluence of rivers, illustrating how the conservation laws can be employed effectively in simplified scenarios.
This foundational understanding is crucial for students as they progress into more complex fluid dynamics and apply these principles in practical applications such as hydraulic engineering.
Youtube Videos

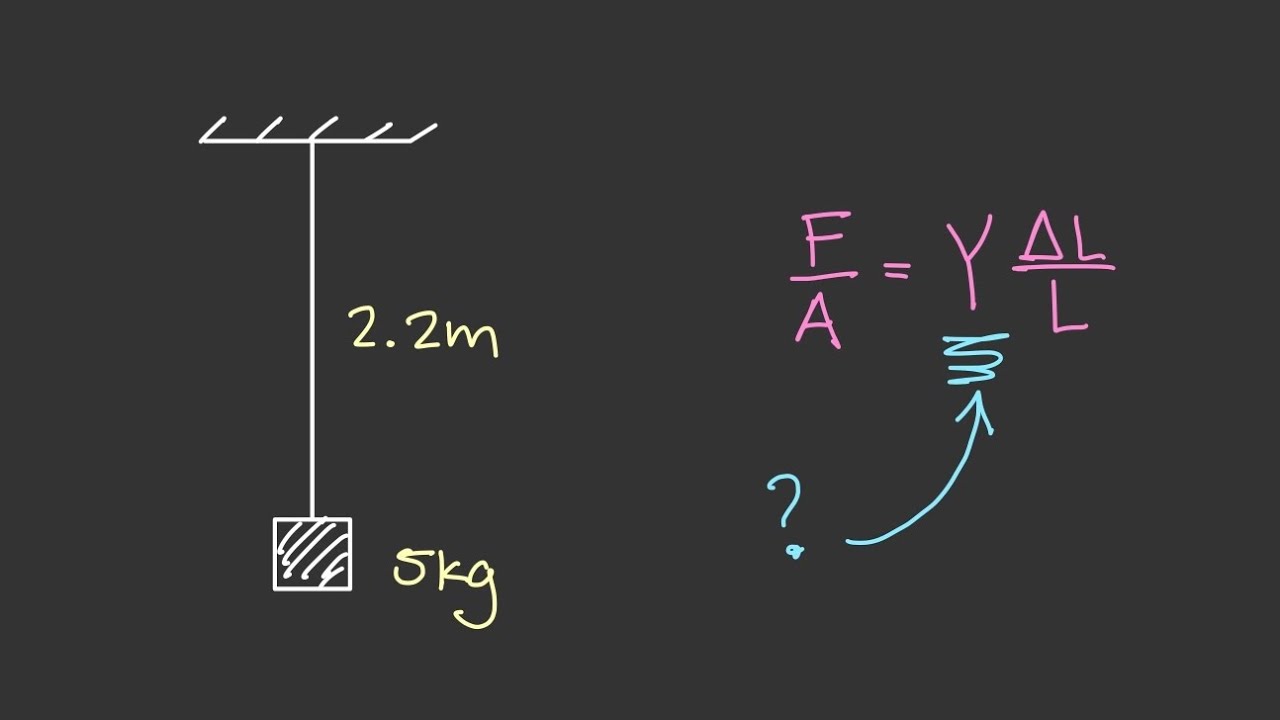

![Young's Modulus Example 1: A Hanging Mass [Physics of Fluid Mechanics #57]](https://img.youtube.com/vi/iVlPfez1hLA/mqdefault.jpg)
