17.3.2 - Flow Classification
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Incompressible Flow
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're discussing incompressible flow. Can anyone tell me when we can assume a flow to be incompressible?
Is it when the Mach number is less than 0.3?
Exactly! When the Mach number is below 0.3, the density variations become negligible. This simplifies our calculations significantly.
Why do we consider density constant in these cases?
Good question! Since the density is approximately constant, we can simplify the equations we use in fluid mechanics, especially when we apply mass conservation.
Does that mean we can ignore density in all computations?
Not entirely! While we simplify it in incompressible flow, we should still keep in mind how it interacts with other variables in our equations.
To remember this concept, just think of the mnemonic: 'M(A)ch matters!' for Mach number considerations in flow classification.
In summary, incompressible flow allows us to treat fluid density as a constant, leading to simpler mass conservation equations.
Equations of Flow and Conservation of Mass
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now that we understand incompressible flow, let's discuss how we derive the equations. Can anyone recall what the volumetric flux equation is?
It's Q equals A times V, right?
Exactly! Q = A * V is our volumetric flux equation. Remember, if we assume density is constant, we can look at volumetric changes without losing track of mass conservation.
How does that relate to mass conservation?
Great question! Basically, the sum of the mass flux in and out of the control volume must be balanced. We can express this in terms of volumetric flow rates since density factors out.
Does this mean we can only use volumetric calculations when density is constant?
Yes, that's right! The simplification relies on constant density to calculate mass flow rates easily. As a memory aid, remember 'Flux Simplifies Flow' for volumetric flux concepts!
To summarize, understanding how to equate volumetric flux with mass conservation allows us to solve complex problems with greater ease.
Flow Classification and Control Volume Analysis
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
We've covered incompressible flows and basic equations. Now, let's discuss the importance of classifying flows—why does it matter?
It helps us know which assumptions to make and which equations to use.
Very well put! Recognizing if a flow is unsteady, laminar, or turbulent affects our entire approach to analyzing fluid systems.
Can you give an example of how classification influences problem-solving?
Sure! For instance, if we classify flow as laminar, we would use different equations than for turbulent flow, which is generally more complex.
What about fixed control volumes—how do those fit in?
Fixed control volumes are essential when applying conservation laws. They provide a consistent area for balancing inflow and outflow.
As a rhyme to remember this concept: 'Classify first, control the rest, for fluid flow, you'll do your best!'
In summary, accurately classifying flow and establishing a fixed control volume is foundational for solving fluid dynamics problems effectively.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
In this section, we delve into the classification of fluid flow, emphasizing the conditions under which fluids can be assumed to behave as incompressible. The section outlines the criteria, including the Mach number threshold, and explains how simplifications, such as constant density, facilitate the application of mass conservation equations in fluid mechanics.
Detailed
Flow Classification: Detailed Summary
In fluid mechanics, understanding flow classification is critical for applying fundamental principles efficiently. The section addresses primarily incompressible flow, which can be assumed under the condition that the Mach number is less than 0.3. Under these conditions, density variation is negligible, allowing us to treat fluids as incompressible and simplifying calculations.
Key points include:
- Definition of Incompressible Flow: When the Mach number (Ma) is below 0.3, fluids can be considered incompressible, meaning their density remains approximately constant. This assumption significantly simplifies fluid flow calculations.
- Equations of Flow: The primary equation used in this context involves volumetric flux, defined as the product of velocity and cross-sectional area (Q = A * V). The section explains how density is often factored out, allowing volumetric considerations without losing sight of mass conservation principles.
- Implications for Control Volume: The flow can be analyzed within a fixed control volume where mass influx and outflux can be balanced. Understanding the velocity distribution across different flow profiles (like pipe flow) is crucial for accurately solving fluid dynamics problems.
- Classification Importance: Learning to classify flow situations (steady versus unsteady, laminar versus turbulent) helps in selecting appropriate assumptions and equations to apply, enhancing problem-solving efficiency in fluid mechanics.
- Examples and Applications: The text references multiple examples, including practical problems, illustrating how these theoretical concepts apply in real-world scenarios, such as tank filling dynamics and seepage in rivers.
This understanding of flow classification lays the foundation for solving more complex fluid mechanics problems using simplified models.

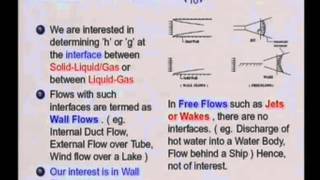

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Incompressible Flow Basics
Chapter 1 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Now, let me come in to the, if the flow is incompressible. Again, we have a lot of simplifications. Again, I can repeat it. The flow systems when you have mac number less than 0.3, okay, whether it is gas, whether it is a liquid or any flow system, if you think that the within the flow system the flow becomes less than the mac number less than 0.3, then there will be density variation, but that variation of density is much much negligible comparing to other components. So, we can assume the flow is incompressible nature.
Detailed Explanation
In fluid mechanics, an incompressible flow is one where the density of the fluid remains constant. This typically applies to both liquids and gases when their flow speeds are low, specifically when the Mach number, which is a dimensionless quantity used to represent the speed of a flow relative to the speed of sound, is less than 0.3. When this condition is met, any changes in density due to variations in flow speed are minor enough that they can be ignored. Thus, for calculations involving such flows, we can simplify our models by treating the fluid's density as a constant.
Examples & Analogies
Think of water flowing through a garden hose. When you open the tap slightly, the flow is relatively slow, and the density of the water doesn't change significantly as it moves through the hose. So, for practical purposes in this scenario, we treat the water as incompressible.
Mass Flux and Volumetric Flux
Chapter 2 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Again, I am going to summarise that. When you have any flow systems, mac number is less than 0.3, so we can use flow as incomprehensible flow, density does not vary significantly. So, density becomes constant, as density becomes constant, as you know it, it is very simplified problem what we are going to solve. So, density varies negligible, as the density variation is not significant and beta equal to 1...
Detailed Explanation
In flow systems where density is treated as a constant, we can simplify our analysis significantly. For instance, mass flow rate (mass entering or leaving a control volume) can be calculated using a volumetric flow rate, which is simply the product of the flow speed (velocity) and the cross-sectional area through which the fluid flows. This relationship becomes especially useful because it enables engineers to calculate how much fluid is flowing without worrying about density variations, as long as the conditions specified (Mach number) hold.
Examples & Analogies
Imagine filling a bathtub with water. The rate at which the water rises (volumetric flow) can simply be calculated using the opening size (area) and how fast the water flows from the tap (velocity). Here, the water's density remains constant, so we only need to know these two factors to know how quickly the bathtub will fill.
Understanding Velocity Distribution
Chapter 3 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
So, what I am looking at is again summarised here. To solve this mass conservation equation I should have knowledge on velocity field. I should know how the velocity varies or I should know whether the velocity is a constant or the velocity varies.
Detailed Explanation
To apply the mass conservation principles effectively, it's crucial to understand the flow's velocity distribution across the control volume. When dealing with incompressible flows, knowing whether the velocity is uniform or varies across the flow path helps determine how we can calculate inflows and outflows. For example, in a pipe, the water flow velocity is typically highest in the center and zero at the walls due to friction. This non-uniform distribution affects how we compute the overall flow rates through the pipe.
Examples & Analogies
Visualize a river. In the center, the water flows rapidly, while the edges are slower due to contact with the riverbank. If you want to know how quickly the water is moving to gauge flood risk, you must understand where the fastest flow occurs – typically in the center – rather than just averaging across the entire width of the river.
Average Velocity and Flow Calculations
Chapter 4 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
If you know the velocity variations on this control surface, then I can solve the problem. So, basically, when you apply the mass conservation equation your knowledge of velocity variation is important to you.
Detailed Explanation
When solving problems in fluid mechanics, particularly regarding conservation of mass, understanding the average velocity across a defined section is vital. If the flow is not uniform, we can calculate the average velocity by integrating the velocity profile across the section of interest. This average velocity allows us to compute how much fluid passes through a specified area, which is important for applications like designing ducts or channels.
Examples & Analogies
Consider how you might measure average speed on a busy road. Instead of monitoring every single vehicle at different speeds, you might take a few measurements at various points, then calculate an overall average. Similarly, in fluid flows, even if water flows at varying speeds, finding an average lets us make accurate calculations.
Practical Application of Flow Classification
Chapter 5 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Again, please remember we are still doing the mass conservation equation. The volumetric form has come in because you have taken out the density.
Detailed Explanation
Though we work with average velocities and volumetric flow, it’s important to remember that these calculations are rooted in the conservation of mass principle. By treating density as constant, we can extract it from our equations, leading to a focus on volume-related calculations, which simplifies our approach to understanding fluid flows in engineering applications. However, we still fundamentally abide by the mass conservation law.
Examples & Analogies
Think about pouring milk into a glass. You pour until it’s full, and while you’re aware of the volume of milk you’re using, you don’t consider that its weight (mass) is also part of the equation. You simply ensure the glass can hold the volume of liquid you are pouring in.
Key Concepts
-
Incompressible Flow: Fluid flow where density is constant, applicable when the Mach number is less than 0.3.
-
Mach Number: The ratio of flow speed to the speed of sound, crucial in determining flow behavior.
-
Volumetric Flux: A measure of fluid flow, expressed as Q = A * V, allowing analysis of flow using area and velocity.
-
Control Volume: An area or space used to simplify the analysis of fluid flow with clearly defined boundaries.
-
Mass Conservation: A principle stating that the total mass in a closed system remains constant, guiding fluid dynamics calculations.
Examples & Applications
Example of incompressible flow in a full tank filled with water, where the density remains constant.
Practical application in calculating the volumetric flux in piping systems and analyzing fluid behavior.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Incompressible flow, we take it slow; Mach below point three, density's a 'no.'
Stories
Imagine a calm river with gentle flows; it stays the same, unlike a fierce flow where change dramatically grows.
Memory Tools
Remember 'Incompressible Is Easy' to recall when density stays cool and effortless to solve.
Acronyms
Flow classification follows 'M-V-C' (Mach, Velocity, Control) to determine what we see.
Flash Cards
Glossary
- Incompressible Flow
A type of flow where the density remains nearly constant, typically occurring when the Mach number is less than 0.3.
- Mach Number
A dimensionless quantity representing the ratio of the flow velocity to the speed of sound in the medium.
- Volumetric Flux
The volume of fluid flowing through a unit area per unit time, expressed as Q = A * V.
- Control Volume
A defined volume in which mass and energy conservation principles are applied to analyze flow behavior.
- Mass Conservation
A principle stating that mass cannot be created or destroyed within a closed system.
