Introduction to Boundary Layer Equations
Unlock Audio Lesson
Today, we'll start with the concept of boundary layer equations. Can anyone explain what we mean by a boundary layer?
Isn't it the region where the fluid flow is affected by the boundary, like a wall or plate?
Exactly! Boundary layers occur when a fluid flows past a surface. The equations we derive help us understand how fluid velocity changes across this layer. A key equation is the mass conservation equation, which can be expressed as ∂u/∂x + ∂v/∂y = 0. Who can tell me the significance of this equation?
It indicates that the flow must conserve mass, right?
Correct! This conservation principle is crucial for establishing our boundary layer equations. Next, let's see how numerical methods simplify solving these equations.
Displacement Thickness
Unlock Audio Lesson
Moving on, let's talk about displacement thickness. Can anyone explain what that term means?
I think it's the distance that the streamline is deflected away from the wall due to the boundary layer's presence.
Exactly! This deflection results from the slower velocities near the wall compared to the free stream. Mathematically, we can express it as δ* = ∫(1 - u/U) dy from 0 to ∞. Does this formula make sense to everyone?
Yes! But how do we use it practically?
Great question! By calculating the displacement thickness, we can better understand the flow dynamics and the forces acting on structures, such as drag on a flat plate.
Momentum Thickness
Unlock Audio Lesson
Now let's discuss momentum thickness. How does it relate to displacement thickness?
Is it connected to shear stress on the plate?
Exactly! It represents the drag force experienced by a surface due to the flow. The formula is θ = ∫(u/U) (1 - u/U) dy. Can anyone point out how momentum thickness is different from displacement thickness?
The displacement thickness measures the streamline deflection, while momentum thickness relates to the momentum deficit in the flow.
Absolutely right! By understanding both thicknesses, we gain insight into the forces acting on the surface.
Numerical Solutions and Historical Context
Unlock Audio Lesson
To wrap up our session, let's talk about how numerical solutions have changed the game in boundary layer analysis. Why do you think numerical techniques are advantageous?
They allow for more complex scenarios and can handle varying conditions much quicker than manual calculations.
Great insight! Historical figures like Prandtl laid the groundwork for these analyses, despite lacking computational tools. Can you think of how this impacts engineering today?
It allows engineers to design more efficient structures like airplanes using simulations rather than only relying on physical testing.
Exactly! Understanding boundary layer behavior is crucial for optimizing designs and reducing drag forces.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, we explore boundary layer approximations, particularly for laminar flows past flat plates. Key topics include the derivation of boundary layer equations, displacement thickness, momentum thickness, and how numerical methods can simplify boundary layer solutions. The historical contributions of Prandtl and others in understanding boundary layers are also highlighted.
Detailed
Detailed Summary
This section introduces boundary conditions in fluid mechanics, particularly regarding boundary layer approximations for laminar flows. Key concepts discussed include:
- Boundary Layer Equations: Derived from mass conservation and momentum equations, boundary layer equations help in simplifying Navier-Stokes equations for flows over flat plates.
- Laminar Boundary Layers: The study emphasizes laminar flows and intricacies of boundary layers, particularly near flat plates, where concepts from fluid mechanics are crucial to modeling and predicting flow behaviors accurately.
- Displacement Thickness: This concept represents how far the streamlines are deflected due to the presence of the boundary layer. A mathematical formulation relating to mass conservation further explains displacement thickness.
- Momentum Thickness: Similar to displacement thickness, this concept is important for understanding the drag forces acting on the surfaces due to fluid motion. The momentum thickness connects to shear stress and friction factors, impacting overall flow dynamics.
- Numerical Solutions: Enhanced computational resources since the early 20th century allow for easier numerical solutions of boundary layer equations, compared to historical methods dependent on hand calculations.
- Historical Context: The achievements of early researchers, particularly Prandtl and his contemporaries, are recognized for establishing foundational principles in boundary layer theory.
Overall, understanding these principles of boundary conditions is essential for predicting fluid behavior in engineering applications.
Youtube Videos

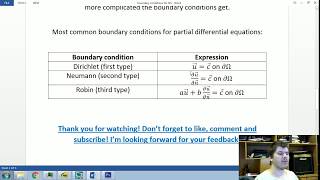

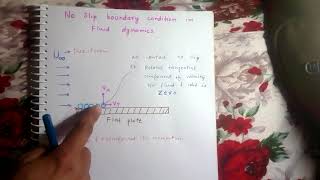

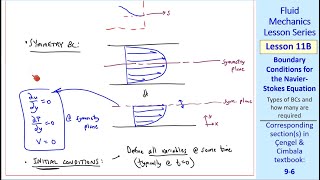

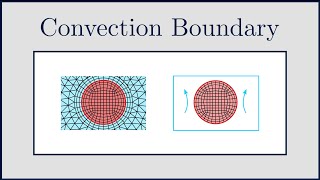

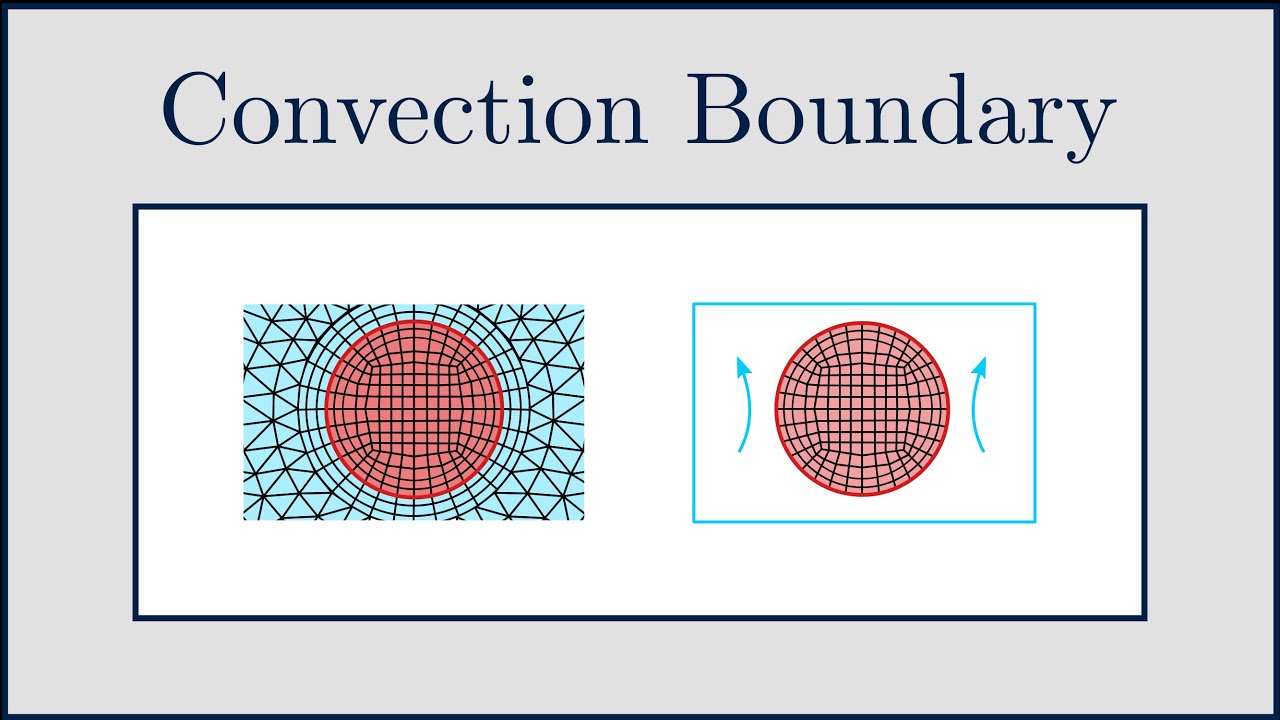

![[CFD] Convection (Heat Transfer Coefficient) Boundary Conditions](https://img.youtube.com/vi/ygR31_vhvJI/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Overview of Boundary Layer Approximations
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Good morning. Let us discuss about boundary layer approximations what we have been discussing in the last two classes. In the last class we have derived boundary layer equations which is the approximations of Navier-Stokes near to a boundary layer formations to a flow past in a flat plate.
Detailed Explanation
In this introduction, the professor is revisiting the concept of boundary layer approximations that were discussed in previous classes. A boundary layer is a thin region near a solid boundary (like a flat plate) where the effects of viscosity are significant on the flow of the fluid. This section highlights that the Navier-Stokes equations, which describe fluid motion, can be simplified or approximated in this region to obtain more manageable equations for analysis.
Examples & Analogies
Imagine a river flowing past a solid dam. Right at the surface of the dam, the water flows slower due to friction (like the boundary layer), while further away from the dam, the water moves freely and faster. The professor is explaining how we simplify the complex flow equations just like how we simplify the water's behavior in various regions relative to the dam.
Laminar Boundary Layers
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Today, we will talk about the laminar boundary layers, laminar boundary layers solutions. Then we will talk about the concept of displacement thickness and momentum thickness and introductions at the flat plate boundary conditions for the turbulent flat plate boundary layers.
Detailed Explanation
The section introduces the topic of laminar boundary layers, which occur at low flow velocities where the flow is smooth and orderly. The professor mentions two key concepts: displacement thickness and momentum thickness. The displacement thickness measures how much the boundary layer 'displaces' the outer flow, affecting overall flow characteristics, while the momentum thickness accounts for the momentum loss in the boundary layer due to the effects of viscosity.
Examples & Analogies
Think of a line of cars moving on a road. If one car goes slower at the front, it can create a jam. The displacement thickness is like figuring out how much space that jam takes up on the road, even if the cars further back are moving faster. The momentum thickness then accounts for the 'push' lost because of that slower car, affecting how fast everyone else can go.
Boundary Layer Equations
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The boundary layer mass conservation equations state that for two-dimensional incompressible flow, the velocity divergence is equal to del u by del x del v by del y.... This is the equations which is a parabolic form.
Detailed Explanation
This chunk discusses the mathematical representations of boundary layer behavior. The emphasis is on mass conservation, which is expressed via the divergence of the velocity field in the boundary layer. The equations derived are approximations that reduce the complexity of the original Navier-Stokes equations, allowing for simpler analysis of flow conditions near surfaces. Understanding these equations is fundamental for analyzing velocity distributions and layers in a given fluid flow context.
Examples & Analogies
If you think about a big crowd walking through a door (the fluid moving through the boundary layer), the crowd’s density just outside the doorway (the mass conservation law) must change as people enter. The crowd's behavior at the doorway can be simplified into a model that captures the general dynamics without detailing every single person’s movement.
Boundary Conditions for Laminar Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
We know these boundary conditions at the wall is the u v both are the 0; that is the non-slip boundary conditions....
Detailed Explanation
This section outlines the specific boundary conditions that define the flow behavior at the wall supporting the laminar boundary layer. Non-slip boundary conditions imply that the fluid's velocity at the solid boundary is zero, meaning the fluid 'sticks' to the surface. This condition is crucial for proper modeling and understanding of how velocity changes from the wall into the bulk flow. It also sets a foundation for using computational methods to solve flow equations numerically.
Examples & Analogies
Imagine sliding your hand along a desk. Initially, your hand and the desk are at rest relative to each other at the point of contact (zero velocity at boundary). Just as your hand's movement starts from stillness, the fluid adheres to the plate surface before moving faster into the flow field.
Displacement Thickness Concept
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The basic idea is comes it as the boundary layer thickness happens it and if I take a just a free out streamlines....that deflected part is known as displacement thickness.
Detailed Explanation
The concept of displacement thickness arises from the observation that the actual flow moving around a boundary is altered by the presence of the boundary layer. The streamline deflection due to the slower moving fluid near the wall represents the volume of fluid that is effectively 'displaced' because of the boundary layer. This shift is necessary for mass conservation and influences the overall flow characteristics and boundary layer development.
Examples & Analogies
Consider a swimming pool where you throw a ball into the water. The ball causes a wave that moves away from it. The wave represents how much the water's surface is altered (displaced) because of the ball. Similarly, the displacement thickness represents how much the fluid motion is changed due to the presence of the flat plate.
Momentum Thickness Explained
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Momentum thickness is nothing else. It is talking about only the screen fix and factors, it is just introduced as a momentum thickness....
Detailed Explanation
Momentum thickness is another measure that helps quantify the effect of the boundary layer on the flow field. It reflects the loss of momentum due to viscous effects in the boundary layer, essentially quantifying how much 'effective' momentum is reduced due to the slower-moving fluid near the boundary. This measure is useful for understanding drag forces on surfaces and can be related back to shear stress experienced on a plate.
Examples & Analogies
Imagine you are pushing a heavy box across the floor. At first, the box slides easily, but then you feel resistance. The momentum thickness calculates how much push you lose due to that resistance near the floor due to friction—showing not just how hard you’re pushing but how effective that push is against the resistance you meet.
Implications for Turbulent Boundary Layers
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now we are not going to more details. When you go for the turbulent boundary layers just conceptually I will discuss with you.
Detailed Explanation
The discussion shifts towards turbulent boundary layers which are more complex than laminar ones. Turbulent flows involve fluctuations and chaotic behavior which complicates their analysis. Typically, turbulent boundary layers are less straightforward to analyze than laminar layers because empirical or experimental techniques often guide the models used to describe them. The professor encourages further exploration of turbulence in advanced studies.
Examples & Analogies
Think about a river bending around rocks. That chaos of swirling water represents turbulent flow, unlike the smooth, predictable motion of water in a straight section. Just as it’s harder to predict the exact behavior of water in turbulence, the equations governing turbulent boundary layers are also more complicated and require advanced mathematical tools to describe accurately.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Boundary Layer: A thin region near a surface where viscous effects influence flow behavior.
-
Displacement Thickness: Quantifies the deflection of streamlines due to the presence of a boundary layer.
-
Momentum Thickness: Measures the impact of the boundary layer on momentum flux.
-
Numerical Techniques: Advanced methods that simplify the analysis and solution of complex boundary layer equations.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example of calculating displacement thickness for a flat plate in a flow field.
-
Example of how varying flow conditions influence the momentum thickness and consequently the drag force on a surface.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In a flow that’s smooth upon a plate,\nThe boundary layer helps regulate.
📖 Fascinating Stories
-
Imagine a river flowing past a bridge. The water close to the bridge is slower due to friction, creating a boundary layer that affects how the water flows downstream.
🧠 Other Memory Gems
-
Think 'B.D.M.' to recall: Boundary Layer, Displacement Thickness, Momentum Thickness.
🎯 Super Acronyms
Remember 'BLD' to denote Boundary Layer Dynamics.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Boundary Layer
Definition:
The region in a fluid flow near a solid boundary where the effects of viscosity are significant.
-
Term: Displacement Thickness
Definition:
The distance by which the streamlines are deflected away from the wall due to the boundary layer.
-
Term: Momentum Thickness
Definition:
A measure of the momentum deficit in the flow due to the presence of a boundary layer.
-
Term: NavierStokes Equations
Definition:
Fundamental equations governing the flow of fluid substances.
-
Term: Laminar Flow
Definition:
Flow in which fluid moves in smooth paths or layers.
-
Term: Shear Stress
Definition:
A force per unit area acting parallel to the surface.
