13.2.1. Laminar Boundary Layers

Today, we will talk about the laminar boundary layers, laminar boundary layers solutions. Then we will talk about a concept of displacement thickness, momentum thickness, and introductions at the flat plate boundary conditions for the turbulent flat plate boundary layers.

This section introduces the topic of laminar boundary layers in fluid flow, specifically how they relate to flat plates and the concepts of displacement and momentum thickness. Laminar boundary layers occur when fluid flows smoothly in layers without turbulence, typically at lower velocities. Understanding these layers is essential in analyzing various fluid dynamics scenarios, such as airflows over wings or water flowing over a flat surface.

Imagine sliding your hand over a smooth surface. The layer of air that moves along with your hand is akin to a laminar boundary layer. The smoother and slower your hand moves, the more orderly the air flows around it, just like in laminar flow.

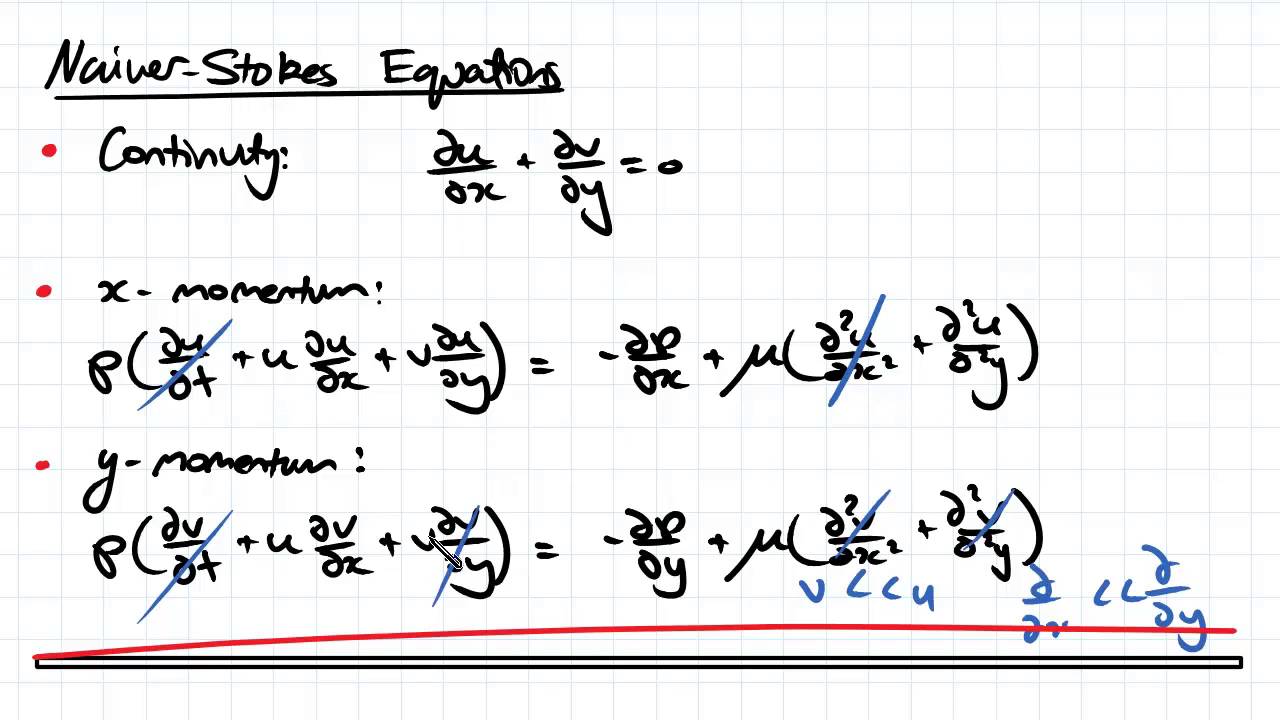

We are talking about laminar boundary layers equations okay. So as you remember it the boundary layer equations what we derive it first is the mass conservation which is very simple as again I am repeating it for two-dimensional incompressible flow velocity divergence which is equal to del u by del x del v by del y.

This chunk discusses the fundamental equations governing laminar boundary layers, starting with mass conservation. In fluid dynamics, the mass conservation equation states that the mass flow rate must be constant across any cross-section of the flow. Specifically, for two-dimensional incompressible flows, it can be described mathematically by dividing the velocity components in the x and y directions. This principle is critical for predicting how fluid behaves near solid boundaries.

Think about a garden hose: when you press your thumb over the end, the water speeds up as it exits. The principle of mass conservation resembles this—constricting the flow increases velocity, as mass must be conserved.

If you look at that this is a parabolic equations which simplified us just trying to sketch that part okay. So that means if I have a wall surface like this and you have a formations of boundary layers, that is what is sigma x.

The boundary layer equations take a parabolic form, simplifying the complex behavior of fluid flow near a surface. These equations allow for the calculation of the flow characteristics, including velocity distribution and layer thickness. The parabolic nature of these equations makes them easier to solve compared to more complex forms like the Navier-Stokes equations, which govern fluid motion in general.

Imagine the way a piece of paper curls when pushed across a table; that curve is similar to how the boundary layer evolves as fluid moves along a surface, creating a 'layer' that behaves differently from the bulk fluid.

Basically we are looking at what could be the boundary layer thickness if the free stream velocity is u okay. And considering it is that the boundary layers whatever is here it remains as a laminar boundary layers that means it is a lesser than the critical Reynolds numbers.

The thickness of a laminar boundary layer is influenced by the flow conditions, particularly free stream velocity and the critical Reynolds number. Laminar flow is characterized by smooth, orderly layers. When the Reynolds number is above a certain threshold, the flow transitions to turbulent, disrupting the laminar boundary layer. Understanding this transition is crucial for engineers designing objects that interact with fluid flow, such as aircraft wings.

Consider a small stream: the water flows smoothly and calmly (laminar) at low speeds but becomes choppy and chaotic (turbulent) when you throw a rock in or increase the flow rate significantly.

If I take a just a free out streamlines okay just of a free streamlines okay which I can consider this streamlines without boundary layer formations okay that is the without the boundary layer formations the streamline could go on like this S1 conditions.

Displacement thickness is a measure of how the presence of the boundary layer displaces the flow of the surrounding fluid. It is calculated based on how the streamline would behave without the boundary layer. Essentially, when a flow encounters a solid boundary, the streamline is pushed away from the surface due to the slower-moving fluid near the boundary, creating a 'deflection' that can be quantified as displacement thickness.

Think of skimming a stone across a pond. The water surface is flat with no disturbance, but as the stone settles, it pushes the water aside. The distance the water's surface is displaced away from where it would have been is similar to the displacement thickness in fluid dynamics.

Momentum thickness is nothing else. It is talking about only the screen fix and factors okay. It is just introduced as a momentum thickness.

Momentum thickness is related to the momentum deficit caused by the boundary layer. It reflects the reduction in momentum for fluid flow caused by the slower particles in the boundary layer compared to the free stream. This thickness is important for understanding drag forces on surfaces, as it directly influences the shear forces acting on the surface due to fluid friction.

Imagine pushing your hand through water. The water close to your skin moves slower due to friction—a momentum deficit that increases as you move your hand faster. This slow-moving water layer represents the momentum thickness in action.

Today we have a lot of advanced fluid mechanics equipment, we have high computational facilities so we can conduct very detailed experiments.

With advancements in technology, we can now simulate and study laminar and turbulent boundary layers with greater precision. Modern computational fluid dynamics (CFD) allows for detailed analysis and visualization of fluid flows, which helps in designing more efficient systems in aviation, automotive engineering, and other industries. Understanding boundary layers is critical as they significantly affect drag and lift forces in various applications.

Think of a race car designed in a wind tunnel. Engineers now use sophisticated computer models to predict how air will flow around the car, allowing them to optimize design for speed and fuel efficiency—an application rooted in the principles of laminar and turbulent boundary layers.

--
