Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Boundary Layers
Unlock Audio Lesson
Good morning class! Today, we will start by discussing what boundary layers are. Can anyone explain what we mean by a boundary layer in fluid mechanics?
Isn’t a boundary layer the region where the fluid velocity changes from zero at the wall to the free stream velocity?
Exactly! At a solid boundary, the fluid sticks to the surface. As you move away from the boundary, the fluid accelerates to the free stream velocity. This leads us to our first key concept: displacement thickness. Now, what do you think displacement thickness represents?
It must be the thickness of the layer that represents the amount by which the boundary layer affects the free stream flow, right?
Yes! It's denoted as B4*. Remember this acronym: D for Displacement; it helps in remembering that it displaces the streamline. Let's move on to momentum thickness.
Understanding Displacement Thickness
Unlock Audio Lesson
Displacement thickness is mathematically defined through mass conservation principles. Can anyone recall how we calculate it?
Isn’t it the integral of the velocity deficit over the boundary layer height?
Correct! We calculate B4* using the equation: B4* = ∫(1 - u/U) dy, where u is the velocity within the boundary layer and U is the free stream velocity. How does this affect our understanding of flow around objects?
It helps us understand how much the flow is being distorted due to the object's presence, leading to drag forces.
Exactly! And understanding B4* allows engineers to design structures to minimize drag. Let's summarize: displacement thickness is critical for analyzing flow behavior.
Momentum Thickness and Shear Stress
Unlock Audio Lesson
Now, let's discuss momentum thickness, denoted as B8. What does it represent?
Isn’t it related to how much momentum is lost due to the boundary layer?
Absolutely right! It is defined over the boundary layer similar to displacement thickness, but it evaluates the momentum flux in and out. The drag force calculations involve both the displacement and momentum thickness. Who can recall the formula for momentum thickness?
It's B8 = ∫(u/U)(1 - u/U) dy, right?
Excellent recall! By mastering these concepts, we relate them back to engineering applications like drag reduction in aircraft.
Applications and Examples
Unlock Audio Lesson
In real-world applications, these concepts profoundly impact the designs of various engineering systems, especially in aerodynamics. Can anyone give an example?
How about in the design of airplane wings? Optimizing these thicknesses can help reduce drag?
Exactly! Displacement and momentum thickness play crucial roles in ensuring aerodynamic efficiency. Consider a wing that minimizes the boundary layer effects.
That sounds really crucial for fuel efficiency!
Yes! Efficient designs directly translate to reduced fuel consumption. Always remember: D for Displacement and M for Momentum! This will help recall the relations quickly.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section covers the definitions and significance of displacement thickness and momentum thickness in the context of boundary layer theory. It discusses how these concepts apply to laminar flows, their derivation from fundamental principles, and their practical implications, particularly for shear stress calculations and flow behavior in fluid mechanics.
Detailed
In this section, we explore the important concepts of displacement thickness and momentum thickness which arise in the study of boundary layers in fluid mechanics. Displacement thickness (B4*) refers to the distance by which the free stream is displaced due to the presence of the boundary layer, considering the reduction in velocity at the surface of the object. The significance of this thickness lies in its role in mass conservation equations, particularly in the context of a uniform stream flow past a flat plate.
Momentum thickness (B8), on the other hand, quantifies the effect of the velocity deficit in the boundary layer, which influences the drag force experienced by the plate. Throughout the discussion, fundamental equations governing these properties are derived, emphasizing their relevance in calculating shear stress and understanding the dynamics of laminar and turbulent boundary layers. The origins of these concepts trace back to pioneering work by researchers like Prandtl and Blasius, showcasing the evolution of fluid mechanics knowledge.
Application-based problems illustrate how to compute these thicknesses and their impact on flow characteristics, showing their practical significance in engineering fluid dynamics.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Boundary Layers
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
We are talking about the laminar boundary layers equations. We are looking at how to get the solutions for these equations, which is an area of study initiated by pioneers such as Prandtl, Richards, and Blasius.
Detailed Explanation
The study begins with laminar boundary layers, which occur when fluid flows smoothly over a surface. Early 20th-century scientists like Prandtl developed the boundary layer theory to understand how this smooth flow behaves near solid boundaries, particularly in simple situations like flow over a flat plate.
Examples & Analogies
Think of riding a bike past a flat wall. As you pedal, the air flows smoothly (laminar flow) next to the wall, but very close to the wall, the air slows down due to friction. This behavior is similar to the fluid dynamics explored in boundary layer theory.
Defining Displacement Thickness
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

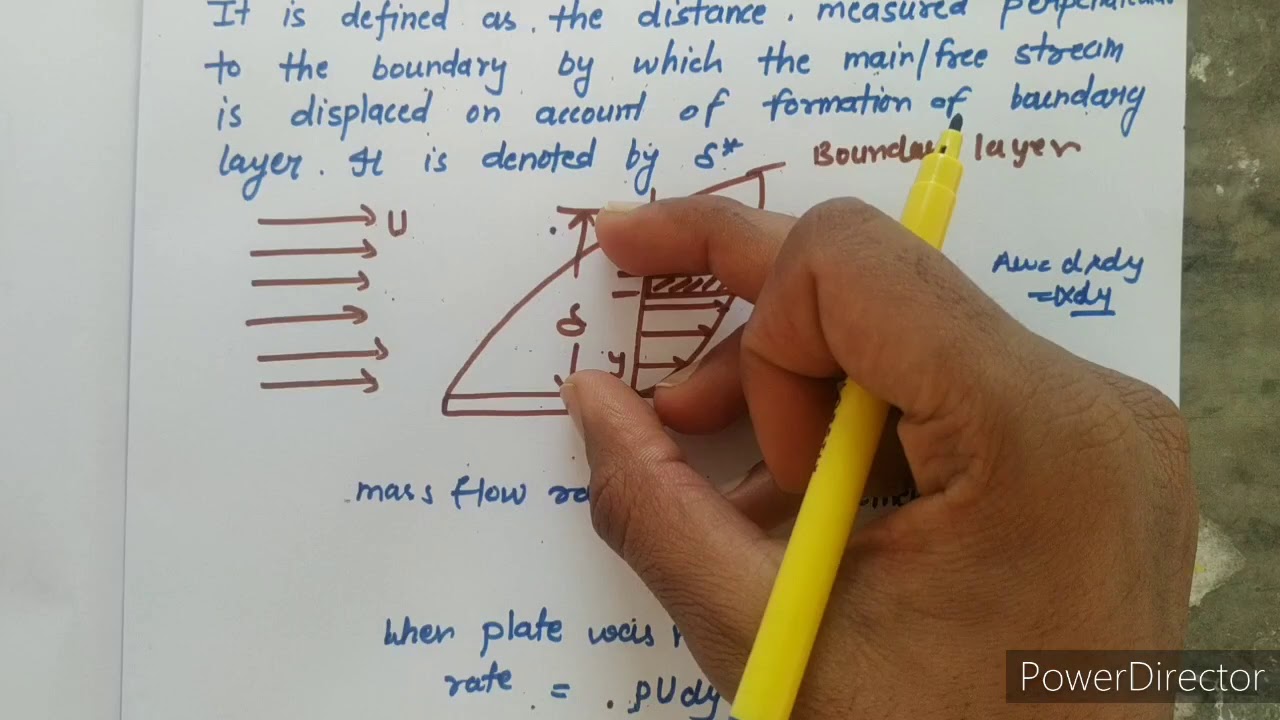

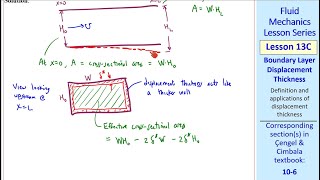

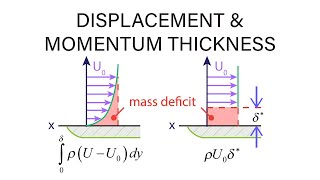

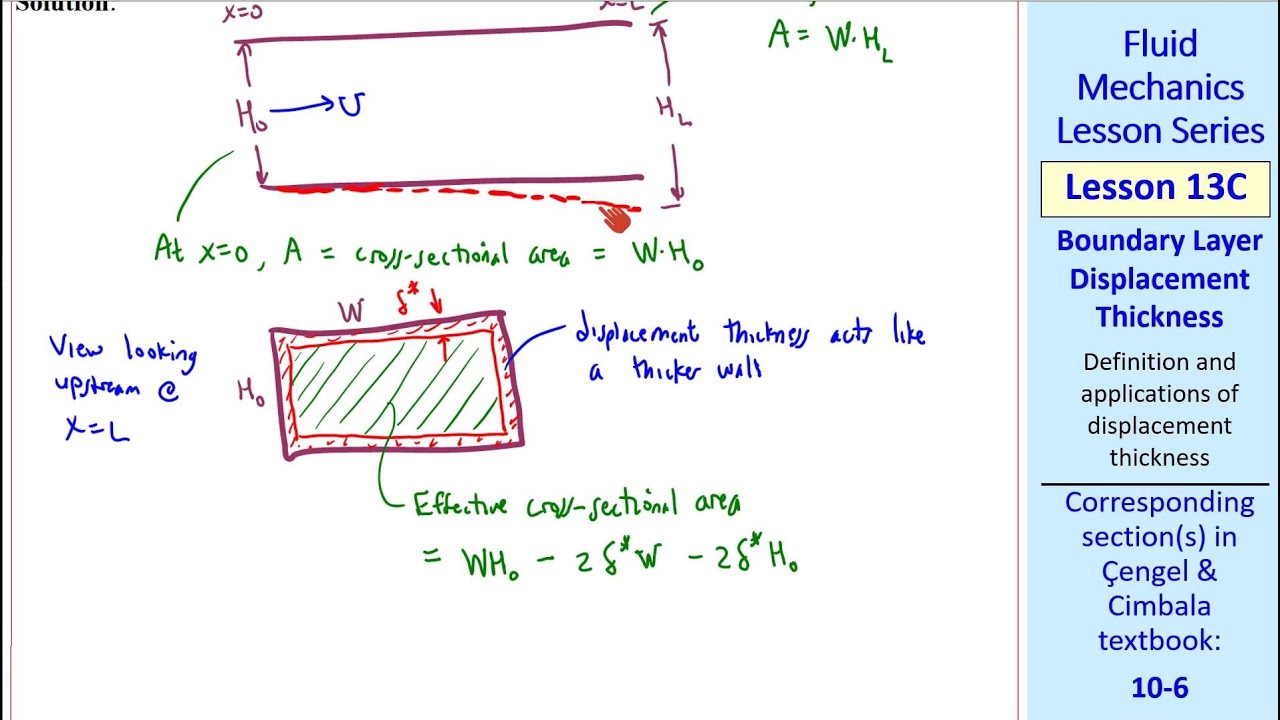

Displacement thickness is the distance a streamline is deflected away from the wall due to the presence of a boundary layer.
Detailed Explanation
Displacement thickness is a concept used to account for the effect of a boundary layer on the overall flow in a duct or around a body. It describes how much the flow is 'displaced' away from the actual wall of the object due to the velocity differential between the free stream and the fluid affected by the boundary layer. Mathematically, it's derived from mass conservation principles.
Examples & Analogies
Imagine a river flowing smoothly past a rock. The water closest to the rock is slowed down due to friction, which pushes the rest of the water further out. The distance that the whole streamline shifts away from where it would be without the rock is analogous to displacement thickness.
Mathematical Representation of Displacement Thickness
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

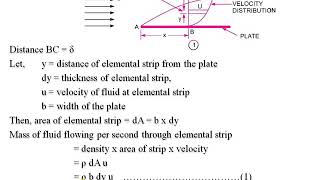

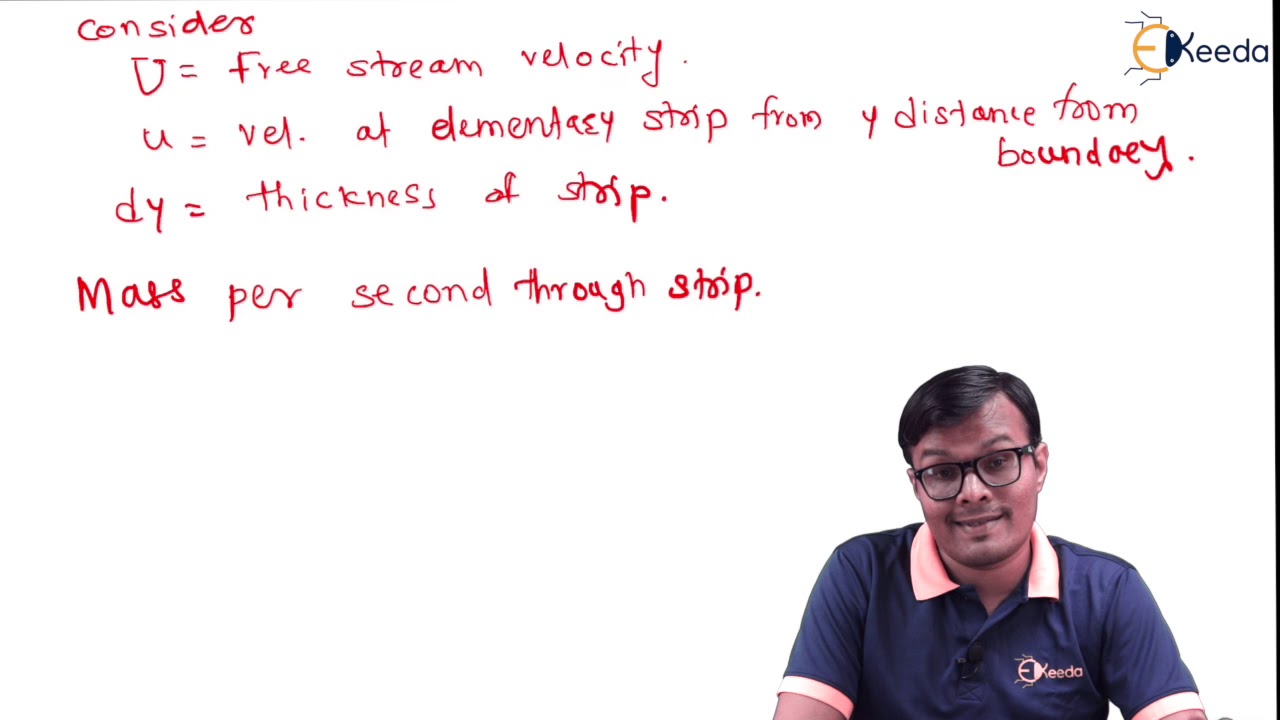

Mathematically, displacement thickness can be computed using the equation derived from the mass flow deficit through the boundary layer.
Detailed Explanation
To quantify the displacement thickness, we use the formula that accounts for the mass flow rate of the fluid both inside and outside the boundary layer. By integrating the velocity profiles from the wall to the outer edge of the boundary layer, we can determine the displacement thickness mathematically. This allows engineers to predict how boundary layers affect flow characteristics.
Examples & Analogies
Think of the integration as filling a container with different water levels. The overall shift in water level, due to varying heights from the vessel's base to the top, can symbolize calculating the total displacement around the object.
Momentum Thickness Explained
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Momentum thickness is defined as the thickness that would need to be added to the boundary layer flow to account for momentum deficit compared to the ideal flow.
Detailed Explanation
Momentum thickness, similar to displacement thickness, addresses how the presence of a boundary layer affects the momentum of the fluid flow. It is calculated using the momentum flux through the boundary layer and is crucial for understanding drag forces acting on flat plates. It quantifies the additional momentum needed to maintain flow characteristics without the boundary layer.
Examples & Analogies
Consider running water over a surface. The water that gets slowed down near the surface represents the boundary layer. Momentum thickness gives an idea of how much 'added push' would be needed in the ideal case (without friction) to keep things flowing smoothly.
Applications of Displacement and Momentum Thickness
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Displacement and momentum thickness are essential for predicting drag forces, lift forces, and other important factors in fluid dynamics involving boundary layers.
Detailed Explanation
These two thicknesses are key to various applications in engineering and fluid mechanics, including the design of aircraft wings, pipes, and many other systems where fluid flow is involved. Understanding these principles helps engineers design components to minimize drag and maximize efficiency.
Examples & Analogies
Think of design engineers as sculptors. Just like sculptors must understand how a piece of art will interact with light and space, engineers need to know how fluid flows interact around objects to create efficient designs that overcome drag and turbulence, ensuring smooth operations.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Displacement Thickness: Represents the thickness by which the flow is affected due to the boundary layer.
-
Momentum Thickness: Relates to how much momentum is lost per unit width due to the boundary layers.
-
Boundary Layer Effects: Understanding these effects is critical for applications in engineering and design.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
An airplane wing designed to minimize displacement and momentum thickness yields reduced drag forces, enhancing fuel efficiency.
-
In the design of pipelines, knowing the momentum thickness helps in calculating pressure drops and ensuring efficient flow.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
To understand thickness in a fluid's sway, remember D and M keep drag at bay!
📖 Fascinating Stories
-
Imagine a boat moving through water. The water close to the boat moves slower due to friction—this creates a ‘layer’ which we call the boundary layer. The thickness of this layer displaces the surrounding water, representing displacement thickness. The lost momentum, which affects how fast the boat travels, is captured by momentum thickness!
🧠 Other Memory Gems
-
D for Displacement and M for Momentum; remember these together for boundary layer momentum.
🎯 Super Acronyms
DMT – Displacement, Momentum, Thickness – key terms in fluid dynamics dealing with layers.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Displacement Thickness (B4*)
Definition:
The thickness of the layer effectively displacing the free stream line due to the boundary layer formation.
-
Term: Momentum Thickness (B8)
Definition:
A measure of the amount of momentum deficit per unit width of the flow due to the boundary layer.
-
Term: Boundary Layer
Definition:
The region of fluid flow near a bounding surface where the effects of viscosity are significant.
-
Term: Shear Stress
Definition:
The stress acting parallel to the surface of an object due to viscous effects in the fluid.
