Introduction to Boundary Layers and Displacement Thickness
Unlock Audio Lesson
Today, we will explore boundary layers and the concept of displacement thickness. Can anyone tell me what happens to the velocity of flow near a solid surface?
The velocity decreases as it approaches the surface due to viscous effects.
Exactly! This reduction in velocity leads to the formation of what we call a boundary layer. Now, in this context, what do you think displacement thickness represents?
Is it the distance the flow is displaced away from the wall due to the effects of the boundary layer?
Correct! Displacement thickness quantifies how much the streamlines are shifted due to this layer. It essentially helps us understand how mass flow is impacted.
Mathematical Formulation of Displacement Thickness
Unlock Audio Lesson
Let’s derive the formula for displacement thickness. The displacement thickness can be calculated by examining how much mass flow has been reduced due to the boundary layer. Who can recall the relevance of mass conservation here?
Is it the equation relating mass flow rates entering and exiting the control volume?
Yes! The fundamental principle tells us that mass flow must be conserved. Thus, we integrate the deficit in velocity across the boundary layer to find the displacement thickness, denoted as δ*. Anyone can tell me what this integration represents?
It calculates the total reduction of flow due to the boundary layer from the free stream condition.
Well said! As we calculate this across the height of the boundary layer, we can capture the effects effectively.
Practical Applications and Historical Context
Unlock Audio Lesson
Now, let’s consider why knowing displacement thickness is significant. How do you think this knowledge applies in engineering or aerodynamics?
It helps in designing surfaces that minimize drag, like airplane wings.
Yes! By understanding how boundary layers work and how to mitigate their effects, designers can improve efficiency. Furthermore, our understanding has roots in historical studies, like those from Prandtl and Blasius in the early 1900s. Why is it essential to recognize these contributors?
Because it shows how current theories evolved and help us appreciate the foundational knowledge in fluid mechanics.
Precisely! The history gives context to our current applications, making us better engineers.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section discusses displacement thickness in the context of boundary layers in fluid dynamics. It provides an in-depth look at how displacement thickness is defined, its importance in calculating velocity profiles in boundary layers, and how it relates to momentum thickness. The insights include historical perspectives and practical applications.
Detailed
Displacement Thickness in Fluid Mechanics
Displacement thickness is a fundamental concept in fluid mechanics that describes the thickness of the boundary layer over a solid surface. As a fluid flows over a surface, viscous effects cause a reduction in velocity within the boundary layer compared to the free stream, leading to a displacement of the streamlines. This displacement can be quantified through displacement thickness.
The section elaborates on the derivation and formulation of displacement thickness using mass conservation principles. It involves understanding the changes in mass flow rates due to the existence of the boundary layer—specifically, how the mass deficit occurs when fluid flows over a boundary, and the velocity at the boundary layer is lower than the free stream velocity. Mathematically, the displacement thickness, represented by δ*', can be expressed through integrations of the velocity profiles.
Displacement thickness plays a critical role in calculating forces on a boundary, such as drag, and contributes to tools for analyzing various fluid flow scenarios, including laminar and turbulent regimes. Moreover, the section discusses historical figures such as Prandtl and Blasius, who contributed significantly to the foundational theories surrounding boundary layers, leading to our modern understanding of fluid dynamics and computational fluid dynamics (CFD). This knowledge allows engineers and scientists to design systems efficiently and predict fluid behavior accurately around objects.

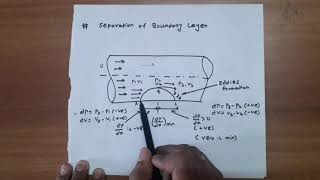

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to the Concept of Displacement Thickness
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The basic idea of displacement thickness comes from how a boundary layer develops. When a boundary layer forms on a flat surface, the streamlines of the flow are deflected. This results in a change of the effective flow path of the fluid. Displacement thickness quantifies this change.
Detailed Explanation
Displacement thickness is defined as the distance by which the free streamline (the streamline of flow where the fluid velocity equals the free stream velocity) is displaced due to the presence of a boundary layer. When a fluid flows over a flat surface, the velocity of the fluid near the surface is reduced due to viscous effects. Displacement thickness measures this reduction and accounts for the effect of the boundary layer on the overall flow rate across a cross-section of the fluid.
Examples & Analogies
Imagine a river flowing over a flat surface. In the center of the river (the free stream), the water flows quickly. Near the banks, however, the water flows slower due to friction with the land. The thickness of the layer of slower water can be thought of as the displacement thickness, which affects how high the water level in the center of the river appears.
Mathematical Definition of Displacement Thickness
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Displacement thickness (B4*) is mathematically defined using mass conservation principles. It can be expressed as the area between the free stream velocity and the velocity profile over the boundary layer, indicating the amount of mass that gets displaced due to the boundary layer.
Detailed Explanation

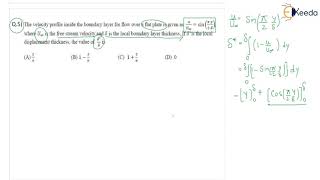

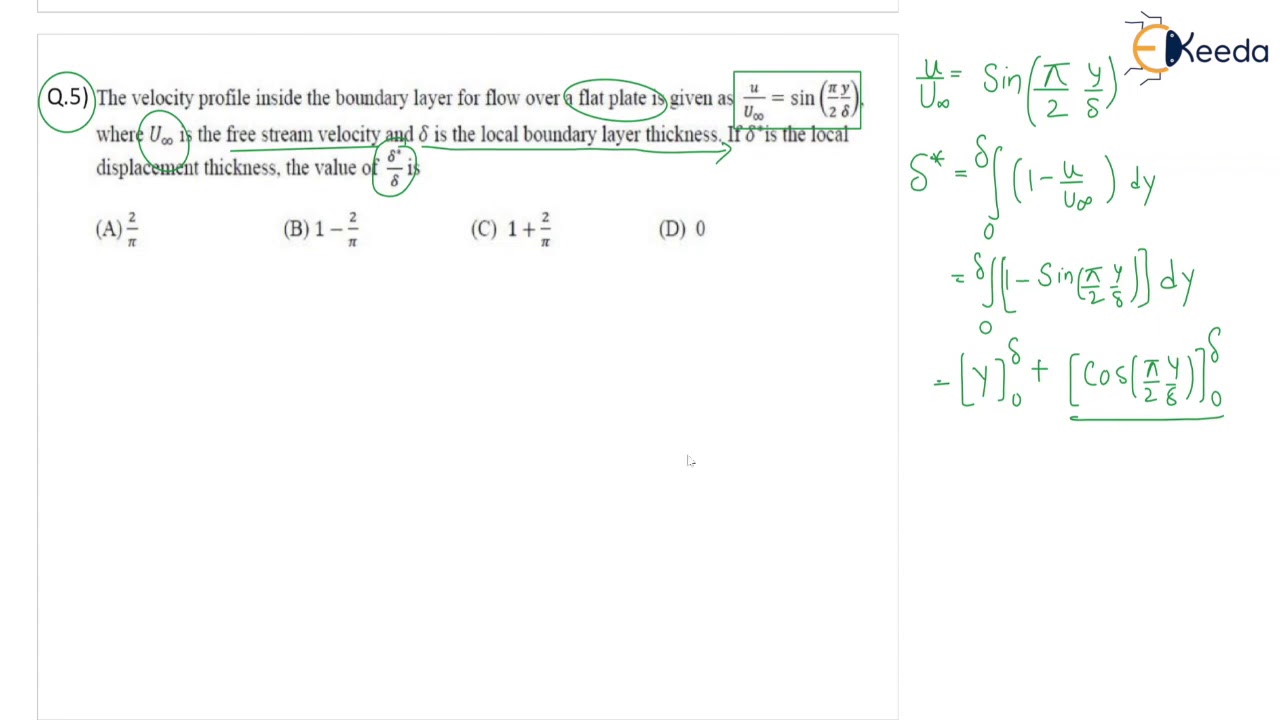

The displacement thickness B4* can be mathematically defined using the integral form of mass conservation as follows:
B4* = ∫(1 - u/U) dy, from y = 0 to y = B4,
where u is the velocity at a distance y from the wall, and U is the free stream velocity. The term (1 - u/U) represents the fractional decrease in velocity at point y compared to the free stream. When you integrate this across the thickness of the boundary layer, you obtain the displacement thickness. This shows how much the velocity profile deviates due to the presence of the boundary layer.
Examples & Analogies
Think of it like measuring the height of a sponge sitting in a bowl of water. The sponge absorbs some water, causing the water level to rise. In this analogy, the rise in water level represents the displacement thickness, showing that the sponge has taken up space in the bowl. The height of the sponge brings about an equivalent 'displacement' in the water level.
Physical Interpretation of Displacement Thickness
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Displacement thickness serves as an indication of the effect of the boundary layer on the flow field. As the displacement thickness increases, it implies that the effects of viscosity are more significant, leading to greater deviation in the flow characteristics from those of the ideal free stream.
Detailed Explanation

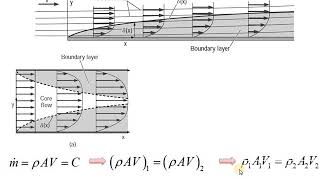

The physical interpretation of displacement thickness is critical in understanding how boundary layers affect fluid flow. As the boundary layer grows thicker, it reduces the effective area through which the fluid can flow at free stream velocity. This means that the mass flow rate across the control section is less than it would be in the absence of a boundary layer. The larger the displacement thickness, the more pronounced the effects of viscosity and friction become, influencing drag on solid surfaces and altering pressure distributions.
Examples & Analogies
Imagine a car driving through a tunnel. If the tunnel's entry is narrow, the flow of air into the tunnel is significantly affected, leading to increased drag. Similarly, if the tunnel widens, there is less obstruction. Displacement thickness represents how much 'airflow' is affected by the boundary layer, which, analogous to the tunnel's dimensions, impacts how 'freely' the fluid can flow.
Applications of Displacement Thickness
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The concept of displacement thickness is widely applied in various engineering fields, especially in aerodynamics and hydrodynamics, where it's essential to consider the effects of boundary layers on vehicle design, drag reduction, and predicting the flow behavior around structures.
Detailed Explanation
In practical applications, engineers often use displacement thickness in the design of airfoils and underwater vehicles to accurately predict drag forces. By determining the displacement thickness, engineers can calculate the apparent wind or water flow over a surface, allowing them to design shapes that minimize drag and optimize performance. It plays a critical role in simulations and computational fluid dynamics, allowing for better predictions of flow patterns and forces acting on bodies in motion.
Examples & Analogies
Consider an airplane wing designed for optimal lift. Engineers calculate the displacement thickness to ensure that they can predict how the air will behave around the wing, leading to effective designs that reduce drag and improve fuel efficiency. By understanding displacement thickness, similar to optimizing the shape of a boat's hull, designers can shape vehicles to achieve smoother flow, resulting in faster and more fuel-efficient travel.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Displacement Thickness: A measure of how much the boundary layer affects the flow above a surface.
-
Boundary Layer Dynamics: Understanding the variations in fluid velocity in the vicinity of a solid surface.
-
Historical Contributions: Learning about key figures like Prandtl who advanced our understanding of boundary layers.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
The displacement thickness can be calculated for air flowing over a flat plate to determine the drop in velocity at the surface, useful for predicting drag force.
-
Using displacement thickness in the design of aircraft wings helps in minimizing drag and optimizing performance.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
As fluid flows and layers flow, remember displacement thickness shows where we go.
📖 Fascinating Stories
-
Imagine a river flowing over rocks; the surface area slows down while the center flows fast. The slow area creates a cushion effect, that’s the displacement thickness we inspect!
🧠 Other Memory Gems
-
D for Displacement, D for Drag: Displacement thickness impacts the drag, so keep it low for a smooth flow!
🎯 Super Acronyms
THICK = Thickness Help In Calculating Kinetics – a reminder that displacement thickness helps us understand fluid dynamics.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Displacement Thickness
Definition:
The thickness of the boundary layer accounting for the decrease in flow velocity near a solid boundary.
-
Term: Boundary Layer
Definition:
A thin region adjacent to a solid surface where the flow velocity transitions from zero to the free stream value.
-
Term: Reynolds Number
Definition:
A dimensionless number used to predict flow patterns in different fluid flow situations.
-
Term: Control Volume
Definition:
A defined volume in fluid mechanics where the mass flow is analyzed across its boundaries.
-
Term: Mass Conservation
Definition:
Principle stating that mass cannot be created or destroyed in a closed system, leading to mass flow rate equations.
