Introduction to Orientation Procedures
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today we'll explore Orientation Procedures in Photogrammetry. Can anyone tell me why orientation is necessary in this field?
Is it to convert the 2D images into a 3D model?
Exactly! Orientation helps us transform flat images into spatially accurate 3D representations. Let's start with interior orientation. Student_2, what do you think this involves?
Maybe it has something to do with the camera settings?
Correct! Interior orientation establishes the internal geometry of the camera system using important camera constants like focal length. Now, who can remind us why this is important?
It’s important to correct lens distortions, right?
Yes, indeed!
Exterior Orientation
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let’s move on to exterior orientation. Can anyone define what it involves?
Is it about where the camera was when the pictures were taken?
Exactly! Exterior orientation determines the position and orientation of the camera, using three translational and three rotational parameters. Remember: Translation refers to X, Y, Z while rotation is omega, phi, kappa. Can anyone think why knowing these parameters is important?
It helps align the images correctly, right?
Absolutely! Aligning images accurately is crucial for creating reliable spatial models.
Relative vs Absolute Orientation
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let's compare relative and absolute orientation. Student_2, what’s your understanding of relative orientation?
It’s when two overlapping images are adjusted to simulate their original position?
That's right! Relative orientation aligns stereoscopic images. Now, how does that differ from absolute orientation, Student_3?
I think absolute orientation takes those adjusted images and fits them into real-world coordinates.
Exactly! It's about scaling and transforming the relative model to match the ground coordinates. Understanding both is key for accurate measurements.
Significance of Orientation Procedures
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Why is knowing these orientation procedures significant for photogrammetry in applications like mapping or urban planning?
I guess it’s to ensure the data we get is accurate and can be trusted for decisions.
Exactly! Accurate data leads to reliable decisions. Without proper orientation, the spatial information can lead to miscalculations. Great insights, everyone!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
Orientation procedures in photogrammetry are vital for transforming 2D images into accurate 3D models. This section discusses interior orientation, exterior orientation, and the distinctions between relative and absolute orientation, highlighting the importance of accurate measurements in photogrammetric practices.
Detailed
Orientation Procedures in Photogrammetry
Orientation in photogrammetry is essential for converting 2D photographic coordinates to 3D ground coordinates. Understanding these orientation procedures ensures accurate spatial representations in projects like mapping, surveying, and modeling. The orientation process can be categorized into three main types:
Interior Orientation
This establishes the internal geometry of the camera system. It uses camera constants such as focal length and the location of the principal point. Accurate interior orientation is crucial to compensate for any distortions in the camera's lens and to relate image coordinates to the corresponding measurements.
Exterior Orientation
Exterior orientation involves determining the camera’s position and orientation at the time of exposure. It includes three translational parameters (X, Y, Z) and three rotational parameters (omega, phi, kappa). This step is fundamental, as it provides the necessary spatial referencing to align the captured images with the real-world coordinates.
Relative and Absolute Orientation
- Relative Orientation: This refers to aligning a stereo pair of images to simulate the original geometry during exposure. This involves adjusting the two images to overlap correctly, allowing for 3D perception.
- Absolute Orientation: This process takes the relative model from the previous step and scales and transforms it to match real-world ground coordinates, ensuring that the spatial data obtained is accurate and applicable.
Overall, sound understanding and application of these orientation procedures are critical in ensuring high accuracy and reliability in photogrammetric outputs.
Youtube Videos

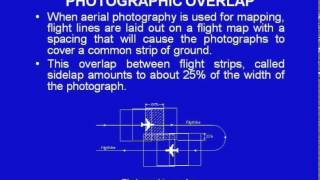

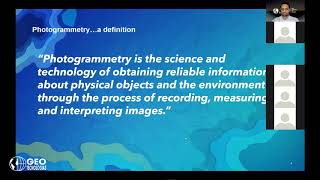

Audio Book
Dive deep into the subject with an immersive audiobook experience.
Importance of Orientation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Orientation is necessary for converting 2D photographic coordinates to 3D ground coordinates.
Detailed Explanation
Orientation procedures in photogrammetry are crucial because they provide the means to transform the information captured in two-dimensional photographs into three-dimensional spatial data that can be used for practical applications like mapping and modeling. When images are taken from a camera, they only represent flat images. By performing orientation, we can pinpoint where those images exist in three-dimensional space.
Examples & Analogies
Think of it like creating a map of a building. If you only have a photograph of a flat layout, you can't know how tall the building is or where things are located in relation to each other in 3D space. Orientation allows you to turn that flat image into a blueprint, complete with height and depth.
Interior Orientation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Interior Orientation establishes the internal geometry of the camera system. It uses camera constants like focal length and principal point location.
Detailed Explanation
Interior orientation is about understanding how the camera captures an image. It focuses on the internal specifications of the camera, such as the focal length, which is the distance from the lens to the image sensor, and the principal point, which is where the camera's optical axis intersects the image plane. By knowing these factors, we can help ensure that our photographs accurately represent the locations and distances of objects within them.
Examples & Analogies
Imagine adjusting a pair of binoculars. You need to know the exact specifications of the lenses and their alignment to see a distant object clearly. Just like that, interior orientation helps clarify and focus our view of the 3D world as captured by the camera.
Exterior Orientation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Exterior Orientation determines the position and orientation of the camera at the time of exposure. It includes 3 translational (X, Y, Z) and 3 rotational (omega, phi, kappa) parameters.
Detailed Explanation
Exterior orientation focuses on the camera's position and orientation when the photograph is taken. This means we need to know exactly where the camera was placed in the spatial context, which is defined by three translational parameters (X, Y, Z - corresponding to horizontal and vertical position) and three rotational parameters (omega, phi, kappa - which indicate how the camera is angled). This information is critical for reconstructing the scene accurately in 3D.
Examples & Analogies
It's like setting up a GPS for a car. You need your starting point (translation) and the direction in which you're facing (rotation) to get accurate navigation. If you're slightly turned or at the wrong location, the GPS won't guide you correctly. Exterior orientation serves the same purpose for images in photogrammetry.
Relative and Absolute Orientation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Relative Orientation involves aligning a stereo pair to simulate geometry of original exposure. Absolute Orientation scales and transforms the relative model to ground coordinates.
Detailed Explanation
Relative orientation deals with aligning pairs of images so that they are accurately projected as they were captured. This helps in creating a stereo view, which is essential for depth perception. Absolute orientation then takes this further by adjusting these images to known geographical points on the ground, scaling them to match actual distances and elevations. Together, these processes ensure that the photogrammetric data can be used effectively for real-world applications.
Examples & Analogies
Think of playing a video game where you need to navigate through a 3D world using the images in front of you. First, you get a sense of distance between two objects (relative orientation). Then, you need to place these objects correctly on a real-world map (absolute orientation) so that you can find your way in reality. Each step is crucial for precise navigation.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Interior Orientation: Establishes the camera's internal functioning.
-
Exterior Orientation: Determines the camera's position during image capture.
-
Relative Orientation: Aligning images for 3D representation.
-
Absolute Orientation: Adapting aligned images to ground coordinates.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
When capturing images for a city map, interior orientation is used to correct lens distortions so that building measurements are accurate.
-
In aerial photography, exterior orientation helps to identify where each photo was taken, assisting in creating accurate 3D terrain models.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In interior, the lens does shine, correcting errors to make images fine.
📖 Fascinating Stories
-
Imagine a photographer who sets up their camera in a specific position, ensuring all angles are just right, thus transforming their flat pictures into a 3D masterpiece.
🎯 Super Acronyms
Remember 'IERA' for Interior, Exterior, Relative, Absolute.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Interior Orientation
Definition:
Establishes the internal geometry of the camera system using constants like focal length.
-
Term: Exterior Orientation
Definition:
Determines the position and orientation of the camera at the time of exposure.
-
Term: Relative Orientation
Definition:
Aligning two images to simulate the geometry of the original photograph.
-
Term: Absolute Orientation
Definition:
Scaling and transforming the relative model to match ground coordinates.
