Introduction to SfM
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we're going to talk about Structure from Motion, or SfM for short. Can anyone tell me what they think SfM might be about?
Is it related to building 3D models with photos?
Exactly! SfM is a technique that reconstructs 3D structures from multiple 2D images taken from different perspectives. This method has really changed how we approach photogrammetry.
Why is that important?
It's important because it simplifies the process of obtaining spatial data, making it more efficient and cost-effective. People in fields like civil engineering can benefit greatly from this.
What kind of images do we use?
We use overlapping images, usually captured by drones or handheld cameras. This brings us to the next step in the SfM process.
Let's wrap up this session: SfM is a method for creating 3D models from 2D images, crucial for efficient data acquisition in photogrammetry.
SfM Workflow
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let's dive into the workflow of SfM. Can anyone outline the steps involved?
There are... image acquisition first?
That's right! We start with image acquisition – collecting multiple overlapping photos. The next step involves feature detection and matching. Who can tell me what that means?
It's where we use algorithms like SIFT and SURF to find unique points in the images?
Correct! Once we match these key points across images, we move to camera pose estimation. What might that involve?
Determining the camera’s position and orientation during the photo captures?
Absolutely! Then we generate a sparse point cloud by triangulating matched features. Can anyone explain what a dense reconstruction is?
Is it when we use algorithms to create a more detailed point cloud?
Exactly! Finally, we convert that dense point cloud into a mesh and add textures. That's the complete workflow of SfM!
To summarize, the workflow consists of image acquisition, feature detection and matching, camera pose estimation, sparse point cloud generation, dense reconstruction, and mesh mapping.
Advantages and Limitations of SfM
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let's discuss the advantages of SfM. What are some benefits you can think of?
It doesn’t require a calibrated camera, right?
Exactly! That’s a huge advantage. SfM can be done with any camera. What else makes it appealing?
It's automated and user-friendly?
Correct! This automation makes it very accessible. But what are some limitations we should be aware of?
It must depend on the quality of the images and the overlap between them.
Right! Good point. If images don't overlap sufficiently or are of low quality, the results can suffer. What else could be a concern?
It doesn't work well in areas that are too homogeneous, like water or grass.
Yes, that’s very accurate. To summarize, SfM's advantages lie in its automation and lack of calibration requirements, while its limitations include reliance on image quality and challenges in homogeneous environments.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
SfM automates the process of creating 3D structures by using overlapping photos captured from different angles. This technique simplifies data acquisition and reduces costs, making it highly applicable in modern photogrammetry and civil engineering.
Detailed
Structure from Motion (SfM) in Photogrammetry
Structure from Motion (SfM) is an advanced photogrammetric technique that reconstructs three-dimensional (3D) structures from a series of overlapping two-dimensional (2D) images captured from different viewpoints. This approach has revolutionized the field due to its automation, cost-effectiveness, and ease of use, making it essential for modern applications in areas like civil engineering and urban planning.
Workflow of SfM
The typical workflow for SfM involves the following steps:
1. Image Acquisition: Multiple overlapping photos are captured, often using Unmanned Aerial Vehicles (UAVs) or handheld cameras.
2. Feature Detection and Matching: Algorithms such as SIFT (Scale-Invariant Feature Transform) and SURF (Speeded-Up Robust Features) identify and match keypoints in the images.
3. Camera Pose Estimation: This step involves estimating the intrinsic (focal length, sensor size) and extrinsic (position and orientation) parameters of the camera through bundle adjustment.
4. Sparse Point Cloud Generation: Triangulation of matched features results in a sparse 3D model.
5. Dense Reconstruction: Multi-view stereo (MVS) algorithms enhance this sparse point cloud into a dense 3D point cloud.
6. Mesh and Texture Mapping: The dense point cloud is converted into a mesh and textured using data from the original images.
Advantages and Limitations of SfM
SfM offers several advantages:
- No Need for Calibrated Cameras: It operates under the assumption that any camera can produce usable data without pre-calibration.
- High Automation: Many software solutions automate the SfM process, making it user-friendly.
- Applicability: It works exceptionally well with complex and irregular terrains and structures.
However, it does have limitations, including:
- Accuracy Dependence: The accuracy of results is contingent upon the quality and overlap of images.
- Performance Issues: SfM may not perform well in homogeneous areas, like flat water or grassy regions.
In summary, Structure from Motion represents a significant advancement in photogrammetry, whereby the ease of generating 3D models from 2D images greatly enhances efficiency and applications in various fields.

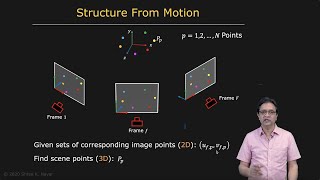

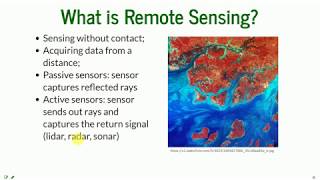

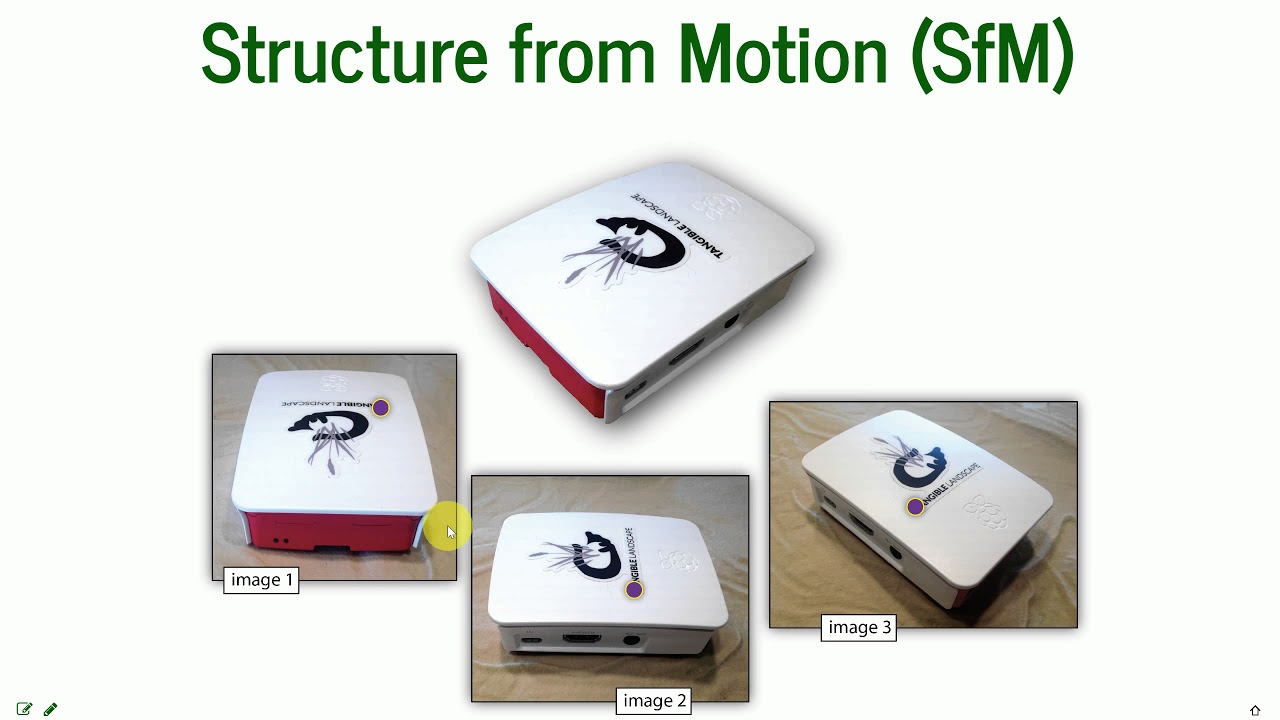

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to SfM
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Structure from Motion (SfM) is a photogrammetric technique that reconstructs 3D structures from a series of overlapping 2D images taken from different viewpoints. It has revolutionized modern photogrammetry due to its simplicity, cost-effectiveness, and automation.
Detailed Explanation
SfM is a technique used in photogrammetry to create three-dimensional models from two-dimensional images. These images must overlap and be shot from various angles to cover the same object or scene. The methodologies employed by SfM make it easier and more affordable than traditional photogrammetric techniques. The automation aspect means that computers can manage a lot of the work, simplifying the process for users.
Examples & Analogies
Imagine taking several photos of a statue from different angles. Just like how your brain pieces together a 3D view of the statue by combining your 2D images, SfM allows computers to do the same, resulting in a detailed model that can be used for various applications, from gaming to urban planning.
Workflow of SfM
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Image Acquisition: Multiple overlapping photos are captured from various angles—often using UAVs or handheld cameras.
- Feature Detection and Matching: Algorithms such as SIFT (Scale-Invariant Feature Transform) and SURF (Speeded-Up Robust Features) detect unique points (keypoints) in images and match them across multiple views.
- Camera Pose Estimation: Intrinsic (focal length, sensor size) and extrinsic (position and orientation) parameters of the camera are estimated using bundle adjustment.
- Sparse Point Cloud Generation: 3D coordinates of matched features are triangulated to create a sparse model.
- Dense Reconstruction: Multi-view stereo (MVS) algorithms convert sparse clouds into dense 3D point clouds.
- Mesh and Texture Mapping: The point cloud is converted into a mesh and textured using original images.
Detailed Explanation
The SfM workflow involves multiple steps. First, images are taken, ensuring they overlap significantly. Next, specific points in these images are identified and matched. Then, the software calculates where the camera was when each photo was taken. From these matches, a sparse point cloud is created which represents the initial 3D model. Then, this model is refined to create a more complete point cloud, leading to the creation of a mesh (which outlines the shapes) and texturing (adding realistic appearances based on the photographs).
Examples & Analogies
Think of the workflow like assembling a puzzle. Each photo is a puzzle piece. You first find the edges (matching features), assemble them to get a rough shape (sparse point cloud), and then fill in the details (dense reconstruction and texturing) to have a complete picture—a 3D model.
Advantages of SfM
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Does not require a calibrated camera.
• Highly automated and user-friendly software.
• Applicable to complex, irregular terrains and structures.
Detailed Explanation
One of the significant benefits of SfM is that it does not necessitate a camera that has been precisely calibrated. This means that virtually any camera can be used, from professional DSLR cameras to simple smartphones. Additionally, the software used for SfM is designed to be user-friendly, making it accessible to those who may not have extensive technical knowledge. Furthermore, SfM can handle complex landscapes and irregular structures well, making it versatile for various applications.
Examples & Analogies
Imagine a cooking recipe that doesn’t require exact measurements, allowing both novice and expert chefs to create delicious dishes. Similarly, SfM’s flexibility allows users to create 3D models with whatever equipment they have, making it a powerful tool for a range of projects.
Limitations of SfM
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Accuracy depends on image quality and overlap.
• Poor performance in homogeneous areas (e.g., water surfaces, grass).
Detailed Explanation
While SfM has many advantages, it does have limitations. The accuracy of the 3D model it produces is greatly influenced by the quality of the images taken and how much overlap exists between them. If the images are blurry or poorly lit, or if there isn't enough overlap, the resulting model may not be accurate. Furthermore, SfM struggles with areas that lack distinct features, such as flat water surfaces or uniform fields of grass, because there are fewer reference points for matching.
Examples & Analogies
Think of trying to piece together a jigsaw puzzle made of all blue pieces. Without distinct patterns or colors to guide you, it becomes challenging to see where each piece fits—this is similar to how SfM struggles with uniform areas lacking variation.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Structure from Motion (SfM): A method to create 3D models from 2D images.
-
Image Acquisition: Capturing multiple overlapping photos for analysis.
-
Feature Detection: Identifying points in the images for alignment and matching.
-
Camera Pose Estimation: Understanding the camera's position and orientation.
-
Dense Reconstruction: Enhancing a sparse model to a detailed 3D representation.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Using SfM, a drone captures overlapping images of a building from different angles, creating a detailed 3D model for architectural analysis.
-
A researcher utilizes SfM to obtain 3D data from archaeological site photos taken during a field study.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
When capturing views from many sights, to make 3D models, do it right!
📖 Fascinating Stories
-
Imagine a photographer who takes thousands of photos of a landmark. Each picture tells a different story. By piecing them together, they build a detailed 3D model of the landmark, enabling virtual tours and architectural studies.
🧠 Other Memory Gems
-
For SfM, remember P.F.C.D.M: Photos, Features, Camera pose, Dense model - the steps that unlock 3D!
🎯 Super Acronyms
SfM stands for 'Structure from Motion' - remember it as a method for turning 2D images into a solid 3D view.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Structure from Motion (SfM)
Definition:
A photogrammetric technique that reconstructs 3D structures from a series of overlapping 2D images taken from different viewpoints.
-
Term: Image Acquisition
Definition:
The process of capturing multiple overlapping photos from different angles for analysis.
-
Term: Feature Detection
Definition:
Identifying unique points in images used for matching across different views.
-
Term: Camera Pose Estimation
Definition:
Determining the intrinsic and extrinsic parameters of the camera at the time of image capture.
-
Term: Point Cloud
Definition:
A collection of points in 3D space representing the external surface of an object or scene.
-
Term: Dense Reconstruction
Definition:
The process of converting a sparse point cloud into a more detailed 3D model.
