Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Electronic Theodolite
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let's start with the first component of the Total Station: the electronic theodolite. Can anyone tell me what a theodolite does?
It measures angles, right?
Exactly! The electronic theodolite measures both horizontal and vertical angles with incredible accuracy. Its resolution can reach up to 1" or 0.1 mgon, which significantly aids in precise location determination.
What parts help it measure angles?
Great question! It features an optical telescope, a vertical circle, and a horizontal circle. Think of them as the essential tools that allow surveyors to capture those angles accurately. A helpful acronym to remember these components is TCH, which stands for Telescope, Circle (Vertical), and Circle (Horizontal).
How accurate is the theodolite compared to other measuring tools?
That's a good point! The degree of precision is considerably higher than traditional tools, allowing for more complex survey projects to be undertaken.
In summary, the electronic theodolite is pivotal for accurate angle measurements, composed of several key parts that enhance its functionality.
Electronic Distance Meter (EDM)
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let's dive into the electronic distance meter, or EDM. What is its primary purpose?
I think it measures distances, right?
Correct! The EDM uses infrared or laser waves to measure slant distances between the instrument and a reflector or prism. It's a critical component of the Total Station. Can anyone guess how accurate it is?
Is it within a few millimeters?
Exactly! The typical accuracy is ±(2 mm + 2 ppm) for prism-based EDMs. This precision helps surveyors to achieve reliable data collection.
So, it sounds like using prisms is really important for getting the best measurements.
Yes, using prisms is essential! Remember, the EDM elevates traditional distance measurements to a whole new level with its efficiency and accuracy. To help memorize this, think of the EDM as the 'Distance Helper' in our Total Station toolkit.
In summary, the EDM is crucial for measuring distances accurately and is an invaluable part of the Total Station.
Microprocessor and Memory
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Next up is the microprocessor and memory component. Why do you think this is important in a Total Station?
Does it control the other functions and store data?
Exactly! The microprocessor controls all instrument functions and is responsible for storing survey data. Besides that, it performs on-board calculations for things like coordinates and area. Can anyone think of how this impacts a surveyor's work?
It must make calculations faster and easier, right?
Spot on! This functionality significantly reduces manual errors and increases efficiency. Also, the ability to code and log data automatically helps in organizing survey information effectively.
What's a good way to remember the purpose of the microprocessor?
I like to think of it as the 'Survey Brain.' It processes everything that's happening, ensuring that the survey is as accurate and efficient as possible. So remember: Survey Brain makes a better survey!
In summary, the microprocessor is essential for data storage and processing, enhancing the Total Station's overall efficiency.
Display and Keyboard
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let’s examine the display and keyboard of the Total Station. What role do you think they play?
They let you see the readings and input data, right?
Absolutely! The LCD displays readings and functions, while the keyboard allows user input for menu navigation and operational commands. Why do you think it's important for surveyors to have a good display and keyboard?
It probably makes it easier to operate and navigate, especially in the field.
Exactly! An intuitive interface helps surveyors to use the equipment more efficiently in various environments. Can anyone think of why visibility matters?
If it’s bright out, you need a clear display to read the measurements!
Very much so! A bright and legible display ensures readability in all conditions. A handy way to remember this is that good interface = good surveying results. In summary, the display and keyboard are vital for effective operation and communication with the Total Station.
Battery Pack
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let’s finish with the battery pack. What do you think would happen with a Total Station without a reliable battery?
It wouldn’t work, right?
Exactly! The battery pack provides operational power and typically lasts between 6-10 hours. Maintaining a good power supply is crucial for continuous surveying work.
How do you think a battery’s life can affect field operations?
Great question! If the battery dies in the field, it can halt work and lead to delays. Surveyors need to plan ahead regarding battery life and carry spares if necessary. Remember, 'Power = Progress.' That's a good way to think about battery importance.
In summary, the battery pack's role in providing power cannot be understated; it is essential for the operation of the Total Station.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section outlines the primary components of a Total Station, including the electronic theodolite, electronic distance meter, microprocessor, display, and battery pack, emphasizing their roles in facilitating high precision and efficiency in surveying.
Detailed
Components of a Total Station
A Total Station is a sophisticated instrument used in modern surveying, integrating various functions to increase accuracy and efficiency. This section identifies and explains the critical components that make up a Total Station:
12.1.1 Electronic Theodolite
- Measures Horizontal and Vertical Angles: The electronic theodolite is vital for obtaining precise angle measurements, which are essential for determining locations in 3D space.
- Optical Telescope and Circles: It includes an optical telescope, vertical circle, and horizontal circle for viewing and measuring angles.
- Angular Measurement Resolution: The advanced precision of these instruments can achieve resolutions as fine as 1" or 0.1 mgon, making them effective for both general and specialized surveying tasks.
12.1.2 Electronic Distance Meter (EDM)
- Slant Distance Measurement: Utilizing infrared or laser waves, the EDM measures distances between the Total Station and a reflector or prism.
- Accuracy: These devices typically offer accuracy within ±(2 mm + 2 ppm) for prism-based EDMs, significantly improving data collection methodologies.
12.1.3 Microprocessor and Memory
- Control and Storage: The microprocessor is crucial for controlling the Total Station's functions and storing survey data, handling on-board calculations for coordinates and areas.
- Data Logging: The microprocessor also allows for coding and note-taking, supporting various data logging techniques.
12.1.4 Display and Keyboard
- LCD Display: The LCD presents readings and operational functions, facilitating user interaction.
- User Input: A keyboard enables user inputs for menu navigation, enhancing the operational experience.
12.1.5 Battery Pack
- Operational Power: Rechargeable batteries are necessary for the fieldwork of Total Stations, typically lasting between 6-10 hours depending on usage and model, allowing surveyors to work efficiently.
Understanding these components is crucial for operating a Total Station and leveraging its capabilities to achieve high-precision survey results.

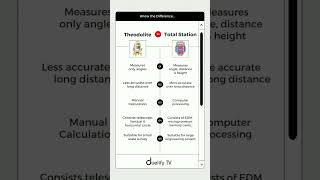

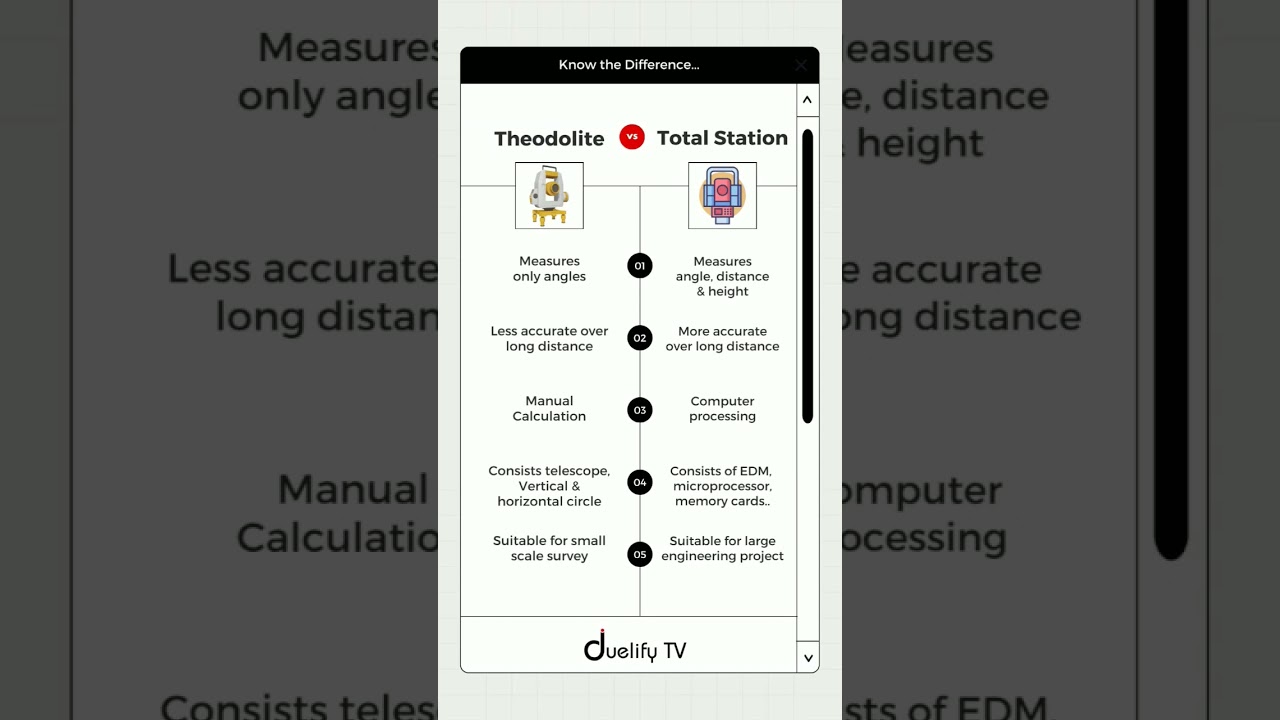

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Electronic Theodolite
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
A Total Station's electronic theodolite measures horizontal and vertical angles with high accuracy. It contains an optical telescope, a vertical circle, and a horizontal circle. The angular measurement resolution can go up to 1" or 0.1 mgon.
Detailed Explanation
The electronic theodolite is critical for surveying as it measures angles very precisely. The optical telescope helps the surveyor to visually align the instrument with the target point. The vertical and horizontal circles, which are graduated, allow the surveyor to determine the angle of the instrument's line of sight relative to the ground and to other objects in the vicinity. The high-resolution capability of 1" or 0.1 mgon means that it can detect very small angling changes, ensuring accurate surveys.
Examples & Analogies
Think of the electronic theodolite like a camera's viewfinder that helps photographers frame a shot accurately. Just as a photographer adjusts their angle for the best photograph, surveyors adjust the electronic theodolite to get the precise angle they need for measurements.
Electronic Distance Meter (EDM)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The Electronic Distance Meter (EDM) measures the slant distance between the instrument and a reflector (or prism). It operates using infrared or laser waves, with typical accuracy of ±(2 mm + 2 ppm) for prism-based EDMs.
Detailed Explanation
The EDM is a vital component of the Total Station that calculates the distance to a target, usually a reflective surface. It does this by sending out a pulse of light (infrared or laser) and measuring the time it takes for the signal to return. The precision of the EDM (±(2 mm + 2 ppm)) ensures that even at considerable distances, the measurements remain highly accurate, which is essential in construction or geospatial surveys.
Examples & Analogies
Imagine measuring the distance to the end of a football field by timing how long it takes for a sound to echo back from a wall. Although this method is simple, the EDM does it much more accurately and quickly using light, similar to how a speed radar gun measures the speed of a car.
Microprocessor and Memory
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The microprocessor controls instrument functions and stores survey data, performing on-board calculations (e.g., coordinates, area). It allows coding, note-taking, and automatic data logging.
Detailed Explanation
The microprocessor acts as the brain of the Total Station. It not only manages the various functions of the instrument but also allows for the storage of data collected during surveys. With its computational abilities, it can quickly calculate important information like coordinates and areas based on the angles and distances measured earlier. The capacity for automatic data logging streamlines the surveying process by reducing manual errors related to data entry.
Examples & Analogies
Think of the microprocessor like a librarian organizing information. Just as a librarian not only keeps track of where each book is but also helps readers find and compute other relevant information, the microprocessor manages the Total Station's functions and the data collected, ensuring everything is correctly stored and calculated.
Display and Keyboard
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The Total Station features an LCD screen that displays readings and functions, along with a keyboard for user input, menu navigation, and operation commands.
Detailed Explanation
The display and keyboard interface allows surveyors to interact with the Total Station effectively. The LCD screen provides a visual representation of the readings being taken, such as angles and distances, making it easy for the operator to see real-time data. The keyboard allows users to enter data, navigate through menus, and execute commands necessary for conducting the survey.
Examples & Analogies
This part of the Total Station can be likened to a smartphone. Just like you use a smartphone screen to see information and a touchscreen or buttons to select apps, surveyors use the Total Station's display and keyboard to control the device and interpret its readings.
Battery Pack
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Rechargeable batteries provide operational power for the Total Station. The battery life typically ranges from 6 to 10 hours, depending on the model and usage.
Detailed Explanation
The battery pack is crucial as it powers the Total Station during surveys, enabling the mobility and usability of the device in the field. Depending on the model, battery life can vary, but most allow for several hours of continuous operation. This means it can be used for long periods, which is particularly helpful in extensive surveying tasks.
Examples & Analogies
Consider the battery pack as similar to the fuel tank of a car. Just like a car needs fuel to run and can go a good distance before needing a refill, the Total Station requires a charged battery to operate and can endure multiple hours of surveying before needing to be recharged.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Electronic Theodolite: Measures horizontal and vertical angles with high precision.
-
Electronic Distance Meter (EDM): Measures slant distances using infrared or laser technology.
-
Microprocessor: Controls functions and performs calculations.
-
Display: Shows important readings and allows user input.
-
Battery Pack: Provides necessary operational power for fieldwork.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A surveying team uses a Total Station equipped with an EDM to precisely measure the distance to a distant point while ensuring angle accuracy.
-
The operator enters data via the Total Station's keyboard, visualizes readings on the LCD display, and stores these values for later analysis.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Total Station's got a crew, / Theodolite and EDM too! / Microprocessor's the brain in play, / Display and battery keep work at bay.
📖 Fascinating Stories
-
Imagine a surveyor named Sam, who relied on his Total Station to measure angles and distances. The electronic theodolite was Sam's keen eye, the EDM helped him reach far and wide, while the microprocessor stored every detail he found, enabling Sam to complete the survey with precision.
🎯 Super Acronyms
TEDD for Total Station components
- T: for Theodolite
- E: for EDM
- D: for Display
- D: for Data processing (Microprocessor).
Use the acronym POWER - P for Power (Battery Pack), O for Operation (Microprocessor), W for What (Data Storage), E for Engagement (Display), R for Results (Theodolite).
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Total Station
Definition:
An electronic/optical instrument used for surveying that combines the functions of an electronic theodolite and an electronic distance meter.
-
Term: Electronic Theodolite
Definition:
A device used for measuring angles in surveying, equipped with an optical telescope and two circular scales.
-
Term: Electronic Distance Meter (EDM)
Definition:
A tool that measures the distance to a prism or reflector using infrared or laser technology.
-
Term: Microprocessor
Definition:
A component that controls the device's functions and processes survey data.
-
Term: Battery Pack
Definition:
A rechargeable supply providing power to a Total Station.
-
Term: Display
Definition:
An LCD screen showing measurements and operational functions.
