Instrumental Errors
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let's begin with instrumental errors. These are the mistakes that occur due to the Total Station's components being miscalibrated or misaligned. For example, what happens if the Electronic Distance Meter has a calibration error?
It could give incorrect distance measurements, right?
Exactly! Calibration errors can really throw off our readings. Does anyone know how misalignment affects our measurements?
If the optical axis is misaligned, it might cause angle errors?
Correct! That's a great point. Angle measurements can become inaccurate, affecting the reliability of the survey. So, we need to always ensure our instruments are correctly calibrated and aligned.
Could we do a calibration check before starting a survey?
Absolutely, that’s a best practice! Regular checks prevent many errors. Let's recap: instrumental errors arise from calibration missteps and misalignment, leading to skewed results.
Environmental Errors
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let's talk about environmental errors. What kind of factors in our surroundings can affect the accuracy of our measurements?
I think atmospheric conditions like temperature might cause issues?
Right! Changes in temperature, pressure, and humidity affect the speed of light, which can lead to measurement errors. Can anyone think of other environmental factors?
Heat shimmer, right? That can mess with the laser path.
Great example! Heat shimmer can create visual distortions. So, when surveying, we must keep an eye on weather conditions. Remember: environmental factors can undermine measurement integrity.
Personal and Setup Errors
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Lastly, let's address personal and setup errors. What kinds of mistakes do you think a surveyor might make in the field?
If the instrument isn't leveled correctly, that can cause problems.
Exactly! Incorrect leveling or centering can lead to significant inaccuracies. Can anybody recall the implications of using a prism incorrectly?
It might give us wrong angle or distance readings.
Precisely! Misusing equipment is a common pitfall, and being aware of these personal errors can greatly enhance our accuracy. To sum up, personal errors come from correct operation and setup.
Mitigation Strategies
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
To minimize the errors we've discussed, what strategies do you think surveyors can implement?
Regular instrument calibration checks!
Absolutely! Calibration checks are vital. What else can be done?
Monitoring environmental conditions before starting a survey?
Yes, being aware of weather influences can help! And ensuring correct setup and training for operators can also reduce personal errors. Let's remember: proactive measures are key to surveying success.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The limitations and errors in Total Station surveying are categorized into three main types: instrumental errors such as calibration issues, environmental errors influenced by atmospheric conditions, and personal errors resulting from improper setup or operation. Understanding these factors is crucial for maintaining measurement integrity.
Detailed
Limitations and Errors in Total Station Surveying
Total Station surveying, while highly accurate and efficient, is not without its limitations and errors. Understanding these limitations is essential for improving measurement reliability. This section examines the various sources of error that can affect survey results and categorizes them into three main types:
1. Instrumental Errors
Instrumental errors arise when the Total Station itself malfunctions or is improperly calibrated:
- Calibration errors in the Electronic Distance Meter (EDM) or the theodolite can skew results.
- Misalignment of the optical axis affects angular measurements, leading to inaccuracies.
2. Environmental Errors
Environmental conditions can significantly impact survey precision:
- Atmospheric conditions such as temperature, pressure, and humidity can cause refraction, altering the effective distance measured.
- Heat shimmer and fog can distort the laser path, resulting in erroneous readings.
3. Personal and Setup Errors
Human errors during setup and operation can also lead to mistakes:
- Incorrect leveling or centering of the instrument can introduce significant deviations.
- Improper use of a prism or target may lead to missed measurements or inaccuracies in angle and distance readings.
Understanding these limitations is crucial for surveyors. By recognizing potential error sources, they can implement strategies to mitigate inaccuracies, ensuring a higher degree of reliability in Total Station surveys.

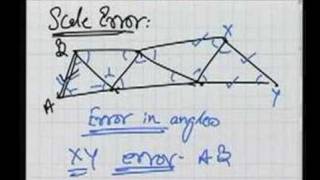

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Instrumental Errors
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Calibration errors in EDM or theodolite.
• Misalignment of optical axis.
Detailed Explanation
Instrumental errors refer to inaccuracies that arise from the Total Station's components themselves. Calibration errors can occur if the Electronic Distance Meter (EDM) or the theodolite is not calibrated correctly. This means the measurements taken may not be as precise as expected, leading to errors in surveying. Another common instrumental error is the misalignment of the optical axis. This issue occurs when the line of sight of the instrument is not properly aligned with the target, resulting in inaccurate angle measurements.
Examples & Analogies
Think of a camera that is out of focus or misaligned; the pictures taken will not reflect the actual scene accurately. Similarly, if the Total Station's components are not properly calibrated or aligned, the data collected will not be reliable.
Environmental Errors
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Atmospheric conditions (temperature, pressure, humidity).
• Heat shimmer and fog affecting laser path.
Detailed Explanation
Environmental errors are those caused by external conditions that affect measurement accuracy. Factors such as temperature, pressure, and humidity can alter the propagation speed of the signal used by the EDM. Variations in these atmospheric conditions can lead to incorrect distance calculations. Additionally, phenomena like heat shimmer (which occurs on hot days) and fog can disrupt the laser path, leading to further inaccuracies in measurements.
Examples & Analogies
Consider how your vision becomes blurry or distorted when looking at a hot road on a sunny day. This is similar to how heat shimmer can interfere with the laser path in Total Station surveying, making precise measurements challenging.
Personal and Setup Errors
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Incorrect leveling or centering.
• Improper use of prism or target.
Detailed Explanation
Personal and setup errors stem from mistakes made by the surveyor during the setup or operation of the Total Station. For instance, if the surveyor does not level the instrument properly or center it over the survey point accurately, all measurements taken afterward will be affected. Similarly, if the prism or target is not used correctly, it can lead to incorrect distance readings or angle measurements.
Examples & Analogies
Imagine trying to balance a game piece on a slanted board; it will never sit properly or play correctly. Likewise, if the Total Station is not set up correctly, the data it produces will always be skewed or inaccurate.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Instrumental Errors: Refers to errors from the Total Station's components.
-
Environmental Errors: Includes atmospheric factors affecting measurements.
-
Personal Errors: Results from incorrect human actions during surveying.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
If a Total Station is not calibrated before use, it may read distances inaccurately by several centimeters.
-
A survey conducted during foggy conditions may yield misleading data because the laser cannot penetrate the fog effectively.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
For surveys that are the best, Don't let errors be your quest, Level, calibrate, check it twice, Accurate readings are our prize.
📖 Fascinating Stories
-
Imagine a surveyor named Sam who was eager to start a project. He rushed, forgetting to calibrate his Total Station. As the sun heated the ground, heat shimmer played tricks on his measurements. Mistakes piled up; they had to redo the work! Patience and preparation saved the day.
🧠 Other Memory Gems
-
To remember types of errors, think 'I.E.P.': Instrumental, Environmental, Personal.
🎯 Super Acronyms
I.E.P. stands for Instrumental, Environmental, and Personal errors in surveying.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Instrumental Errors
Definition:
Errors caused by malfunctions or miscalibration of the Total Station's components.
-
Term: Environmental Errors
Definition:
Errors influenced by atmospheric conditions like temperature, pressure, and humidity.
-
Term: Personal Errors
Definition:
Mistakes arising from incorrect setup or operation by the surveyor.
