19 - Modelling – Membrane, Two-Dimensional Wave Equation
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Physical Model of a Vibrating Membrane
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, let's explore the concept of a vibrating membrane. Can anyone give me an example of where we might find such a surface in civil engineering?
How about a drum? It vibrates when struck.
Exactly! A drumhead is a perfect example. Now, when we model this physically, we represent the membrane's displacement as `u(x, y, t)`. Why do you think we need to show the position and time?
Because the vibration changes over time!
Right! And we also assume the membrane is homogeneous and isotropic, meaning the properties are consistent throughout. Can someone explain what that means?
It means its properties do not change with location on the membrane!
Well said! Let's remember that: ***H.I. means Homogeneous Isotropic!***
Derivation of the Two-Dimensional Wave Equation
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s derive the two-dimensional wave equation. We begin with a small element of the membrane. Can anyone recall the force due to tension on the membrane?
It relates to the second derivatives of `u`!
Correct! By applying Newton's second law, we find the connection between mass density and wave speed. Anyone wants to share what we arrive at?
It leads to the equation: `∂²u/∂t² = c²∇²u`!
Good job! Remember `c² = T/ρ`, with `T` as tension and `ρ` as mass per unit area. To keep it in mind, think of the phrase: ***Tension Rises with Mass!***
Boundary and Initial Conditions
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s discuss boundary conditions. Why do you think we fix the membrane on its boundaries during analysis?
So it doesn’t move? It stays still at the edges!
Absolutely! Those constraints lead to Dirichlet conditions. Can someone summarize what we set these conditions to?
It's zero at the boundaries of the membrane!
Exactly! Now, we have initial conditions too. What do they represent?
The initial shape and velocity of the membrane.
Great! To keep these points in mind: ***Zero Boundaries and Initial Form.***
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section focuses on the theoretical framework and practical implications of the two-dimensional wave equation in modeling vibrating membranes. It covers conceptual foundations, the derivation of the wave equation, boundary and initial conditions, and applications in civil engineering.
Detailed
Detailed Summary
In this section, we delve into the mathematical modeling of vibrating membranes, fundamental to civil engineering fields such as structural dynamics and seismic analysis. A membrane is defined as a flexible surface under tension, exemplified by drumheads. We establish the
- Physical Model of a vibrating membrane, characterized by tense boundary conditions, and define the function u(x, y, t) representing vertical displacement. Key assumptions include homogeneity, isotropy, and free vibration without external forces.
The Derivation of the Two-Dimensional Wave Equation follows, leading to the equation:
\[ \frac{\partial^2 u}{\partial t^2} = c^2 \nabla^2 u \]
This equation governs wave motion in the membrane, with c denoting wave speed. We discuss Boundary and Initial Conditions, critical for problem-solving, ensuring fixed edges of the membrane form a complete system. The procedure for solving the equation by Separation of Variables reveals normal modes corresponding to natural frequencies.
Applications exemplified include vibrating structures (like floors), sound propagation in building designs, and methodologies like Finite Difference and Finite Element methods for numerical solutions. The section concludes by touching on the effects of damping, which are essential for practical design considerations.

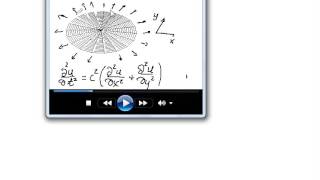

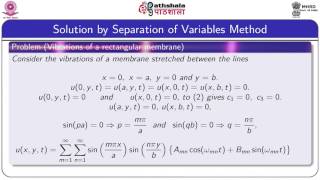

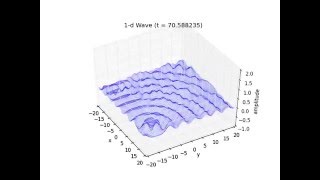

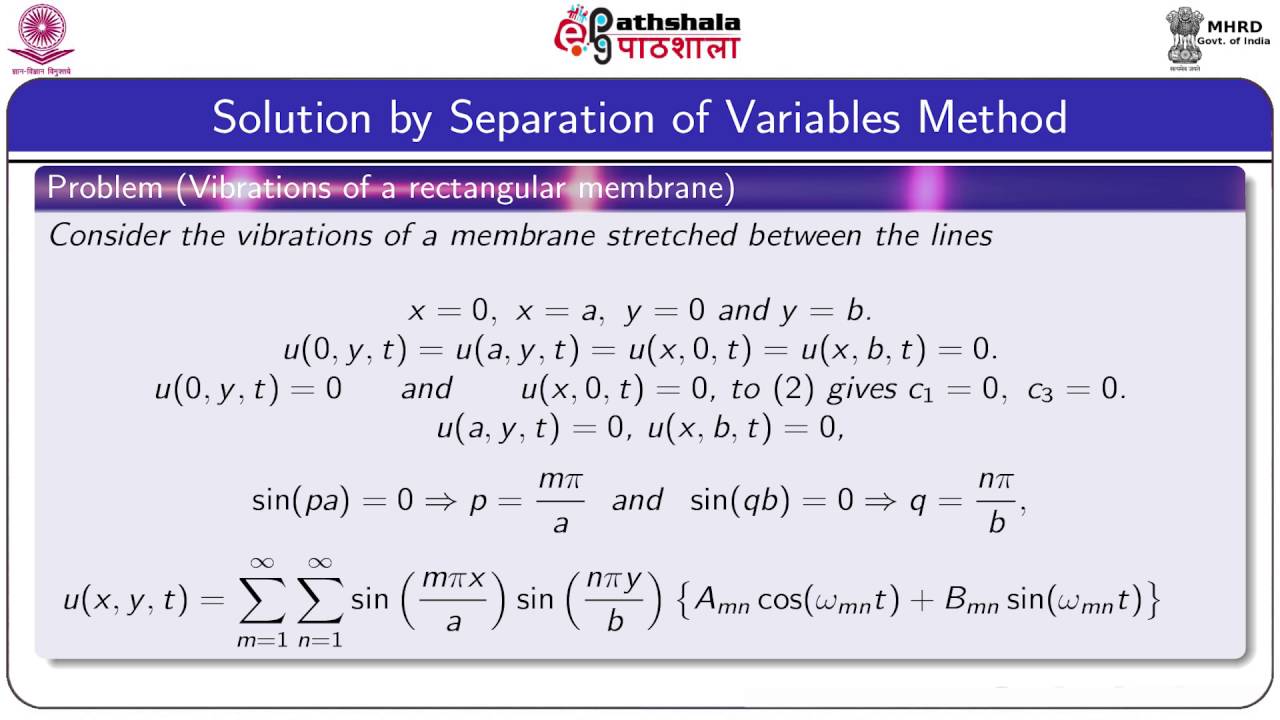

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Vibrating Membranes
Chapter 1 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Civil engineers frequently encounter problems involving vibrating surfaces—such as bridges, building floors, or membranes like drums or architectural fabrics. Understanding how these structures respond to external forces and oscillate over time is crucial for ensuring stability, safety, and performance. The behavior of such systems is modeled using partial differential equations, particularly the two-dimensional wave equation. This chapter presents the mathematical modelling of a vibrating membrane and develops the two-dimensional wave equation governing its motion.
Detailed Explanation
In this introduction, we highlight the importance of studying how various structures, especially those that vibrate, respond to forces. For civil engineers, this understanding is critical for maintaining stability and safety in buildings, bridges, and other structures. The two-dimensional wave equation is key to modeling these vibrations accurately. Essentially, when we apply force to a structure like a drum, it vibrates, and we need to use mathematics to describe that vibration, leading us to the wave equation.
Examples & Analogies
Think of the way a trampoline works. When someone jumps on it, the surface moves up and down, creating waves across the material. Just like engineers analyze the vibration in a trampoline to ensure safe usage, they study vibrating structures in buildings to prevent failures.
Physical Model of a Vibrating Membrane
Chapter 2 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
A membrane is a thin, flexible surface stretched tightly across a frame—like a drumhead. When disturbed, it vibrates in complex patterns depending on the initial force, boundary constraints, and its tension and mass. Let us consider:
- A rectangular membrane lying in the xy-plane, occupying the domain 0
Detailed Explanation
This chunk introduces what a vibrating membrane is. A membrane can be visualized as a taut sheet, not unlike a drumhead. When it is hit or disturbed, it vibrates, and the patterns of these vibrations depend on several factors, such as the way it is secured and the forces applied to it. The chunk also provides assumptions that simplify the analysis, like assuming the membrane has a consistent density and tension throughout. This helps in creating a mathematical model of its vibrations.
Examples & Analogies
Consider a tightly stretched fabric over a frame, like a canvas on an artist's easel. If you tap the canvas, it ripples and vibrates in a way influenced by both the material properties and how it's mounted. Similarly, engineers must consider these factors when analyzing a membrane.
Derivation of the Two-Dimensional Wave Equation
Chapter 3 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Let:
- ρ: mass per unit area (surface density),
- T: tension per unit length (N/m),
- u(x, y,t): vertical displacement.
Small Element Analysis
Take a small rectangular element Δx×Δ y. The vertical force due to tension is:
\[ F = T \frac{\partial^{2}u}{\partial x^{2}} + T \frac{\partial^{2}u}{\partial y^{2}} \Delta x \Delta y \]
According to Newton's second law:
\[ \rho \Delta x \Delta y \frac{\partial^{2}u}{\partial t^{2}} = T \frac{\partial^{2}u}{\partial x^{2}} + T \frac{\partial^{2}u}{\partial y^{2}} \Delta x \Delta y \]
Dividing both sides:
\[ \frac{\partial^{2}u}{\partial t^{2}} = \frac{T}{\rho} \left( \frac{\partial^{2}u}{\partial x^{2}} + \frac{\partial^{2}u}{\partial y^{2}} \right) \]
Or:
\[ \frac{\partial^{2}u}{\partial t^{2}} = c^{2} \nabla^{2}u \]
where \( c^{2} =\frac{T}{\rho} \) is the square of the wave speed.
Detailed Explanation
In this part, we derive the two-dimensional wave equation by analyzing a small section of the membrane. We look at the forces acting on a tiny rectangle of the membrane and apply Newton's second law to identify how it moves. The outcome is a mathematical relationship, the wave equation, which relates how the displacement of the membrane changes over time and space.
Examples & Analogies
Imagine a small piece of rubber stretched tight. If you squeeze it slightly and let go, it oscillates back and forth. Engineers use similar principles observed in small sections of membranes to predict how entire structures will vibrate when forces are applied.
Understanding the Two-Dimensional Wave Equation
Chapter 4 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The two-dimensional wave equation can be expressed as:
\[ \frac{\partial^{2}u}{\partial t^{2}} = c^{2} \nabla^{2}u = c^{2} \left( \frac{\partial^{2}u}{\partial x^{2}} + \frac{\partial^{2}u}{\partial y^{2}} \right) \]
This is the two-dimensional wave equation, a second-order linear PDE describing wave motion in a rectangular membrane.
Detailed Explanation
This equation is the result of our earlier derivations, showing how displacement in the membrane relates to both wave speed and pattern of vibration. It describes the motion of the membrane in two dimensions, which is crucial for analyzing how it behaves under various conditions.
Examples & Analogies
Think of a pond when you throw a stone into it—ripples travel outward in circular patterns. The wave equation similarly describes how a membrane’s surface moves through space and time when disturbed.
Boundary and Initial Conditions
Chapter 5 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Boundary Conditions (Dirichlet)
Since the membrane is fixed at the boundary:
- u(0,y,t)=u(a, y,t)=0, ∀0<y
- u(x,0,t)=u(x,b,t)=0, ∀0<x
Initial Conditions
At t=0:
- u(x, y,0)=f(x,y) (initial shape)
- \frac{\partial u}{\partial t}(x, y,0)=g(x,y) (initial velocity)
Detailed Explanation
Here we establish conditions that help solve the wave equation. Boundary conditions specify that the displacement at the edges of the membrane is zero, indicating it is fixed and cannot move. Initial conditions provide the starting shape and how fast the membrane is moving when we begin observing it, setting the stage for how it will behave thereafter.
Examples & Analogies
Imagine stretching a rubber band. If you hold it tight at both ends (boundary condition) and let it snap back after stretching it (initial condition), you can predict its movement based on how far you pulled and how quickly you let go.
Key Concepts
-
Wave Speed (c): The speed at which the wave propagates through the medium.
-
Boundary Conditions: Constraints set on the function's value at the domain's edges.
-
Initial Conditions: Values assigned to the function and its derivatives at the start of observation.
-
Separation of Variables: Technique to simplify the solving process by isolating each variable.
Examples & Applications
A vibrating drumhead serves as a real-life application of the concepts discussed.
In structural engineering, understanding the vibration of building floors under load is crucial.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
When membranes vibrate with such grace, Tension and mass find their place.
Stories
Imagine a drum in a big hall. It vibrates as it's struck; the sound waves travel through air, just like how the equation models them.
Memory Tools
B.I.G. - Boundary conditions, Initial conditions, Governing equation.
Acronyms
WAVE - Wave speed, Amplitude, Velocity, Equation!
Flash Cards
Glossary
- Membrane
A thin, flexible surface that can vibrate when disturbed.
- TwoDimensional Wave Equation
A second-order partial differential equation describing wave motion in a plane.
- Boundary Conditions
Restrictions that define how a wave behaves at the edges of the membrane.
- Initial Conditions
The state of a system described at the initial time, influencing future behavior.
- Separation of Variables
A mathematical method used to solve partial differential equations.
- Normal Modes
Patterns of motion that stand out in a vibrating system.
