Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Normal Modes
Unlock Audio Lesson
Today, we're delving into the concept of normal modes in vibrating membranes. Can anyone tell me what a normal mode is?
Isn't it a specific pattern of vibration that a membrane can take?
Exactly! Each normal mode corresponds to a pair of indices, which we denote as (n,m). This means that if we know the mode number, we can predict the vibration pattern.
How many modes can a membrane have?
Great question! A membrane can have infinitely many normal modes, each linked to a different vibrational pattern.
And do all these modes have different frequencies?
Correct! Each mode has a distinct natural frequency associated with it, which leads us into the next topic: natural frequencies.
To summarize, normal modes are specific vibration patterns that correspond to pairs (n,m) of indices.
Natural Frequencies
Unlock Audio Lesson
Let's talk about natural frequencies. Who can share what they know about this concept?
Natural frequencies are the frequencies at which structures naturally vibrate?
That's right! Each set of integers (n,m) defines a unique natural frequency given by: $$ \omega_{nm} = c \sqrt{\left(\frac{n\pi}{a}\right)^2 + \left(\frac{m\pi}{b}\right)^2} $$.
What does the c represent in that equation?
Good observation! The c symbolizes the wave speed of the membrane. Each combination of n and m results in a different vibrational frequency, with the fundamental mode (1,1) yielding the lowest frequency.
So, the fundamental mode is always the first?
Yes! It's the base frequency of vibration and serves as a crucial reference point in vibrational analysis.
In summary, natural frequencies are calculated from mode indices, and the fundamental mode has the lowest frequency, guiding our understanding of vibrational dynamics.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
Normal modes and natural frequencies are crucial concepts in understanding the vibrational behavior of membranes. Each mode pair (n,m) specifies a unique vibrational pattern with an associated natural frequency, with the fundamental mode being the lowest frequency of vibration.
Detailed
Normal Modes and Natural Frequencies
In the context of vibrating membranes, each pair of integers (n,m) corresponds to what is known as a normal mode, depicting a unique vibrational pattern. The significance of this is that each normal mode is associated with a specific natural frequency, defined mathematically as:
$$ \omega_{nm} = c \sqrt{\left(\frac{n\pi}{a}\right)^2 + \left(\frac{m\pi}{b}\right)^2} $$
where c is the wave speed, a is the length, and b is the width of the membrane. The simplest of these modes is termed the fundamental mode, characterized by (n=1, m=1), featuring the lowest frequency of vibration. Understanding these modes is essential for engineers who model and design structures that involve vibrational behavior.

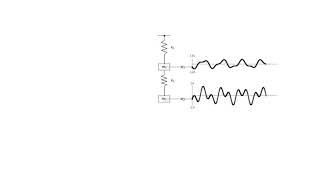

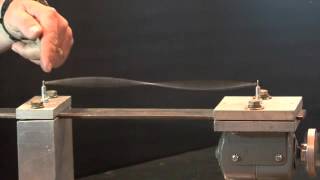

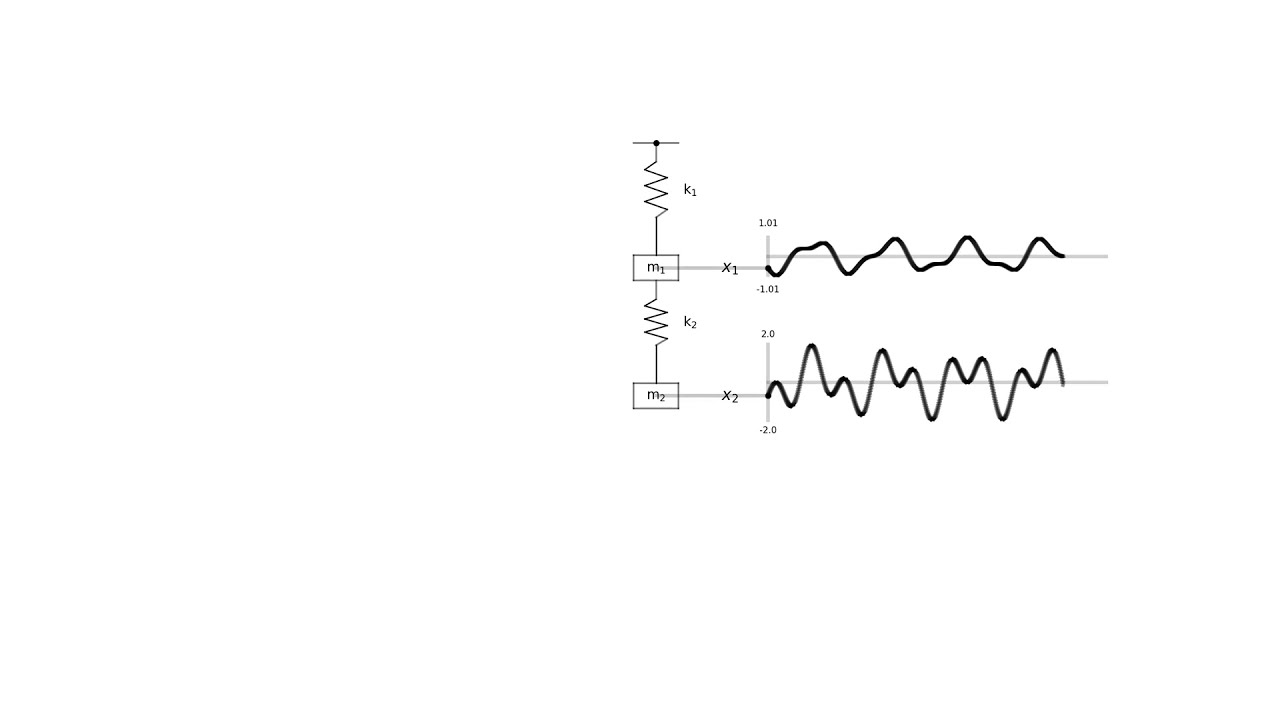

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Normal Modes and Natural Frequencies Overview
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Each pair (n,m) corresponds to a normal mode with associated natural frequency:
ω_n,m = c √[(nπ/a)² + (mπ/b)²]
The fundamental mode occurs at n=1, m=1, with lowest frequency.
Detailed Explanation
This chunk describes how every vibrating membrane has specific patterns of vibration called 'normal modes'. Each normal mode is characterized by a pair of integers, n and m, which define the mode shape of the vibration. The natural frequency (ω) associated with each mode indicates how fast the membrane vibrates when disturbed. The formula calculates the natural frequency based on the tension (c), the shape of the membrane (given by n and m), and its dimensions (a and b). The fundamental mode, represented by (1,1), is the simplest vibration pattern and has the lowest frequency, meaning it vibrates the slowest compared to higher modes.
Examples & Analogies
Think of normal modes like musical notes on a string instrument. Each string can vibrate in different patterns, producing different notes. The fundamental mode is like the lowest note you can play, while other modes create higher notes. Likewise, when a drumhead is struck, it vibrates in unique patterns depending on how it is struck, similar to how different notes can come from different vibrations on a string.
Mathematical Representation of Natural Frequencies
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
ω_n,m = c √[(nπ/a)² + (mπ/b)²]
Detailed Explanation
The formula ω_n,m = c √[(nπ/a)² + (mπ/b)²] provides a quantitative way to calculate the natural frequencies of the vibrating membrane. Here, ω is the natural frequency for a specific (n, m) pair. The factor 'c' represents the tension and is related to how fast waves travel through the membrane. The terms (nπ/a)² and (mπ/b)² reflect the specific patterns of vibration based on the dimensions (length 'a' and width 'b') and the mode numbers (n and m). This means the shape and size of the membrane significantly influence its vibration characteristics.
Examples & Analogies
Imagine stretching a rubber band. If you pluck it at the center, it vibrates one way (like the fundamental mode). If you pluck it in the middle of the string but not at the ends, it vibrates differently, producing a higher pitch (like a higher mode). The specific note or frequency produced depends on how long and tight the rubber band is, just as the size and tension of a membrane determine its natural frequencies.
Fundamental Mode
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The fundamental mode occurs at n=1, m=1, with lowest frequency.
Detailed Explanation
In the context of vibrating membranes, the fundamental mode, indicated by (n=1, m=1), is the simplest form of vibration. This mode features a single bulging pattern across the entire membrane. Because it is the simplest shape possible that the membrane can adopt, it has the lowest frequency of vibration, meaning it will oscillate slower than any other higher modes. This fundamental frequency is important for understanding how the membrane behaves under various forces without additional complexities involved.
Examples & Analogies
Think of a swing at a playground, where the fundamental swing is the swing moving back and forth in a smooth arc. It’s the most basic movement. If you try to spice it up by moving side to side (higher modes), it gets more complicated and faster, but the back-and-forth is your starting, slower movement. Similarly, the fundamental mode is like the simplest, slowest pattern that the membrane can naturally achieve.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Normal Modes: Specific vibration patterns corresponding to vibration indices.
-
Natural Frequencies: Frequencies at which these modes vibrate.
-
Fundamental Mode: The simplest mode of vibration with the lowest frequency.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In a rectangular membrane described by (a,b), the first normal mode is (1,1) with the frequency given by \omega_{11} = c \sqrt{\left( \frac{1\pi}{a} \right)^2 + \left( \frac{1\pi}{b} \right)^2}\u0019.
-
Higher modes, such as (2,1) or (1,2), exhibit different vibrational patterns with higher associated frequencies.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Modes do hum, frequencies come, n and m together, vibrate forever.
📖 Fascinating Stories
-
Imagine a musician tuning a drum, each note representing a different (n,m) pairing, creating vibrational harmony.
🧠 Other Memory Gems
-
Remember 'Fifty Matrices' for the Fundamental Mode's key sign: (1,1).
🎯 Super Acronyms
NMF for Normal Modes and Frequencies — key concepts to remember!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Normal Modes
Definition:
Specific patterns of vibration in a system that occur at distinct natural frequencies.
-
Term: Natural Frequencies
Definition:
The frequencies at which a system naturally vibrates, associated with specific normal modes.
-
Term: Fundamental Mode
Definition:
The simplest mode of vibration with the lowest natural frequency, typically denoted as (1,1).
-
Term: Wave Speed (c)
Definition:
The speed at which waves propagate through the membrane.
