1.15 - Control Systems in Robotics
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Overview of Control Systems
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's start discussing control systems, which are essential for robotic operation. Can anyone tell me what a control system does?
It helps robots do what they're programmed to do?
Exactly! Control systems enable robots to execute tasks accurately. There are two main types: open-loop systems and closed-loop systems. Who can explain the difference?
Open-loop systems don't use feedback, right?
Correct! They operate based on pre-set commands. For instance, a robotic arm might just move for a set time without adjusting based on its environment. Now, what about closed-loop systems?
They do use feedback from sensors to adjust their actions!
That's right! Closed-loop systems result in greater accuracy. Does anyone know where we typically see these used?
In industrial robots and drones, because they need to adapt to changes!
Excellent! Understanding this distinction is pivotal. Let's summarize: open-loop systems lack feedback, whereas closed-loop systems adapt through sensor data.
Deep Dive into Open-Loop Control Systems
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let's discuss open-loop control systems in more detail. They are simple but have limitations. Can anyone name an advantage of using these systems?
They are less expensive to implement since they don’t need sensors.
Correct! And what about their disadvantages?
They can’t adapt to errors or changes in the environment.
Exactly. If there’s an unexpected obstacle, an open-loop system won't be able to make adjustments. So, while they’re useful in controlled conditions, they fall short in unpredictable environments.
Closed-Loop Control Systems
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s see how closed-loop systems function. How do we describe their operation when adjusting actions?
They take inputs from sensors and make real-time adjustments.
Right! This feedback allows robots to maintain accuracy. For instance, if a robot needs to align a part perfectly and it’s slightly off, it can correct itself instantly. Can someone give me another example of a closed-loop application?
Like a drone that stabilizes itself during flight based on sensor data!
Exactly! This adaptability is essential for tasks where precision is critical. Let's summarize: closed-loop systems improve accuracy through real-time feedback.
PID Controllers
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
We’ve touched on open-loop and closed-loop systems. Now, let’s dive into PID controllers. Does anyone know what PID stands for?
Proportional-Integral-Derivative?
Correct! PID controllers use these three parameters to adjust the output. Can someone explain how this works?
It looks at the current error, accumulates past errors, and assesses the rate of change to fine-tune adjustments.
Exactly! This approach makes PID controllers especially effective in stabilizing motion or regulating temperature. Can someone think of a practical example of using PID control?
Like a robot arm adjusting its grip based on how tightly it’s holding an object!
Excellent application! Remember, the PID controller is key to maintaining steady control in many robotic systems.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
This section explores the importance of control systems in robotics, detailing the differences between open-loop and closed-loop control systems, as well as the role of PID controllers in ensuring accurate and adaptive robot functionality.
Detailed
Control Systems in Robotics
Control systems play a crucial role in the functionality and accuracy of robots. They ensure that robots perform tasks correctly and adaptively based on feedback from their environment. This section discusses three main types of control systems: open-loop, closed-loop, and PID controllers.
1. Open-Loop Control Systems
- Open-loop systems operate without any feedback from the output. They execute commands based on pre-programmed instructions, making them simple and cost-effective but unable to adjust to changes in conditions.
- Example: A timer-based robotic arm that moves for a set duration without sensing its environment.
2. Closed-Loop Control Systems
- Closed-loop systems utilize sensors to provide real-time data to the controller, allowing the robot to adjust its actions based on this feedback. This leads to higher accuracy and adaptability when compared to open-loop control.
- Commonly employed in both industrial and mobile robots, closed-loop systems are designed to constantly update based on sensor inputs.
3. PID Controllers
- PID (Proportional-Integral-Derivative) controllers are widely used in robotics for motion control and ensuring stable responses to changes.
- They adjust the robot's output based on three components: the present error, the accumulation of past errors, and the rate of error change. This results in better control of systems involving motion or temperature regulation.
In conclusion, understanding control systems is vital for anyone working in robotics, particularly as these systems are the backbone of how modern robots operate effectively.

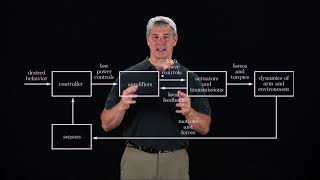

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Open-Loop Control Systems
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Open-Loop Control Systems
- Operate without feedback.
- Simple and cost-effective, but not adaptive.
- Example: A timer-based robotic arm that moves for a set duration without sensing its environment.
Detailed Explanation
Open-loop control systems are designed to operate based on predetermined inputs without using feedback to adjust their actions. These systems follow a fixed sequence of operations, executing them regardless of their effects or the state of the environment. While they are often simpler and cheaper to implement, they lack adaptability; if conditions change or if an error occurs, the system cannot adjust to correct the outcome. A common example is a robotic arm controlled by a timer. If programmed to move in a specific pattern for 10 seconds, it will merely follow that instruction without checking if it is working correctly or if any obstacles are in its way.
Examples & Analogies
Think of an open-loop system like a microwave: when you set it for a certain time and press start, it runs for that exact duration regardless of whether the food is cooked properly or not. If you don't check on the food, it might end up overcooked or undercooked, much like how an open-loop robotic arm might fail to achieve its goal without any feedback.
Closed-Loop Control Systems
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Closed-Loop (Feedback) Control Systems
- Use sensors to provide real-time data to the controller.
- More accurate and adaptive to changes.
- Common in industrial and mobile robots.
Detailed Explanation
Closed-loop control systems are more advanced than open-loop systems as they incorporate feedback mechanisms. These systems continuously monitor their output and compare it with desired outcomes using sensors. When discrepancies arise, the system adjusts its actions in real time to correct any errors or changes in the environment. This makes closed-loop systems highly accurate and responsive. For instance, in industrial robotics, a robotic arm equipped with sensors can detect its position and adjust its movements accordingly to achieve precision in tasks like welding or assembly.
Examples & Analogies
Imagine a thermostat in your home. It monitors the current temperature and compares it to the set temperature. If the room gets too cold, the thermostat signals the heating system to turn on, thereby continuously adjusting until the desired temperature is maintained. This feedback loop exemplifies how closed-loop systems operate by using real-time information to govern actions.
PID Controllers
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
PID Controllers
- Proportional-Integral-Derivative (PID) control is widely used in robotics.
- It adjusts the output based on error magnitude (P), cumulative error (I), and rate of error change (D).
- Crucial in motion control, temperature regulation, and pressure systems.
Detailed Explanation
PID controllers are a specific type of feedback controller commonly used in robotics to maintain desired performance by calculating an error value. This value is the difference between the desired setpoint and the actual process value. The PID controller then adjusts the output using three terms: Proportional (P), which responds to current error; Integral (I), which accumulates past errors; and Derivative (D), which anticipates future errors based on the rate of change. This combination allows for precise control, reducing oscillations and improving system stability. For instance, in a robotic temperature control system, a PID controller ensures that the temperature remains steady by making minute adjustments based on these three parameters.
Examples & Analogies
Think of PID control like a coach guiding an athlete. The 'Proportional' component reacts to how far the athlete is from their target score, the 'Integral' keeps track of their overall performance history, and the 'Derivative' anticipates how their performance will change with their current training pace. Together, these insights help the coach provide tailored recommendations, ensuring the athlete improves effectively.
Key Concepts
-
Open-Loop Control Systems: Systems that operate without feedback, leading to simple but rigid operations.
-
Closed-Loop Control Systems: Systems that adapt and adjust based on real-time feedback from sensors, enhancing accuracy.
-
PID Controllers: Used in control systems to improve performance through three components: Proportional, Integral, and Derivative adjustments.
Examples & Applications
An open-loop robotic arm that performs movements based solely on a timer without environmental adjustments.
A closed-loop drone that uses sensors to maintain stable flight and avoid obstacles.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
In the open-loop, no feedback in sight, for tasks it moves, but can’t adjust right.
Stories
Imagine a robotic arm performing tasks on a factory line, set on its course, it moves with precision but lacks any means to change its path if something unexpected happens. This is how an open-loop system works!
Memory Tools
To remember PID: P for Present error, I for Integrating past errors, and D for derivative—keep it dynamic!
Acronyms
PID
Proportional
Integral
Derivative – helping maintain control with precise feedback!
Flash Cards
Glossary
- OpenLoop Control System
A control system that operates without feedback, executing commands based on pre-programmed instructions.
- ClosedLoop Control System
A control system that utilizes feedback from sensors to adjust its actions for better accuracy.
- PID Controller
A control mechanism using Proportional, Integral, and Derivative algorithms to optimize the control of systems.
