Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Scan Chain Insertion

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

0:00
Teacher
Teacher

Let's start with the first Key DFT Technique, which is Scan Chain Insertion. Can anyone tell me what it involves?

Student 1
Student 1

Is it about adding extra elements to make testing easier?

Teacher
Teacher

Exactly! Scan Chain Insertion involves adding extra flip-flops that connect in series to form a scan chain. This allows us to access internal signals of a chip more easily during testing. Can anyone think of why this might be beneficial?

Student 2
Student 2

It would help in quickly loading test vectors and capturing output values!

Teacher
Teacher

Right! This streamlines the verification of the chip's logic. If you remember the acronym SCANβ€”'Simplicity, Control, Access, and Network'β€”it perfectly encapsulates the advantages of this technique.

Student 3
Student 3

That’s a good way to remember it!

Teacher
Teacher

To recap, Scan Chain Insertion simplifies the testing of internal signals, enhancing our ability to ensure functionality without excessive time or cost.

Built-In Self-Test (BIST)

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

0:00
Teacher
Teacher

Next, let’s discuss Built-In Self-Test, commonly referred to as BIST. What do you all think this technique does?

Student 4
Student 4

Does it allow the chip to test itself?

Teacher
Teacher

That’s correct! BIST embeds test logic within the chip, enabling it to perform its tests independently, both during manufacturing and when in the field. Why do you think this is particularly useful?

Student 1
Student 1

It would save time and possibly reduce the need for external testing equipment!

Teacher
Teacher

Exactly! Plus, it shines in high-reliability applications. Here's a mnemonic: 'BIST is Best For Checking, Freely!'β€”it captures its essence of built-in testing and self-checking.

Student 2
Student 2

That's a fun way to remember it!

Teacher
Teacher

Let’s summarize: BIST enhances autonomy in the testing process, boosting efficiency while ensuring functionality, especially critical in embedded systems.

Boundary Scan (JTAG)

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

0:00
Teacher
Teacher

Now, let’s move on to Boundary Scan, also known as JTAG. Is anyone familiar with what JTAG stands for or its functions?

Student 3
Student 3

Is it Joint Test Action Group? And it helps test connections between chips?

Teacher
Teacher

Very well done! JTAG is a standardized method for testing the interconnects. Using a shift register around the chip, it scans for faults in connections. Why do you think identifying connection faults is significant?

Student 4
Student 4

It’s important because faulty connections can lead to malfunctioning chips!

Teacher
Teacher

Exactly! Also remember the acronym 'JTAG: Joint Testing Achieves Goodness' as a way to remember its purpose. Finally, Boundary scan drastically improves our testing capability!

At-Speed Testing

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

0:00
Teacher
Teacher

Let’s now delve into At-Speed Testing. What do you think is the importance of testing at the operational clock speed?

Student 2
Student 2

I think it helps detect timing-related faults that might not appear at lower speeds.

Teacher
Teacher

Absolutely! Timing violations can lead to significant issues, and At-Speed Testing helps reveal such faults. Remember, use 'FAST'β€”'Functional Analysis at Speed Testing' to keep in mind what At-Speed Testing encompasses.

Student 1
Student 1

Great way to remember it!

Teacher
Teacher

To sum up, At-Speed Testing is crucial for ensuring a chip performs flawlessly under operational conditions, catching faults that other methods might miss.

Fault Simulation

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

0:00
Teacher
Teacher

Lastly, let’s explore Fault Simulation. Who can explain what purpose this technique serves?

Student 4
Student 4

Is it about simulating faults to see how well the design can handle testing?

Teacher
Teacher

Exactly! Fault Simulation assesses how resilient a design is and whether the test strategies can effectively catch faults. A mnemonic could be 'Faults Simulated, Tests Activated'β€”it captures the essence of its function.

Student 3
Student 3

That’s catchy!

Teacher
Teacher

In summary, Fault Simulation ensures we have a comprehensive approach towards identifying potential issues, thus fortifying our test strategy.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

Key DFT techniques enhance the testability of VLSI chips by incorporating structures and methods for effective functional testing.

Standard

This section outlines several crucial Design for Testability (DFT) techniques, including Scan Chain Insertion, Built-In Self-Test (BIST), Boundary Scan (JTAG), At-Speed Testing, and Fault Simulation, and discusses their roles in making chips more testable and improving testing efficiency.

Detailed

Detailed Summary of Key DFT Techniques

In VLSI chip design, ensuring that the chips are easily testable is critical. Key Techniques used in Design for Testability (DFT) include:

  1. Scan Chain Insertion: This method adds extra flip-flops, creating a scan chain that allows for access to internal signals. It simplifies testing by enabling the loading of test vectors and capturing output values, thereby facilitating the verification of the chip's logic.
  2. Built-In Self-Test (BIST): BIST entails embedding test logic within the chip itself, allowing the chip to conduct its testing autonomously, both during manufacturing and throughout its operational lifetime. This technique is particularly advantageous in embedded systems where reliability is paramount.
  3. Boundary Scan (JTAG): JTAG is a standardized technique that inspects the interconnects between chips. By employing a shift register chain around the chip's boundaries, JTAG enables the detection of faults such as faulty connections or missing components, greatly contributing to overall test efficacy.
  4. At-Speed Testing: This technique tests the chip at its operational clock speed. It is essential for discovering timing-related faults that may not manifest at lower speeds, focusing on signal integrity issues that could otherwise go undetected.
  5. Fault Simulation: By simulating various faults, this technique helps assess a chip's testability and evaluates how effectively the designed test strategies can identify faults. It ensures that potential issues are well understood and accounted for during testing.

These techniques not only boost the testability but also help improve manufacturing yield and reduce costs, making them indispensable in modern VLSI design.

Youtube Videos

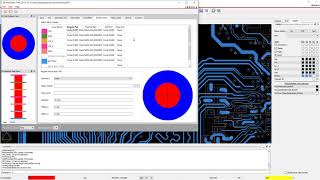

Design For Test (DFT) Rules | OrCAD PCB Designer
Design For Test (DFT) Rules | OrCAD PCB Designer
SOC design and verification demo session
SOC design and verification demo session
SoC Design Steps | Design Implementation
SoC Design Steps | Design Implementation

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Scan Chain Insertion

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Scan Chain Insertion: One of the most common DFT techniques, scan chains involve adding extra flip-flops to the design to enable access to internal signals. These flip-flops are connected in a series (scan chain) to allow for easier testing of the chip. The scan chains are used to load test vectors and capture output values, enabling testing of the design’s logic.

Detailed Explanation

Scan chain insertion is a technique where additional storage elements, called flip-flops, are added to the integrated circuit design. These flip-flops are linked together in a sequence, creating a 'chain.' This setup allows engineers to control internal signals during testing. By running a series of test cases, known as test vectors, the chip can output values that can be captured and analyzed, confirming whether the internal logic of the chip is functioning correctly. Essentially, it's like tapping into a secret pathway of the chip to get a closer look at how it operates and to identify any faults.

Examples & Analogies

Imagine you are a detective trying to solve a mystery in a large mansion (the chip). When you come across a locked room (the internal logic), tapping into the signal chain is like creating a secret passage that allows you to see what’s happening inside that room. You gather clues (test vectors) and evidence (output values), helping you determine whether everything is as it should be or if something is amiss.

Built-In Self-Test (BIST)

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Built-In Self-Test (BIST): BIST involves embedding test logic into the chip to enable it to test itself. BIST can perform automated testing during the manufacturing process or in-field testing during the product's life cycle. This technique is particularly useful in embedded systems and high-reliability applications.

Detailed Explanation

Built-In Self-Test (BIST) is a technique that integrates testing capabilities directly into the chip. This means that the chip can check its functionality by itself without needing external testing equipment. During manufacturing, the chip can run self-diagnostics to ensure everything is working correctly. Similarly, even after the chip is deployed in products, it can continue to test itself periodically to identify any potential failures or issues. This approach helps in saving time and costs and ensures reliability, especially in critical applications like medical devices or aerospace systems.

Examples & Analogies

Think of BIST as a built-in health monitor in a smartwatch. Just like the smartwatch can analyze your heart rate, steps, and even alert you if something is wrong with your health, BIST allows the chip to check its own 'health' and functionality at any moment, ensuring everything is running smoothly.

Boundary Scan (JTAG)

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Boundary Scan (JTAG): Boundary scan, also known as JTAG (Joint Test Action Group), is a standard that allows for testing the interconnects between chips and components. It uses a shift register chain to scan the boundaries of each chip and helps detect issues like faulty connections or missing components.

Detailed Explanation

Boundary scan, commonly referred to by its standard name JTAG, is a methodology that facilitates the testing of electrical connections between different components in a chip or even between chips themselves. It operates by adding a series of test access ports along the edges of a chip. During testing, these ports can be accessed through a chain of shift registers, allowing engineers to examine the interconnections for potential faults. This technique is vital because it helps identify defects like broken connections or improperly soldered parts without needing to physically probe the chip.

Examples & Analogies

Imagine a quality control team inspecting a newly manufactured product assembly line. Boundary scan acts like a thorough inspection where each connection between components is carefully checked for any defects. You can visualize it as a security checkpoint where staff can scan their identification badges (the shift registers) to gain access, ensuring they’re on the right path and that everything is connected properly.

At-Speed Testing

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

At-Speed Testing: At-speed testing involves testing the chip at the operational clock speed, which is essential for detecting timing-related faults that might not appear at slower speeds. It’s used to detect faults that occur due to timing violations or signal integrity issues.

Detailed Explanation

At-speed testing is a technique where the chip is evaluated while running at its intended operational speed, rather than at a slower, more manageable pace. This is crucial for identifying timing issues or faults that only reveal themselves when the chip operates at full speed. By testing at the actual clock speed, engineers can assess the integrity of signals and ensure the design can handle the demands of real-world operation without failure. If the chip fails during at-speed testing, it indicates that there are hidden issues that need addressing before mass production.

Examples & Analogies

Think of at-speed testing like testing a race car on a track at its top speed. Although you can learn a lot about the car at low speeds, you only truly understand how it will perform under racing conditions when it's moving at full throttle. Similarly, testing a chip at its operational clock speed reveals potential performance problems that slower tests might miss.

Fault Simulation

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Fault Simulation: This technique simulates various faults in the design to assess how well the chip can be tested and to determine the effectiveness of the test strategies in detecting faults.

Detailed Explanation

Fault simulation is a method used to create virtual models of potential faults within a chip design. By deliberately introducing errors or faults into the design during simulation, engineers can assess how well the testing strategies implemented will detect these faults. This proactive approach helps ensure that the testing process is robust and capable of identifying real issues that may arise once the chip is in production. By analyzing the outcomes, designers can refine their test strategies to maximize fault coverage and improve reliability.

Examples & Analogies

Imagine a thorough fire drill in a school, where different scenarios of smoke or fire are simulated. By practicing how to react to each of these situations, teachers can better prepare students for real emergencies. Similarly, fault simulation helps designers prepare for real chip failures by understanding how their testing methods will deal with various faults.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Scan Chain Insertion: A method of adding flip-flops to access internal signals for easier testing.

  • Built-In Self-Test (BIST): An embedded feature that allows the chip to test itself, enhancing efficiency.

  • Boundary Scan (JTAG): A standardized testing technique for checking interconnects by scanning chip boundaries.

  • At-Speed Testing: A testing process crucial for identifying timing issues at operational speeds.

  • Fault Simulation: A technique that simulates potential faults to assess the effectiveness of test strategies.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • In Scan Chain Insertion, suppose we connect multiple flip-flops. This enables us to load a specific set of test inputs and observe how the internal signals respond, verifying functionality.

  • A BIST-enabled chip can autonomously run a series of diagnostic tests once powered on, reporting any issues detected, which is invaluable in critical applications like automotive systems.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎡 Rhymes Time

  • Scan chains give a testing lane, simple signals, no more pain.

πŸ“– Fascinating Stories

  • Imagine a chip, proud and strong, with a built-in test to check right from wrong. It runs its self-tests, all day long, ensuring it works, singing its song.

🧠 Other Memory Gems

  • BIST: Busy In Self-Testing.

🎯 Super Acronyms

JTAG

  • Just Test All Gates.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Scan Chain Insertion

    Definition:

    A DFT technique that adds flip-flops in a series to allow easier access to internal signals for testing.

  • Term: BuiltIn SelfTest (BIST)

    Definition:

    A method where test logic is embedded in the chip, allowing it to conduct self-testing automatically.

  • Term: Boundary Scan (JTAG)

    Definition:

    A standardized approach for testing the interconnects between chips, utilizing a shift register to detect faults.

  • Term: AtSpeed Testing

    Definition:

    A testing method performed at the chip’s operational clock speed to identify timing-related faults.

  • Term: Fault Simulation

    Definition:

    A technique that simulates various faults in the design to evaluate its testability and effectiveness in detecting faults.
