Field Applications and Placement of HPC
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Transportation and Handling of HPC
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today we’re discussing the critical first step in using High Performance Concrete—its transportation and handling. Who can tell me why we need to transport HPC quickly after mixing?
To prevent slump loss?
Exactly, Student_1! If we delay, the concrete could lose its workability. Using agitator trucks helps because they can keep the concrete mixed properly as they're being transported. What’s the ideal time limit for transporting HPC?
Less than 60 minutes?
Correct! Always aim to minimize delays. Now let’s remember this with the acronym 'FAST'—Follow Agitator Speed Timely. This helps remind us to keep the HPC fresh!
Placement and Compaction of HPC
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now that we've covered transportation, let's move to placement and compaction. Why is it important to use mechanical vibrators for conventional HPC?
To ensure it’s properly compacted?
Exactly, Student_3! However, what do you think we do in the case of Self-Compacting HPC?
We avoid using vibrators because it doesn't need them?
Yes, great point! Self-Compacting HPC is designed to flow and fill its formwork without vibration. Let's remember—'Vibration for Regular, No Vibration for Self' using the mnemonic VNR!
Curing Methods for HPC
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Next, let’s talk about curing methods. Why is curing critical after placing HPC?
It helps the concrete gain strength and durability, right?
Exactly! As soon as the concrete sets, we must start curing. What methods do you remember that can be used for curing?
Maybe using wet burlap or membrane curing?
Correct again! And don't forget ponding and steam curing, especially in precast scenarios. Let’s remember 'BMPS'—Burlap, Membrane, Ponding, Steam. This helps recall our curing methods!
Hot and Cold Weather Concreting
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s discuss how we handle HPC in various weather conditions. What should we do in hot weather?
Use chilled water or ice?
Correct! We might also need to delay casting. What about in cold weather?
We should preheat the materials?
Exactly! And sometimes we can use set accelerators to facilitate curing. For remembering these differences, we can use the phrase 'Hot Ice, Cold Heat'—it highlights the contrasting methods needed for extreme temperatures.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section discusses the critical processes involved in the transportation, placement, and curing of High Performance Concrete (HPC). It emphasizes that immediate handling post-mixing, appropriate compaction techniques for different types of HPC, and various curing methods significantly influence the final structural performance. Special considerations for extreme weather conditions are also outlined.
Detailed
In the context of High Performance Concrete (HPC), proper field applications and placement techniques are paramount to achieve the desired material characteristics and performance criteria. Efficient transportation and handling are essential; HPC should be transported immediately after mixing to prevent slump loss, ideally using agitator trucks operating at controlled speeds and minimizing delays. The placement and compaction of HPC varies with its type; for conventional HPC, mechanical vibrators must be used judiciously, while Self-Compacting High Performance Concrete (SCHPC) requires no vibration at all and relies on its own fluidity. Maintaining a leak-proof formwork is also vital to prevent loss of material.
Curing methods are another critical aspect—curing should begin immediately after initial setting to foster strength and durability. Common methods include membrane curing, wet burlap, ponding, and steam curing, with steam curing particularly effective for accelerating strength gain in precast applications. Additionally, special measures should be taken for hot weather, such as using chilled water and delaying casting, while in cold weather, materials may need preheating or use of setting accelerators. These factors are crucial for optimizing the performance of HPC in field applications.
Youtube Videos

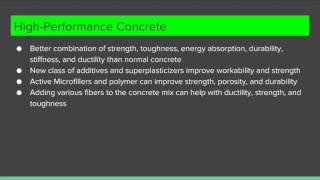

![High Performance Concrete [HPC]-2/CT M5 V10](https://img.youtube.com/vi/E3GobQv7cgE/mqdefault.jpg)
![High Performance Concrete [HPC]- 1/CT M5 V9](https://img.youtube.com/vi/pZC0AdxUf6Q/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Transportation and Handling
Chapter 1 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Transportation and Handling
- Transport immediately after mixing to prevent slump loss.
- Use agitator trucks with controlled revolution speed.
- Minimize delay between mixing and placing (<60 minutes ideally).
Detailed Explanation
Transportation and handling of High Performance Concrete (HPC) are critical to maintaining its quality. After mixing the concrete, it must be moved to the pouring site as quickly as possible to avoid losing its intended consistency, known as slump. Using agitator trucks helps in this process; these trucks stir the concrete during transport to keep it workable. Ideally, the transition from mixing to placement should be less than 60 minutes to ensure the concrete maintains its necessary properties.
Examples & Analogies
Think of transporting a cake that needs to stay fluffy and moist. If you leave it too long in a hot car or don't hurry to assemble it, it could collapse or lose its shape. Similarly, HPC needs to be placed quickly to arrive in perfect condition at its final destination.
Placement and Compaction
Chapter 2 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Placement and Compaction
- For conventional HPC, use mechanical vibrators judiciously.
- For Self-Compacting HPC, avoid vibration altogether.
- Ensure formwork is leak-proof to prevent paste loss.
Detailed Explanation
When placing HPC, it is essential to do so carefully to ensure that it compacts correctly and adheres to the formwork without gaps. For traditional HPC, mechanical vibrators help eliminate air pockets, ensuring uniform density. In cases of Self-Compacting HPC, this is unnecessary, as the mix flows into place on its own without needing vibration. Additionally, the formwork must be well-sealed to prevent any of the concrete paste from leaking out during the pouring process.
Examples & Analogies
Imagine pouring syrup into a mold for a candy. If you don't tap it to let air bubbles escape or if the mold has holes, the syrup won't set properly. Similarly, placing HPC requires careful handling to ensure it fills every corner of the formwork without losing any material.
Curing Methods
Chapter 3 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Curing Methods
- Start curing immediately after initial set.
- Use membrane curing, wet burlap, ponding, or steam curing (especially in precast plants).
- Steam curing accelerates strength gain but must be controlled to avoid thermal cracking.
Detailed Explanation
Curing is a vital process that helps HPC achieve the desired strength and durability. It should begin immediately after the concrete has set to retain moisture, which is crucial for hydration. Different methods can be used, such as covering with wet burlap or using membranes that trap moisture. In controlled environments, steam curing can speed up the curing process, but it must be managed carefully to avoid issues like cracking due to thermal stress.
Examples & Analogies
Think of how plants need constant moisture to thrive. If you water a plant right after you plant it, it flourishes. However, too much heat and too little water can cause it to wilt, just as improper curing can harm concrete. Proper curing ensures that the concrete stays healthy and strong as it dries.
Hot Weather and Cold Weather Concreting
Chapter 4 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Hot Weather and Cold Weather Concreting
- In hot climates: Use chilled water or ice flakes, and delay casting.
- In cold climates: Preheat materials or use set accelerators.
Detailed Explanation
Environmental factors significantly affect the performance of HPC. In hot weather, high temperatures can lead to rapid evaporation of water from the mix, causing it to set too quickly, which can compromise strength. Cooling the water or using ice can help mitigate this risk. Conversely, in cold conditions, concrete can freeze before it has a chance to cure properly. To combat this, materials might be preheated, or set accelerators added to ensure the mix hardens at lower temperatures.
Examples & Analogies
Just like how you might need to keep ice cream in a cooler to prevent it from melting on a hot day or prewarm your car before driving in freezing conditions, HPC must be treated with care according to the weather to maintain its quality and ensure it sets correctly.
Key Concepts
-
Transportation of HPC: Rapid transport prevents slump loss; use agitator trucks.
-
Placement Techniques: Use vibrators for conventional HPC, but none for Self-Compacting HPC.
-
Curing Importance: Start curing immediately after placement to enhance strength.
-
Weather Effects: Adjust techniques based on hot or cold conditions for optimal curing.
Examples & Applications
Use of chilled water when casting HPC in hot weather to prevent quick setting.
Immediate curing with wet burlap after placing conventional HPC.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
When casting concrete, do it swift, keep it in motion, that's the lift!
Stories
Imagine a busy construction site where the truck brings HPC like a superhero, rushing to its home—the formwork—before it loses its strength like losing a race!
Memory Tools
Remember 'MCP'—Mix quickly, Cure properly, Pack right—when dealing with concrete.
Acronyms
HCC - Hot Chilled Concrete for weather-specific methods in concrete work.
Flash Cards
Glossary
- High Performance Concrete (HPC)
Concrete with superior properties compared to conventional concrete, offering high strength, durability, and reduced permeability.
- Slump Loss
A decrease in concrete workability due to delayed handling or unfavorable conditions.
- Agitator Truck
A vehicle equipped for transporting concrete while continuously mixing to maintain workability.
- SelfCompacting Concrete (SCC)
A type of concrete that flows under its own weight and fills formwork without requiring mechanical vibration.
- Curing
The process of maintaining adequate moisture, temperature, and time to ensure proper hydration of concrete.
