Introduction to Base Isolation
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today we're going to talk about base isolation. Can anyone tell me what base isolation means in the context of building design?
Isn't it a method to prevent buildings from shaking too much during an earthquake?
Absolutely! Base isolation is a technique that decouples the superstructure from ground motion, thereby reducing inter-storey forces. It’s crucial in earthquake-prone areas.
What kind of systems do we use for base isolation?
Good question! We often use rubber bearings and friction pendulum systems. These act like shock absorbers for buildings.
How does that actually help during an earthquake?
By allowing relative movement between the ground and the building, these systems dissipate energy and reduce the forces acting on the structure.
Can you give us a real-world example?
Sure! The San Francisco City Hall was retrofitted with base isolation to protect it from seismic events.
To summarize, base isolation effectively mitigates seismic risk by allowing buildings to move independently from the ground motion.
Modeling in MDOF Systems
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now let's dive deeper into how we model base isolation within MDOF systems. Why do you think it's important to add an additional degree of freedom?
Because we need to account for the movement of the base due to the isolation system!
Exactly! By adding an extra degree of freedom, we can adequately reflect the dynamics of the isolation system in our models.
What are the key changes we need to consider in our matrices?
In our stiffness matrix, we introduce stiffness K_b for the isolation system, and in the damping matrix, we add damping C_b. These modifications can significantly alter the mode shapes.
So the first mode becomes dominant, right?
Yes! When the base displacement becomes significant, it shifts the characteristics of the response, often making the first mode the most influential.
In summary, modeling base isolation in MDOF systems requires careful consideration of additional parameters that reflect real-world behavior under seismic loading.
Practical Applications of Base Isolation
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let's talk about the practical applications of base isolation. Why do you think engineers would choose to implement this technology?
To protect the buildings and the people inside during earthquakes!
Right! By minimizing inter-storey displacements, base isolation significantly enhances the safety of buildings.
What about the cost? Does it add a lot to the construction budgets?
Good point! While it can increase initial construction costs, it's often justified by the potential savings from reduced damage during seismic events.
That's interesting! What about building codes? Are there certain regulations regarding base isolation?
Yes, many countries are adopting codes that encourage or require base isolation in areas prone to earthquakes.
In summary, base isolation is a practical and effective strategy to enhance building performance during seismic events while considering cost and regulatory factors.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section introduces the concept of base isolation in multi-degree-of-freedom (MDOF) systems. It explains how base isolation techniques, such as rubber bearings and friction pendulum systems, work to minimize damage during seismic events by adding additional degrees of freedom to the structural model. Modeling approaches for incorporating base isolation into MDOF systems are discussed comprehensively, emphasizing the importance of modifications in mass and stiffness matrices.
Detailed
Detailed Summary of Base Isolation and Its Modeling in MDOF Systems
Base isolation serves as a vital seismic protection technique used to enhance the resilience of buildings against earthquake forces. The central idea behind this technique is to decouple the superstructure from ground motion, thus significantly reducing inter-storey forces and displacements.
Concept of Base Isolation
Base isolation systems typically involve the use of isolators, which can include rubber bearings and friction pendulum systems placed between the foundation and the superstructure. This design allows for relative movement between the building and the ground, effectively enabling the structure to absorb and dissipate seismic energy better than traditional designs.
Modeling in MDOF Systems
To implement base isolation in multi-degree-of-freedom (MDOF) systems, an additional degree of freedom is added to account for the base movement. The modeling process takes into account the characteristics of the isolation system, such as its stiffness (K_b) and damping (C_b). Consequently, this adjustment leads to significant changes in the system properties, including altered mass and stiffness matrices and a dominant first mode shape that includes base displacement.
This section underscores the importance of properly modeling base isolation mechanisms in order to ensure that the dynamic responses of structures under seismic loads are accurately represented, thereby enhancing the design and safety of buildings subjected to potential earthquakes.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Concept of Base Isolation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Base isolation is a seismic protection technique used to reduce inter-storey forces and displacements in buildings.
- Decouples the superstructure from ground motion.

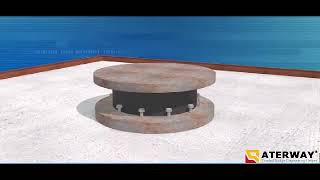

- Uses isolators (rubber bearings, friction pendulum systems) between foundation and superstructure.
Detailed Explanation
Base isolation is a design strategy aimed at protecting buildings from seismic forces, particularly during earthquakes. By introducing a system that separates the building (or superstructure) from the ground, base isolation minimizes the amount of ground motion that reaches the building itself. This decoupling occurs through the use of isolators, which can be rubber bearings or friction pendulum systems. These isolators allow the structure to sway more freely, reducing stress on the building during seismic events.
Examples & Analogies
Imagine a boat floating on water. When the waves hit, the boat gently dances on the surface instead of being jolted violently. In the same way, base isolation allows a building to 'float' on its foundation during an earthquake, reducing the impact of ground shaking.
Modeling in MDOF Systems
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Add one additional DOF for base movement.
- Isolation system is modeled with stiffness Kb and damping Cb.
- Modified mass and stiffness matrices are used.
- Significant change in mode shapes—first mode becomes dominant and includes base displacement.
Detailed Explanation
When modeling base isolation within Multi-Degree-of-Freedom (MDOF) systems, it is important to account for the movement of the isolated foundation. This is achieved by adding an additional degree of freedom (DOF) that represents the base movement. The isolation system, characterized by its stiffness (Kb) and damping (Cb), adjusts the mass and stiffness matrices for the model. Consequently, the dynamic behavior of the structure changes, causing the first mode of vibration to become the most significant. This mode now incorporates the movement of the base along with the superstructure's behavior, shifting the overall response patterns during seismic events.
Examples & Analogies
Consider a high-rise building that stands on a platform with springs underneath it, similar to a toy that bounces up and down when pushed. In this analogy, when the ground shakes, the springs (isolation system) allow the building to sway independently, changing how it moves compared to what it would do without the springs. This modeling helps engineers understand how the building will respond to such forces.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Base Isolation: A technique that reduces seismic forces on buildings by decoupling them from ground motion.
-
Isolators: Devices that enable the relative movement between the base and the structure.
-
Modeling Approach: Adjusting DOF, stiffness, and damping matrices to accurately model base isolation in MDOF systems.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
The San Francisco City Hall, retrofitted with base isolation to enhance its earthquake resilience.
-
The Taipei 101, which employs a tuned mass damper in conjunction with base isolation to improve stability during seismic events.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
When the ground shakes, don’t be in fright; with base isolation, we stay upright.
📖 Fascinating Stories
-
Imagine a tall building swaying in the wind. With base isolation underneath, it dances gently instead of crashing down.
🧠 Other Memory Gems
-
B.I.G. (Base Isolation in Ground motion) to remember the key focus of base isolation.
🎯 Super Acronyms
R.E.A.D. (Rubber, Earthquake, Absorb, Decouple) for key components in base isolation.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Base Isolation
Definition:
A seismic protection technique that reduces inter-storey forces and displacements by decoupling the superstructure from ground motion.
-
Term: Isolators
Definition:
Devices such as rubber bearings or friction pendulum systems that allow for relative movement between a building and the ground.
-
Term: Degrees of Freedom (DOF)
Definition:
The number of independent movements or displacements that define the configuration of a structure.
-
Term: Stiffness Matrix (K_b)
Definition:
A matrix representing the stiffness characteristics of the isolation system in an MDOF model.
-
Term: Damping Matrix (C_b)
Definition:
A matrix representing the damping characteristics of the isolation system in an MDOF model.
