Introduction to Modal Response Spectrum Analysis
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Good afternoon, class! Today, we're diving into the Modal Response Spectrum Analysis, a vital tool in earthquake engineering that helps us determine how structures respond to seismic forces. Can someone remind me why it's important to analyze MDOF systems?
Because these systems have multiple components that can move independently, unlike SDOF models.
Exactly! Now, the Response Spectrum Method uses graphs of peak responses versus the natural period derived from actual ground motion records. These spectra allow us to estimate peak responses without applying time-history data directly. Who can tell me what a 'modal analysis' involves?
It's about finding the mode shapes and natural frequencies of the system. Right?
Very good! That’s the starting point. Let's remember the acronym MOPPET — **M**odal analysis, **O**btaining mode shapes, **P**articipation factors, **P**eak modal responses, **E**ffective masses, and **T**otal responses. We'll use this as a guide throughout our discussion!
Detailed Steps in Modal Response Spectrum Analysis
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let’s detail the steps in our method. After performing modal analysis, what's the next crucial step?
Calculating the modal participation factors!
Absolutely! Modal participation factors are critical for understanding how much each mode contributes to the response. How do we calculate them?
We use the formula involving the mode shape and the mass matrix.
Correct! This leads to calculating modal masses and effective participation. Then we look at the spectral acceleration obtained from the response spectrum. Can anyone tell me why spectral acceleration is important?
It shows how much acceleration we'll experience during a seismic event!
Exactly! Now, once we have that information, we compute the peak modal response. What’s the final step?
Combining modal responses using rules like SRSS or CQC.
Right! Remember, CQC is crucial for closely spaced modes. Let’s visualize this process, making sure to note down the key equations as we go along.
Combining Modal Responses
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let’s focus on how we combine those modal responses. Can someone explain the SRSS method?
The Square Root of Sum of Squares method sums the squares of the responses from each mode and takes the square root of that total.
Great summary! And what about the Complete Quadratic Combination? How does it differentiate from SRSS?
CQC considers the correlation between closely spaced modes, which makes it more accurate in certain situations.
Exactly right! Remembering these distinctions is important for accurate modeling. Let’s quickly recap: MOPPET and our combining methods SRSS and CQC are essential for an effective analysis!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section discusses the Response Spectrum Method, which facilitates the analysis of the maximum dynamic response of MDOF systems to seismic activity, emphasizing the importance of modal analysis and spectral acceleration derived from historical ground motion records.
Detailed
Detailed Summary
The Modal Response Spectrum Analysis is a fundamental approach in earthquake engineering, particularly for assessing how structures may respond to seismic loads. This method utilizes response spectra, which are graphical representations showing the relationship between the peak structural response and the natural period of oscillation derived from historical ground motion data. Rather than applying time-history ground motion records directly to the structural model, the Response Spectrum Method estimates the potential peak responses for each mode from the response spectrum.
Key Steps in Modal Response Spectrum Analysis
- Modal Analysis: The first step involves obtaining the mode shapes and natural frequencies of the system by performing a modal analysis.
- Modal Participation Factors: These factors, which are calculated from the relationship of the mode shapes and mass distribution, help to determine the effective mass that contributes to each mode's response.
- Modal Mass Calculation: This step involves identifying and calculating the contribution of various modal masses to the overall response.
- Spectral Acceleration: The spectral acceleration for each mode is then retrieved from the response spectrum.
- Peak Modal Response Computation: The peak response for each mode is estimated by multiplying the mode shape by its associated participation factor and spectral acceleration.
- Combining Modal Responses: Finally, the responses from each mode are combined using modal combination rules, such as the Square Root of Sum of Squares (SRSS) or Complete Quadratic Combination (CQC), particularly relevant for closely spaced modes.
This structured approach allows engineers to streamline the analysis of complex MDOF systems subject to seismic events, facilitating informed decision-making in the design and retrofitting of resilient structures.

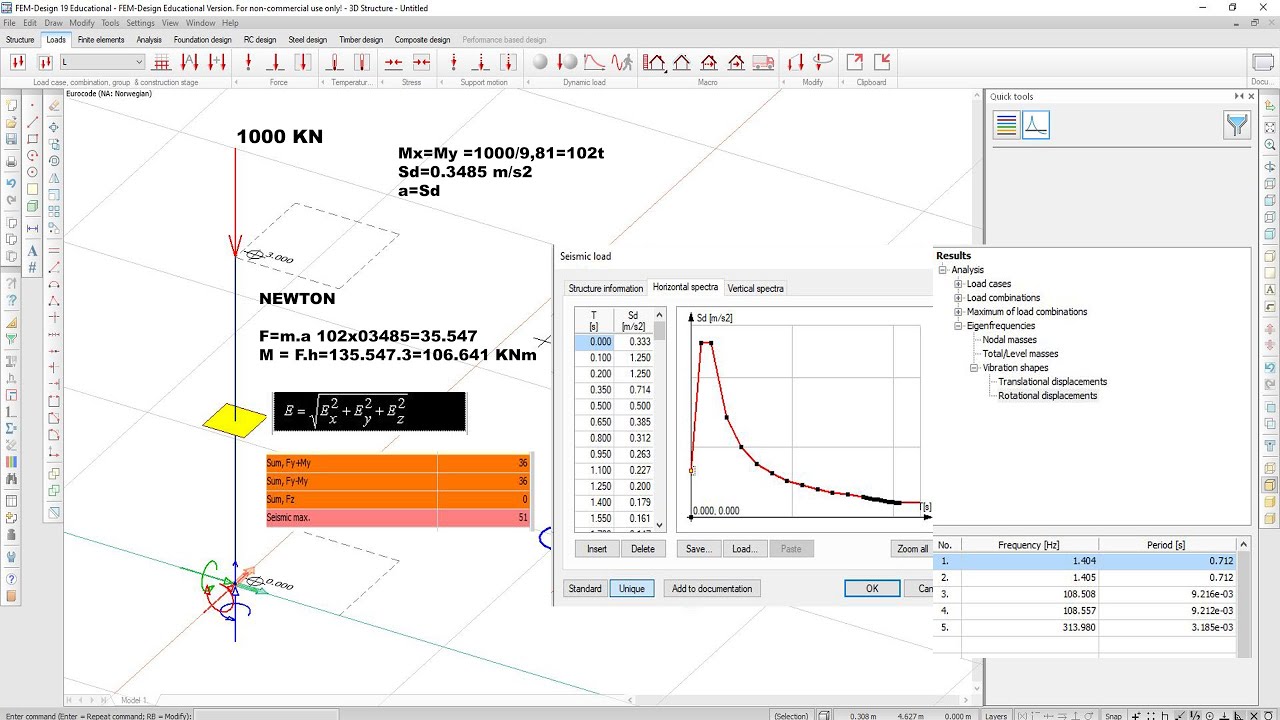

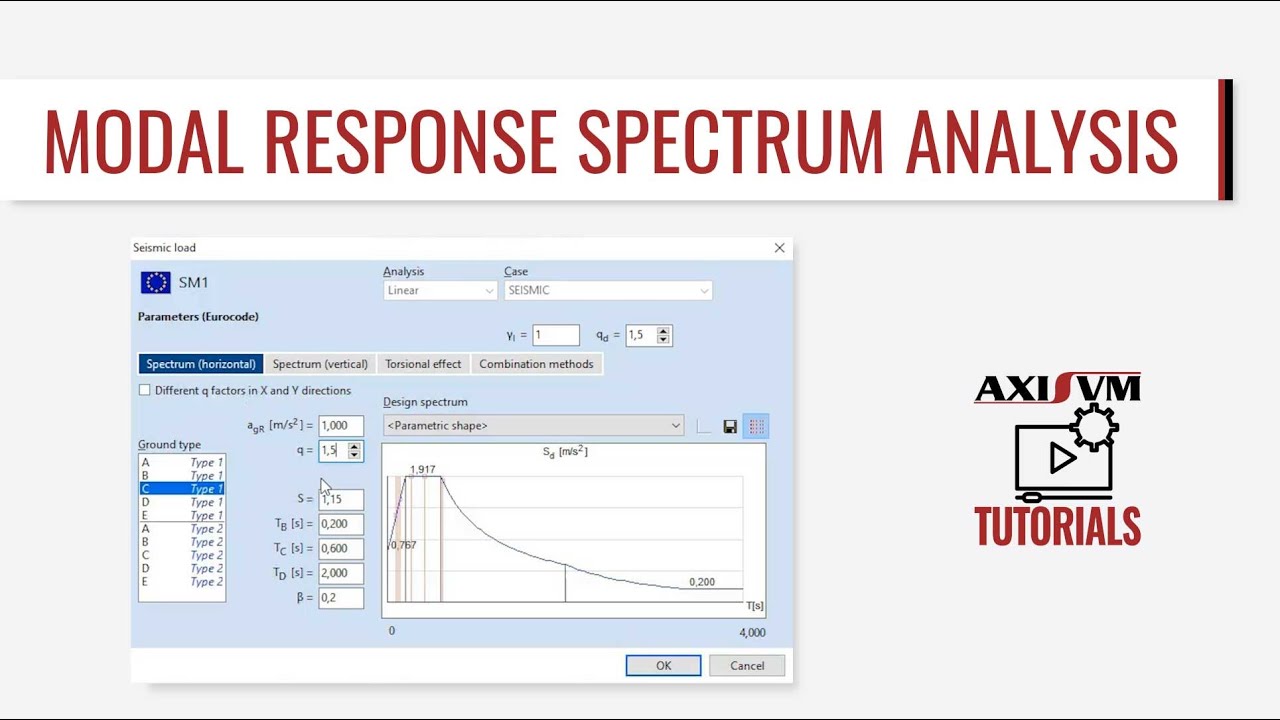

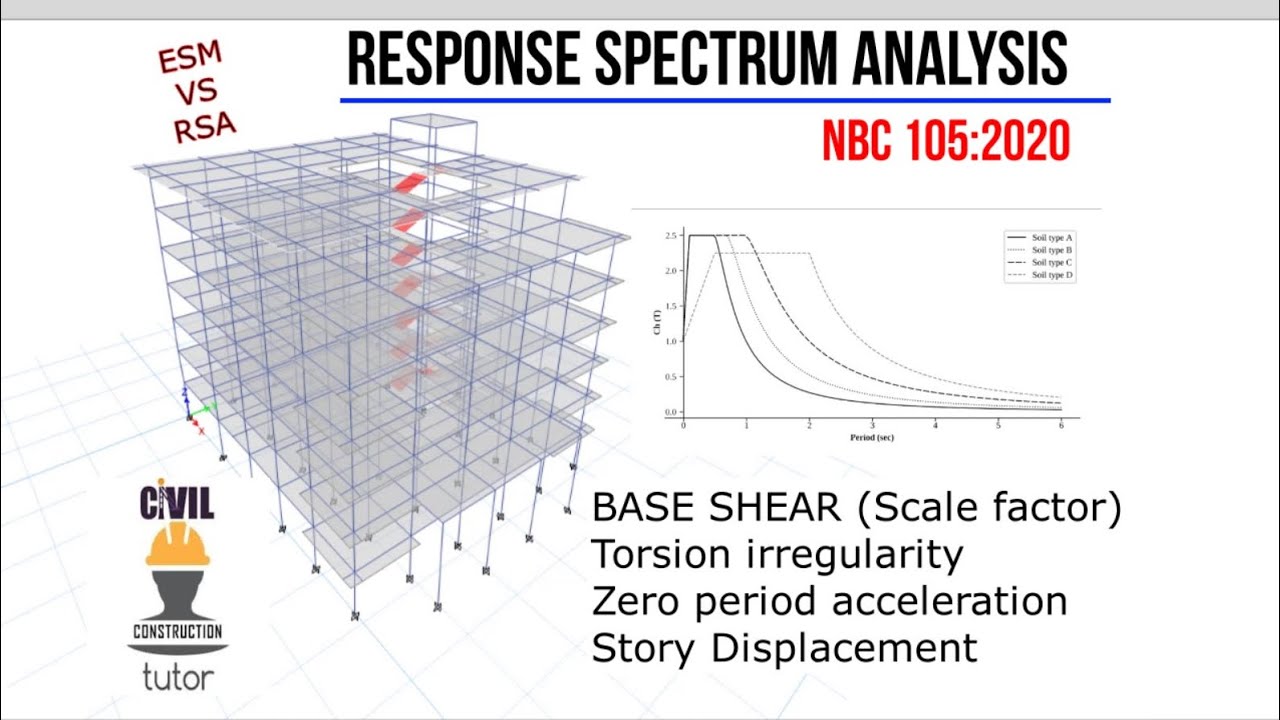

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Response Spectrum Method
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Response Spectrum Method is a key tool in earthquake engineering used to estimate the maximum response of MDOF systems subjected to seismic loading.
Detailed Explanation
The Response Spectrum Method provides engineers with a systematic way to evaluate how buildings and other structures will respond to earthquakes. This method is crucial because it allows for estimating the maximum response—like the displacement or acceleration—without needing to analyze complex time-history data for every possible ground motion. Instead, engineers can use pre-computed spectra that correlate natural periods of buildings with expected responses.
Examples & Analogies
Think of the Response Spectrum Method like reading a weather report before going out without needing to check the weather every minute. Just as a weather report tells you the maximum temperature you can expect, the Response Spectrum provides information on the maximum structural response due to seismic activity.
Concept of Response Spectra
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
It uses response spectra (graphs of peak response vs. natural period) developed from ground motion records.
Detailed Explanation
Response spectra are graphical representations that show how a structure will respond over a range of natural periods when subjected to earthquake motion. They provide a visual tool for determining peak structural responses like maximum accelerations or displacements at various frequencies, allowing engineers to quickly assess the impact on their structures. These spectra are derived from actual ground motion data, making them grounded and relevant.
Examples & Analogies
Imagine you are testing different types of athletes by measuring how high each can jump in response to different types of ground surfaces. The response spectra are like a chart that shows the best performances for different surfaces, helping you understand how each athlete might perform without having them jump on every possible surface.
Steps in Modal Response Spectrum Analysis
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Perform modal analysis to obtain mode shapes and natural frequencies. 2. Calculate modal participation factors: {ϕ }T [M]{r} Γ = i i {ϕ }T [M]{ϕ } i i 3. Compute modal masses and effective participation. 4. Obtain spectral acceleration a,i from the response spectrum for each mode. 5. Compute peak modal response: u=ϕ Γ S i i i a,i 6. Combine modal responses using modal combination rules: o Square Root of Sum of Squares (SRSS) o Complete Quadratic Combination (CQC) for closely spaced modes.
Detailed Explanation
This section breaks down the process of conducting a Modal Response Spectrum Analysis into clear steps. First, engineers need to determine the structural modes that influence its response through modal analysis. The next step involves calculating how much each mode contributes to the overall motion (modal participation factors) by considering the structure’s mass and its response. Once that is determined, engineers will obtain the peak responses for each mode based on the response spectrum. Finally, various methods are used to combine these modal responses into a single estimate for the total response of the structure during an earthquake.
Examples & Analogies
Think of this process like preparing a team for a relay race. Each runner (mode) needs to practice their leg of the race (modal contributions) for the overall team (structure) to perform well. The speed (peak response) of each runner is measured, and then the best strategy (combining rules like SRSS or CQC) is developed to ensure the team achieves the best finish time when all runners pass the baton (total response during an earthquake).
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Modal Response Spectrum Analysis: A method for assessing seismic impact on structures.
-
Response Spectrum: Graphical representation indicating peak response versus natural period.
-
Modal Analysis: Process of extracting natural frequencies and modal shapes from a system.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Using recorded seismic data from past earthquakes to generate response spectra for analysis.
-
Calculating the peak response of a building mode from its mode shape and participation factor.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In a quake, the modes will sway, Spectra help show the way.
📖 Fascinating Stories
-
Imagine a building swaying in an earthquake. Each floor has its dance, representing its mode. By using response spectra, engineers can predict how high each floor dances per the earthquake's rhythm.
🧠 Other Memory Gems
-
To remember MOPPET: Modal analysis, Obtaining mode shapes, Participation factors, Peak responses, Effective masses, Total responses.
🎯 Super Acronyms
MOPPET - Modal Response Spectrum Process
- Modal shapes
- Obtaining factors
- Peak computations!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Modal Response Spectrum Analysis
Definition:
A method used in earthquake engineering to estimate the maximum response of structures to seismic loading.
-
Term: Response Spectrum
Definition:
A graph showing the peak response of a system versus the natural period, developed from ground motion records.
-
Term: Modal Analysis
Definition:
The process of determining the natural frequencies and mode shapes of a system.
-
Term: Modal Participation Factors
Definition:
Factors that quantify the contribution of each mode to the overall response, calculated from mode shapes and mass distribution.
-
Term: Spectral Acceleration
Definition:
The maximum acceleration response of the structure for a given period, derived from the response spectrum.
