Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Pressure in a Control Volume
Unlock Audio Lesson
Today, we'll explore the pressure field in a control volume where the fluid is at rest. Remember, at rest means there are no shear stresses acting. Can anyone tell me what forces we consider in this condition?
Only normal stresses, right? Since the fluid isn't moving.
So only pressure acts on the surfaces?
Exactly! We note pressure as a function of coordinates: P(x, y, z). Remember, gravity also acts here, which we’ll discuss how it influences these pressures.
Calculating Forces Acting on a Control Volume
Unlock Audio Lesson
Let’s look at how we derive pressure. When we use the Taylor series, how do we express the pressure at a point from the center of our control volume?
We can approximate it using the distance from the center.
Is it a negative gradient of pressure if we’re moving away from it?
Absolutely! The negative gradient helps us understand how pressure decreases with distance. We’ll also derive the forces acting due to this pressure distribution.
Body Forces and Hydrostatic Equations
Unlock Audio Lesson
Now, what about body forces? Who can remind us of the significance of gravity in our analysis of control volumes?
Gravity acts as a downward force affecting pressure distribution.
Correct! The hydrostatic equation relates this force to pressure variations. Can anyone describe how we might express this relationship mathematically?
I think it involves integrating the pressure gradient against the density and gravity?
Exactly! Good job. We'll connect these concepts back to how we perceive pressure in various situations.
Gauge Pressure vs. Absolute Pressure
Unlock Audio Lesson
Let’s shift gears and talk about gauge pressure and vacuum pressure. How do we define these in contrast to absolute pressure?
Gauge pressure is measured relative to local atmospheric pressure, while vacuum pressure is below atmospheric pressure.
And absolute pressure is always above a vacuum, right?
Correct! In practice, we often use atmospheric pressure as our datum. Think about how a barometer functions. Who can explain this?
It measures the height of mercury related to atmospheric pressure!
Exactly! This understanding will help us in many hydrostatic problems.
Applications and Practical Implications
Unlock Audio Lesson
Finally, let’s discuss the applications of this knowledge. Why is understanding pressure distributions and their implications crucial in engineering?
It affects how we design structures like dams and pipelines.
And it helps in predicting how fluids behave in various conditions.
Exactly! Being able to analyze these forces lets us create stable and efficient systems. Always remember, pressure is a scalar that acts normal to surfaces.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, we explore the fundamental forces acting on a control volume in static fluid conditions, primarily focusing on the pressure field, gravity's role as a body force, and how pressure is calculated through mathematical approximations. The significance of gauge and vacuum pressure is also highlighted.
Detailed
In this section, we delve into the forces acting in a control volume where fluid is at rest. The main focus is on the pressure field, defined as a function of spatial coordinates (P(x, y, z)). With no shear stress acting on the fluid due to its stationary condition, only normal stresses (pressures) act perpendicularly on the control surfaces of the fluid. Gravity is identified as a key body force impacting the control volume.
The section outlines how to derive pressure distribution using Taylor series approximations. It emphasizes the negative gradient of pressure integrated over the control volume, leading to key equations reflecting the total forces acting on the fluid due to pressure distributions. Two critical concepts introduced are gauge pressure and vacuum pressure, which set the reference points for measuring different types of pressures. The significance of hydrostatic distributions and the application to manometer systems are also briefly discussed. This foundational understanding is crucial for analyzing fluid statics and dynamics in various engineering problems.

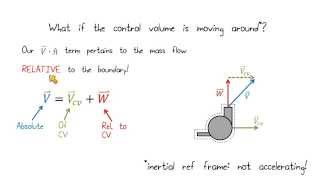

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Control Volume and Pressure Distribution
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now if I go for the next ones that how to get the pressure field when fluid is at the rest. That means I am just looking the what could be the functions of the P, P = P (x, y, z). If it that it is now again I am considering a very simple case, let us consider a control volume like this okay. This is what my control volume. As I said it when the fluid is at rest the shear stress become zero.
Detailed Explanation
This chunk introduces the concept of analyzing a control volume in fluid mechanics. It begins by clarifying what needs to be calculated: the pressure field when the fluid is at rest. When the fluid is stationary, it is emphasized that shear stresses are non-existent, which means that the only forces acting on the control surfaces of this volume are normal stresses, or pressures. This situation leads to the simplification of analyzing how pressure behaves across the control volume.
Examples & Analogies
Imagine a balloon filled with water that is not being squeezed. The water inside does not move, similar to a fluid at rest. The pressure inside the balloon thus acts equally in all directions, like how the normal stress acts on the control surfaces of the fluid volume.
Gravity Force and Body Forces
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
At that point, the gravity force is acting it which is the body force component. The gravity force what will be there? It will be, unit weight multiply the volume of the control volume.
Detailed Explanation
In this chunk, the analysis includes gravitational forces acting on the control volume. The text states that the gravity acts as a body force, meaning it influences the entire volume of fluid rather than just specific points. Body force is calculated as the unit weight (density × gravity) multiplied by the volume of the control volume, highlighting how gravity affects the pressure distribution within the fluid.
Examples & Analogies
Consider a diving board. When a person stands on the board, their weight exerts a downward force throughout the entire board, similar to how gravity exerts a force throughout the entire control volume of fluid.
Pressure Acting on Control Surfaces
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now if you look it over this control volume, all these pressure is going to act it as the Pascal law says that pressure acts normal to the surface. So that what we can consider pressures act there normal to the surface.
Detailed Explanation
This passage discusses Pascal's law, which states that pressure applied to a confined fluid is transmitted undiminished in all directions throughout the fluid. In the context of the control volume, the pressure acting on each surface of the volume is normal to that surface, meaning it is perpendicular and does not generate shear forces. This understanding is crucial for analyzing how fluid pressure balances the forces on the control surfaces.
Examples & Analogies
Think of a sealed plastic bag filled with water. If you squeeze one side of the bag, the pressure increases at that point and pushes outward equally in all directions, just as Pascal's law describes—it conveys how pressure acts on surfaces of the bag.
Taylor Series and Pressure Approximation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Then we need to define now as a pressure as a x, y, z is a pressure field what we are looking it which is a function of x, y, z I can use Taylor series to approximate distance of this surface which is a far away from.
Detailed Explanation
This chunk introduces the concept of using the Taylor series expansion to approximate pressure values at various points in the control volume based on its coordinates (x, y, z). The Taylor series is a mathematical tool that allows us to express a function as an infinite sum of terms calculated from the values of its derivatives at a single point. This approach helps derive the pressure distribution around the centroid point within the volume.
Examples & Analogies
Consider a gentle hill where the height of the hill can vary gradually. By measuring the height at a specific point (your location), and knowing how steep the hill is (derivatives), you could predict the heights of distant points on the hill using a simplified formula like the Taylor series.
Force Components and Gradient Relations
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
If this is the pressure is acting on the surface, similar way I can get it what will be pressure is acting. I know this pressure multiply the area over these simplified control volumes, I will get the force component.
Detailed Explanation
In this passage, the relationship between pressure and force component is reinforced. By multiplying the pressure acting on a control surface by the area of that surface, we calculate the net force acting due to pressure. The text emphasizes that this relationship establishes gradient relations and will allow for the analysis of the pressure distributions, enabling a final equation that balances these forces effectively across the control volume.
Examples & Analogies
Imagine holding a balloon. The pressure of the air inside pushes on the walls of the balloon. The larger the balloon's surface area, the stronger the total force pushing out against your hand when you squeeze it, similar to how pressure works over the surface area of the control volume.
Understanding Gauge and Vacuum Pressure
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now the point is what we are going to discuss is that gauge pressure and vacuum pressure. Components now is coming to measure the pressure.
Detailed Explanation
In this part, the concepts of gauge pressure and vacuum pressure are explained. Gauge pressure refers to the pressure relative to atmospheric pressure, while vacuum pressure is the pressure below atmospheric levels. Understanding these terms is crucial for practical applications, as they define how we measure and interpret pressure in various scenarios. Gauge pressure is essentially the measurement of pressure above the surrounding atmosphere, which is typically the context in fluids applications.
Examples & Analogies
Think of a car tire pressure gauge. When you check the air pressure in your tire, the gauge shows you how much pressure is in the tire compared to the atmospheric pressure outside. This is gauge pressure—indicating whether the tire is properly inflated above the ambient atmosphere.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Pressure Field: The distribution of pressures within a control volume.
-
Body Forces: Forces acting throughout the fluid volume due to gravity.
-
Gauge Pressure vs. Vacuum Pressure: Differentiates between measurements relative to atmospheric pressure.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example of a barometer measuring atmospheric pressure.
-
Analysis of pressure distributions in a static fluid across horizontal surfaces.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Pressure at rest holds true, normal forces are what we do, gravity pulls down as we're told, let’s measure it right, both brave and bold.
📖 Fascinating Stories
-
Imagine a lake at rest, with no waves or bumps, pressure is evenly spread, from top to bottom it jumps. Gravity acting all the same, giving weight where water claims.
🧠 Other Memory Gems
-
Remember: G (gravity) pushes down, P (pressure) acts normal, G (gauge) is relative, V (vacuum) is down the dial.
🎯 Super Acronyms
PGB
- Pressure
- Gravity
- Body forces - the essentials in analyzing fluid behavior.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-

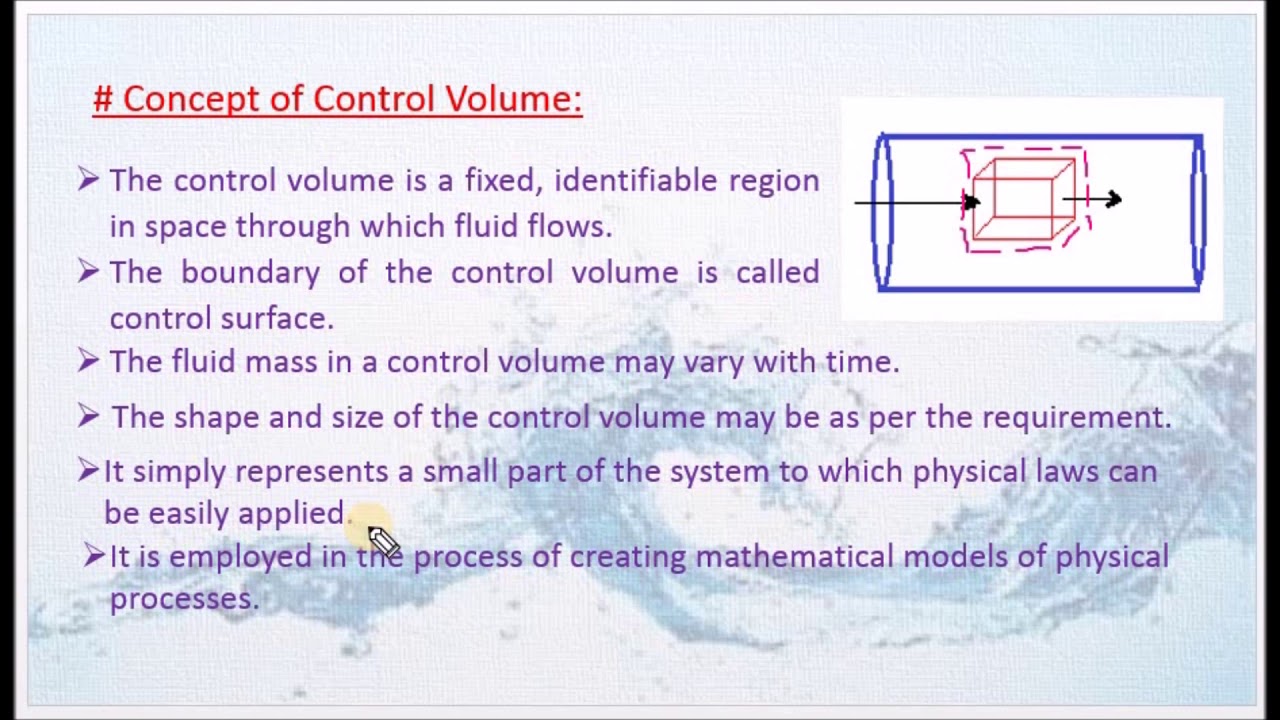

Term: Control Volume
Definition:
A defined region in space through which fluid flows, used for analyzing forces and mass within that region.
-
Term: Pressure Field
Definition:
A representation of pressure variations within a fluid, described as a function of spatial coordinates.
-
Term: Body Force
Definition:
Forces acting throughout the volume of a fluid, such as gravity.
-
Term: Gauge Pressure
Definition:
Pressure measured relative to atmospheric pressure.
-
Term: Vacuum Pressure
Definition:
Pressure that is less than atmospheric pressure, effectively measuring negative pressures.
-
Term: Hydrostatic Equation
Definition:
A mathematical relationship expressing the balance of pressure forces in a fluid at rest.
