Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Control Volumes
Unlock Audio Lesson
Today, we will discuss control volumes in fluid mechanics, focusing on how they help us analyze pressure distribution in a fluid at rest. Can anyone tell me what a control volume is?
Isn't it a region in space where we analyze the flow of fluid?
Exactly! A control volume is a defined space within which we analyze fluid properties. Here, we’ll consider a simple parallelepiped shape to keep things basic. What happens to shear stress in a static fluid?
The shear stress is zero, right?
Right! Without shear stress, the only force we need to consider is the pressure acting normal to the surfaces. This leads us to derive the pressure field.
Pressure Functions and Body Forces
Unlock Audio Lesson
Now, let’s look at how pressure is represented mathematically. If we have a pressure function P(x, y, z), how does gravity affect it?
Gravity will act as a body force on the fluid, right?
Exactly! Gravity contributes to the unit weight of the fluid, which impacts the pressure. The pressure at the centroid of our control volume is then calculated using this body force. Remember, pressure acts normal to the surface, as stated by Pascal’s law.
How do we relate this to pressure differences?
Good question! We can express differences in pressure using Taylor series approximations, which allow us to estimate pressures at various points.
Gauge Pressure vs. Absolute Pressure
Unlock Audio Lesson
Let's shift gears to pressure measurement. Can anyone explain the difference between gauge pressure and absolute pressure?
Gauge pressure is measured relative to atmospheric pressure, while absolute pressure is measured from a perfect vacuum.
Exactly! If we consider P_gauge as pressure above atmospheric and P_absolute as the total pressure, we can write them mathematically as P_gauge = P_absolute - P_atmospheric. What happens if the pressure is lower than atmospheric?
That would be vacuum pressure!
Very good! Understanding these distinctions is crucial for solving hydrostatic problems.
Pressure Distribution in Static Fluids
Unlock Audio Lesson
Now let's discuss pressure distribution in a static fluid. If we analyze at a horizontal plane, what do we observe?
Pressure remains constant in the horizontal direction?
Correct! Pressure remains constant horizontally and only varies vertically. This linear variation helps us simplify many calculations. How can we apply this to real-world scenarios?
We can use it to calculate pressure differences in lakes or reservoirs.
Exactly! Analyzing pressure distribution is vital for engineering structures like dams or pipelines.
Understanding Hydrostatic Equations
Unlock Audio Lesson
Lastly, let’s touch on hydrostatic equations. What does hydrostatic equilibrium imply for forces acting on a fluid?
The sum of forces must equal zero when the fluid is at rest!
Exactly! This leads us to simplify our equations significantly. In our case, this means we can express pressure as a function of depth alone. Can you see how that affects our calculations?
It makes calculating vertical pressure much easier!
Great insight! This simplification is what allows engineers to calculate pressures in vertical systems efficiently.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section explores the relationship between pressure in a static fluid and its variation with the Cartesian coordinates (x, y, z). It introduces the concepts of shear stress and body forces, such as gravity, and employs the Taylor series for approximating pressure values in a control volume. Additionally, it highlights the definitions of gauge and absolute pressures.
Detailed
Integration of Pressure Functions
In this section, we focus on deriving the pressure field when the fluid is at rest, expressed as a function of its coordinates: P = P(x, y, z). We start by considering a simple control volume, where shear stress is absent, and the only force acting is the normal stress equivalent to pressure.
The analysis involves a parallelepiped control volume defined along the x, y, and z directions. At the centroid of this volume, the pressure is denoted as P(x, y, z), and we recognize the influence of gravity as a body force acting on this volume. The unit weight of the fluid, coupled with the volume of the control volume, contributes to the pressure exerted.
Using Pascal's law, which states that pressure acts normal to surfaces, we can derive the pressure field. Additionally, employing the Taylor series approximation allows for the calculation of pressure at points on the surface based on their distance from the centroid.
We define key components of pressure in relation to the body and surface forces, and demonstrate how to translate these into vector forms for pressure distribution across the control volume. By integrating these equations, we establish that the pressure only varies in the vertical direction, simplifying the analysis in horizontal planes.
The conclusion presents the definitions of gauge pressure (pressure above atmospheric pressure) and absolute pressure (measured from a vacuum). We also illustrate how to derive expressions for pressure at different locations, emphasizing that pressure is a scalar quantity which varies linearly with depth in a static fluid.
Youtube Videos

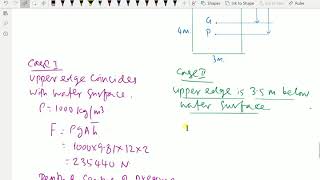

Audio Book
Dive deep into the subject with an immersive audiobook experience.
Pressure Field in Resting Fluid
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now if I go for the next ones that how to get the pressure field when fluid is at rest. That means I am just looking the what could be the functions of the P, P = P (x, y, z). If it that it is now again I am considering a very simple case, let us consider a control volume like this okay. This is what my control volume. As I said it when the fluid is at rest the shear stress become zero. So there is no shear stress component on this fluid plane. Only this normal stress which is as equivalent to the pressure will act over this control surface.
Detailed Explanation
In a resting fluid, the pressure can be described as a function of three spatial dimensions: P = P(x, y, z). The focus here is on a simple model, a control volume, that helps visualize how pressure functions in a static fluid. Since the fluid is at rest, it experiences no shear stress, meaning that the only force acting on any surface within the fluid is normal stress, which effectively equates to pressure. This simplifies the calculations because we need to take into account only the pressure acting on the control surface, without worrying about shear forces.
Examples & Analogies
Imagine a calm pond where the water is completely still. If you were to drop a pebble, you wouldn't see any ripples from the sides where the pebble lands until it creates disturbance. This is similar to how in a fluid at rest, there are no additional stress forces acting on surfaces, only the pressure from water directly beneath the surface.
Gravity's Role in Pressure Components
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
At that point, the gravity force is acting it which is the body force component. The gravity force what will be there? It will be, unit weight multiply the volume of the control volume, which is very simple things. The control volumes, the volume is this much and the unit is ρg and ρ stands for here the density and g stands for accelerations due to gravity.
Detailed Explanation
In the control volume at the centroid where pressure is measured, the effects of gravity must be considered. The gravity creates a body force in the fluid which is calculated by multiplying the unit weight (density multiplied by gravitational acceleration, ρg) with the volume of the control volume. This calculation helps determine how much force is acting on the fluid due to its weight, contributing to the pressure exerted by the fluid.
Examples & Analogies
Think of this as taking a balloon filled with water. The water inside exerts pressure on the walls of the balloon due to its weight. When you hold the balloon at a certain height, gravity is pulling the water down, creating more pressure at the bottom of the balloon than at the top. This pressure difference is essential in understanding how fluids behave under static conditions.
Examination of Pressure Forces
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now if you look it over this control volume, all these pressure is going to act it as the Pascal law says that pressure acts normal to the surface. So that what we can consider pressures act there normal to the surface.
Detailed Explanation
According to Pascal's law, pressure in a fluid acts perpendicular to the surface at every point. This means that when examining the control volume, all pressures can be considered as acting normally (or perpendicularly) to its surface. This is crucial because it enables us to understand how pressure operates within fluids at rest and allows us to derive equations predicting forces on the control volume accurately.
Examples & Analogies
Imagine standing in a swimming pool. As you dive into the water, you can feel the water pressing against your body from all sides. This effect demonstrates Pascal's principle in action: no matter where you touch the water, the pressure you feel acts straight out from where you are submerged, regardless of the angle.
Taylor Series Expansion for Pressure Approximation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Then we need to define now as a pressure as a x, y, z is a pressure field what we are looking it which is a function of x, y, z I can use Taylor series to approximate distance of this surface which is a far away from.
Detailed Explanation
To analyze the pressure field in three-dimensional space, we can employ a Taylor series expansion. This mathematical tool allows us to express the pressure at a certain point in terms of its neighboring points. In essence, it provides a way to approximate the pressure function across distances by expanding it in power series, which reflects how pressure may vary due to changing location in the x, y, and z directions.
Examples & Analogies
Consider making a cake where you start with a basic recipe but apply different layers or flavors to it as you bake. Each layer or flavor represents a different point in our pressure approximation, just as the Taylor series builds on variations of pressure from nearby locations to create a full picture of the pressure field.
Understanding Gauge and Vacuum Pressure
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So now as we derive pressure distribution equations which in vector forms and let we simplify that equations which earlier we consider the acceleration due to gravity is a vector which will have, If you need to compute it what will be the absolute pressure, then it is a very easy. You just use whether the gauge pressure or this the vacuum pressure that difference what we can get it that what you just add with atmospheric pressure to get the absolute pressure.
Detailed Explanation
When determining pressures, two important concepts are gauge pressure and vacuum pressure. Gauge pressure measures pressure against atmospheric pressure; if you exceed atmospheric pressure, you get a positive gauge pressure, while if you fall below it, you get a vacuum pressure. To find the absolute pressure, simply add the gauge pressure to the atmospheric pressure. This process simplifies determining the true pressure at any point in a fluid system since it takes into account the baseline atmospheric pressure that affects all measurements.
Examples & Analogies
Using a car tire as an example, when you check the tire's pressure, you might read 30 psi on the gauge. This number is the gauge pressure, not considering the atmospheric pressure of, say, 14.7 psi. Hence, the tire's absolute pressure would be 30 psi + 14.7 psi, giving a complete understanding of how pressurized the tire truly is for safety and functionality.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Control Volume: A defined space for analyzing fluid properties.
-
Pressure Distribution: The way pressure varies in a fluid at rest.
-
Gauge Pressure: Pressure measured above atmospheric pressure.
-
Absolute Pressure: Total pressure measured from a vacuum.
-
Hydrostatic Equilibrium: State in which fluid forces balance to result in no net movement.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A lake connected to a reservoir exhibits uniform pressure on horizontal planes.
-
The pressure difference in a manometer measures fluid heights based on atmospheric pressure.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In fluids at rest, shear stress is nil; Gravity pulls down, pressure we fill.
📖 Fascinating Stories
-
Once upon a time in a lake, pressure rules the surface in an even flake. No shear was seen, just gravity's might, Gauge or absolute, it guides our sight.
🧠 Other Memory Gems
-
To remember P_gauge = P_absolute - P_atmospheric, think GAB: Gauge Affects Base.
🎯 Super Acronyms
PAG for Pressure Analysis
- Pressure
- Atmospheric
- Gauge.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Control Volume
Definition:
A defined space in fluid mechanics where fluid properties are analyzed.
-
Term: Shear Stress
Definition:
A stress that acts parallel to the fluid surface, typically zero in static fluids.
-
Term: Body Force
Definition:
A force that acts throughout the volume of a body, such as gravity.
-
Term: Pascal's Law
Definition:
A principle stating that pressure applied to a confined fluid is transmitted undiminished throughout the fluid.
-
Term: Gauge Pressure
Definition:
Pressure measured relative to atmospheric pressure.
-
Term: Absolute Pressure
Definition:
Total pressure measured from a perfect vacuum.
-
Term: Taylor Series
Definition:
A series that approximates a function using its derivatives at a single point.
