Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Wall Stress and Shear Stress
Unlock Audio Lesson
Today, we'll cover how to compute wall stress and shear stress in fluid flow. Can anyone tell me the relationship between shear stress and viscosity?
Shear stress relates to the viscosity coefficient and the velocity gradient!
Correct! We can mathematically express this using Newton's law of viscosity. If we denote shear stress as τ and the dynamic viscosity as μ, the formula becomes τ = μ * (du/dy). Remember, 'du/dy' indicates how the velocity changes with respect to the distance from the wall.
What does du/dy look like near the wall?
Excellent question! Near the wall, 'u' approaches zero due to the no-slip condition. Therefore, the gradient will indicate the fluid's behavior as we approach the boundary.
What about for varying pressure gradients?
Good point! As we encounter varying pressure gradients, the mathematical treatment becomes integral for computing stress across the flow. Always keep in mind how pressure affects shear and wall stresses.
To summarize, wall and shear stresses are fundamentally derived from viscosity laws, utilizing velocity gradients to characterize flow behavior.
Stream Function and Vorticity
Unlock Audio Lesson
Let’s transition to stream functions and vorticity. What is a stream function in fluid mechanics?
It's a mathematical tool used to describe the flow in a two-dimensional flow. It helps in visualizing streamlines.
Exactly! If we call ψ (psi) the stream function, the flow velocity can be derived from its partial derivatives. Can anyone tell me how to relate vorticity to these concepts?
Vorticity measures the rotation of fluid elements and can be calculated as the curl of the velocity vector!
Absolutely! The vorticity vector defines the local spinning motion of the fluid. It’s crucial in understanding how energy and momentum are transferred within the flow.
How does this relate to irrotational flows?
Great inquiry! In irrotational flow, the vorticity is zero, and thus it opens up the potential for velocity potential functions. However, we encounter limits in applying these concepts under rotational flows.
In summary, the stream function provides insights into flow patterns, while vorticity addresses rotational behaviors in fluid motion. Remember these are foundational ideas in fluid mechanics!
Velocity Potential and Average Velocity
Unlock Audio Lesson
Now, what do we remember about velocity potential? Is it relevant in cases with vorticity?
If there is significant vorticity, the velocity potential function cannot exist.
Correct! Velocity potential is absent in rotational flows due to the nature of fluid movement. Now, how do we calculate average velocity in a specified area?
We integrate the velocity across the area and then divide by the area.
That's right! It's expressed mathematically as V_avg = (1/A) * ∫(u)dA, where A represents the area and 'u' is the velocity.
What about when using Navier-Stokes equations?
Good point! When applying these equations, we must comprehensively assess velocity fields, accounting for pressure gradients and boundary conditions.
Overall, we see that velocity potential is crucial in understanding fluid flow, while average velocity informs us about flow characteristics over an area.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, we explore the applications of fluid mechanics principles, including calculating wall stress, shear stress, stream functions, vorticity, velocity potential, and average velocity. The use of Navier-Stokes equations to derive these quantities illustrates the complexity of fluid flow, particularly in laminar, transitional, and turbulent conditions.
Detailed
Applications and Examples
In this section, we delve into fluid mechanics applications by calculating crucial properties such as wall stress, shear stress, stream functions, vorticity, velocity potential, and average velocity. The Navier-Stokes equations play a vital role in these calculations, allowing us to estimate the behavior of fluid flow under various conditions.
Key points discussed include:
- Wall Stress and Shear Stress: Calculated using Newton's laws of viscosity, emphasizing partial derivatives to obtain shear stress distributions.
- Stream Function and Vorticity: Explains the significance of streamlines in two-dimensional flows and how vorticity is derived from the curl of velocity.
- Velocity Potential: Discusses the conditions under which velocity potential functions are applicable, especially concerning irrotational flows.
- Average Velocity Calculations: Addresses how to compute average velocity across a defined area by integrating the velocity field.
This section accentuates the application of calculations in both idealized and practical contexts, reinforcing the necessity of understanding fluid mechanics to model real-world situations effectively.
Youtube Videos

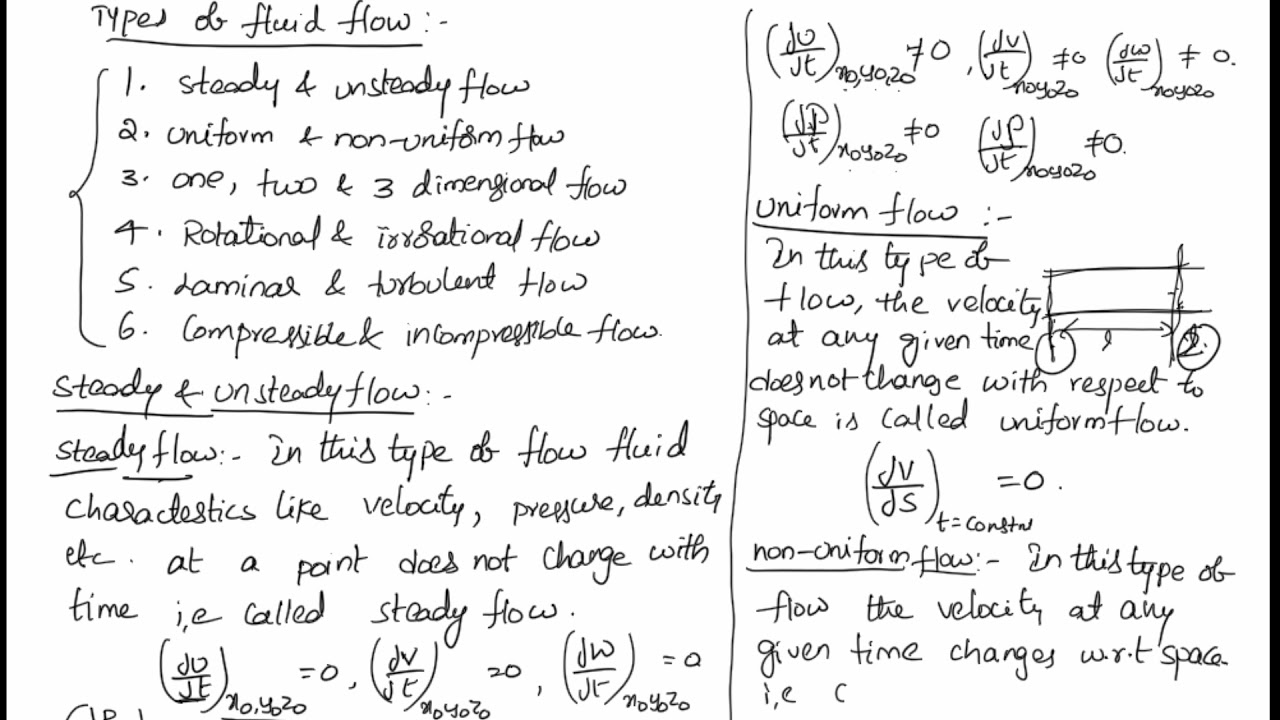

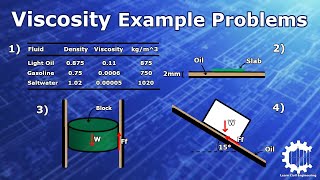

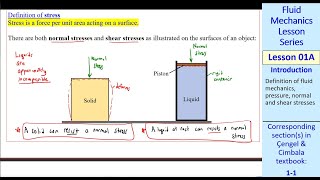

Audio Book
Dive deep into the subject with an immersive audiobook experience.
Analyzing Velocity Fields
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
This is the field what we used to solve it, we have already solved this part. Today we are looking at what will be the wall stress, shear stress at this point, also this point, stream function, vorticity, velocity potential and the average velocity if known the velocity field. So in the last class we estimate this velocity field from Navier-Stokes equations that we assume it vw is a 0 okay, neglecting the gravity force components.
Detailed Explanation
In this chunk, the focus is on understanding how velocity fields are analyzed within the context of fluid mechanics. The discussion references the use of Navier-Stokes equations to determine various fluid parameters such as wall stress, shear stress, and average velocity. The assumption that gravitational forces are negligible simplifies our calculations. We also learned in the previous class how these equations can estimate the velocity field based on given conditions and parameters.
Examples & Analogies
Imagine trying to determine how fast a river flows at various points; you could use equations that consider the slope of the riverbed (analogous to pressure gradients) and ignore the small influence of wind (similar to neglecting gravitational forces in this context). Just like those equations would help you understand water flow, the Navier-Stokes equations help us understand fluid behaviors in complex scenarios.
Understanding Wall Shear Stress
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now if you look it I am just substituting wall shear stress using the Newton's laws of viscosity we can get tau xy wall fluid kinematics we have done this part mu is equal to del u by del y del v by del x at wall y equal to plus minus h.
Detailed Explanation
This section dives into the calculation of wall shear stress, a vital part of fluid dynamics. It employs Newton's laws of viscosity, which relates shear stress (c) to the velocity gradient. The equation describes how the viscosity ( ) and the changes in velocity in the direction perpendicular to the wall contribute to the shear stress. In simpler terms, when fluid moves past a solid surface, the friction (shear stress) depends on how quickly the fluid's speed changes near the surface.
Examples & Analogies
Think about spreading butter on a piece of bread. As you spread the butter (the fluid), how thick or smoothly it spreads depends on how soft it is (viscosity) and how quickly you are moving your knife (velocity gradient). Similarly, the wall shear stress gauges how well a fluid can slide over a surface.
Stream Functions and Vorticity
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
If you look it as the plane okay it is a 2 dimensional plane flow that is what so it can have the stream flow okay. Stream functions we can get it because it is a 2 dimensional flow okay as the x and y flow is steady and incompressible.
Detailed Explanation
In this segment, the focus is on stream functions which are crucial in analyzing two-dimensional steady and incompressible flows. A stream function allows us to visualize how fluid particles move within a flow field, and it's particularly useful because it simplifies the equations governing the flow. Vorticity, a measure of the local rotation of the fluid, is also introduced in this context as it relates to the flow characteristics.
Examples & Analogies
Think of stream functions as the paths that leaves follow on a river. They illustrate how liquid flows along specific paths in a given direction without changing flow significantly. If we imagine swirling leaves in a creek, the leaves represent particles of fluid, and vorticity describes how the water is spinning around them.
Velocity Potential Functions
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So we are getting the stream functions we are getting the stream function as we are considering the centralized stream functions is equal to 0 we can setting that value then we can be then we can get it what will be the stream functions value at both the fixed walls.
Detailed Explanation
This chunk discusses the calculation of velocity potential functions, which are particularly relevant for irrotational flows. By setting the potential function to zero at a central point, we often find it easier to compute how velocities are distributed at boundaries (like fixed walls). Understanding where these functions equal zero helps us establish a clearer picture of flow behavior around obstacles.
Examples & Analogies
Consider a water slide where kids are seated—their height (analogous to the velocity potential) determines how fast they go. If we mark a reference point at the top of the slide as zero (like setting the potential function to zero), we can easily calculate their speed at the bottom based on how high they started.
Average Velocity Calculation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Then you have to compute the average velocity it is a very easy that for a if I considering this discharge which is u dA velocity in area integrations from minus h to plus h divide by this area I will get it the average velocity.
Detailed Explanation
This section talks about how to compute average velocity across a fluid flow using integrals. By summing up all the velocities at various points over a defined area (between -h and +h) and dividing by that area, we arrive at an average value which gives us a good indication of the flow characteristics. This technique is common in fluid mechanics to simplify complex fluid fields into a manageable understanding of the average behavior.
Examples & Analogies
Think of measuring the average speed of a car going through a tunnel. If you record the speed at several points along the tunnel, you can sum those speeds, and then divide by the number of measurements you took to determine the average speed of the car during that tunnel. In fluid mechanics, this method helps us gauge the flow uniformly.
Boundary Layer Approximations
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
But in case of the differential approach, we need to do the integrations and differentiations to get the pressure field, to get wall shear stress, to get stream functions, velocity potential function with a lot of series of approximations.
Detailed Explanation
In this chunk, boundary layer approximations are discussed, emphasizing their importance within the framework of fluid mechanics. When solving complex flow problems using differential equations—like the Navier-Stokes equations—many approximations must be made, particularly when dealing with the boundary layer where the effects of viscosity are pronounced. These approximations simplify calculations, making complex equations more manageable.
Examples & Analogies
Imagine trying to predict how a car will handle at high speeds; knowing the rough road might influence your predictions (like approximations in fluid dynamics). Just as a driver accounts for various factors while estimating performance, fluid engineers use approximations to navigate through the complexities of fluid behavior in boundary layers.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Wall Stress: Stress exerted on the boundary by fluid flow.
-
Shear Stress: Stress occurring due to parallel fluid motion.
-
Stream Function: Function defining fluid movement paths.
-
Vorticity: Indicator of local rotations in the fluid.
-
Velocity Potential: Function applicable in irrotational flows.
-
Average Velocity: Represents the mean flow across a surface.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Calculating shear stress in a water flow over a flat surface is a practical application using Newton's law of viscosity.
-
In a pipe flow, the average velocity can be determined by integrating the velocity profile across the cross-section.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Shear stress acts, right by the wall, viscosity guides how fluids crawl.
📖 Fascinating Stories
-
Imagine a river flowing past a rock. The water hugs the rock tightly, creating shear stress while flowing downstream smoothly.
🧠 Other Memory Gems
-
For Viscosity and Vorticity, remember 'VV' for Velocity Variation! They are closely linked in dynamics.
🎯 Super Acronyms
S.V.W.A.D - Stream function, Vorticity, Wall stress, Average velocity, and Dynamic viscosity are key concepts in fluid dynamics.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Wall Stress
Definition:
The stress exerted by a fluid on the surface of a solid boundary in contact with that fluid.
-
Term: Shear Stress
Definition:
A type of stress that acts parallel to the surface of a material, produced by forces acting on the fluid layers.
-
Term: Stream Function
Definition:
A mathematical function whose contours represent streamlines in a flow field; useful in visualizing fluid motion.
-
Term: Vorticity
Definition:
A measure of the local rotation of a fluid element; it represents the curl of the velocity field.
-
Term: Velocity Potential
Definition:
A scalar function that describes the potential energy of fluid motion in irrotational flow.
-
Term: Average Velocity
Definition:
The mean velocity of a fluid across a surface, calculated as the integral of velocity over an area divided by the area.
