Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Jet Flow Dynamics
Unlock Audio Lesson
Today, we will explore the dynamics of jet flow, focusing particularly on wall stress and shear stress. Can anyone tell me what wall stress refers to?
Is it the force exerted by the fluid on the walls of the container?
Exactly! Wall stress is indeed the force per unit area exerted by the fluid. Now, how do we calculate shear stress at a wall?
Do we use Newton’s law of viscosity for that calculation?
Correct! Shear stress can be calculated using the relationship τ = μ (du/dy), where μ is the dynamic viscosity and du/dy is the velocity gradient. Remember the acronym DUV for Dynamic viscosity, u (velocity), and y (distance from wall).
In summary, wall stress relates to the fluid's interaction with the bound surface, which also provides insights into fluid viscosity.
Velocity Fields and Navier-Stokes Equations
Unlock Audio Lesson
Now that we've established wall stress, let's delve into velocity fields using the Navier-Stokes equations. Why are these equations important?
They help us understand the behavior of fluid motion, right?
Exactly! They describe how velocity, pressure, and density interact in fluid flow. Let's take a look at a simplified scenario where we can assume gravity is negligible.
And that helps simplify our calculations, right?
Correct! We derive our velocity field as u = -(dp/dx)(h²/2μ)(1 - (y²/h²)). This shows the relationship between velocity, pressure gradients, and the properties of the fluid.
In summary, the Navier-Stokes equations are critical for deriving meaningful insights into velocity fields in jet flows.
Vorticity and Stream Functions
Unlock Audio Lesson
Next, let's discuss vorticity and stream functions. What do we mean by vorticity in fluid dynamics?
Isn't it a measure of the local rotation of the fluid?
Spot on! Vorticity gives us insight into the rotation of fluid elements. In jet flows, vorticity is perpendicular to the flow direction. How do you think stream functions play into this?
I think they help visualize the flow pattern, like streamlines, right?
Exactly! Stream functions provide a graphical representation of flow. As we discuss these, keep in mind the relationship between vorticity, stream functions, and the challenge of calculating potential functions for irrotational flow.
In conclusion, vorticity and stream functions allow us to understand flow behaviors and visualize fluid pathways.
Boundary Layers in Jet Flow
Unlock Audio Lesson
Lastly, let's discuss boundary layers in jet flows. Can anyone tell me what a boundary layer is?
It’s a thin region near the surface of an object where viscous effects are significant.
Exactly! The boundary layer is where the effects of viscosity are important. How do these layers affect flow away from the surface?
They can cause drag, and influence the overall velocity profile.
Yes! They significantly affect fluid resistance and flow attachment. Higher Reynolds numbers lead to thinner boundary layers, which helps simplify analyses.
To summarize, boundary layers exist where viscosity dominates, and understanding them is crucial for predicting flow behavior in jets.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In Jet Flow Dynamics, the section investigates wall stress, shear stress, stream functions, vorticity, and velocity potential in relation to the behavior of jets. It emphasizes the application of Navier-Stokes equations to derive velocity fields while considering the influence of boundary conditions and boundary layers.
Detailed
Detailed Summary of Jet Flow Dynamics
This section delves into the intricate dynamics governing jet flow by examining key concepts such as wall stress, shear stress, and velocity fields derived from the Navier-Stokes equations. It begins with the establishment of the velocity field under steady, incompressible flow conditions, illustrating how shear stress and pressure gradients affect fluid motion between two parallel plates. The relationship between wall shear stress and viscosity is discussed through the lens of the Newton's laws of viscosity.
The section further explains the stream functions, vorticity, and velocity potential, underscoring that the flow's irrotational nature necessitates discerning its behavior through careful derivative calculations. The average velocity is computed using discharge principles to obtain a clearer depiction of flow dynamics.
Importantly, the section identifies and defines the regions where shear stress and vorticity primarily act—highlighting the critical role of boundary layers in fluid mechanics and illustrating how they affect broader fluid flow characteristics. Conclusively, the section showcases the foundational concepts required to grasp the complexities of jet flow dynamics as applied within the frameworks of computational fluid dynamics (CFD) and experimental fluid mechanics.
Youtube Videos

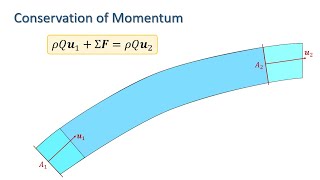

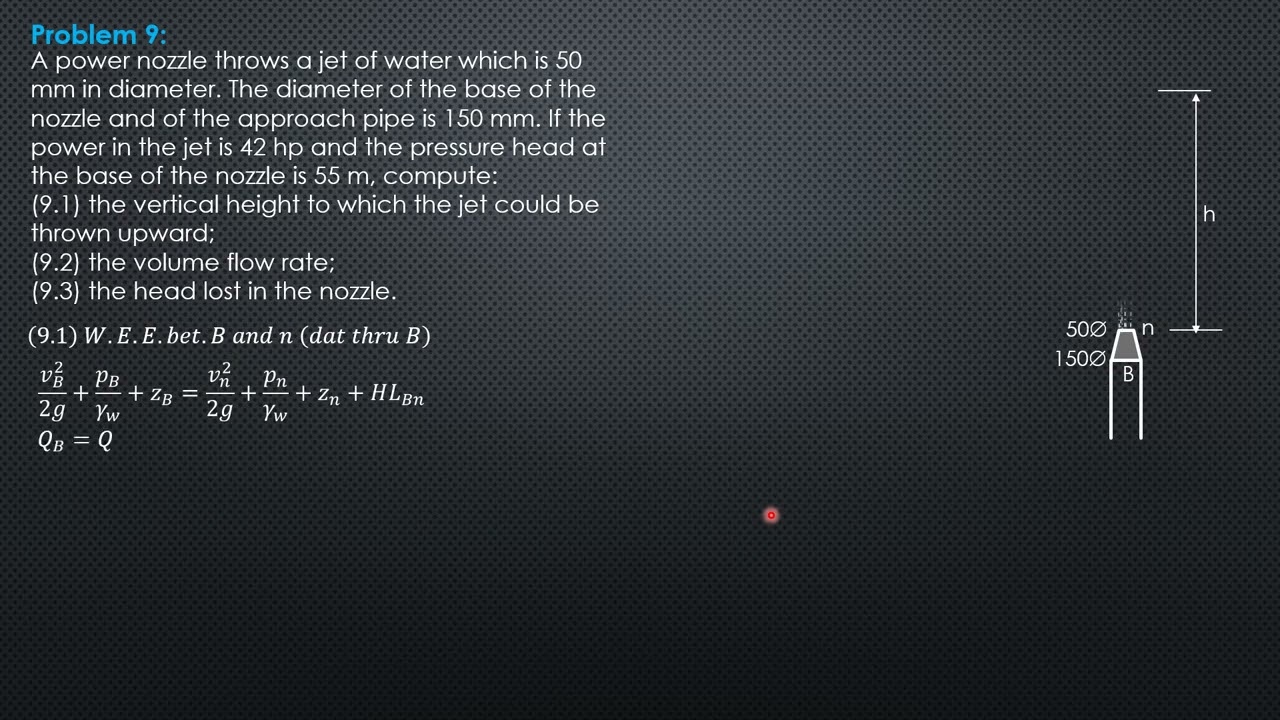

Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Wall and Shear Stress
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
We are looking at what will be the wall stress, shear stress at this point, stream function, vorticity, velocity potential and the average velocity if known the velocity field. So in the last class we estimate this velocity field from Navier-Stokes equations that we assume it vw is a 0 okay, neglecting the gravity force components.
Detailed Explanation
In this chunk, we focus on the concepts of wall stress and shear stress within fluid dynamics. Wall stress is the force exerted by the fluid on the boundary (or wall), while shear stress relates to how the fluid moves parallel to that boundary. The Navier-Stokes equations help us model these phenomena using assumptions, like zero gravity influence. These equations allow us to estimate the velocity field, which is crucial for determining various stresses, vorticity, and flow patterns in the fluid.
Examples & Analogies
Imagine a swimmer pushing through water. The water exerts a force against the swimmer's hands and body, which is similar to wall stress. The way the swimmer's hands slice through the water creates a shear force as the water moves past, illustrating shear stress in action.
Velocity Field Calculation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
We get this u component that is what we did it last class minus dp by dx okay that is what dp by dx is equal to h square by 2 mu types of 1 minus y square by h square.
Detailed Explanation
This segment explains how we calculate the velocity field in a jet flow scenario. The u component relates to the velocity at a given position within the fluid, considering changes in pressure gradient (dp/dx). The equation provided shows how pressure differential is influenced by fluid properties like viscosity (mu) and boundary layer thickness (h). By analyzing this equation, we can predict how fluid velocity behaves near the boundaries and in free stream areas.
Examples & Analogies
Think about a water slide, where the height of the slide (h) impacts the speed of water flowing down. As the water moves, its pressure changes due to height, similar to how our velocity field changes with pressure gradient in fluid dynamics.
Newton's Law of Viscosity
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Substituting wall shear stress using the Newton's laws of viscosity we can get tau xy wall fluid kinematics we have done this part mu is equal to del u by del y del v by del x at wall y equal to plus minus h.
Detailed Explanation
This chunk introduces Newton's law of viscosity, which relates shear stress (tau) to the rate of change of velocity (u) with respect to distance from the wall (y). By applying this law, we can compute wall shear stress in the context of fluid kinematics. This is crucial in characterizing how the fluid flows and interacts with the wall.
Examples & Analogies
Picture spreading butter on toast; the force you apply (similar to shear stress) determines how smoothly it spreads. In fluid dynamics, the viscosity reflects how easily the fluid flows under shear stress, just as the softness of butter impacts its spreadability.
Stream Function and Vorticity
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
We are looking for curl v okay. So we are looking a curl v in z direction so that what is dv by dx I just writing u dy. So v is 0 so only you know this partial derivative.
Detailed Explanation
In this chunk, the focus is on calculating vorticity, which is a measure of rotation in fluid flow. We use the curl of the velocity field (v) to assess how fluid elements rotate as they move. Since fluid flow can have different components, we identify the z-direction vorticity using partial derivatives. This understanding is essential for characterizing the flow behavior and predicting its patterns.
Examples & Analogies
Think of a whirlpool in a river; the water spins and rotates around a central point. The vorticity here is high, indicating a significant rotation. Analyzing fluids in a similar way lets us understand how and why water swirls around bends and obstacles.
Average Velocity Calculation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now you have to compute the average velocity if I considering this discharge which is u dA velocity in area integrations from minus h to plus h divide by this area.
Detailed Explanation
This section discusses how to calculate average velocity in the jet flow, which is crucial for understanding the overall fluid dynamics. By integrating the velocity across a certain area, ranging from the lower boundary (-h) to upper boundary (+h), and then normalizing that by the total area, we can find an average velocity. This approach gives insight into how quickly the fluid is moving as a whole, rather than at a single point.
Examples & Analogies
Imagine filling a bathtub with water from a faucet. The average flow rate of water filling the tub tells you how fast it will fill up, even if the water speed varies at different points from the faucet's output. Likewise, calculating average velocity helps us contextualize the flow across a whole area.
Boundary Layer Formation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The boundary layer formations will be presenting in that which is because of presence of these two walls okay. As the fluid particles are coming it not the all the fluid particles here will be active for the flow is going through this. There are the fluid will commit a regions very close to this will have a flow will come it flow will go like this.
Detailed Explanation
In this chunk, we learn about boundary layers, which are thin layers of fluid near the walls where viscosity and shear stress dominate. The boundary layer forms because not all fluid particles move equally; some are slowed by friction against the wall. This unique flow behavior influences drag and flow patterns, making understanding boundary layers essential for designs like aircraft wings and piping systems.
Examples & Analogies
Consider how when you stir a cup of coffee, the liquid near the edge hardly moves as compared to the center. This slower-moving region is analogous to the boundary layer, where the friction with the cup slows fluid motion, affecting overall flow.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Velocity Field: The velocity distribution of a fluid in motion, essential for understanding flow dynamics.
-
Wall Shear Stress: Important for assessing the interaction between fluids and solid surfaces.
-
Vorticity: Key in determining rotational effects in fluid dynamics.
-
Boundary Layer: A crucial concept for understanding viscous effects in jet flow.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
The calculation of wall shear stress can be exemplified by applying the Newton's law of viscosity in a fluid between two parallel plates where the velocity gradients are observed.
-
Boundary layers can be demonstrated through flow over an airplane wing, showing how they influence lift and drag.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In fluid flow, near surfaces the layers grow, where viscosity plays a vital role you know.
📖 Fascinating Stories
-
Imagine a calm lake where slight winds create waves near its edge, illustrating how boundary layers affect motion without disturbing the deeper water.
🧠 Other Memory Gems
-
Remember V-S-W (Vorticity, Shear stress, Wall stress) to recall the three key concepts in jet flow dynamics.
🎯 Super Acronyms
B.E.S.T. (Boundary layer, Euler, Shear stress, Turbulence) helps remember critical components when studying fluid flow.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Wall Stress
Definition:
The force per unit area exerted by a fluid on the walls of its container.
-
Term: Shear Stress
Definition:
A measure of how much force is acting parallel to a surface, calculated using the dynamic viscosity and the velocity gradient.
-
Term: Vorticity
Definition:
A vector quantity that represents the local spinning motion of a fluid.
-
Term: Stream Function
Definition:
A mathematical function used to describe the flow of fluid in two dimensions.
-
Term: NavierStokes Equations
Definition:
A set of equations that describe how the velocity of a fluid evolves over time and space.
-
Term: Boundary Layer
Definition:
A thin region adjacent to a surface where viscous forces are significant compared to inertial forces.
-
Term: Reynolds Number
Definition:
A dimensionless number used to predict flow patterns in different fluid flow situations.
