Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Stream Functions
Unlock Audio Lesson
Today, we will start by discussing stream functions, which are crucial in visualizing fluid flow. Can someone tell me what a stream function represents in fluid mechanics?
Isn’t it related to the flow pattern in a two-dimensional flow?
Exactly! The stream function helps us describe the flow without directly calculating velocities. Remember, in a steady flow, the streamlines are perpendicular to the velocity vectors. A helpful mnemonic to remember this is 'V for Velocity, S for Streamlines!'
So, if the stream function is constant along a streamline, does that mean there’s no flow across the streamlines?
Great observation! Yes, that’s precisely the case. To reinforce this concept, think of streamlines as barriers; fluid cannot cross them.
Can we visualize how stream functions change across boundaries?
Absolutely! In regions where fluid velocity is higher, stream function values will be spaced further apart, indicating more rapid flow. Now, let’s summarize: Stream functions visualize flow, are constant along streamlines, and cannot be crossed by the fluid!
Understanding Vorticity
Unlock Audio Lesson
Now, let’s transition into vorticity. Who can explain what vorticity signifies in a fluid?
Isn’t it the tendency of a fluid to rotate?
Correct! Vorticity quantifies the local rotation of fluid elements. We represent it as the curl of the velocity field. Remember: Curl for rotation!
How does vorticity relate to irrotational flow?
Excellent question! In irrotational flow, the vorticity is zero, meaning there is no local rotation. If the vorticity vector is not zero, velocity potential functions cannot be established.
Are there practical examples where we see vorticity in action?
Certainly! Vortices in smoke rings or whirlpools are excellent real-life examples of vorticity. So, key points: Vorticity measures local rotation, links to irrotational flow, and cannot imply potential functions when present!
Wall Shear Stress Analysis
Unlock Audio Lesson
Next, we'll explore wall shear stress. Does anyone know how we can compute wall shear stress in fluid flow?
Isn't it related to the velocity gradient at the wall?
Exactly! Wall shear stress is calculated using Newton’s law of viscosity. Remember the formula: τ = μ * (du/dy), where τ is shear stress, μ is dynamic viscosity, and du/dy is the velocity gradient.
How does the flow behavior change with wall shear stress?
Great question! Higher wall shear stress indicates larger velocity gradients and increases flow resistance. Think of it as sticky fingers on a glass surface—the more sticky, the harder it is to move!
Can shear stress vary along the walls?
Yes! It varies based on how the velocity changes near the wall. Remember: Shear stress tells us about flow resistance at boundaries. Summarizing: Calculate wall shear stress with viscosity and velocity gradient; it indicates flow resistance!
Linking Average Velocity with Equations
Unlock Audio Lesson
Let’s wrap up our discussion with average velocity in fluid flow. How do we typically calculate average velocity across a flow area?
By integrating the velocity over the flow area and dividing by the total area?
Correct! The average velocity is computed as V_avg = (1/A) * ∫(V * dA), where A is the area of integration. This gives a sense of the overall flow rate!
What does this average velocity tell us?
It tells us how fast fluid flows across the area, important for understanding discharge and flow characteristics!
So, it relates directly to the velocity field derived from Navier-Stokes equations?
Absolutely! Average velocity is integral to analyzing fluid behavior. To summarize: Average velocity calculates overall flow rate, derived from velocity fields, and is significant for fluid motion analysis!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, key concepts in fluid mechanics are explored, focusing on stream functions, wall shear stress, vorticity, and average velocity in laminar flow. The discussion emphasizes the connection between velocity fields derived from Navier-Stokes equations and their role in understanding fluid behavior between fixed parallel plates.
Detailed
Stream Function and Vorticity Analysis
In this section, we delve into essential concepts of fluid dynamics, starting with wall shear stress, vorticity, and average velocity, all of which are vital in analyzing flow between two fixed parallel plates.
Firstly, the section outlines the derivation of the velocity field from the Navier-Stokes equations, focusing on the case of no gravitational force with an assumption that wall velocity is zero. The wall shear stress is computed using Newton's laws of viscosity, reinforcing the interrelation between shear stress and velocity gradients.
The vorticity is discussed as a measure of local rotation in fluid motion. The vorticity vector, particularly in a 2D flow scenario, leads to insight into how flow behaves under different velocities. It’s emphasized that velocity potential functions cannot be derived if the flow is rotational, which is confirmed by the presence of vorticity.
Average velocity is calculated through integration over the defined area, illustrating its significance for fluid mechanics problems in steady, incompressible flows. The discussions also highlight the relationship between pressure gradients, boundary layers, and the importance of using boundary layer approximations in fluid dynamics.
Lastly, the section sets the stage for boundary layer theory, linking the theoretical framework of fluid mechanics with practical applications, and preparing for the subsequent explorations in the chapter.

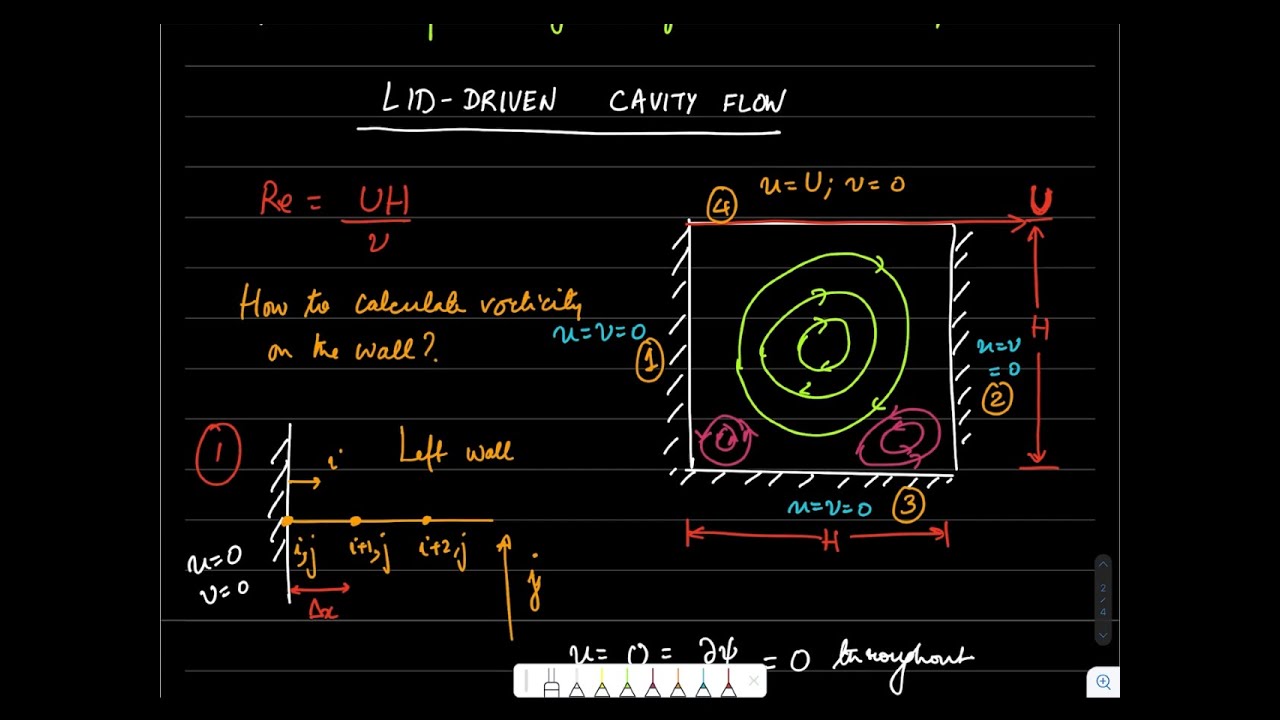

Youtube Videos
![What you need to know about Vorticity [Fluid Mechanics]](https://img.youtube.com/vi/Xu5IT4bL-v8/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding the Velocity Field
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Today we are looking at what will be the wall stress, shear stress at this point, also this point, stream function, vorticity, velocity potential and the average velocity if known the velocity field. So in the last class we estimate this velocity field from Navier-Stokes equations that we assume it vw is a 0 okay, neglecting the gravity force components.
Detailed Explanation
This chunk describes the objectives of today's lesson, focusing on key fluid dynamics concepts such as wall stress and shear stress, as well as the calculations of stream function, vorticity, velocity potential, and average velocity. It also recalls the previous lesson where a velocity field was estimated using Navier-Stokes equations with some assumptions, notably neglecting gravitational effects.
Examples & Analogies
Imagine a water hose spraying water out. As you observe, some water hits the wall nearby and forms a thin film that illustrates wall stress and shear stress as the water flows. In fluid dynamics, just as you can analyze how water moves through a hose and its impact on nearby surfaces, you can apply Navier-Stokes equations to understand velocities in various scenarios.
Wall Shear Stress Calculation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now if you look it I am just substituting wall shear stress using the Newton's laws of viscosity we can get tau xy wall fluid kinematics we have done this part mu is equal to del u by del y del v by del x at wall y equal to plus minus h this is what. So plus h this is minus h okay. So del v is 0 we know it. So you only have a u functions that is what the functions you just substitute here. do the partial derivatives finally you get it this part.
Detailed Explanation
Here, the calculation of wall shear stress is based on Newton's laws of viscosity. The notation tau_xy represents shear stress and involves calculating the gradient of velocity u with respect to distance y. At the wall (given by positions y = ±h), the component v is zero, simplifying the derivatives needed for the calculation.
Examples & Analogies
Think of the way your hand feels when it’s pushed along a smooth surface versus a rough one. The tangential force you experience is similar to shear stress in fluids. The mathematical approach taken here to express shear stress at solid boundaries helps us determine how fluids interact with surfaces in situations like pipe flow or air flowing over an aircraft wing.
Stream Function in Two-Dimensional Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now if I look it as the plane okay it is a 2 dimensional plane flow that is what so it can have the stream flow okay. Stream functions we can get it because it is a 2 dimensional flow okay as the x and y flow is steady and incompressible. So we know it u equal to definitions okay. So just integrate the u then you will get it the functions u max.
Detailed Explanation
This section discusses the application of stream functions in a two-dimensional flow, emphasizing that the flow is steady and incompressible. The stream function, psi, is an essential concept in fluid dynamics, helping visualize flow patterns and calculate velocities. By integrating the velocity function u, we can express maximum velocities, u_max, further aiding analysis.
Examples & Analogies
Imagine a river flowing steadily. The stream function helps visualize the current in various parts of the river without having to measure every flow of water directly. By knowing the current at specific points, we can derive patterns of flow and identify where the water flows fastest—similar to how stream functions help in understanding fluid flow in engineering applications.
Vorticity Analysis
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So, if I look at the vorticity okay. So vorticity in the zth plane that is what we you have a x and y. So you are looking the vorticity which is perpendicular to this plane.
Detailed Explanation
This chunk introduces the concept of vorticity, which is a measure of the local rotation of a fluid. Vorticity is essential in fluid dynamics as it represents the tendency of fluid particles to spin about an axis. In this case, it specifically considers vorticity in a 2D plane, where it is calculated as a curl of the velocity vector.
Examples & Analogies
Consider a region of water swirling around a drain as it empties. The swirling motion is an illustration of vorticity in action—how parts of the water flow rotate is linked to the idea of rotational motion in fluid mechanics, allowing us to analyze flow behaviors in rivers, air around wings, or blood in arteries.
Understanding Average Velocity
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Then you have to compute the average velocity it is a very easy that for a if I considering this discharge which is u dA velocity in area integrations from minus h to plus h divide by this area I will get it integrations over this we will go at it.
Detailed Explanation
This section outlines a straightforward method for calculating average velocity in a channel. By integrating velocity across a defined area (from -h to +h) and dividing by the area, one can determine the average velocity, representing the overall flow in the fluid dynamics context.
Examples & Analogies
Think of measuring the average speed of a car over a long drive. You might record the speed at different intervals but combine all observations to find a single average speed for the entire journey. Similarly, in fluid dynamics, average velocity gives a simplified view of how fast fluid is moving throughout a system, important for design and analysis.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Stream Function: Describes flow patterns without computing velocities directly.
-
Vorticity: Measures local fluid rotation, represented mathematically as curl of velocity.
-
Wall Shear Stress: The stress exerted by fluid on the wall due to friction, significant for flow resistance.
-
Average Velocity: Indicates the overall speed of fluid flow across an area, critical for flow analysis.
-
Navier-Stokes Equations: Fundamental equations governing fluid motion, essential for deriving velocity fields.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example of calculating wall shear stress using the viscosity of water and velocity gradients.
-
Visualization of stream functions representing various flow configurations in a channel.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In the fluid flow so tight, stream functions guide us right.
📖 Fascinating Stories
-
Imagine a water slide where the stream functions guide the water, ensuring smooth and gradual flow; where vorticity swirls like children whirling around at the edge!
🧠 Other Memory Gems
-
Remember: V for Vortex, V for Vorticity; both symbolize rotation and fluid motion!
🎯 Super Acronyms
S.A.V. for Stream function, Average velocity, and Vorticity - key concepts in fluid dynamics!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Vorticity
Definition:
A measure of local rotation in fluid motion, represented as the curl of the velocity field.
-
Term: Stream Function
Definition:
A mathematical function used to describe flow where streamlines represent fluid motion.
-
Term: Wall Shear Stress
Definition:
The stress exerted by fluid friction on the wall, calculated from the velocity gradient.
-
Term: Average Velocity
Definition:
The mean speed of fluid flow across a defined area.
-
Term: NavierStokes Equations
Definition:
A set of equations that describe the motion of viscous fluid substances.
