11.3.1. Boundary Layers in Various Flow Conditions

Boundary layers are the thin regions close to the boundaries of flow where viscous effects dominate. These layers form due to the no-slip condition at the wall.

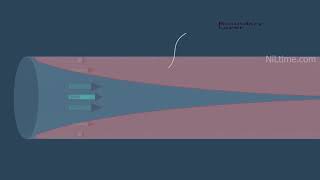

Boundary layers are formed when fluid flows past a solid surface, like a pipe or a flat plate. At the very surface, the fluid velocity is zero due to the no-slip condition, meaning that the fluid loves on the boundary doesn't slide, just like how you might hold on tightly to a railing. This causes a velocity gradient, where the fluid closest to the boundary moves slower compared to the fluid further away, leading to the formation of a thin layer where viscous forces are significant. The presence of these boundary layers affects the overall flow behavior, including pressure and shear stress distribution.

Imagine driving a car on a highway. The air directly next to the car's body moves slower (like the fluid near the boundary), while the air further away moves faster (like the free stream flow). The air in this slow-moving layer has to push against the car, creating resistance or 'drag,' which is directly influenced by the characteristics of the boundary layer.

The flow can be classified as laminar, transitional, or turbulent, each characterized by its Reynolds number. Within each type, the formation and characteristics of the boundary layer differ.

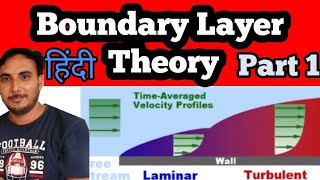

Boundary layers are categorized based on the type of flow occurring: laminar flow is smooth and orderly; transitional flow is a mix between laminar and turbulent; and turbulent flow is chaotic and mixed. The Reynolds number, a measure of inertial forces to viscous forces, helps determine these flow types. In laminar flow, the boundary layer remains thin and stable; in transition, the boundary layer begins to thicken and show instability; and in turbulent flow, the boundary layer is significantly thicker with a chaotic velocity profile. The transition between these flow types is crucial in fluid dynamics as it influences drag forces and lift production.

Think about a peaceful stream (laminar flow) flowing down a gentle slope. As you put pebbles in the stream, you'll notice some small ripples around them (transitional flow). If you throw a larger rock, the water splashes up and mixes wildly (turbulent flow). Each of these scenarios represents a different type of flow and has its own effects on the surrounding environment, similar to how different boundary layers behave in fluid flow.

The thickness of the boundary layer varies with the Reynolds number. Higher Reynolds numbers result in thinner boundary layers due to increased inertial forces.

As the flow speed increases (indicated by a higher Reynolds number), the effect of inertia increases compared to viscosity. This means that the boundary layer becomes thinner because faster-flowing fluids allow less time for viscous forces to act. In other words, as the inertia of the flow dominates, it 'pushes' through the fluid more aggressively, keeping the boundary layer narrow as it moves. For practical analysis, if you are examining a flat plate in a high-speed wind tunnel, you may notice the boundary layer thickness decreases considerably as you increase the wind speed.

Consider trying to push your hand through water versus through syrup. In water (high speed/low viscosity), your hand can move swiftly, creating a thin layer of disturbed water around it. In syrup (low speed/high viscosity), your hand meets more resistance, creating a thicker layer of disturbance. This illustrates how the speeds of the fluids affect the boundary layers.

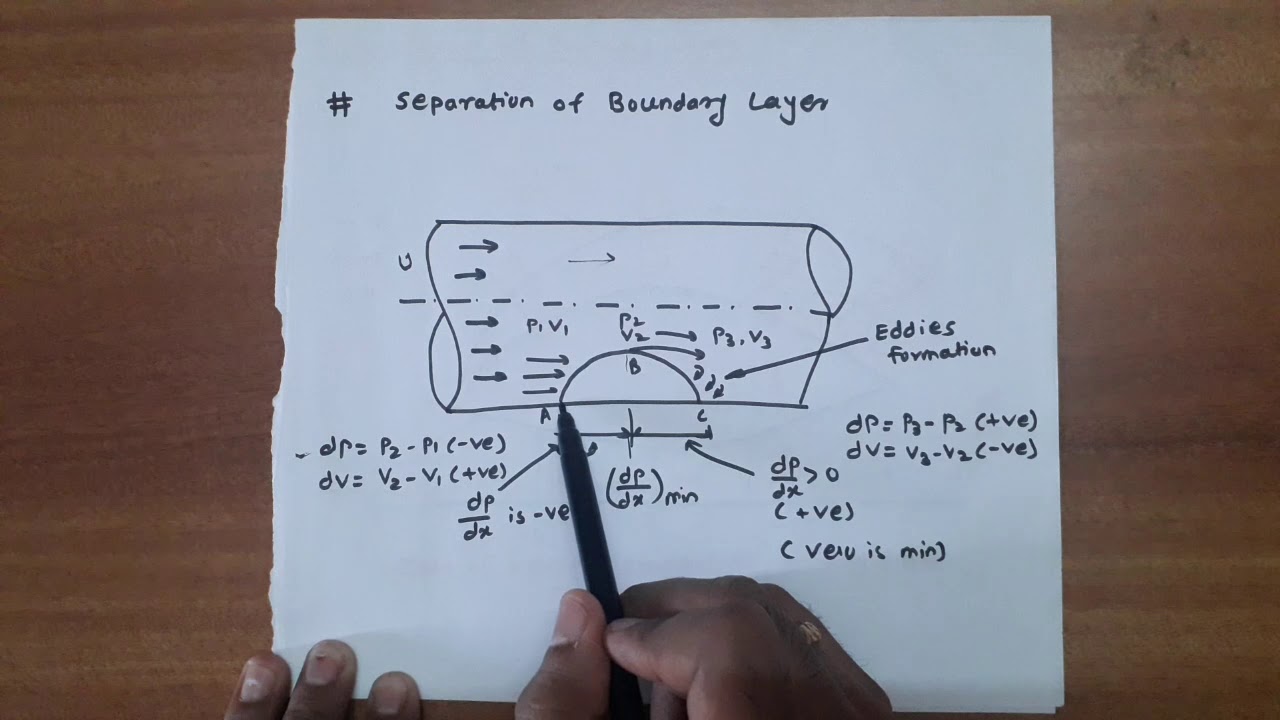

Boundary layer approximations help solve complex fluid dynamics problems by bridging Newtonian principles and Euler equations with Navier-Stokes equations in cases of flow separation and drag calculations.

Boundary layer theory simplifies the complicated Navier-Stokes equations, making it easier to predict flow behaviors, particularly for objects moving through fluids, like airfoils or car bodies. By understanding how viscous effects impact the flow immediately adjacent to surfaces, engineers can better design shapes that minimize drag and improve efficiency. This approximation allows for practical solutions to real-world engineering problems related to aerodynamics and hydrodynamics.

When designing an aircraft wing, engineers consider boundary layers to create shapes that allow for smooth airflow, reducing drag and increasing lift. Testing in wind tunnels helps refine designs by observing how different shapes affect boundary layer characteristics, leading to more efficient and faster aircraft.

--
