Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Boundary Conditions
Unlock Audio Lesson
Good morning class! Today, we'll be discussing boundary conditions in fluid mechanics. First, can anyone tell me what a boundary condition is?
Is it the conditions that define how fluid interacts with its surroundings?
Exactly! Boundary conditions dictate the behavior of fluids at the edges of flow domains. One crucial type is the no-slip boundary condition—can anyone explain what that involves?
I think it means the fluid at the boundary moves with the same velocity as the boundary.
Correct! This means that if a boundary is stationary, the fluid at that boundary has zero velocity. Let’s remember this with the acronym 'NOS' for No Slip. Can anyone help elaborate on why this is important?
It's important because it helps us understand how viscous forces work near surfaces!
Great point! So now that we've set the groundwork for boundary conditions, let's dive deeper into interface boundary conditions.
Understanding the Interface Boundary Condition
Unlock Audio Lesson
Interface boundary conditions come into play when two different fluids interact, like air and water. Who can explain what happens at this interface?
The velocities of both fluids must match at the interface, right?
Correct! Not just that; their shear stresses must also be equal. This balance helps in defining how forces are transmitted across the boundary. Can anyone think of a practical example of this?
How about the flow of water flowing over a river's surface where the air is above?
Exactly! In this scenario, the water’s velocity at the air-water interface is crucial, as it impacts both fluid dynamics and potential energy calculations. Remember, this can be summarized as 'V_A = V_B' at the interface—let’s keep that in our notes.
So, it's vital for predicting trends in flow and pressure, right?
Absolutely! Now, let’s transition to how these boundary conditions help us simplify the Navier-Stokes equations.
Simplifying the Navier-Stokes Equations
Unlock Audio Lesson
To reduce complexities in fluid flow equations, we can simplify Navier-Stokes under certain assumptions. What is one of the key simplifications we often encounter?
I know! It’s when we assume that viscosity is negligible, leading us to the Euler equations.
Exactly! Under those circumstances, we often neglect viscous terms and focus solely on pressure and gravity forces. This is a great way to handle simpler flows. What happens to the flow regime if viscosity becomes significant, though?
Then we would revert to the full Navier-Stokes equations, since viscosity plays a larger role!
Correct! And that brings us back to our boundary conditions, as they allow us to predict the flow’s behavior accurately. Let's recap—who can summarize what we learned today?
Boundary conditions define how fluids act at their edges, and they are crucial for simplifying equations in fluid mechanics!
Fantastic summary! Remember, these concepts form the backbone of fluid dynamics as we move forward.
Real-Life Applications of Boundary Conditions
Unlock Audio Lesson
Let’s discuss a real-world example—how do boundary conditions affect blood flow in arteries?
In arteries, the no-slip condition means blood flow is influenced heavily by the walls.
Correct! And any blockages could significantly alter the flow pattern due to these conditions. What about other scenarios, like rivers flowing past a bridge? How are boundary conditions applied there?
The bridge constrains the flow, and the flow characteristics change due to the no-slip and interface conditions applied at the riverbed and surface.
Excellent! Contextualizing these concepts helps solidify our learning. So as we wrap-up today's discussion, remember that boundary conditions are not just theoretical constructs; they're pivotal in practical applications of fluid mechanics.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section discusses various boundary conditions that define the behavior of fluids at their boundaries, such as no-slip and interface conditions. It explains how these conditions affect the Navier-Stokes equations and introduces the Euler equations as simplifications of the Navier-Stokes equations under specific assumptions.
Detailed
Detailed Summary
In fluid mechanics, understanding boundary conditions is essential for solving the Navier-Stokes equations. This section outlines key boundary conditions that influence fluid flow, including:
- No-slip Boundary Condition: Under this condition, the fluid velocity at a solid boundary is equal to the velocity of the boundary itself, generally leading to zero velocities of fluid particles on the wall for stationary boundaries. This concept helps define the behavior of viscous layers near surfaces.
- Interface Boundary Conditions: When two different fluids meet (e.g., air and water), their velocities at the interface must match and their shear stresses must also balance each other.
- Simplification and Assumptions: The section emphasizes the significance of various simplifications when applying the Navier-Stokes equations, particularly giving rise to the Euler equations in scenarios where viscosity is negligible.
- Practical Examples: Real-world contexts such as artery flow and tide energy illustrate how these equations and boundary conditions govern flow behavior in both symmetric and asymmetric scenarios.
The section concludes by stressing the importance of identifying suitable boundary conditions to simplify complex equations for practical applications.
Youtube Videos

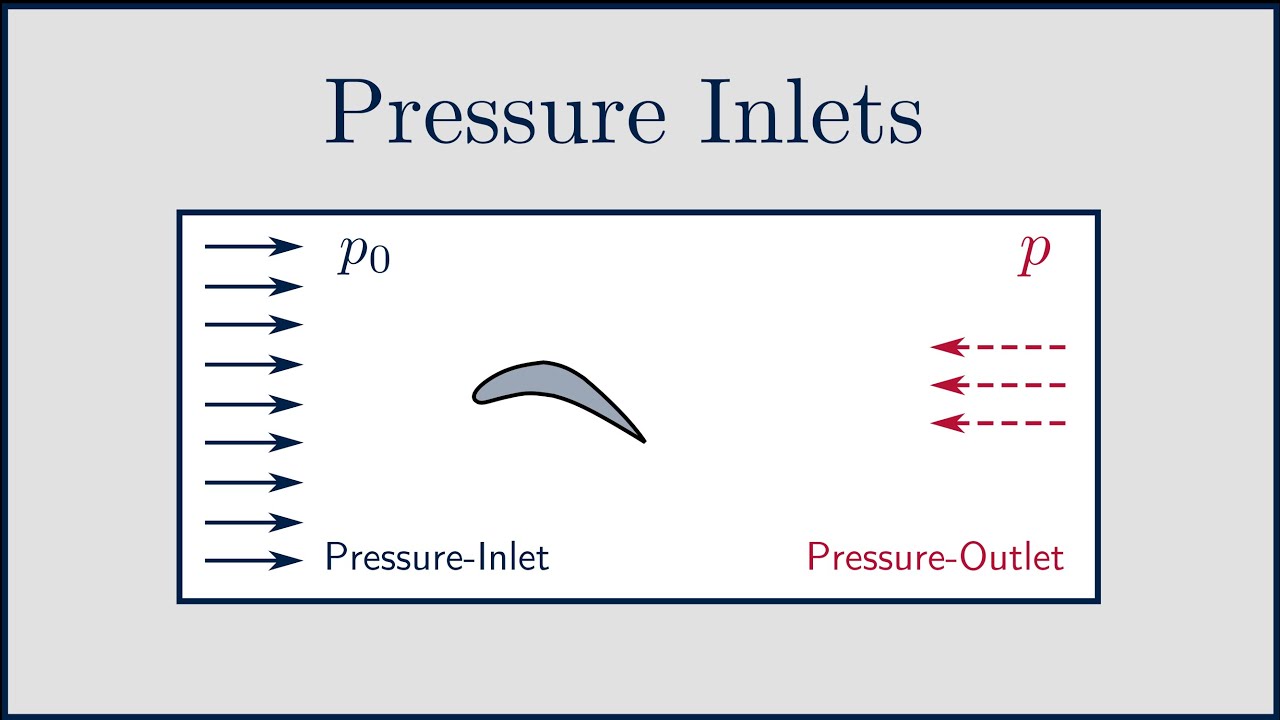

![[CFD] Pressure-Inlet Boundary Conditions](https://img.youtube.com/vi/Er2j5Kq17as/mqdefault.jpg)
![[Fluid Dynamics: Boundary layer theory] Turbulent Boundary Layer](https://img.youtube.com/vi/3NV5n2bUu0g/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
No Slip Boundary Condition
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Let me introduce the no slip boundary conditions. This is the basic properties of the fluid flow. That means if a fluid is moving, the velocity of V, the fluid attached to these also will be moving the fluid particles attached to this, the fluid particles this fluid V_f and another ones moving with V_m. So, both because no slip conditions both has to move it the same velocity.
Detailed Explanation
The no slip boundary condition is a fundamental concept in fluid mechanics that states that a fluid in contact with a solid boundary (like a plate) will have a velocity equal to that of the boundary at the very point of contact. This means if a plate is stationary, the fluid right next to it (the layer of fluid in contact with the plate) will also have zero velocity. Imagine running your hand over a table; the part of your hand in contact with the table does not slide, which is analogous to how fluid molecules stick to the surface of the solid due to viscosity.
Examples & Analogies
Think of a row of kids holding hands on a slippery slide. The kid at the top (the solid boundary or the edge of the slide) is stationary, and the kids below are sliding down. The first kid in contact with the slide doesn’t slide down but holds onto the slide, similar to how the first layer of fluid holds onto the surface. They are stationary relative to the slide, illustrating the no slip condition.
Interface Boundary Conditions
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now if you come to very basic things as we always look at the interface between the air and waters. In that case, if I look at u_water should be equal to u_air. That means at the interfaces levels I will get it the velocity of water is equal to velocity of air at the three surface levels. Also, I will get it the shear stress working on waters that is what will be shear stress working on air that should be.
Detailed Explanation
Interface boundary conditions describe the behavior of fluids at the boundary between them, such as between water and air. The velocities of the two fluids at the interface must match; otherwise, there would be discontinuity in flow. Additionally, the shear stress acting on either side of the interface should also be equal. This means that if one fluid flows faster, it would affect the other fluid's velocity to maintain equilibrium at their shared boundary.
Examples & Analogies
Imagine a swimming pool where water (liquid) meets the air above it. When someone splashes into the pool, the velocity of water right at the surface (the interface) must adjust so it can slip into the air smoothly. The faster-moving water at the surface affects the layer of air just above it; both surfaces need to equilibrate to prevent turbulence. Just like how a calm lake's surface gently meets the air, showing how velocities align at the boundary.
Symmetric and Asymmetric Flow Conditions
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
If I have a symmetric problems, instead of solving total problems, we just solve this part subjecting the boundary conditions of v equal to 0 and the gradient of u in the y direction becomes 0.
Detailed Explanation
Symmetric flow conditions allow for simplifications in fluid analysis; essentially, they enable us to solve complex problems in a simpler way. If a flow is symmetric with respect to a certain axis, the flow velocity in the direction normal to that axis (like 'v' in this context) will be zero at that axis. In such cases, we can also set the gradient of the velocity in the perpendicular direction to the axis of symmetry to zero, which can significantly reduce the complexity of the equations required to describe the flow.
Examples & Analogies
Consider a seesaw where both sides are perfectly balanced. Just as the seesaw does not tilt (which would represent an imbalance something akin to asymmetric flow), the fluid behaves similarly at points of symmetry. If both fluids (or fluid flows) strike an object, like water entering a pipe, their forces distribute evenly (symmetric), making calculations simpler due to consistent behavior at both sides. Thus, we only need to analyze half of the seesaw to understand the whole system.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Boundary Conditions: Critical conditions that affect fluid behavior.
-
No-slip Condition: Fluid velocity equals the boundary's velocity.
-
Interface Condition: Conditions at the boundary between two different fluids.
-
Simplification of Equations: The process of reducing complex equations under assumptions.
-
Euler Equations: Equations representing fluid flow under certain neglect of viscous forces.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Blood flow in arteries demonstrating no-slip boundary condition as it adheres to arterial walls.
-
Flow of water past a bridge, where constraints impact velocity distribution.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
No slip means no slide, fluid and wall must coincide.
📖 Fascinating Stories
-
Imagine two students racing—the one touching the wall must move at the same speed as the wall, illustrating the no-slip condition.
🧠 Other Memory Gems
-
NICE for boundary conditions: No-slip, Interface, Continuity, Equilibrium.
🎯 Super Acronyms
BLADE
- Boundary conditions Limit the Acceleration
- Density
- and Energy in fluids.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Boundary Condition
Definition:
Conditions that dictate the behavior of a fluid at its boundaries.
-
Term: Noslip Boundary Condition
Definition:
A condition stating that fluid in contact with a solid boundary moves with the boundary's velocity.
-
Term: Interface Condition
Definition:
Conditions that must be satisfied at the interface between two different fluids.
-
Term: Euler Equations
Definition:
Simplified fluid equations derived from Navier-Stokes equations assuming negligible viscosity.
-
Term: NavierStokes Equations
Definition:
Fundamental equations governing the motion of fluid substances.
