9.7 - Short Circuit and Overloading

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Understanding Short Circuits

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today we're discussing short circuits. A short circuit occurs when the live wire touches the neutral wire directly, resulting in an uncontrolled flow of electricity.

Student 1
Student 1

So, what happens when that happens? Is it really dangerous?

Teacher
Teacher

Absolutely! This can cause a very large current to flow, which can result in overheating and even fires.

Student 2
Student 2

How can we identify a short circuit?

Teacher
Teacher

Good question! Signs include unusual burning smells, tripped circuit breakers, or smoke. Remember the acronym 'S.A.F.E': Signs, Avoid, Fire risk, Emergency action.

Student 3
Student 3

What action should we take in case of a short circuit?

Teacher
Teacher

Quickly turn off the power at the main switch and contact a qualified electrician. Always prioritize safety!

Student 4
Student 4

Can short circuits damage appliances?

Teacher
Teacher

Yes, they can! Appliances may be damaged due to the high current flow. Remember: 'Preventing short circuits is a priority!'

Exploring Overloading

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now let's talk about overloading. This occurs when too many high-power devices are plugged into one circuit.

Student 2
Student 2

Is that the reason why my lights flicker sometimes?

Teacher
Teacher

Exactly! Flickering lights can be a sign that the circuit is overloaded. It indicates that the current is exceeding the circuit's capacity.

Student 1
Student 1

What happens if we keep overloading it?

Teacher
Teacher

Over time, it can cause overheating, insulation failure, and ultimately, a fire. A useful mnemonic to remember is 'A.C.E.' – Avoid Circuit Overloading.

Student 3
Student 3

How can we prevent overloads in our home?

Teacher
Teacher

By distributing high-power appliances across different circuits and using devices with proper ratings. Always check wattage!

Student 4
Student 4

What should we do if an overload happens?

Teacher
Teacher

Turn off appliances, unplug them, and reset the circuit breaker if needed. Safety should always come first!

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section discusses short circuits and overloads, examining their causes and potential hazards.

Standard

Short circuits occur when live and neutral wires touch, causing a surge in current that can lead to overheating and fire. Overloading happens when excessive high-power appliances are connected to a single circuit, increasing current beyond safe limits.

Detailed

Short Circuit and Overloading

In this section, we explore two critical safety concerns in household circuits: short circuits and overloads.

Short Circuit

A short circuit occurs when the live wire and neutral wire come in direct contact, bypassing the normal load. This results in a sudden spike in current, potentially leading to severe overheating and fires. The features and evidence of a short circuit include:
- Direct Contact: Live and neutral wires touching.
- Large Current Flow: Since there is no load to limit current, it can increase dramatically.
- Risks: This situation can cause severe damage to electrical appliances and may endanger lives due to fire risks.

Overloading

Overloading refers to the situation where multiple high-power appliances are used on a single circuit, drawing more current than the circuit can safely handle. This excess can cause the wires to heat up, which may lead to:
- Overheating: If the wires become too hot, the insulation could melt, leading to further safety hazards.
- Circuit Failure: Overloaded circuits may trip circuit breakers or blow fuses as safety measures.

Understanding these risks is crucial for maintaining safe electrical practices in the household.

Youtube Videos

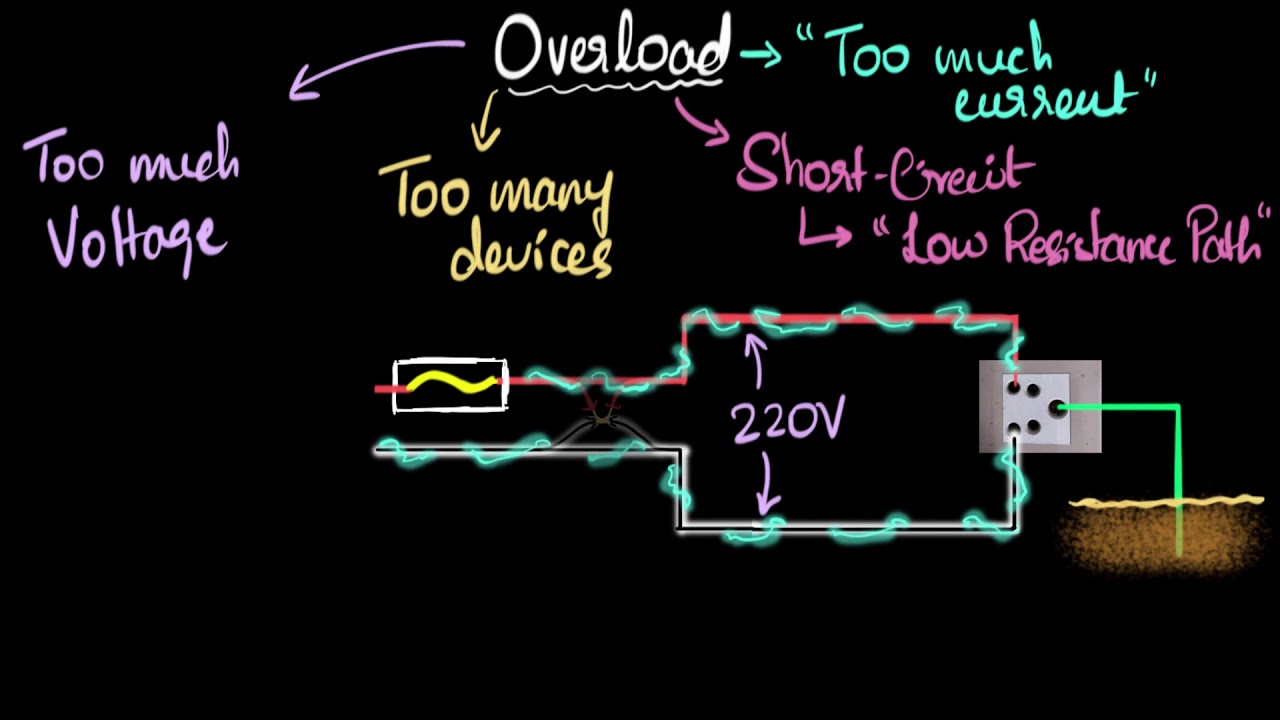

Overload & short circuit: Domestic circuits (Part 3) | Physics | Khan Academy
Overload & short circuit: Domestic circuits (Part 3) | Physics | Khan Academy
Household Circuits One Shot | ICSE Class 10 | ICSE Physics 2025 | @sirtarunrupani
Household Circuits One Shot | ICSE Class 10 | ICSE Physics 2025 | @sirtarunrupani
Household Circuits | Electricity and Magnetism Class 10 ICSE | @sirtarunrupani
Household Circuits | Electricity and Magnetism Class 10 ICSE | @sirtarunrupani
HOUSEHOLD CIRCUITS (10th std. ICSE Physics ch. 9)
HOUSEHOLD CIRCUITS (10th std. ICSE Physics ch. 9)
Domestic Electric Circuit Class 10
Domestic Electric Circuit Class 10
Household Circuits I CSE Class 10 One Shot | 2024-2025 | Notes | Physics Chapter 9
Household Circuits I CSE Class 10 One Shot | 2024-2025 | Notes | Physics Chapter 9
Physics Chapter 9 Household Circuits One Shot - in 14 Minutes || ICSE Class 10 || ICSE Physics
Physics Chapter 9 Household Circuits One Shot - in 14 Minutes || ICSE Class 10 || ICSE Physics
HoUseHoLd Electricity | Domestic Electric Circuit | Ring System etc| Class 10 ICSE CBSE
HoUseHoLd Electricity | Domestic Electric Circuit | Ring System etc| Class 10 ICSE CBSE
Household Circuits Class 10 ICSE Physics |Selina Chapter 9 | House Wiring System
Household Circuits Class 10 ICSE Physics |Selina Chapter 9 | House Wiring System
How to Solve any Electric Circuit in 5 Minutes | Short Tricks for Class 10th | Prashant Kirad
How to Solve any Electric Circuit in 5 Minutes | Short Tricks for Class 10th | Prashant Kirad

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Short Circuit

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

● Happens when live and neutral wires touch directly, allowing large current to flow.
● Can cause overheating and fire.

Detailed Explanation

A short circuit occurs when the live wire and the neutral wire accidentally come into contact with each other. This connection allows a much larger current to pass through the wires than what they are designed to handle. The result of this increased current flow can cause the wires to overheat, potentially leading to fires. It is a serious safety hazard because it can happen without warning and can cause significant damage to electrical appliances and property.

Examples & Analogies

Imagine if two water pipes in a house were connected directly, causing an uncontrollable flood. Just like the water would overflow and create chaos in your home, when live and neutral wires touch, the electrical current surges and can create dangerous situations like overheating or fires.

Overloading

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

● Occurs when too many high-power appliances are used on a single circuit.
● Increases current beyond safe limit, causing wires to heat.

Detailed Explanation

Overloading happens when too many appliances that require significant power are used on one electrical circuit at the same time. Each circuit has a limit to how much current it can carry safely. When this limit is exceeded, the wires get hot, which poses a risk of melting the insulation around them or even starting a fire due to excessive heat. It's essential to distribute high-power appliances across different circuits to prevent overloading.

Examples & Analogies

Think of a highway with a specific speed limit. If too many cars (appliances) try to use the road (circuit) at once, it can create a traffic jam (overload) that makes it unsafe. Just as traffic jams can lead to accidents, overloading can lead to dangerous heating and damage to electrical systems. It is important to manage appliance use to avoid these overload situations.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Short Circuit: Occurs when live and neutral wires make direct contact, leading to dangerous current surges.

  • Overloading: Situation arising when a circuit is used for excessive high-power appliances, causing overheating.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • Example of a short circuit: A wire becomes frayed and touches another wire, causing sparks and potential fire hazards.

  • Example of overloading: Running a microwave, toaster, and kettle simultaneously on the same circuit.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • In a circuit where wires might touch, beware, fires will cause such a fuss!

📖 Fascinating Stories

  • Once there was a circuit that was too crowded with appliances. Everything was running hot, and when a wire touched another, it sparked a fire! Now everyone knows to give circuits space and check their power ratings.

🧠 Other Memory Gems

  • S.O.S. – Short Circuit and Overloading Safety: Spot it, Observe it, and Secure the area!

🎯 Super Acronyms

P.A.S. – Preventing Overloading and Short Circuits

  • Plan your circuit usage
  • Assess your appliances
  • and Stay safe!

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Short Circuit

    Definition:

    A fault that occurs when the live wire contacts the neutral wire directly, causing a rapid increase in current.

  • Term: Overloading

    Definition:

    The situation that arises when too many high-power appliances are used on a single circuit, leading to excessive current flow.

  • Term: Circuit Breaker

    Definition:

    An automatic device that cuts off the electrical supply if the current exceeds a certain level.
