32.8. Orthogonal Basis (for Symmetric Matrices)
Learn content
Interactive Audio Lesson
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Today, we’ll explore symmetric matrices and their eigenvalues, which have some interesting properties. Can anyone tell me what symmetric matrices are?
A symmetric matrix is equal to its transpose, right?
Exactly! For example, if A is a symmetric matrix, then A equals A transpose. Let's discuss why this property is significant. What do you think happens to the eigenvalues of symmetric matrices?
Do they have to be real numbers?
Correct! The Spectral Theorem tells us that all eigenvalues of a symmetric matrix are real. This is an important characteristic that sets them apart from non-symmetric matrices.
What about the eigenvectors? Do they have any special properties?
Great question! Eigenvectors corresponding to distinct eigenvalues are orthogonal to each other, meaning their dot product equals zero. This leads us to the ability to form orthonormal bases from these eigenvectors.
What’s an orthonormal basis?
An orthonormal basis consists of eigenvectors that are not only orthogonal but also unit vectors. Let’s remember this with the acronym 'O-U-R': Ortho for Orthogonal, U for Unit, and R for Basis!
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Now that we understand orthonormal basis, why do you think it's important in engineering, particularly in analyzing structures?
Maybe it simplifies calculations?
Exactly! An orthonormal basis allows us to perform projections more efficiently, which simplifies many forms of analysis we do in civil engineering.
Can you give an example of where we use this in structural engineering?
Certainly! In modal analysis of structures, each mode shape is represented by eigenvectors which are orthogonal. This allows us to decouple complex systems into simpler parts, making it far easier to analyze vibrational behaviors.
What happens if the eigenvectors aren't orthogonal?
Good point! If the eigenvectors aren't orthogonal, our calculations can get complicated since overlaps in information might occur, making it hard to separate individual modes.
So, we need orthogonal bases for clarity and simplicity?
Precisely! We want to ensure our analyses are as straightforward and clear as possible, and using orthogonal eigenvectors certainly helps with that.
Overview
Short Summary
This section explains that symmetric matrices have real eigenvalues, and eigenvectors corresponding to distinct eigenvalues are orthogonal to each other, allowing the formation of an orthonormal basis.
Medium Summary
In the context of symmetric matrices, the Spectral Theorem states that all eigenvalues are real, and eigenvectors corresponding to different eigenvalues are orthogonal. This property enables the construction of an orthonormal basis, simplifying computations such as projections and analyses in engineering applications.
Detailed Summary
Orthogonal Basis for Symmetric Matrices
In linear algebra, symmetric matrices hold a special significance due to properties that simplify the analysis of systems. According to the Spectral Theorem, for any symmetric matrix A:
- All eigenvalues are guaranteed to be real.
- Eigenvectors associated with distinct eigenvalues are orthogonal to each other.
This orthogonality means that, when these eigenvectors are normalized (made unit length), they can form an orthonormal basis for the space they span. This will greatly simplify applications in various fields, especially in civil engineering across processes such as projections, decompositions, and Principal Component Analysis (PCA). The ability to easily form an orthonormal basis is particularly useful in analyzing the modes of structural systems, allowing engineers to focus on independent directions of vibration.

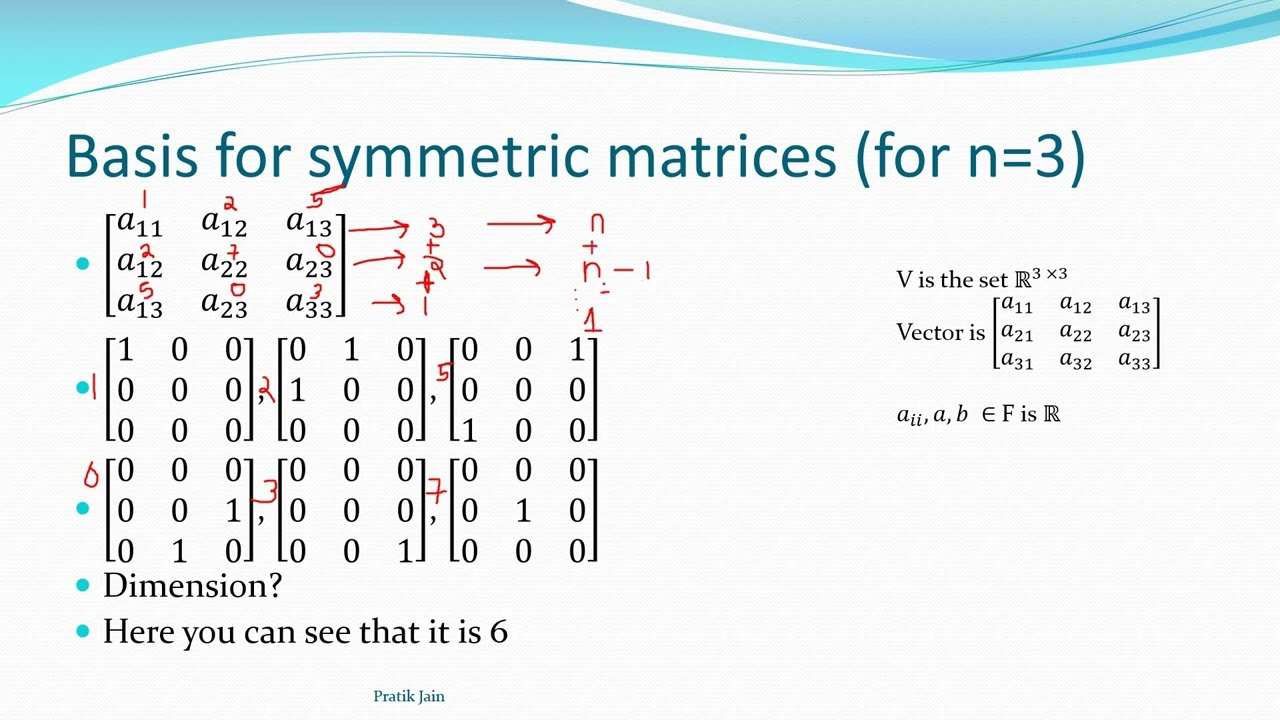

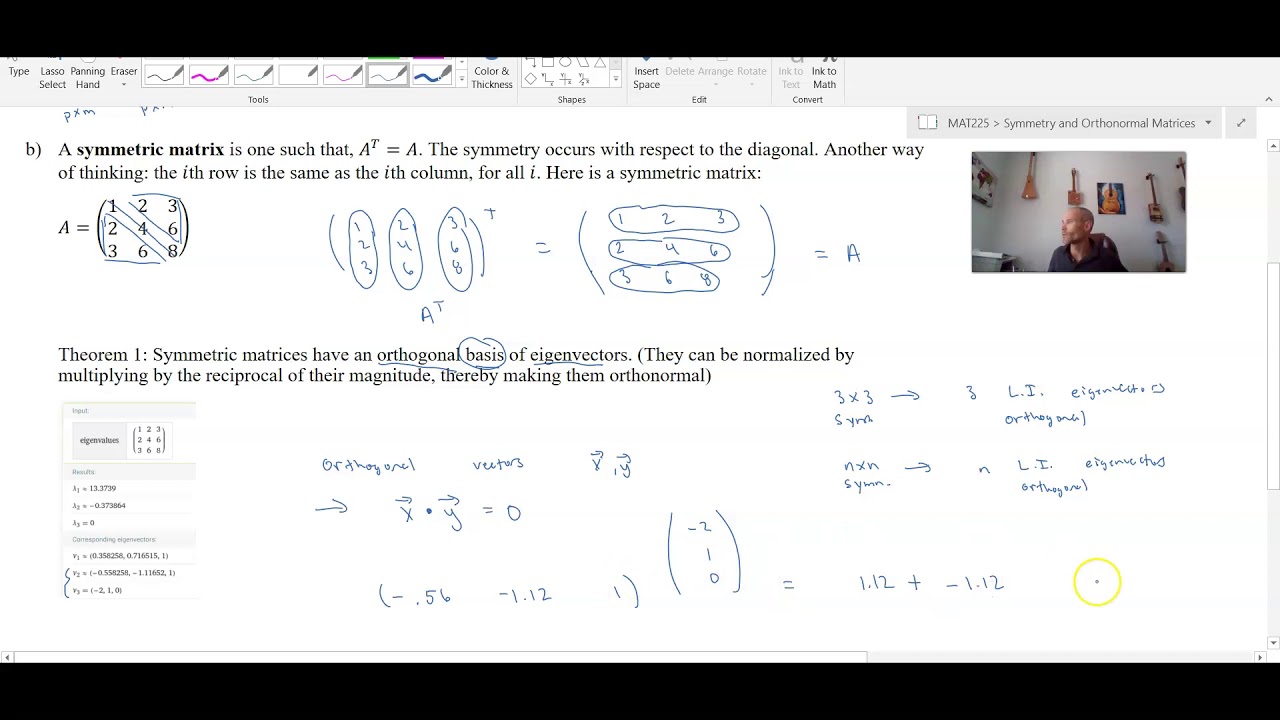

Reference YouTube Videos
Audio Book
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountFor symmetric matrices, the Spectral Theorem states:
- All eigenvalues are real
- Eigenvectors corresponding to distinct eigenvalues are orthogonal
Detailed Explanation
The Spectral Theorem is a crucial result in linear algebra that applies specifically to symmetric matrices. It tells us that:
- The eigenvalues of a symmetric matrix are all real numbers, which is significant because real eigenvalues indicate stable behavior in various applications, such as structural engineering.
- The eigenvectors that arise from these eigenvalues, when they are distinct, are orthogonal to each other. This means that if we take two different eigenvectors from the matrix, they will be at right angles to each other in the vector space, which is a key property used in many calculations and interpretations.
Understanding these points not only helps in theoretical aspects but also simplifies practical applications, making computations easier.
Examples & Analogies
Think of eigenvalues as the 'magnitude' of forces acting on a bridge, while eigenvectors represent the 'directions' those forces act in. In bridge design, having real eigenvalues ensures that the structure will remain stable, and having orthogonal eigenvectors means that different forces (like wind and weight) will not interfere with each other, allowing engineers to analyze the effects of these forces independently.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountThus, for symmetric matrices A:
- One can form an orthonormal basis from the eigenvectors.
- This basis simplifies projections, decompositions, and principal component analysis (PCA) in structural engineering.
Detailed Explanation
An orthonormal basis is created from the eigenvectors of a symmetric matrix. This basis has two important properties:
- Orthogonality: Each vector is perpendicular to the others, which means they do not overlap in direction. This property greatly simplifies mathematical operations, such as calculations involving projections (falling objects or structures onto planes).
- Normalization: Each eigenvector is scaled to have a length of 1, which is necessary for performing calculations like projections accurately. When vectors are unit vectors, it simplifies the mathematics significantly. This orthonormal basis plays a key role in many engineering applications, especially in techniques like Principal Component Analysis (PCA), which is used extensively in data analysis and compression.
Examples & Analogies
Imagine trying to understand a complicated map of a city. If some streets (directions) are busy (overlapping paths), it becomes hard to navigate. But if we can separate out the different routes (eigenvectors) and make sure each is straightforward (orthogonal and normalized), it simplifies how we analyze the path options in the city, making it much easier to find the best route from point A to point B.
--
Key concepts
Core takeaways and short definitions to help you quickly recall the key ideas from this section.
- Symmetric Matrices:
Have real eigenvalues and orthogonal eigenvectors.
- Orthogonal Eigenvectors:
Eigenvectors corresponding to distinct eigenvalues are perpendicular to each other.
- Orthonormal Basis:
A set of orthogonal eigenvectors that are also unit vectors.
Examples
Step-by-step examples to apply the section's ideas and test your understanding.
In a modal analysis of a beam, the eigenvectors representing the natural modes of vibration will be orthogonal and their corresponding eigenvalues provide the frequencies of these vibrations.
When analyzing a truss structure, each eigenvector represents a mode of deflection, and the orthogonal nature simplifies the calculations needed for stability analysis.
Memory aids
Imagine a team of architects working on a bridge, each team member represents an eigenvector. Their distinct skills (eigenvalues) are complementary; working together (orthogonally) brings balance, making the bridge stable and safe.
Flash Cards
Glossary
Orthogonal Matrix
A square matrix whose rows and columns are orthogonal unit vectors.
Eigenvalues
Special numbers associated with a matrix that provide insights into its properties, especially in relation to eigenvectors.
Orthonormal Basis
A set of vectors that are orthogonal to each other and each vector has a unit length.
