Introduction to the 2D Fourier Transform
Unlock Audio Lesson
Today, we’re discussing the 2D Fourier Transform. This concept is crucial for analyzing functions that depend on two variables. Can anyone tell me why we would want to extend Fourier analysis to two dimensions?
Maybe because many real-world phenomena depend on two or more variables, like images?
Exactly! In image processing, for example, each pixel can be represented as a function of two spatial coordinates. The 2D Fourier Transform helps us analyze this spatial data in the frequency domain. Let's look at the transformation formula together.
Could you explain what it means to transform from the spatial to the frequency domain?
Sure! When we apply the 2D Fourier Transform, we convert our spatial data into frequencies, allowing us to analyze and manipulate properties like edges or patterns within an image more effectively.
Applications of the 2D Fourier Transform
Unlock Audio Lesson
Now, let’s discuss where we can apply the 2D Fourier Transform in civil engineering. Can anyone think of any applications?
How about analyzing soil mechanics or wave propagation?
Yes! Soil mechanics often involves studying wave behavior in different types of soil, which can be modeled using the 2D Fourier Transform. This technique enhances our understanding of how waves propagate through various media.
What about image processing with drone or satellite images?
Absolutely! The 2D Fourier Transform is essential in processing such images, enabling improved analysis of terrain or structures. It’s fascinating how math helps inform these engineering applications, isn’t it?
Inverse 2D Fourier Transform
Unlock Audio Lesson
Now, let’s talk about the Inverse 2D Fourier Transform. Why do you think it's essential to understand this concept?
Because we need to retrieve our original data after analyzing it in the frequency domain?
Exactly right! The Inverse helps us reconstruct the spatial function from its frequency representation. The formula adds an important layer to our understanding.
So after applying the 2D Fourier Transform, we can go back to our original function using the inverse, right?
Correct! And this two-way street of transformation allows us to both analyze and reconstruct data as needed, showcasing the power of Fourier analysis.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The 2D Fourier Transform extends Fourier analysis to two-dimensional functions, allowing for transformation of spatial data into the frequency domain. This is particularly advantageous in applications such as civil engineering, where it aids in image processing and soil mechanics.
Detailed
The Fourier Transform in Two Dimensions (2D Fourier Transform) allows us to analyze functions defined in two spatial variables (x, y) by transforming them into the frequency domain represented by variables (u, v). The transformation is defined as:
$$ F(u, v) = ext{$$ ext{ extbf{F}}$$} igg[ f(x, y) e^{-i(ux + vy)} dx dy $$ ext{(integrated over the entire x, y plane)}$$ $$ ext{(1)}$$
To retrieve the original spatial function, the Inverse 2D Fourier Transform is applied:
$$ f(x, y) = rac{1}{4 ext{π}^2} ext{$$ ext{ extbf{F}}$$} igg[ F(u, v) e^{i(ux + vy)} dudv $$ ext{(integrated through u and v)}$$.$$ ext{(2)}$$
This concept plays a vital role in engineering, specifically in image processing, such as improving satellite or drone images, and in studying wave propagation in civil engineering applications. Understanding the intricacies of the 2D Fourier Transform can enhance analytical techniques and facilitate deeper investigations into multi-dimensional datasets.
Youtube Videos

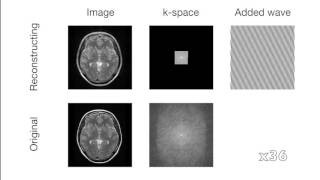

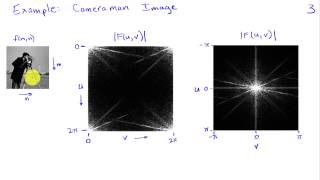

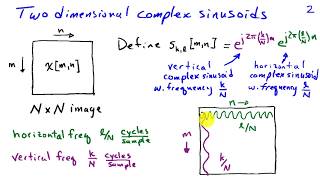

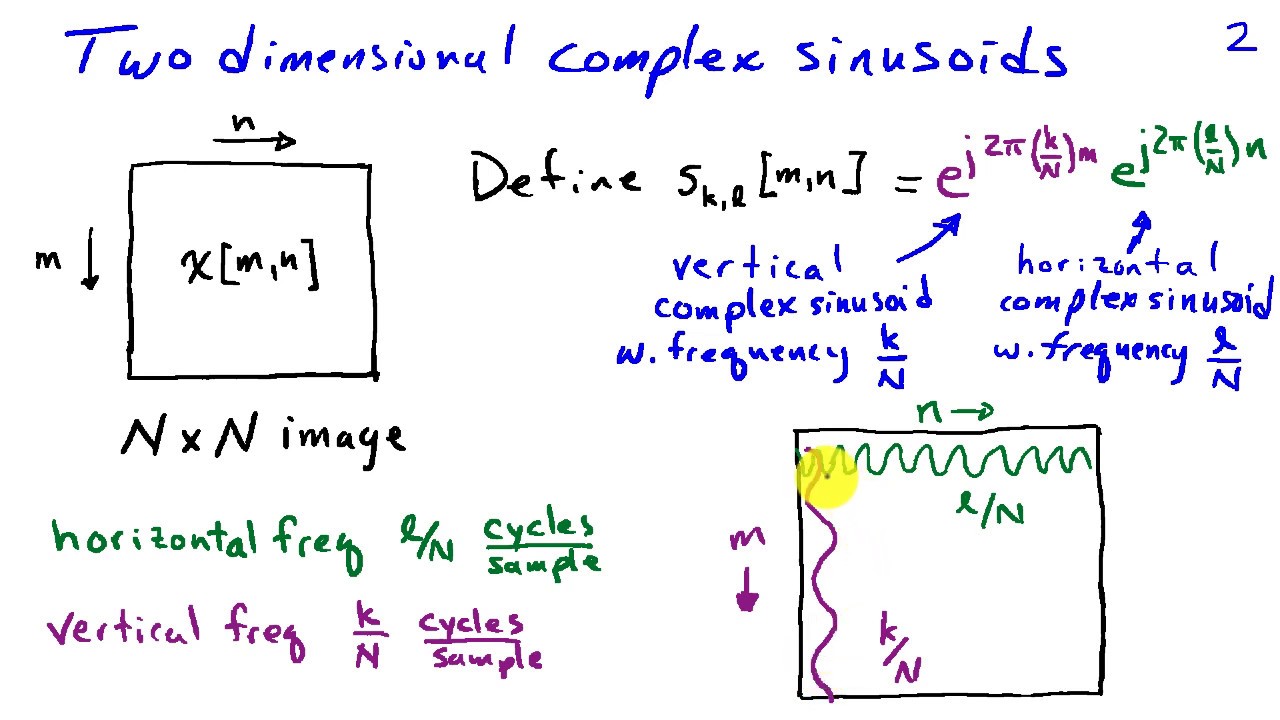

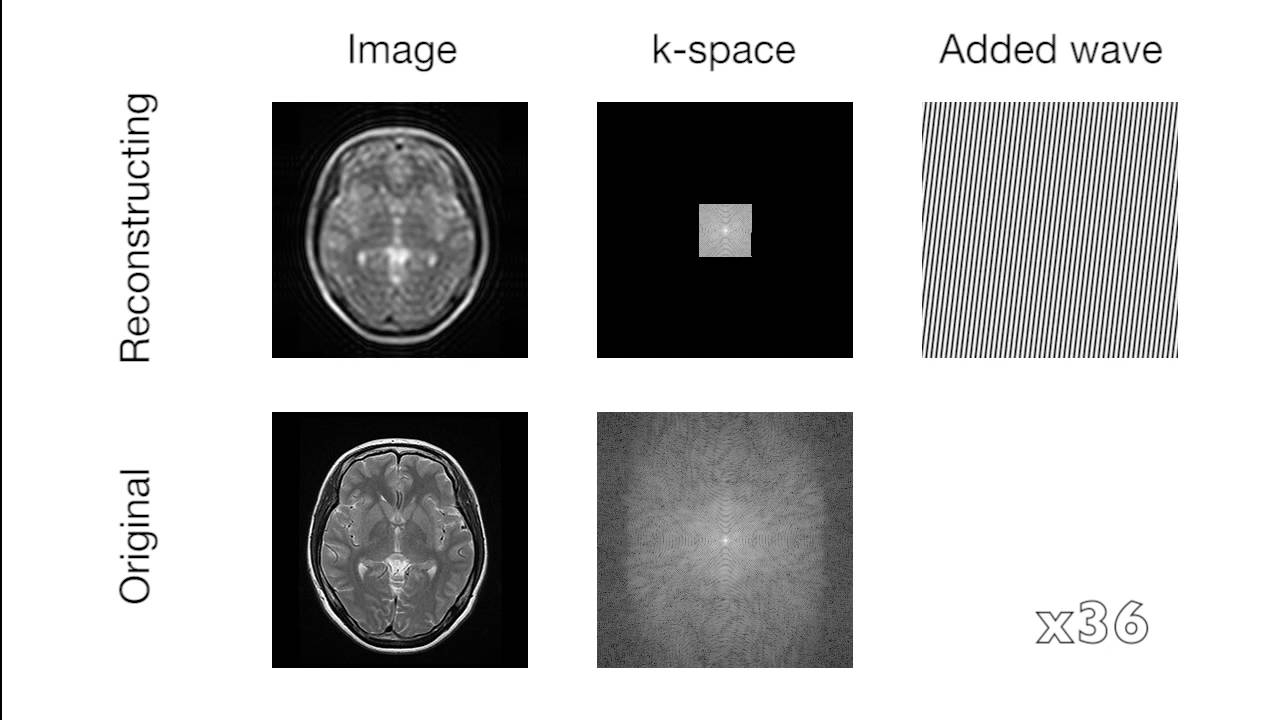

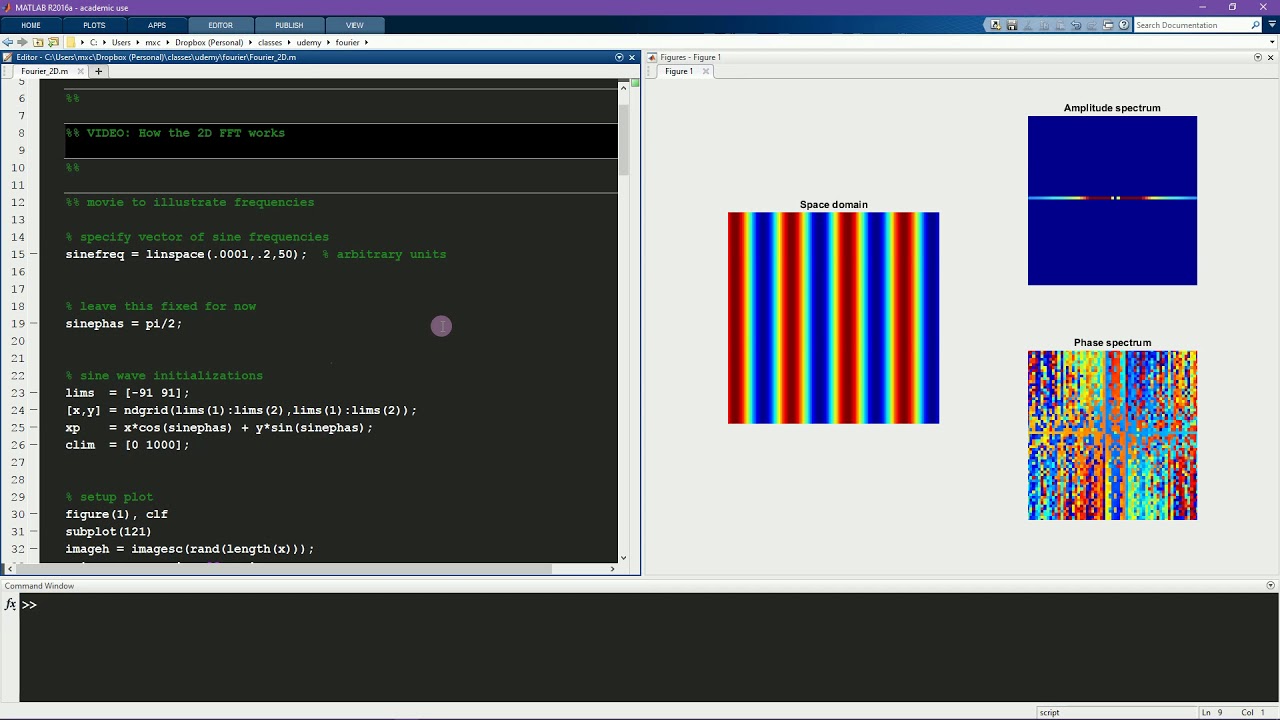

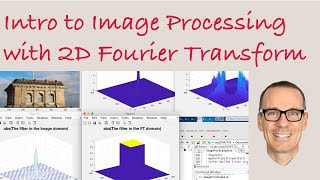

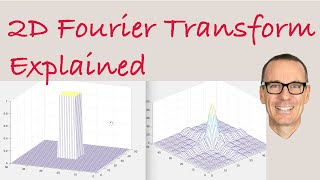

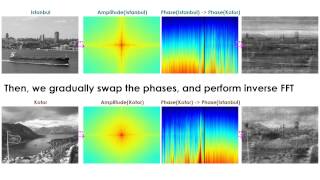

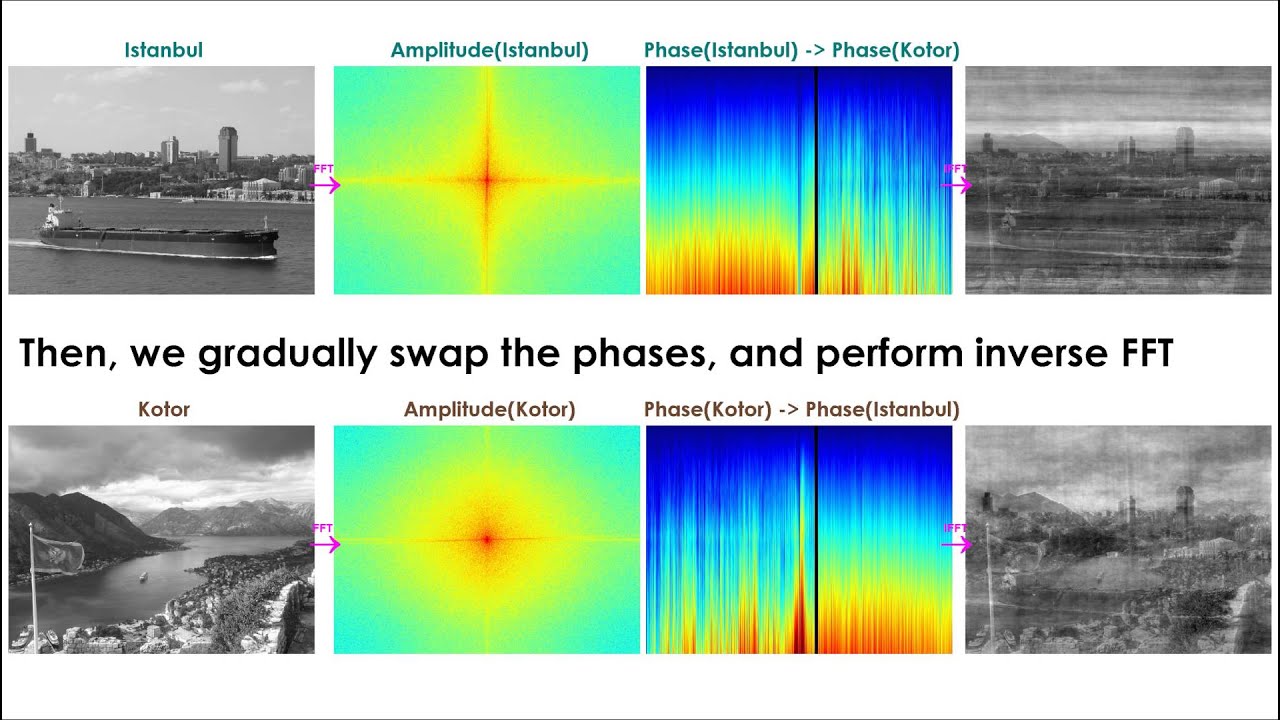

![Impact of Phase on Imaging [2D Fourier Transform (FFT) Animation]](https://img.youtube.com/vi/G9ZCWSyLvYY/mqdefault.jpg)
