Conventional Bitumen (Penetration Grade Bitumen)
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Conventional Bitumen
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we'll talk about conventional bitumen, also known as penetration grade bitumen. Can anyone tell me what you think this type of bitumen is?
Is it just a type of asphalt used in roads?
Great start! Yes, it's a vital binding material in road construction. It's called 'conventional' because it follows a particular grading system based on a measurement called penetration. Can anyone guess what penetration means here?
Is it how deep something can go?
Exactly! The penetration value measures how soft or hard the bitumen is. For example, a value of 60/70 means it has a certain hardness suitable for various conditions.
So, if it’s softer, is that better for cold weather?
Correct! Softer grades work better in cold climates because they remain more flexible. Let's remember this concept with the mnemonic 'Pen for Temperature - Soft in Cold, Hard in Warm.'
To wrap up, conventional bitumen plays a key role in maintaining the integrity of roads through smart selections based on penetration values. It all comes down to understanding how these values interact with temperature and traffic loads.
Significance of Penetration Values
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Moving on, let’s discuss the significance of the penetration values like 30/40, 60/70, and 80/100. Can someone tell me what these numbers represent?
Are they levels of hardness?
That's right! The numbers represent the penetration depth in tenths of a millimeter under specific conditions. The higher the first number, the harder the bitumen. Why do we care about hardness?
It probably affects how the road holds up under traffic?
Exactly! Harder bitumen resists deformation and is better for high-traffic roads while softer bitumen adapts more easily to temperature changes.
Can we use a harder grade in cold weather then?
Not recommended. A harder grade may crack under very cold conditions. Remember, 'Choose Soft for Cold, Hard for Heat!' as a guiding phrase. Let’s summarize by noting that penetration values are critical for matching binder types with environmental conditions.
Practical Applications of Penetration Grade Bitumen
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let's talk about the practical applications of conventional bitumen. Why do you think knowing the penetration grade is essential for engineers?
So they can choose the right kind of bitumen for pavement?
Absolutely! Selecting the right type of bitumen ensures the performance and durability of the road surface over time. What grade would you choose for a highway in a hot climate?
Probably a higher penetration value to handle the heat?
Correct! A higher penetration grade can handle the high temperatures and heavy traffic load. Let’s remember: 'High Traffic, High Value!' Lastly, what’s one thing we take away from our discussions today?
That penetration grades are critical for effective road design!
Exactly! Always consider penetration grades when designing and selecting bitumen for roads.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
This section discusses conventional bitumen, specifically penetration grade bitumen, characterized by specific penetration values like 30/40, 60/70, and 80/100. The penetration value is a key metric indicating the hardness or softness of the binder, which is essential for road construction and performance under varying conditions.
Detailed
Conventional Bitumen (Penetration Grade Bitumen)
Conventional bitumen, commonly referred to as penetration grade bitumen, is a crucial material in road construction, particularly in flexible pavements. It is classified based on penetration values, such as 30/40, 60/70, and 80/100. These values signify the hardness or softness of the binder, assessed through a standardized penetration test. The penetration grade indicates the binder's temperature susceptibility, making it vital for engineers to select the appropriate grade based on climatic and loading conditions.
In practice, softer grades are more suitable for colder climates, while harder grades can endure higher temperatures typically found in hot regions. Understanding these classifications helps engineers make informed decisions about binder selection to ensure optimal performance and durability of pavement structures under diverse traffic loads. This section emphasizes the importance of penetration grade in determining the suitability of bitumen for specific applications in road construction.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Definition of Conventional Bitumen
Chapter 1 of 2
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
These are straight-run bitumen categorized based on penetration values (e.g., 30/40, 60/70, 80/100).
Detailed Explanation

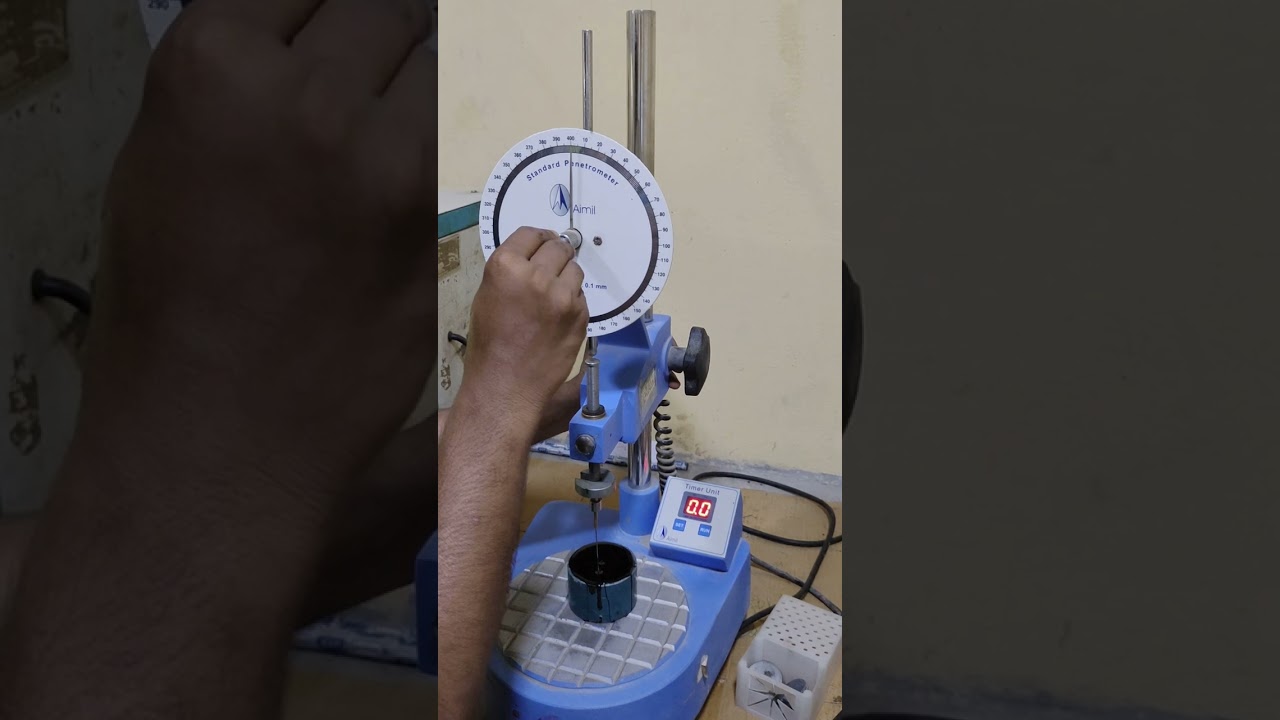

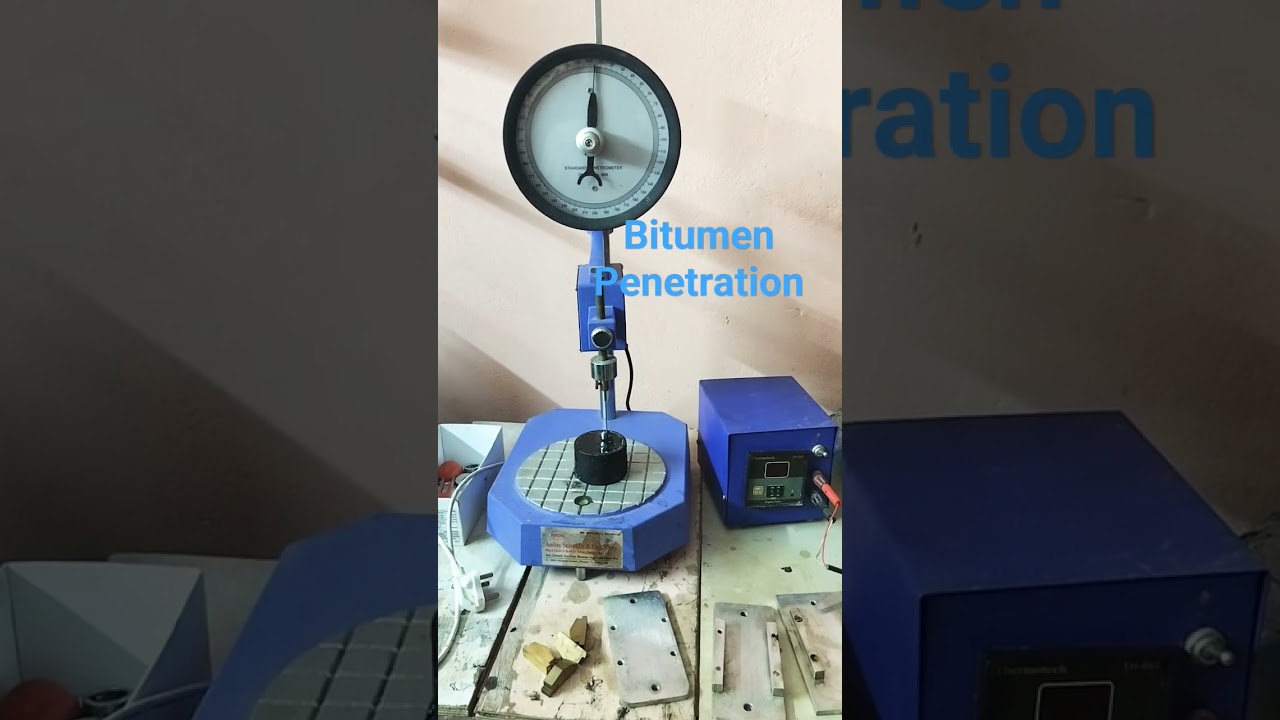

Conventional Bitumen, also known as Penetration Grade Bitumen, is a type of bitumen that is primarily characterized by its penetration values. These values indicate how soft or hard the bitumen is, essentially giving insight into its physical properties. The penetration value means how deep a standard needle penetrates into the bitumen under specific conditions. For instance, a penetration value of 30/40 means that at a certain temperature and under a defined load, the needle penetrates between 3.0 mm to 4.0 mm.
Examples & Analogies
Imagine testing the firmness of a cake with a toothpick. If the toothpick goes in easily, the cake is softer; if it doesn’t go in as far, the cake is firmer. Similarly, in bitumen, a lower penetration value indicates a firmer or harder material, while a higher value represents a softer material. This measurement helps engineers decide which type of bitumen is suitable for different weather conditions and traffic load.
Importance of Penetration Values
Chapter 2 of 2
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Penetration value indicates the hardness or softness of the binder.
Detailed Explanation
The penetration value is essential because it directly influences the binder's performance in various applications. Soft bitumen, with higher penetration values, is more suited for colder climates as it remains flexible, while harder bitumen, characterized by lower penetration values, is used in warmer areas to resist deformation under heat. Understanding these properties allows engineers to choose the right grade for specific environmental conditions, ensuring the durability and effectiveness of road surfaces.
Examples & Analogies
Think of a pair of shoes: soft, flexible shoes are great for walking in the park on a cool day, while stiffer shoes are needed for a hiking trail in a hot climate. Just like choosing the right shoes for comfort and performance, engineers must select the correct grade of bitumen for different roads depending on climate and traffic needs.
Key Concepts
-
Conventional Bitumen: Straight-run bitumen categorized by penetration values.
-
Penetration Value: Indicates the hardness or softness of bitumen essential for road construction.
-
Temperature Susceptibility: Refers to how bitumen reacts to changing temperatures, which impacts its performance.
Examples & Applications
Example 1: A bitumen with a penetration grade of 60/70 is often used in regions experiencing moderate temperature variations.
Example 2: Softer grades, like 80/100, may be utilized in colder climates to improve pavement flexibility.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Soft bitumen for cold, Hard for the heat, Helps our roads hold, Can’t be beat!
Stories
Imagine a busy highway where the pavement must flex and hold. Softer bitumen shines like a hero in winter, while harder grades stand strong in the summer sun.
Memory Tools
Use 'HSH' - Harder for Summer, Softer for Hard Winter.
Acronyms
PHT - Penetration Hardness Temperature.
Flash Cards
Glossary
- Conventional Bitumen
A straight-run bitumen categorized by penetration values, indicating its hardness or softness.
- Penetration Value
A measure of the hardness of bitumen, expressed in tenths of a millimeter under specified test conditions.
- Flexible Pavements
Pavements that can undergo deformation under load without cracking, typically constructed using asphaltic materials.
- Traffic Load
The weight and frequency of vehicles that a road must support, influencing the selection of bituminous binder.
