Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Conventional Bitumen (Penetration Grade Bitumen)
Unlock Audio Lesson
Today, we will discuss the first type of bituminous binder: Conventional Bitumen. Can anyone tell me what penetration values are?
I think they describe how hard or soft the binder is.
Exactly! The penetration grades, such as 30/40 or 60/70, indicate the softness or hardness of the binder. Soft binders are used in colder climates, while harder binders are for warmer areas. Can anyone remember a simple way to recall this?
Maybe 'Soft for Snow, Hard for Heat'?
Perfect! This mnemonic is a great memory aid. Any other questions about conventional bitumen?
What impacts the selection of these grades?
That's a great question! Factors like climate and expected traffic loads are key. Remembering this can help in future projects!
Viscosity Graded Bitumen
Unlock Audio Lesson
Now, let’s talk about Viscosity Graded Bitumen. What do you think distinguishes it from conventional bitumen?
Is it based on viscosity instead of penetration?
Correct! It uses viscosity measurements at specific temperatures, like VG-10 to VG-40. Does anyone see an advantage here?
I guess it could provide better performance predictions.
Exactly! It helps in achieving better correlation with field performance. Can you think of an example where this could be crucial?
In urban areas with heavy traffic, it sounds critical!
Great point! So in urban road designs, considering viscosity grades can lead to better outcomes.
Polymer Modified Bitumen (PMB)
Unlock Audio Lesson
Now, let's examine Polymer Modified Bitumen, or PMB. Why do we add polymers to bitumen?
I think it makes it more flexible and resistant to cracking.
Exactly! Polymers enhance elasticity and fatigue resistance. Can anyone name a specific type of polymer used?
How about Styrene-Butadiene-Styrene, or SBS?
Right! SBS is a common elastomer used in PMB. How do these enhanced properties help in real-world applications?
They would be really useful in high-traffic areas where roads wear out quickly!
Great insight! PMBs really enhance the durability of pavements. Make sure to consider this in future projects as well.
Crumb Rubber Modified Bitumen (CRMB)
Unlock Audio Lesson
Finally, let’s look at Crumb Rubber Modified Bitumen, or CRMB. How is this different from PMB?
It’s made from recycled rubber, right? Like tires?
Absolutely! CRMB not only recycles materials but also enhances elasticity and resistance to cracking. Why is that important?
It could help reduce environmental waste and improve road quality.
Exactly! Using CRMB promotes sustainability in road construction while ensuring better performance. Can anyone summarize what we learned today about CRMB?
CRMB is a binder made from recycled rubber that enhances road durability and is environmentally friendly.
Well said! Each type of bituminous binder has its unique benefits and contexts for use, and understanding these helps make informed decisions as engineers.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section outlines the classification of bituminous binders into conventional bitumen, viscosity graded bitumen, polymer modified bitumen, and crumb rubber modified bitumen, detailing their unique characteristics, usage, and significance in ensuring road durability and performance under different conditions.
Detailed

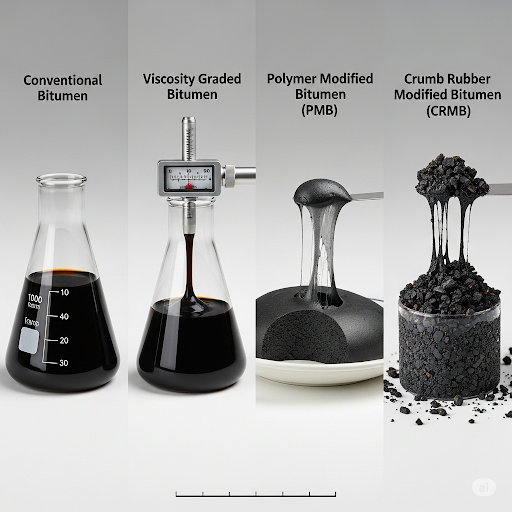

Types of Bituminous Binders
Bituminous binders are essential components of road construction, primarily used to bind aggregates together and ensure the longevity and performance of flexible pavements. This section categorizes these binders into four main types:
- Conventional Bitumen (Penetration Grade Bitumen): Characterized by penetration values (like 30/40, 60/70, and 80/100), this type is used widely based on its hardness or softness, affecting its performance under varying conditions.
- Viscosity Graded Bitumen: This type replaces penetration grading in many regions, presenting better performance correlations. It is classified based on viscosity measurements at specific temperatures (VG-10 to VG-40).
- Polymer Modified Bitumen (PMB): Enhanced with polymers (like SBS, SBR, EVA), PMB provides improved elasticity, temperature susceptibility, and resistance to fatigue, making it suitable for high-performance applications.
-
Crumb Rubber Modified Bitumen (CRMB): By modifying bitumen with recycled rubber from tires, CRMB boosts elasticity and increases resistance to rutting and cracking.
These classifications are critical for engineers when selecting appropriate binders for different road conditions and types, ensuring optimal performance, longevity, and safety.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Conventional Bitumen (Penetration Grade Bitumen)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• These are straight-run bitumen categorized based on penetration values (e.g., 30/40, 60/70, 80/100).
• Penetration value indicates the hardness or softness of the binder.
Detailed Explanation
Conventional Bitumen is a basic form of bitumen that is classified using penetration values, which determine how soft or hard the bitumen is. For example, a lower penetration value (like 30/40) indicates that the bitumen is harder, while higher values (like 80/100) suggest it is softer. This classification helps engineers choose the right binder for specific road conditions and climates.
Examples & Analogies
Think of it like selecting ice cream: if you want a firmer texture, you'd go for a hard ice cream (like gelato), while a softer texture (like soft serve) fits a different occasion. Similarly, different penetration grades of bitumen fit different pavement requirements.
Viscosity Graded Bitumen
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Classified based on viscosity measurements at standard temperatures (VG-10, VG-20, VG-30, VG-40).
• Replaces penetration grading in many countries due to better performance correlations.
Detailed Explanation
Viscosity Graded Bitumen offers a more precise classification based on its viscosity at specific temperatures, making it easier to anticipate how the binder will behave under those conditions. The VG grades indicate increasing viscosity with the numbers (VG-10 is less viscous than VG-40). This method has largely replaced penetration grading because it provides a better understanding of the material's performance in various climates.
Examples & Analogies
Imagine driving a vehicle: in winter, you need a different oil viscosity compared to the summer. Similarly, viscosity graded bitumen ensures that the binder is optimally suited to withstand varying weather conditions.
Polymer Modified Bitumen (PMB)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Bitumen modified with polymers like SBS, SBR, EVA, etc.
• Improves elasticity, temperature susceptibility, and fatigue resistance.
• Types include PMB-40, PMB-70, etc.
Detailed Explanation
Polymer Modified Bitumen is a type of bitumen enhanced with polymers to improve its properties. This modification increases its elasticity, making it more adaptable to temperature changes and resistant to fatigue from repeated traffic loads. The numbers in PMB types signify different performance characteristics, with higher numbers usually indicating better performance.
Examples & Analogies
Think of PMB as adding a stretchy fabric to a regular shirt to make it more flexible and comfortable. Just as the added fabric improves the wearability of the shirt, polymers enhance the performance of the bitumen.
Crumb Rubber Modified Bitumen (CRMB)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Bitumen modified with recycled rubber from tires.
• Enhances elasticity, resistance to rutting and cracking.
Detailed Explanation
Crumb Rubber Modified Bitumen incorporates finely ground rubber from used tires into the bitumen, improving its elasticity and ability to withstand surface deformation and cracking. This type of binder is particularly beneficial for roads experiencing heavy traffic and extreme temperature fluctuations.
Examples & Analogies
Think of CRMB like adding rubber bands to a stretched-out elastic band: the rubber bands help maintain the shape and strength. Just as this maintains the elasticity of the band, the recycled rubber strengthens the bitumen's ability to endure stress.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Conventional Bitumen: Classified by penetration values; determines suitability based on hardness level.
-
Viscosity Graded Bitumen: Replacement for penetration grades with better performance correlations.
-
Polymer Modified Bitumen: Enhanced binder type that increases elasticity and fatigue resistance.
-
Crumb Rubber Modified Bitumen: Sustainable option derived from recycled tires, improving elasticity and performance.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Conventional bitumen is used on highways where varying traffic loads are expected, ensuring flexibility and strength.
-
Polymer Modified Bitumen is preferred in urban areas with heavy traffic due to its resilience to wear and weathering.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Conventional bitumen, hard or soft, for roads that won't aloft.
📖 Fascinating Stories
-
Once there was a road binding adventure where conventional, viscosity, PMB, and CRMB teamed up to create the strongest pavement, each playing their unique role.
🧠 Other Memory Gems
-
C-V-P-C: Conventional, Viscosity, Polymer, Crumb. Remember these four to recall the types quickly.
🎯 Super Acronyms
R-E-P-C
- **R**ubber
- **E**lastomer
- **P**olymer
- **C**lassification. Helps remember different types based on material.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Conventional Bitumen
Definition:
A type of bitumen categorized based on penetration values indicating its hardness or softness.
-
Term: Viscosity Graded Bitumen
Definition:
Bitumen classified based on viscosity measurements, replacing penetration grading in many countries.
-
Term: Polymer Modified Bitumen (PMB)
Definition:
Bitumen enhanced with polymers to improve its elasticity, temperature susceptibility, and resistance to fatigue.
-
Term: Crumb Rubber Modified Bitumen (CRMB)
Definition:
Bitumen modified with recycled rubber, enhancing its elasticity and resistance to cracking.
