16.6. Laying and Compaction of Concrete
Learn content
Interactive Audio Lesson
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Today, we will start by discussing the equipment used in laying and compacting concrete. Who can tell me what types of machines are involved in this process?
I think we use paver machines!
Exactly! Paver machines help us lay down concrete in panels. There are two types: slip-form and fixed-form. Can anyone describe the difference?
Slip-form is continuous, while fixed-form has set boundaries.
Great! And what about vibrators? What is their role in this process?
They help to compact the concrete to remove air voids.
Correct! Vibrators are essential for ensuring that the concrete is dense and properly compacted. Remember, we don’t want any air spaces that could weaken our pavement!
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Now let’s talk about the laying process. After we prepare our area and set our forms, how do we actually lay the concrete?
We pour the concrete into the forms, right?
Yes, and after pouring, we need to compact it thoroughly. Can you tell me why this is important?
To eliminate air voids and make sure it's strong!
Exactly! Skipping this step can lead to cracking and structural failure. What’s our next step after laying the concrete?
We have to screed it to make sure the surface is level!
Spot on! Screeding is critical for surface level control. Remember, maintaining a level surface is key for pavement performance.
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Let’s now focus on edge support. Why do you think temporary side forms are important?
They help keep the edges stable until it's cured!
That’s right! If the edges are not properly supported, we could see deformation. What characteristics should these forms have?
They should be rigid and properly aligned!
Exactly! This alignment is crucial for ensuring the quality of the finished pavement. Remember: stable edges equal a stable structure!
Overview
Short Summary
This section discusses the procedures and equipment used for laying and compacting concrete to ensure structural integrity.
Medium Summary
In this section, we explore the methods of laying concrete pavements, the necessary equipment involved, and the importance of proper compaction. Key procedures such as concrete panel laying, effective vibration to eliminate air voids, and the use of edge support for structural stability are emphasized.
Detailed Summary
Laying and Compaction of Concrete

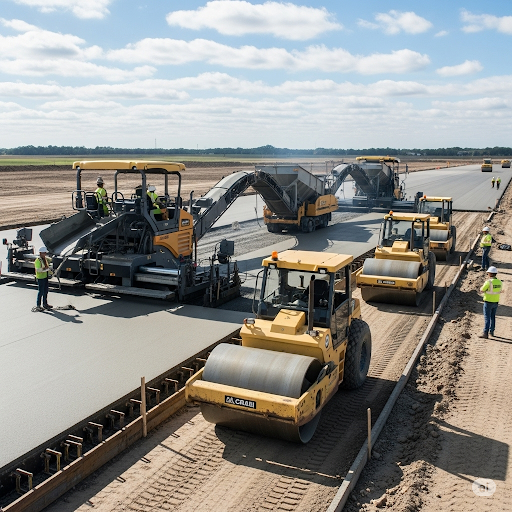

In the construction of cement concrete pavements, the laying and compaction processes are critical to achieving the desired structural integrity. The main equipment used includes paver machines, either slip-form or fixed-form types, and vibrators, which can be needle or surface vibrators.
Key Points:
- Paver Machines: These machines are essential to laying concrete in a precise and uniform manner. Slip-form pavers provide continuous paving without joints, while fixed forms handle more standard applications.
- Compaction Process: After laying the concrete in panels, it must be thoroughly vibrated to eliminate air voids that could weaken the structure. This vibration ensures that the concrete is dense and achieves the correct strength.
- Edge Support: Temporary side forms or pre-set forms are necessary to maintain the stability of the pavement edges during the curing process. These forms must be rigid and aligned accurately to prevent any deformation of the concrete edges.
Overall, mastering these techniques is crucial for achieving high-quality concrete pavements.

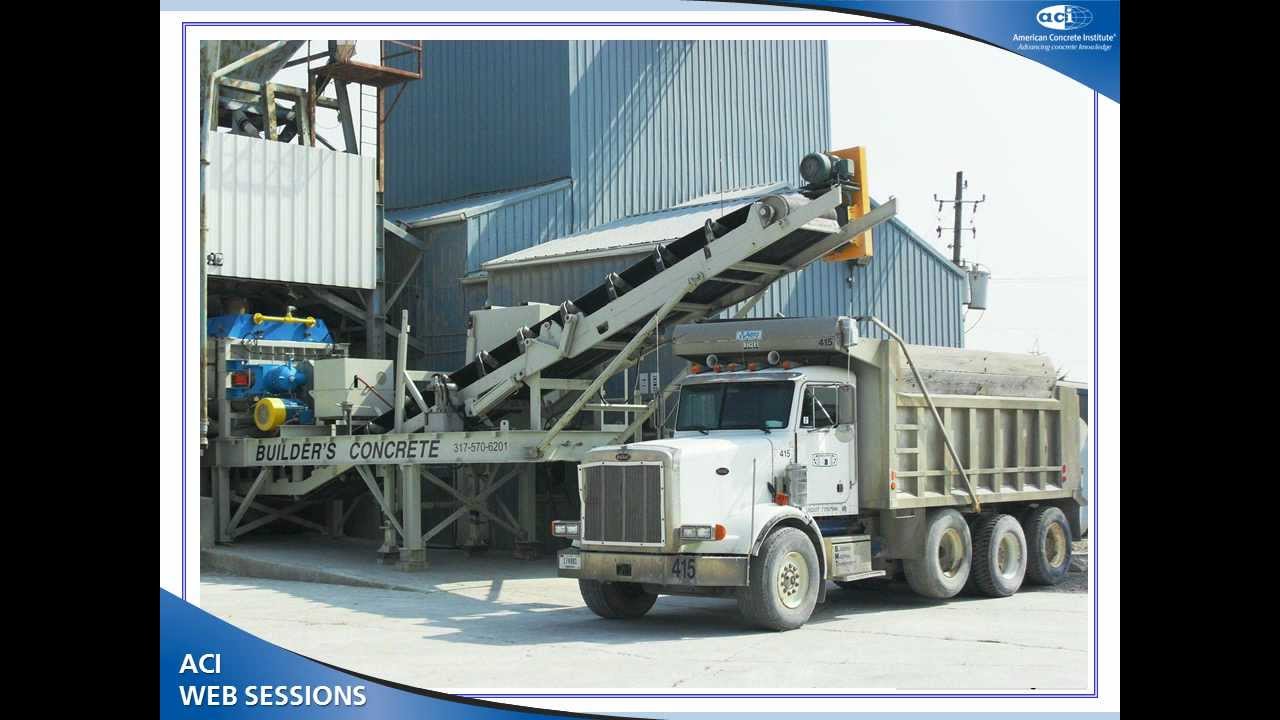

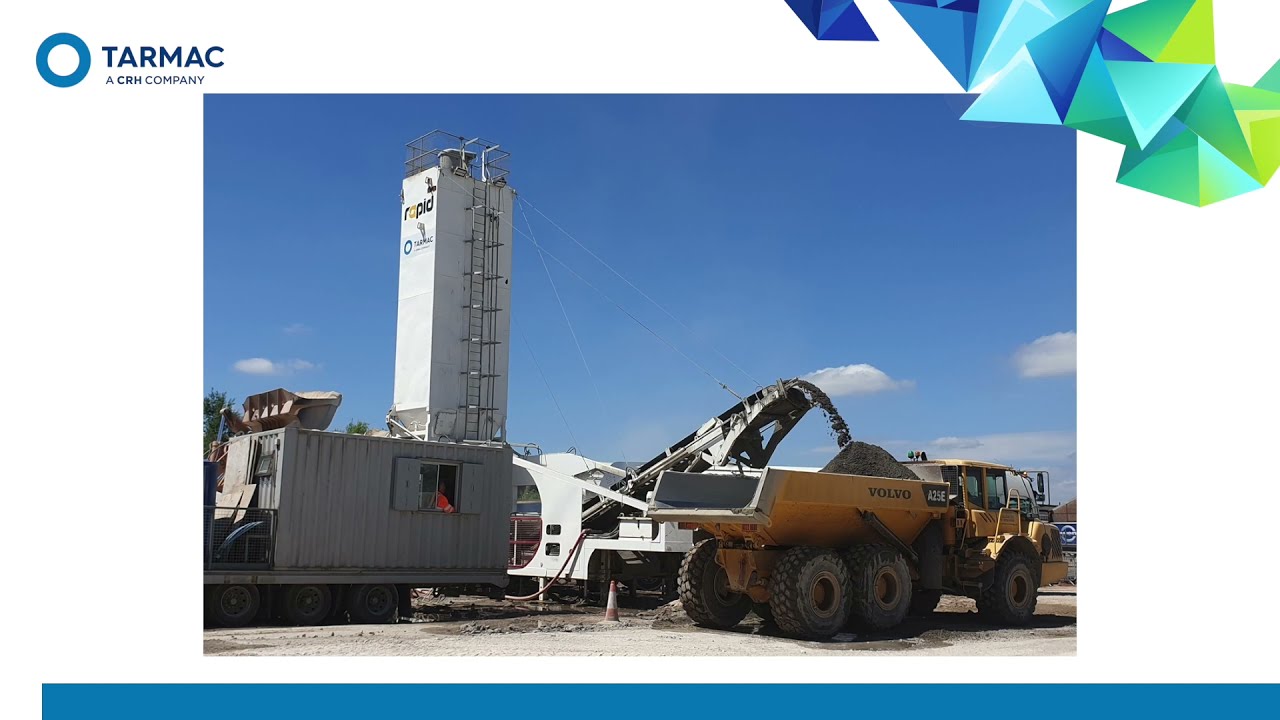

Reference YouTube Videos
Audio Book
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free account• Paver machines (slip-form or fixed-form types) • Vibrators (needle or surface vibrators)
Detailed Explanation
In this step, we discuss the types of equipment used in the laying and compaction of concrete. Paver machines are essential for spreading concrete efficiently across the pavement. There are two main types: slip-form and fixed-form pavers. Slip-form pavers continuously shape the concrete as they move forward, allowing for seamless paving without forming joints, while fixed-form pavers use preset forms to maintain the shape. Additionally, vibrators, which can be either needle or surface types, are employed to eliminate air voids in the concrete, ensuring a dense and strong pavement.
Examples & Analogies
Imagine the way a baker uses different tools to prepare dough. Just as a baker uses a rolling pin for flattening and shaping dough, pavers shape the concrete for a road. Vibrators act like a whisk, ensuring that the mixture is smooth and free of bubbles, resulting in a stronger final product.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free account• Concrete laid in panels • Compacted and vibrated thoroughly to eliminate air voids • Screeding for surface level control
Detailed Explanation
The procedure for laying concrete involves several key steps. First, the concrete is laid in panels, which can be of varying sizes depending on design requirements. After laying the concrete, the next crucial step is compaction. Compaction is achieved by using vibrators to remove air pockets, enhancing the density and strength of the concrete. Finally, screeding is performed, which involves leveling the surface of the concrete to ensure a smooth and even finish. This step is critical because it determines the final quality of the pavement surface.
Examples & Analogies
Think of laying and shaping concrete like making a large pizza. You spread out the dough into a circular shape (laying in panels), press down on it to remove air pockets (compacting), and then use a roller to ensure it's even all around (screeding). Each step is important to ensure the 'pizza' turns out perfectly!
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free account• Temporary side forms or pre-set forms ensure edge stability • Forms must be rigid and properly aligned
Detailed Explanation
Edge support during the concrete laying process is essential to maintain the shape and integrity of the pavement. Temporary side forms or pre-set forms are used to define the edges of the concrete pour. These forms need to be rigid and properly aligned to prevent the concrete from spilling and to ensure that the edges remain stable while the concrete sets. Proper edge support is crucial for both aesthetic purposes and structural integrity.
Examples & Analogies
Imagine building a sandcastle at the beach. When you build the walls of the castle, you use a mold or form to shape it. If the wall isn’t supported properly, it can collapse or lose its shape. Similarly, the side forms act like a mold for the concrete to keep it stable until it hardens.
--
Key concepts
Core takeaways and short definitions to help you quickly recall the key ideas from this section.
- Paver Machines:
Essential equipment for laying concrete in either continuous or fixed formats.
- Compaction:
A crucial step that ensures the structural integrity of the concrete by removing air voids.
- Edge Support:
Temporary forms that provide structural integrity to the pavement's edges during curing.
Examples
Step-by-step examples to apply the section's ideas and test your understanding.
Example 1: Laying concrete for a city sidewalk using fixed-form pavers ensures straight edges and a smooth finish.
Example 2: A construction team using slip-form machines for continuous highway pavement to reduce joints and enhance durability.
Memory aids
When you pave and lay it right, make it dense with all your might, edge forms help stay strong and tight!
In a city where concrete roads were vital, a team of builders learned to lay edges and compact well. Their supervisor told them, 'Remember, each step is key; from paver machines to the final screed, every action protects our concrete road and all the travelers in need!'
Flash Cards
Glossary
Paver Machines
Machines used to lay concrete in panels, available in slip-form and fixed-form types.
Compaction
The process of densifying concrete by removing air voids, usually done through vibrating techniques.
Edge Support
Temporary structures that maintain the integrity of the concrete edges during curing.
