16.2. Materials Used in Cement Concrete Pavement
Learn content
Interactive Audio Lesson
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Today, we will learn about one of the primary materials in cement concrete pavements: cement itself. What can you tell me about Ordinary Portland Cement, or OPC?
I know it's the most common type of cement used for concrete.
Correct! OPC comes in two grades: 43 and 53. Can anyone tell me which standards apply to these grades?
IS: 269 and IS: 12269!
Exactly! Always ensure the cement is fresh and stored properly to maintain its quality. Remember the acronym FRESH: F for Fresh, R for Reliable standards, E for Effective storage, S for Strength, and H for Hydration. What do you think happens if the cement isn’t stored well?
It might lose its strength and not bind properly!
Great insight! Proper storage is crucial for performance.
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Let’s shift our focus to aggregates. We have two types: coarse and fine aggregates. What materials are generally considered coarse aggregates?
I believe crushed stone is used as coarse aggregate.
Exactly! Coarse aggregates should be angular in shape, and usually no larger than 20 mm. What about fine aggregates?
Fine aggregates include sand or crushed stone sand.
Very good! And both types must conform to IS: 383 and be free from any harmful substances. Let's remember CAFF: C for Coarse aggregates, A for Angular shape, F for Fine aggregates, F for Free from impurities.
That helps me remember! What do we mean by impurities?
Impurities could be anything like clay, silt, or organic matter that could weaken the concrete. It’s crucial to assess the aggregate quality!
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Now, let’s talk about water - a critical component in concrete. What do we need to ensure about the water we use?
It should be potable and free from contaminants like oils or acids.
Exactly! Contaminated water can severely affect hydration and strength. Let's recall PFC: P for Potable, F for Free from contaminants, and C for Compliance with standards like IS: 456. Why is using the right quality of water important?
It ensures the concrete will set correctly and have good strength.
Spot on! Water plays a pivotal role in determining the concrete's performance.
Unlock the classroom podcast
The transcript is free to read. A free account plays the conversation back.
Lastly, let’s cover admixtures. Can someone explain what admixtures are?
They are materials added to the concrete to improve certain properties.
Correct! Examples include water reducers and superplasticizers. We can use the mnemonic DAM: D for Durability, A for Admixtures, M for Mix properties. Can you give me an example of an admixture and its purpose?
A superplasticizer helps improve the workability of concrete.
Exactly! Admixtures enhance the concrete's performance, especially against freeze-thaw issues. Understanding their role is vital for effective pavement construction.
Overview
Short Summary
This section outlines the key materials used in the construction of cement concrete pavements, focusing on cement, aggregates, water, and admixtures.
Medium Summary
In this section, we discuss the essential materials incorporated in cement concrete pavement construction, specifically detailing the types of cement, aggregates, water quality, and various admixtures, along with standards for selection and application.
Detailed Summary
Detailed Summary

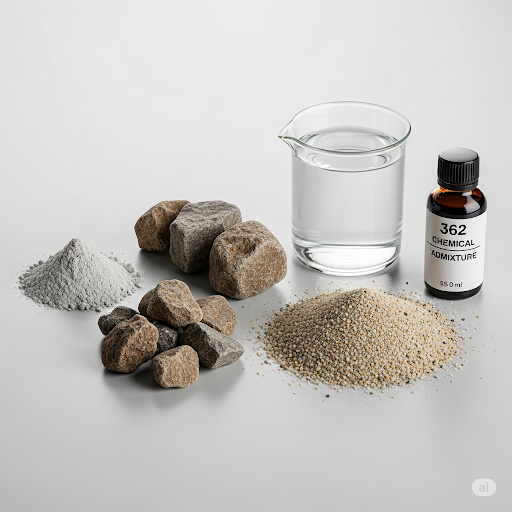

Cement concrete pavements are constructed using a variety of materials that provide strength, durability, and workability. The main components of cement concrete pavements include:
1. Cement
The primary binding material used in concrete is Ordinary Portland Cement (OPC), available in grades 43 and 53. The cement must conform to IS: 269 or IS: 12269 standards and should be fresh and properly stored to maintain its effectiveness.
2. Aggregates
- Coarse Aggregates: These typically involve crushed stone, and must be angular in shape for effective load transfer, with a usual size of 20 mm or smaller.
- Fine Aggregates: These may include natural sand or crushed stone sand and must conform to IS: 383, being free from any deleterious materials that could affect the concrete’s properties.
3. Water
Water used in cement concrete must be potable and free of oils, acids, alkalis, salts, and organic matter, as per the guidelines in IS: 456. It is crucial for ensuring proper hydration and strength of the concrete mix.
4. Admixtures
Various admixtures like water reducers, retarders, superplasticizers, and air-entraining agents can be added to improve the workability, durability, and freeze-thaw resistance of the concrete. These additives can significantly enhance the performance of the concrete under various conditions.
Understanding the specifications and standards for these materials is vital to ensure the longevity and durability of cement concrete pavements.
Reference YouTube Videos
Audio Book
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free account16.2.1 Cement
- Ordinary Portland Cement (OPC) – 43 or 53 grade
- Should conform to IS: 269 or IS: 12269
- Should be fresh and stored properly
Detailed Explanation
Cement is a vital material in the construction of cement concrete pavements. The most common type used is Ordinary Portland Cement (OPC), which comes in two grades: 43 and 53. These grades refer to the compressive strength that the concrete can achieve. The cement must meet specific standards, such as IS: 269 or IS: 12269, which are guidelines established to ensure quality and performance. It is crucial that the cement is fresh, meaning it hasn't been stored for extended periods in poor conditions, as this can affect its strength and properties.
Examples & Analogies
Think of cement like flour in baking; just as using old flour can make your bread less fluffy, using old or improperly stored cement can weaken the pavement structure and lead to early deterioration.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free account16.2.2 Aggregates
- Coarse Aggregates: Crushed stone, angular in shape; size usually 20 mm down
- Fine Aggregates: Natural sand or crushed stone sand
- Conforming to IS: 383
- Free from deleterious materials
Detailed Explanation
Aggregates are classified into coarse and fine aggregates. Coarse aggregates are typically crushed stones that have an angular shape and are generally about 20 mm in size. Fine aggregates are usually natural sand or crushed stone sand. For the aggregates to be suitable for use in concrete pavement, they must conform to standards like IS: 383, ensuring they meet quality benchmarks. Additionally, it is essential that these aggregates are free from harmful substances, known as 'deleterious materials', which could impact the concrete's durability and performance.
Examples & Analogies
Imagine making a smoothie; using fresh fruits (good aggregates) makes for a tasty drink, while using rotten fruits (deleterious materials) can spoil the flavor and texture. Just like in smoothies, good aggregates are fundamental to achieving a strong and long-lasting pavement.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free account16.2.3 Water
- Potable water free from oils, acids, alkalis, salts, and organic matter
- As per IS: 456
Detailed Explanation
Water is another crucial component in the mix. It must be potable, meaning it is safe for drinking and free from any contaminants like oils, acids, alkalis, salts, and organic matter. These impurities can compromise the chemical reactions that occur when mixing with cement, affecting the final strength and durability of the pavement. The standards for water quality are outlined in IS: 456 to ensure consistency and reliability in pavement construction.
- Chunk Title: Admixtures
- Chunk Text: ### 16.2.4 Admixtures
- Water reducers, retarders, superplasticizers, or air-entraining agents
- Improves workability, durability, and resistance to freeze-thaw
- Detailed Explanation: Admixtures are additional materials added to the concrete mix to enhance specific properties. They include water reducers, which decrease the amount of water needed; retarders, which slow down the curing process; superplasticizers, which improve workability without adding more water; and air-entraining agents, which create tiny air bubbles that improve freeze-thaw resistance. Including these admixtures can significantly improve the overall quality of the pavement, making it more durable and easier to work with.
Examples & Analogies
No real-life example available.
Key concepts
Core takeaways and short definitions to help you quickly recall the key ideas from this section.
Cement = Binding agent, usually OPC which is crucial for concrete strength.
Aggregates = Coarse (crushed stone) and fine (sand) materials that must be clean and conform to standards.
Water = Integral for hydration; must be potable and free of impurities.
Admixtures = Enhance properties like workability and durability, can be essential for high-performance concrete.
Examples
Memory aids
Cement sets, aggregates play, clean water paves the way, admixtures join the fray, for strong roads we lay!
Once, in a construction land, a builder gathered OPC, coarse crushed stone, fine sand that felt just right, along with pure water – clear and bright. Adding admixtures, making concrete splendid, they laid down roads, durability bended.
Remember CAGE-WA: C for Cement, A for Aggregates, G for Grades, E for Everything clear, W for Water, and A for Admixtures.
Flash Cards
Glossary
Ordinary Portland Cement (OPC)
A common type of cement used in construction, available in grades 43 and 53.
Aggregates
Materials, including coarse and fine aggregates, used in concrete for strength and stability.
Potable Water
Water that is safe for drinking and free from contaminants affecting concrete properties.
Admixtures
Additives used to enhance the properties of concrete mixtures.
